IG.100349

TB50 for ALEXA 35

$790.00 AUD

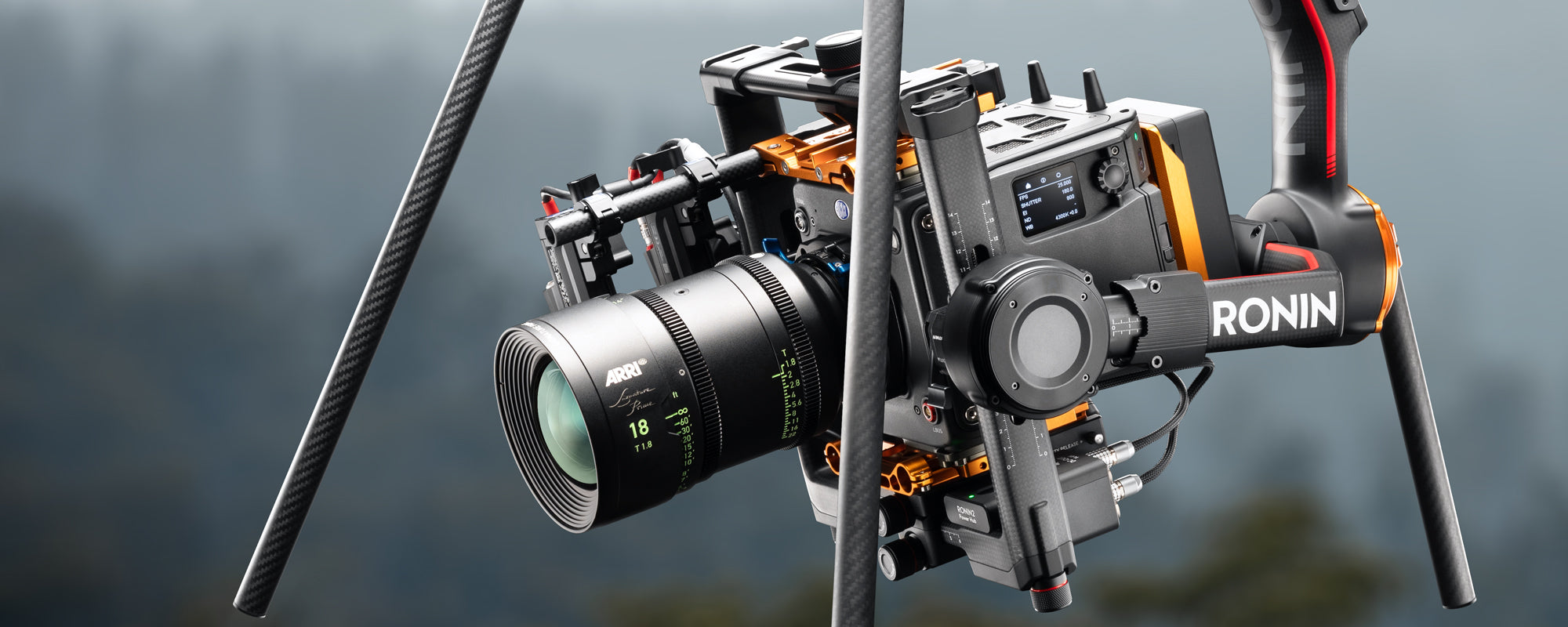

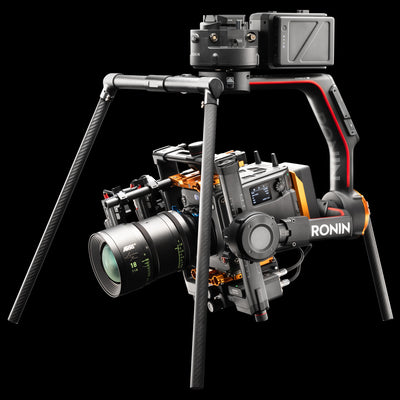

Developed for teams running ALEXA 35 on Ronin 2, with heavy lift drones, MotoCrane or U-Crane (Russian Arm) camera systems.

Our popular Ronin 2 to ALEXA 35 power cable although useful, does limit pan rotations and becomes a safety hazard in those use cases.

This lightweight battery solution enables teams to use their existing fleet of TB50 batteries, deliver reliable high-voltage to ALEXA 35, and maintain full pan and tilt control.

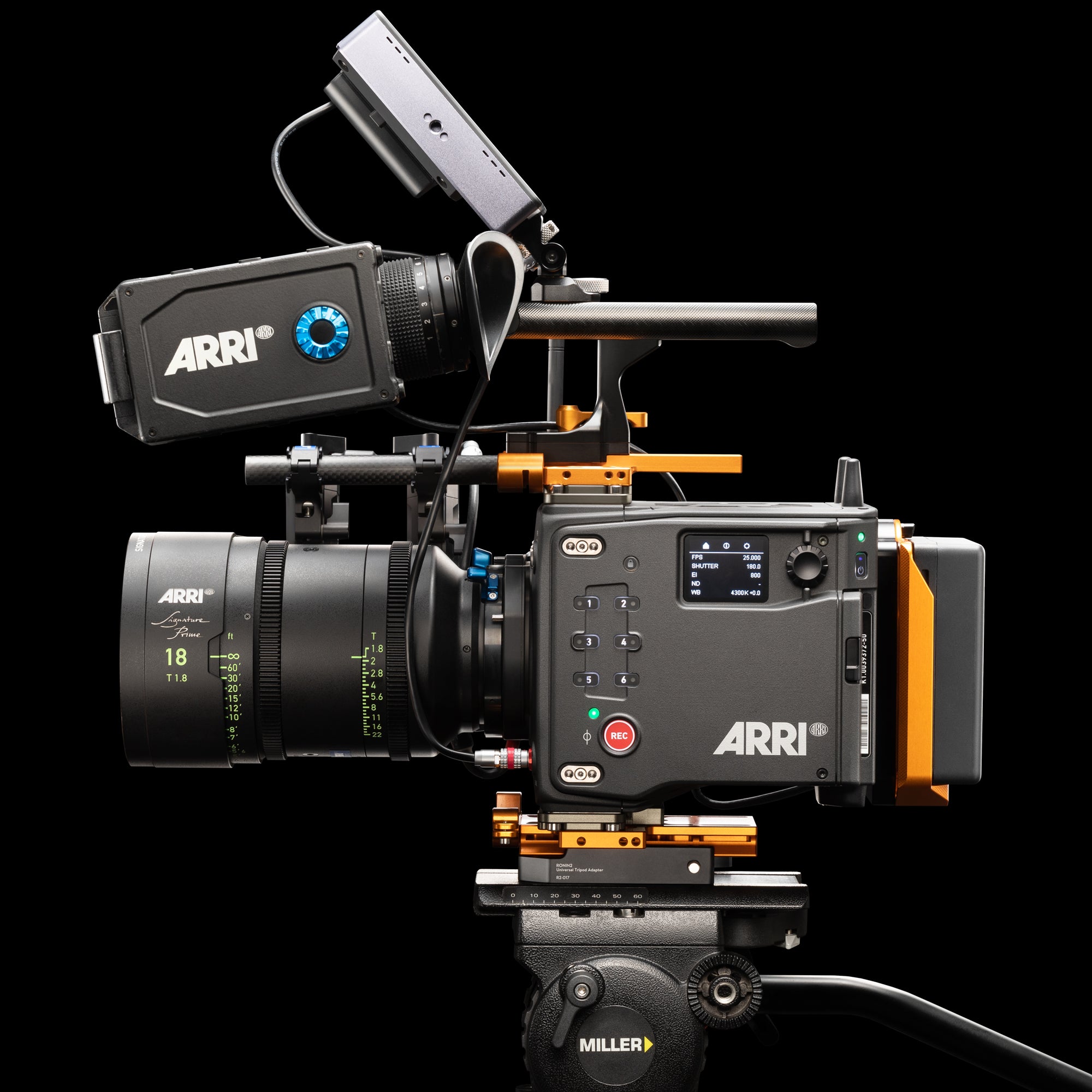

Also useful for those looking for a cost effective, compact handheld and tripod rig!

Scroll ↓ for more info.

KEY FEATURES

• Delivers 20-25.5V to ALEXA 35

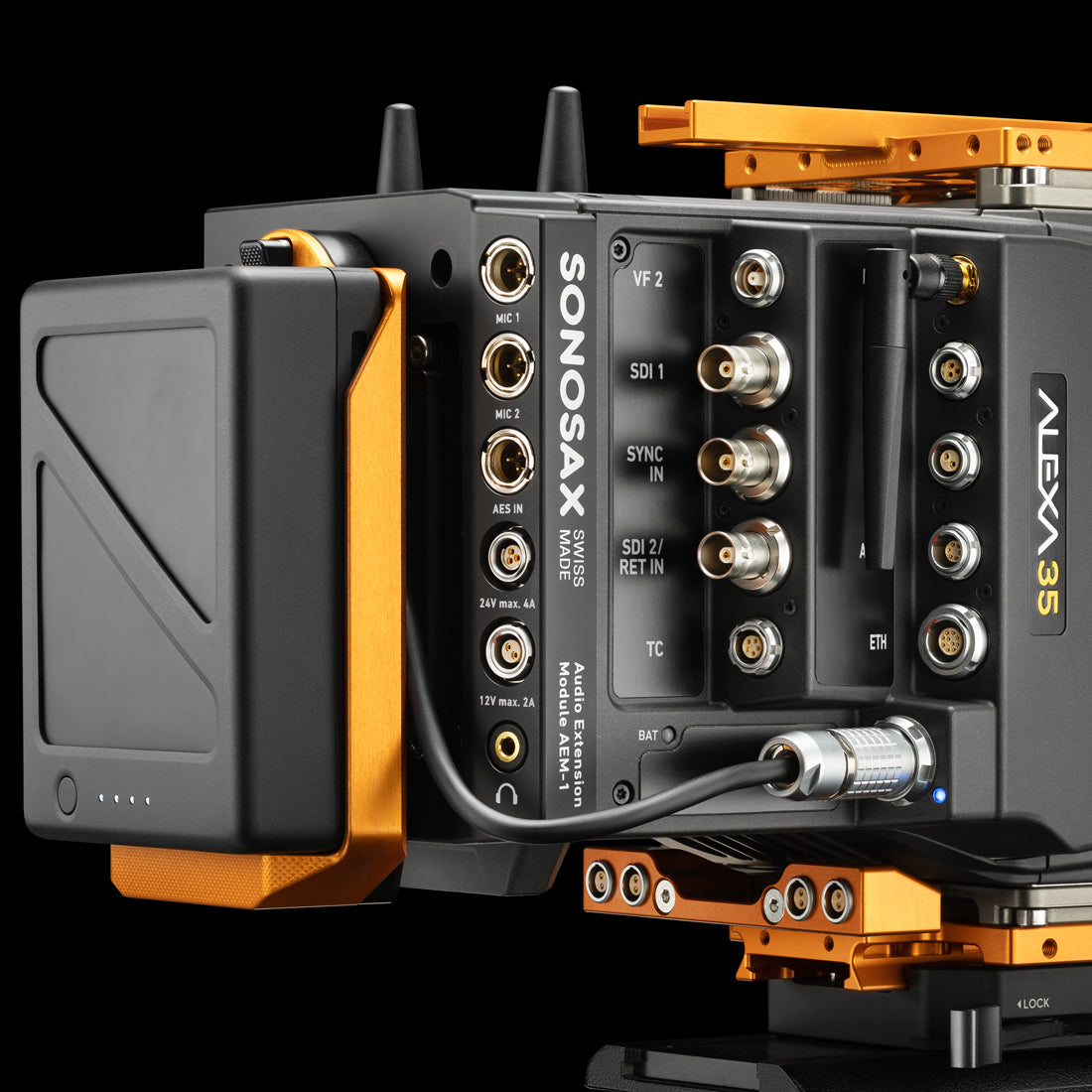

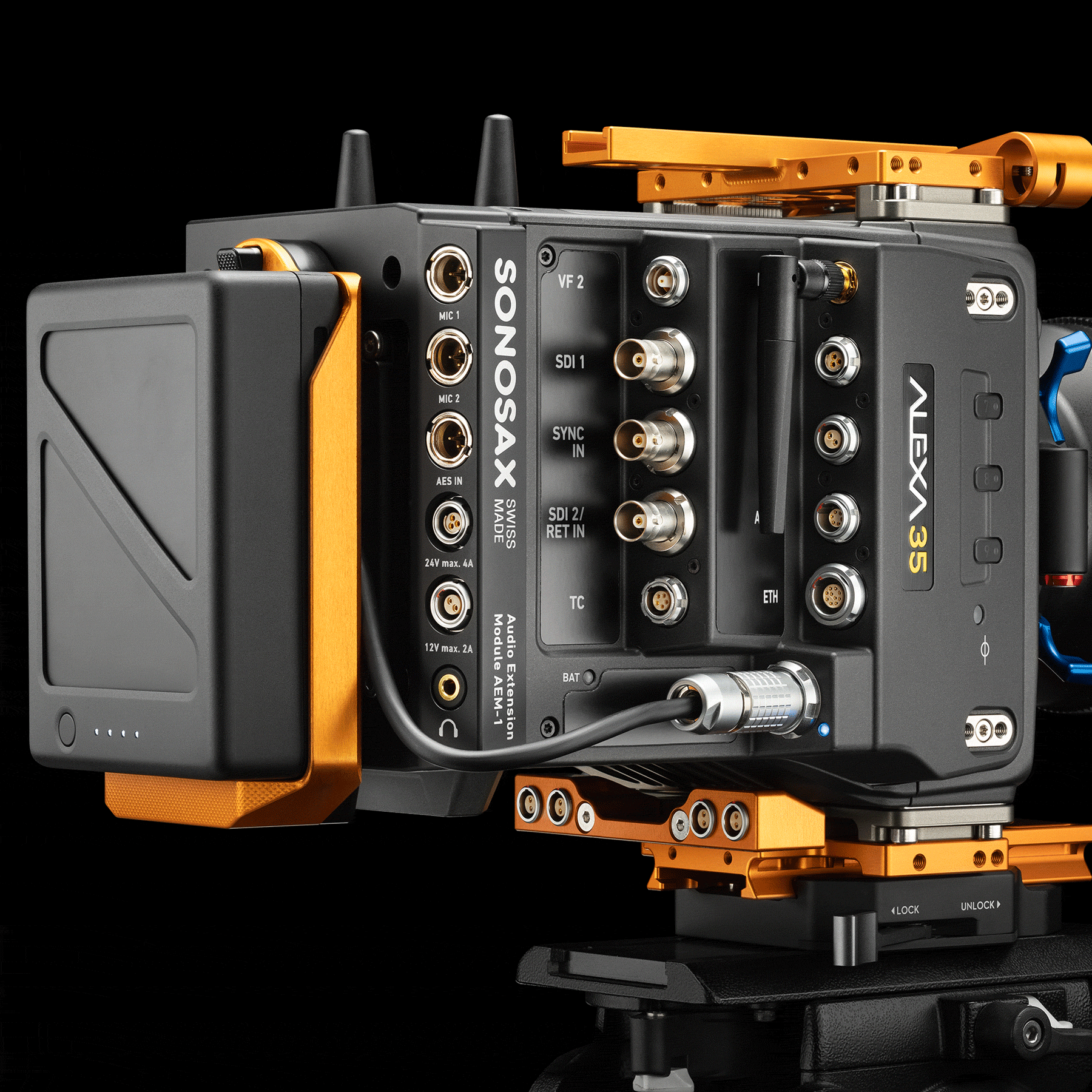

• 2-Pin Lemos & 3-Pin Fischers on camera, PDM-1 & AEM-1 remain powered

• Fits within Ronin 2 gimbal cage

• Use existing TB50 batteries + charging solutions

• At 97.58Wh, TB50's are carry-on air travel safe

• Made from premium materials

INSTALLATION

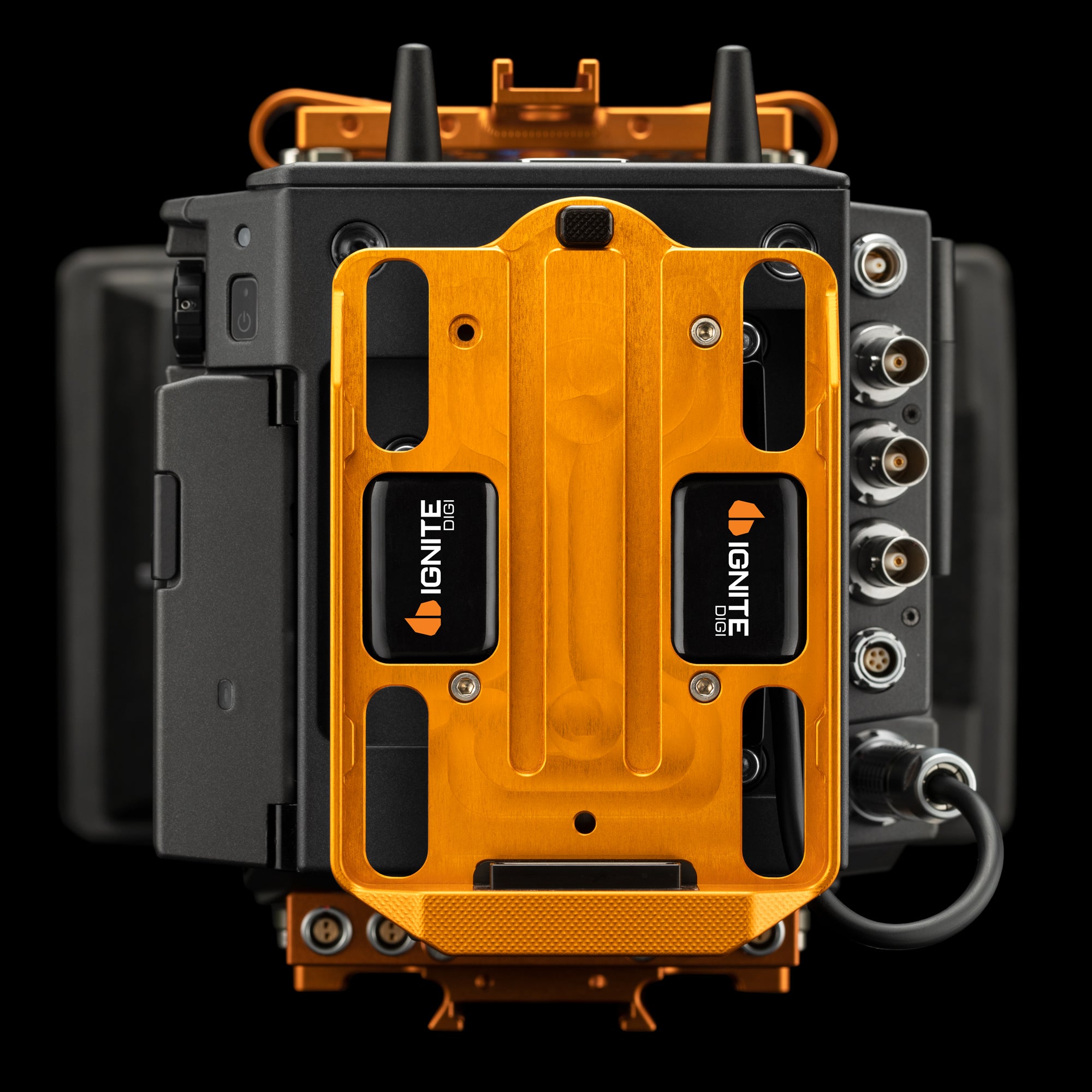

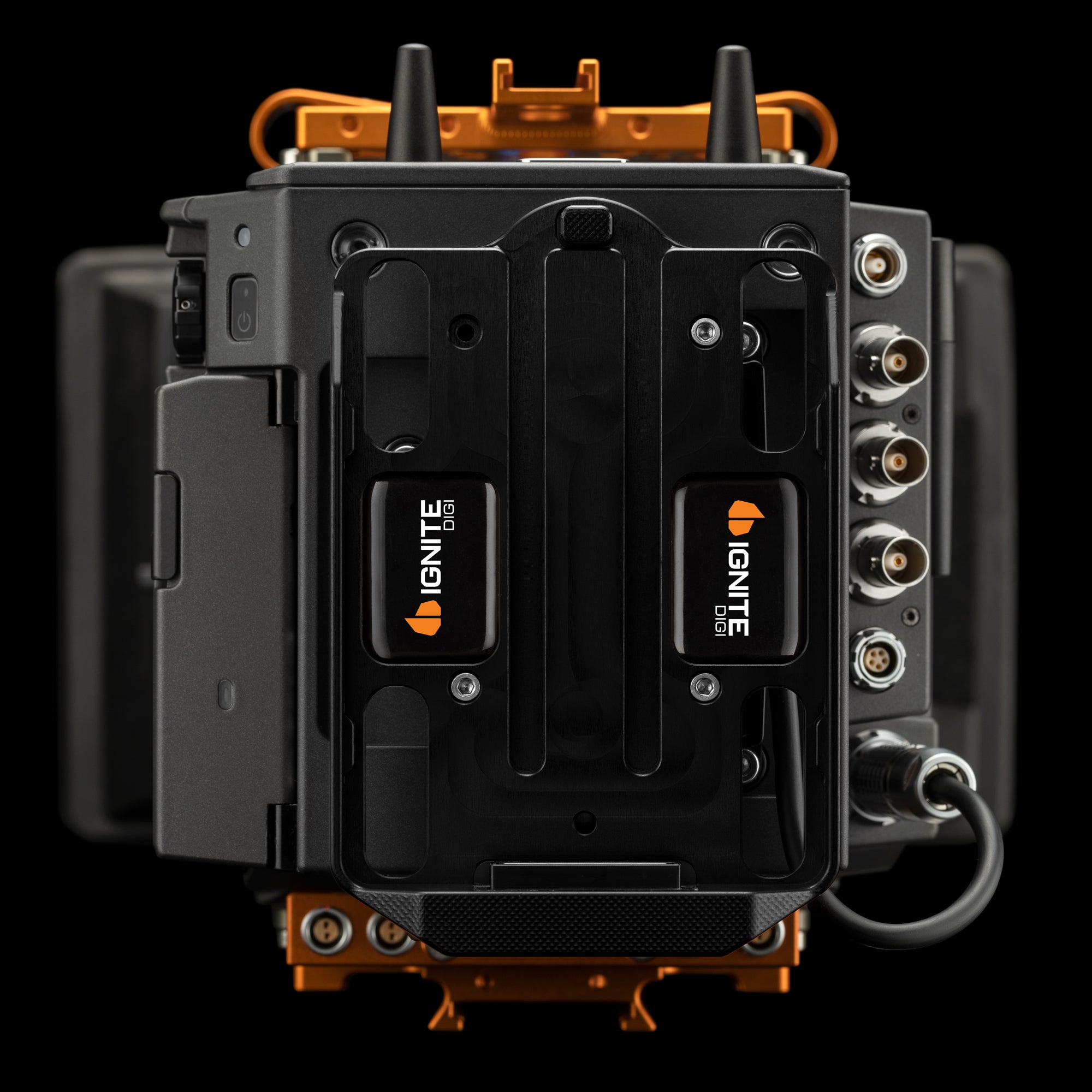

1. Seperate the Ignite TB50 Battery Plate from the Mounting Bracket

2. Remove the bebob B-Mount Adapter from the recessed area at the back of the camera or modules PDM-1 / AEM-1

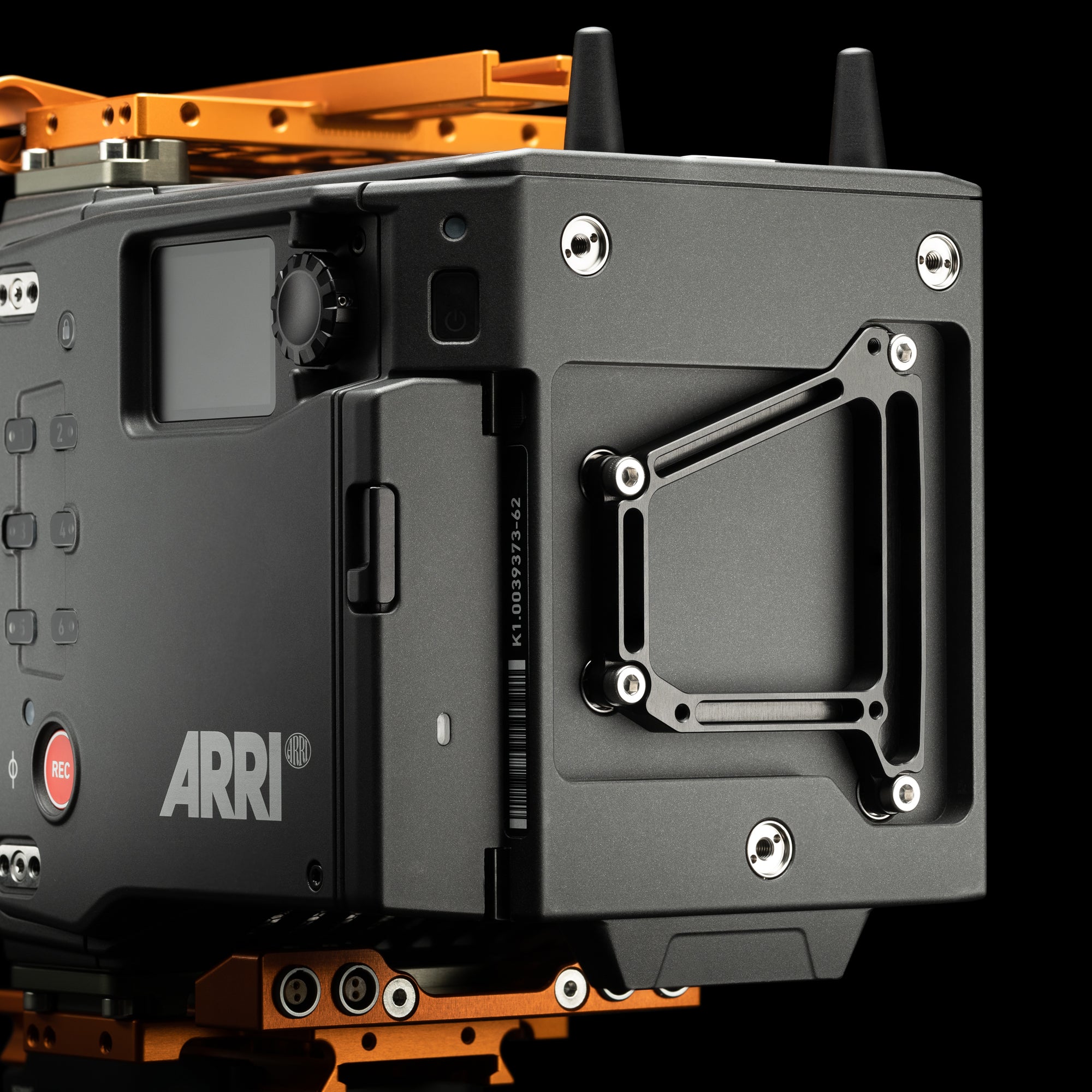

3. Mount the Ignite Mounting Bracket with four M4 x 8mm socket head cap screws

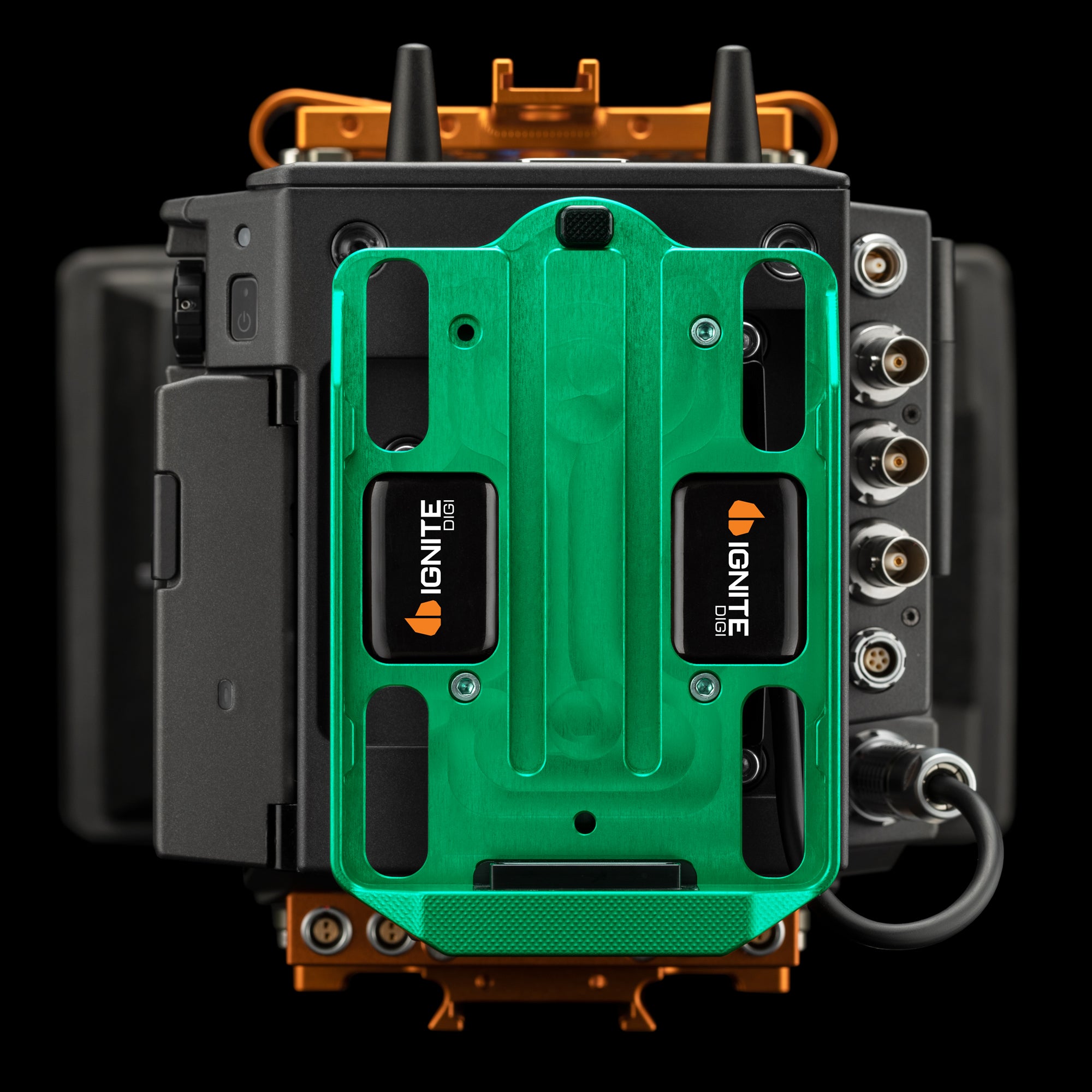

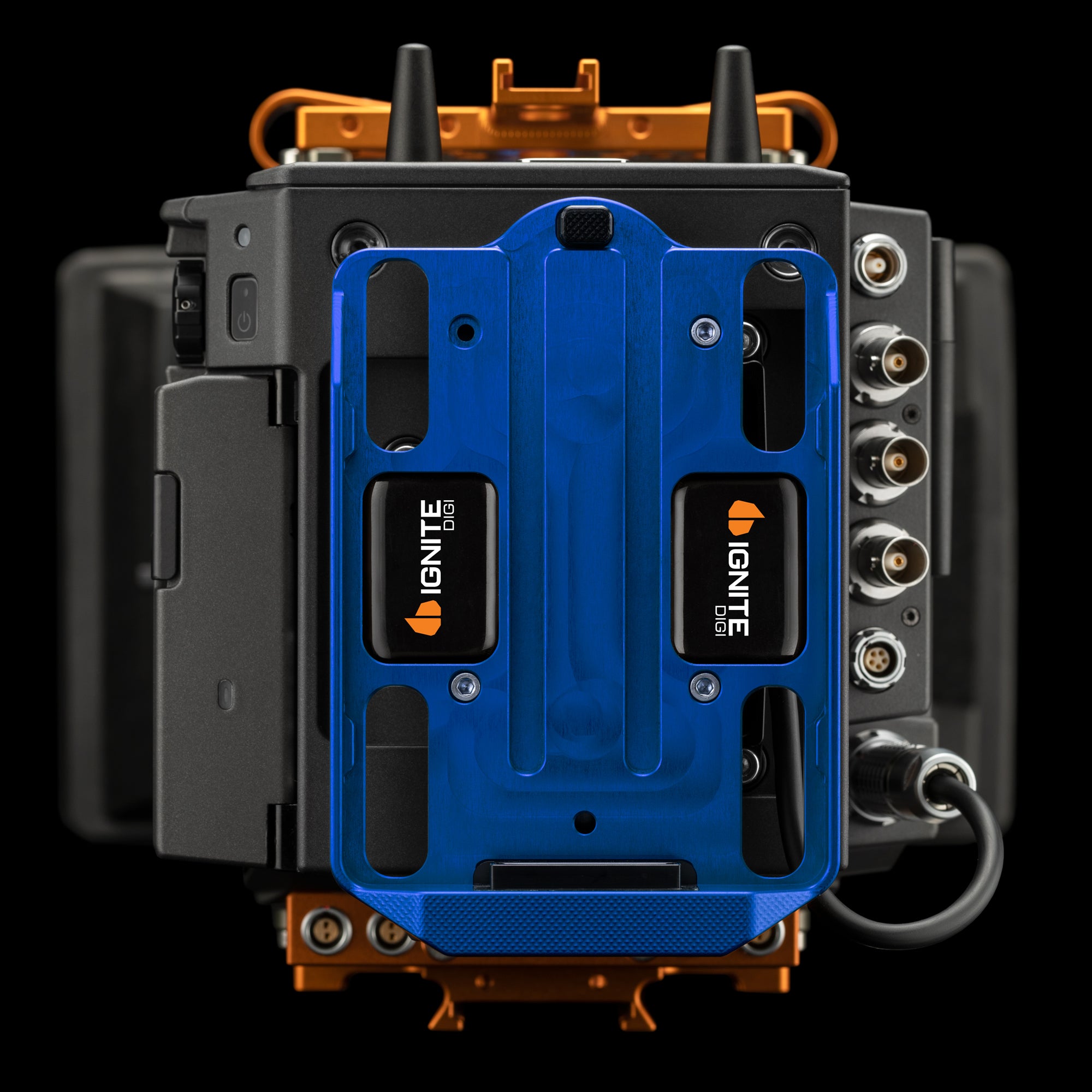

4. Then attach the TB50 Plate with three M3 x 16mm socket head cap screws

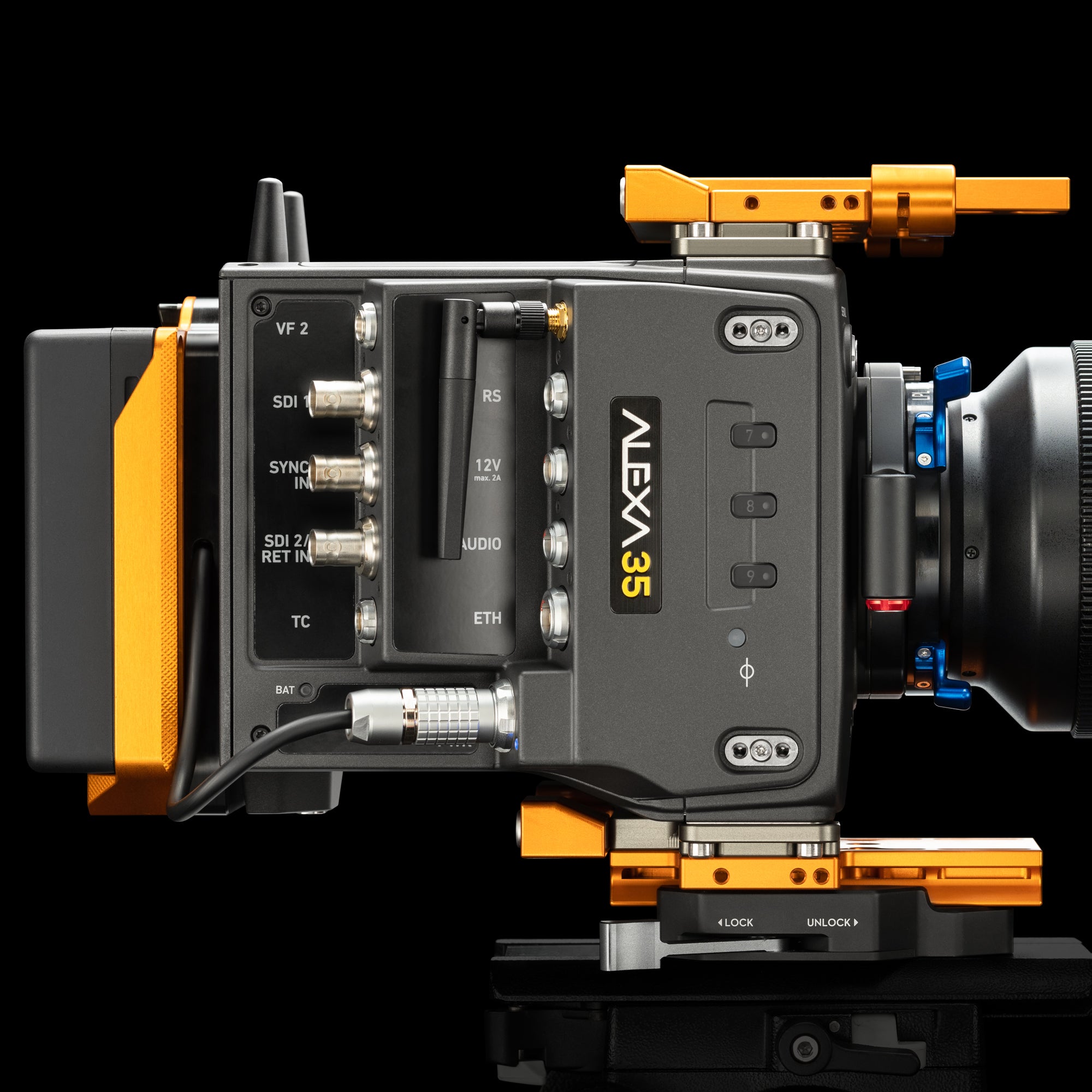

5. Connect 8-Pin Lemo into camera

NOTE: Removing the installed B-Mount bracket (K2.002375) that ships with ALEXA 35 will not invalidate the camera warranty

SPECS

MADE FROM
High-grade 6061-T651 aluminium billet
Ertacetal (high performance plastic)
6-core TPU Cable

IN THE BOX
B-Mount Mounting Backet
TB50 Battery Plate

SHIPS WITH
Four M4 x 8mm socket head cap screws

WEIGHT
9.62oz / 273g solo
27.8oz / 790g with TB50

DIMENSIONS
3.66 x 5.43 x 1.73” / 93 x 138 x 44mm
