TB50 for DJI High-Bright Remote Monitor

Power is fed into the DJI monitor via a Sony NP-F dummy battery with built-in regulator.

The first step is to install the NP-F battery plate (pictured below) into the WB37 battery slot.

If you purchased the DJI Transmission kit or the monitor individually, both include the NP-F battery plate and four M2 x 6mm socket head cap screws.

——————————————


INSTALLATION

Remove the four M2 x 5mm countersunk screws
 ↓ ↓ see images below

Mount the NP-F battery plate into the WB37 battery slot

Insert and tighten four M2 x 6mm socket head cap screws

Insert the Ignite NP-F Dummy Battery

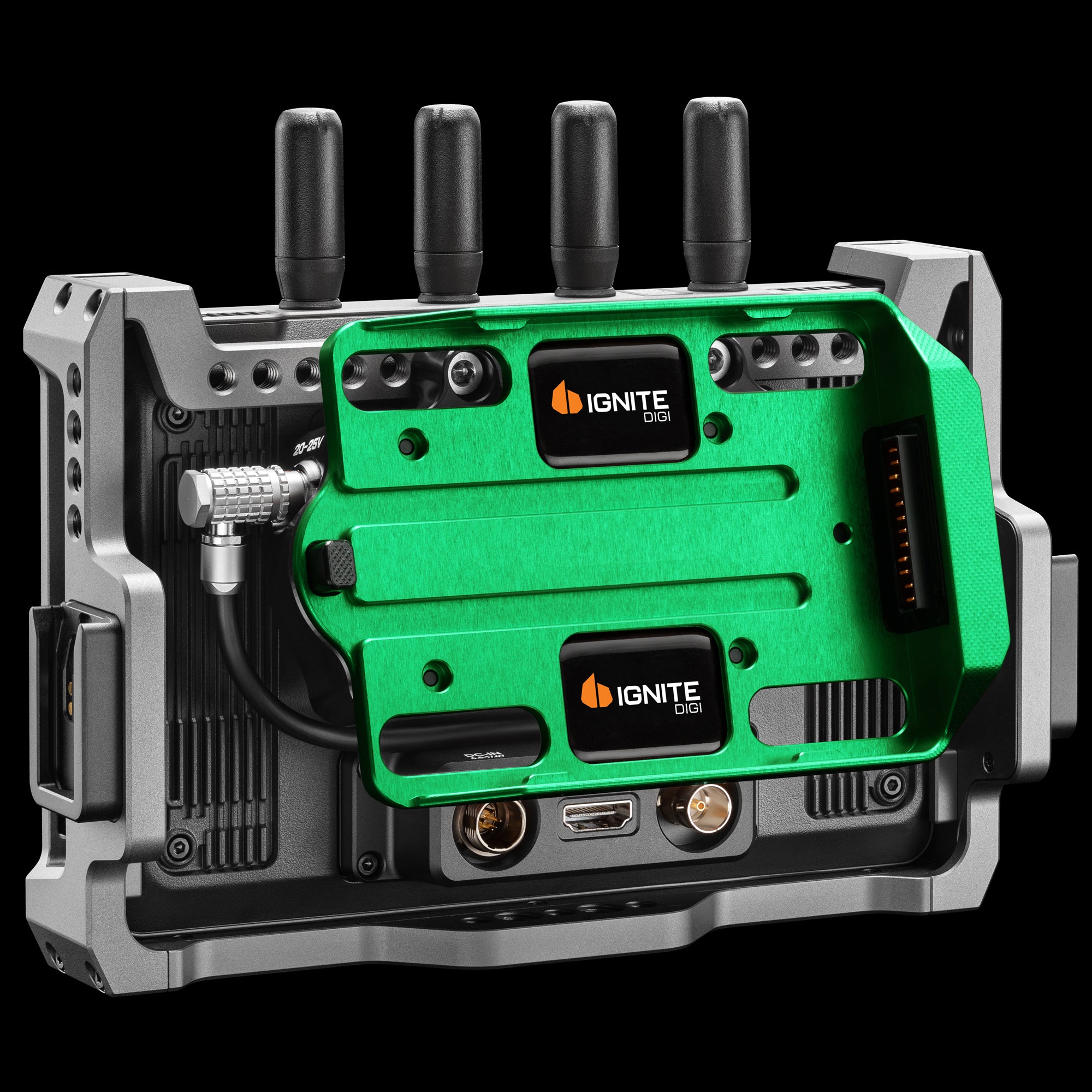

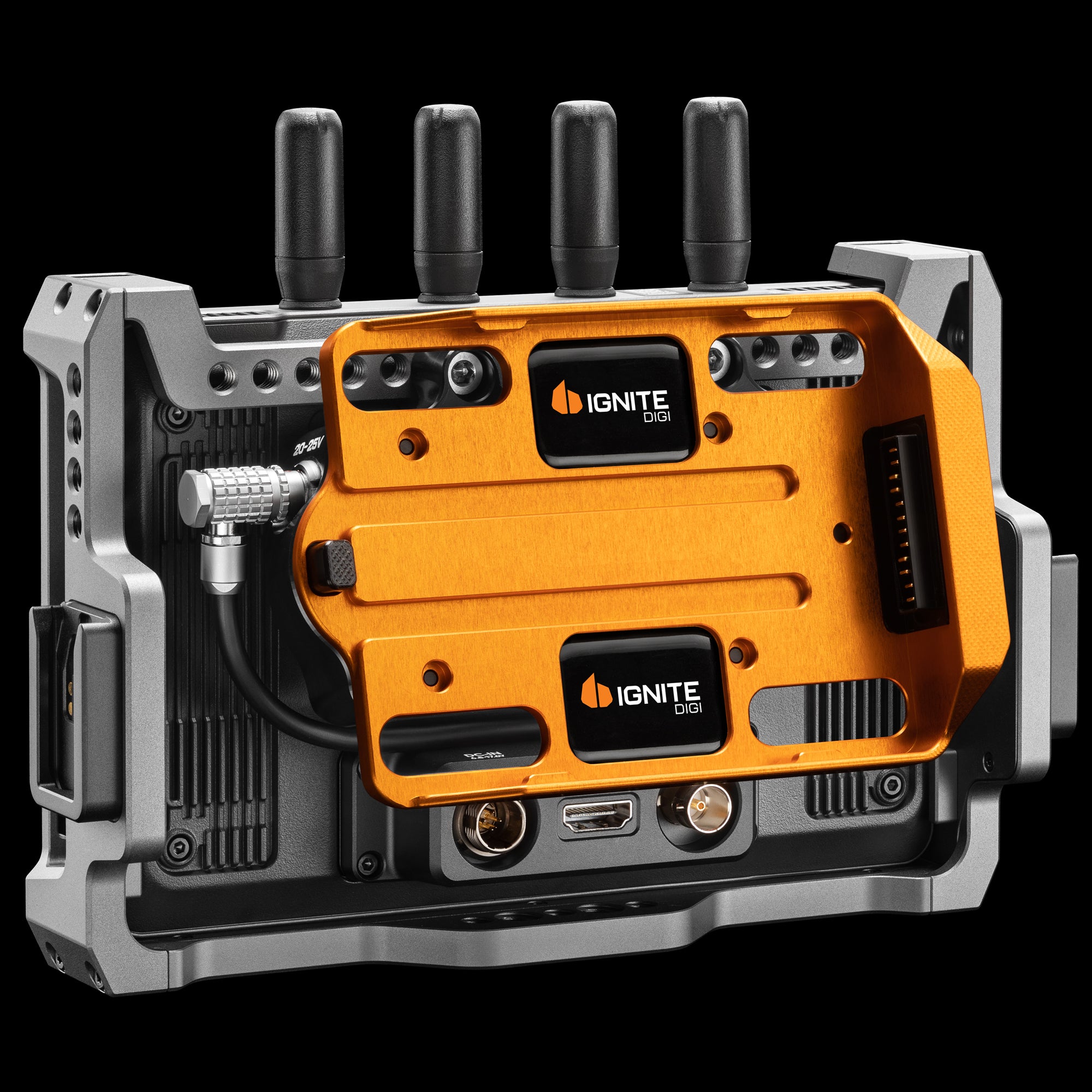

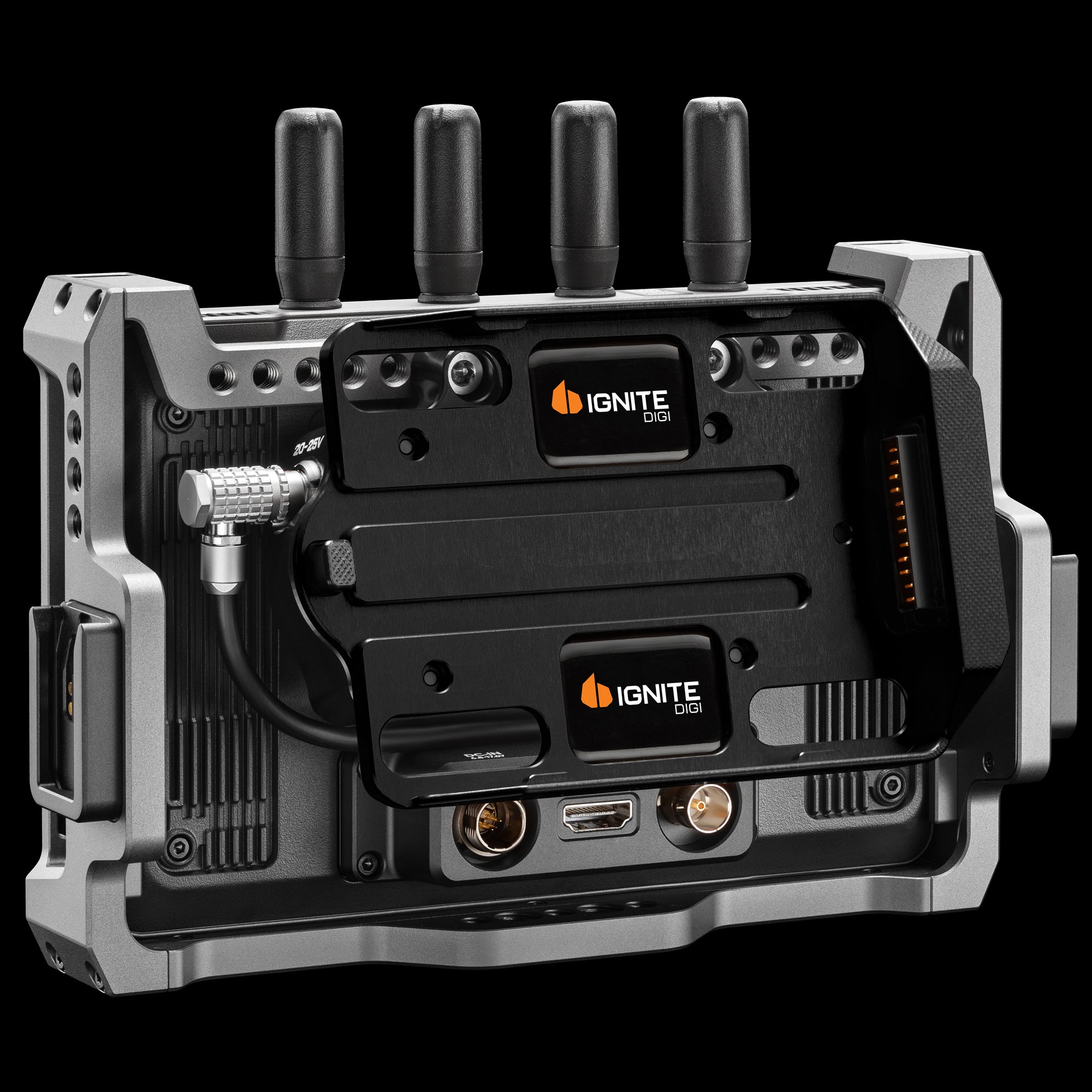

Mount the TB50 plate in the centre of the monitor cage (hex key 5/32″)

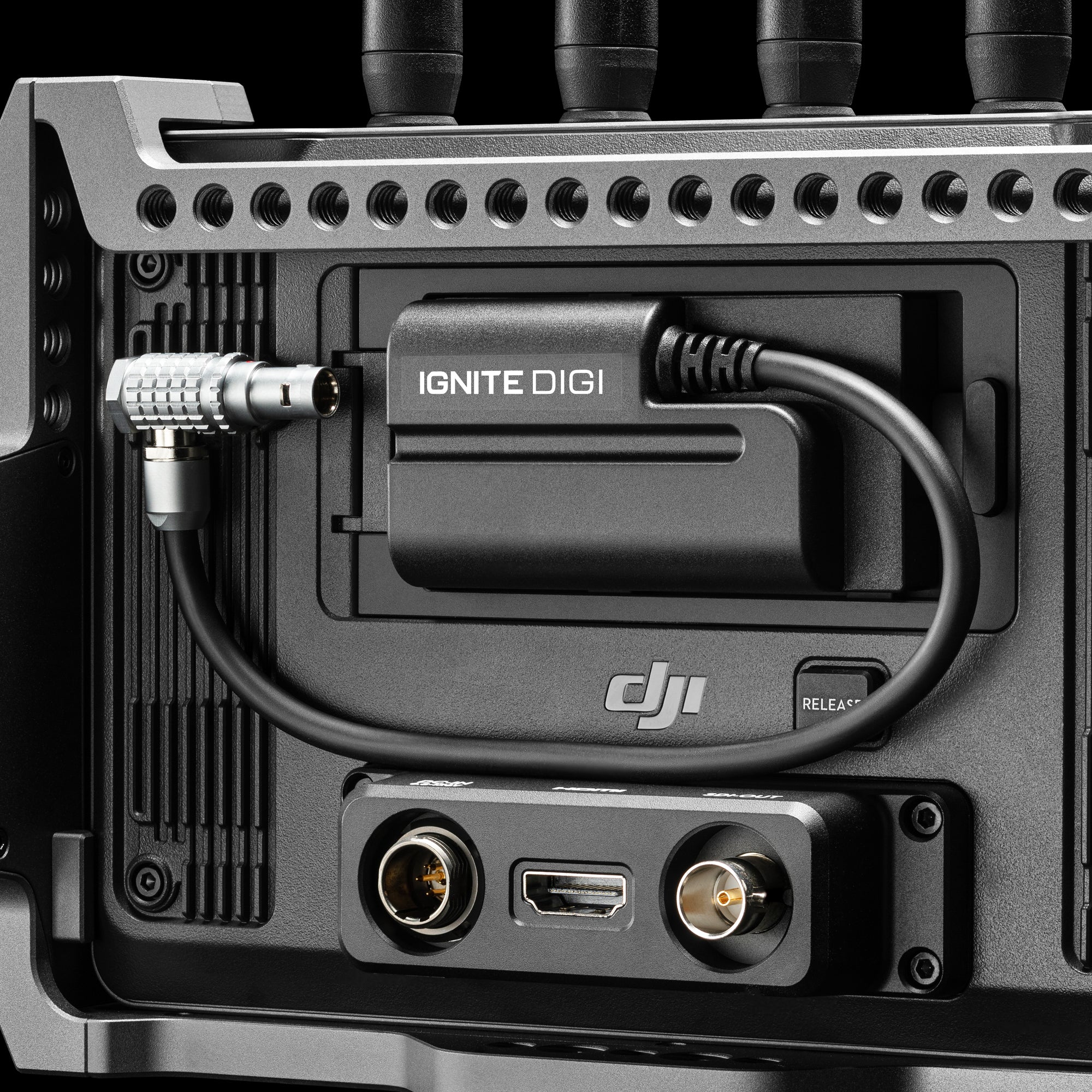

Plug in the 3-Pin Lemo cable

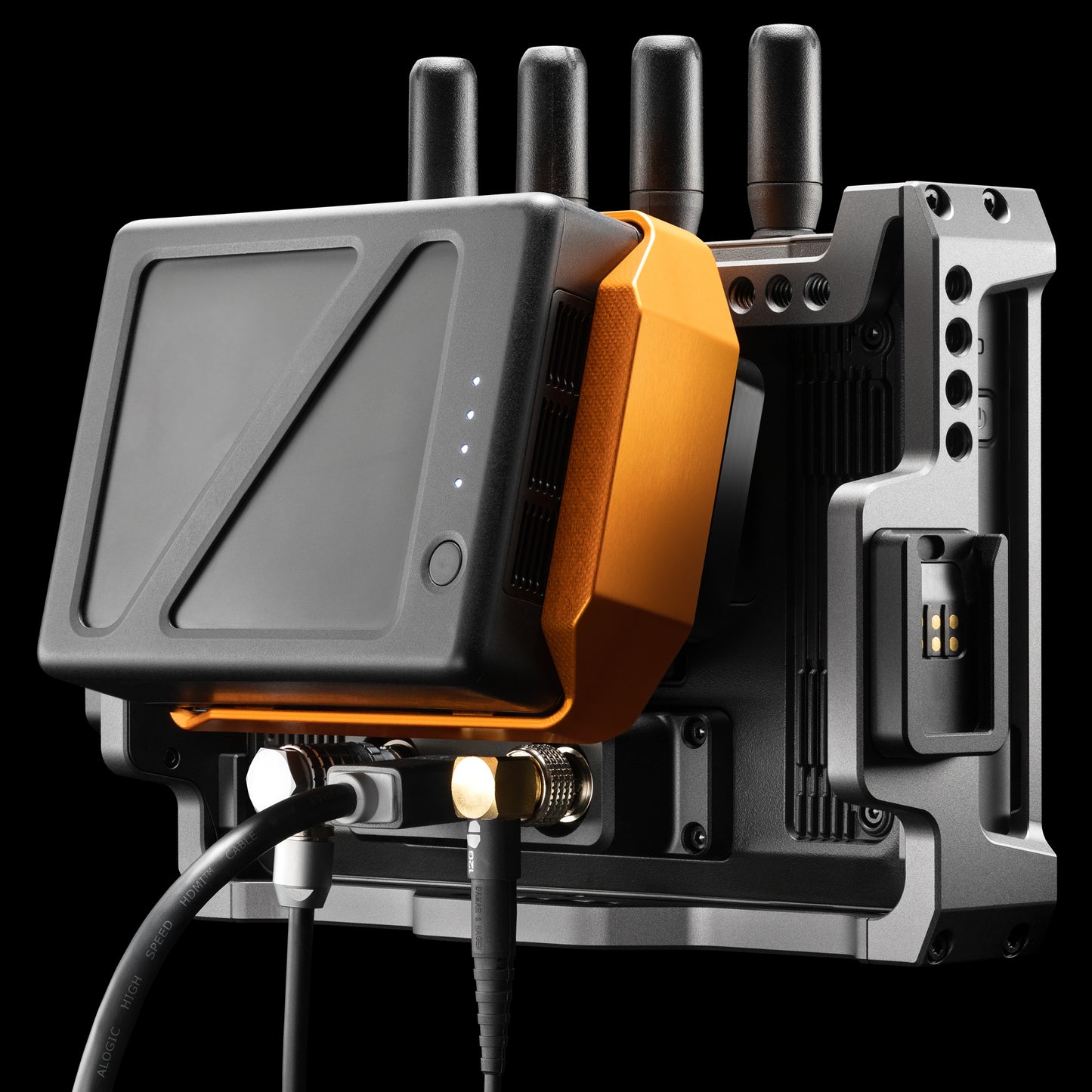

Insert TB50 battery

Power up!! ⚡⚡⚡

————————————————

DJI TB50 KEY FEATURES

● Built for high draw ⚡️

● 4280mAh / 97.58Wh ✈️ carry-on air travel safe

● Compact design and lightweight: 18.3oz / 519g

● TB50’s can power cameras, camera accessories, gimbals, drones, and remote controllers

● There is one capacity of TB50 battery — therefore a simplified gimbal balancing workflow

● Built-in auto heating system down to -4° F (-20° C) ❄️

● Automatic protection cutoff at 2%

● Automatic self discharging down to 60% when the battery is idle for more than 10 days — press the Power Level button to exit idle state

● Overcurrent and short circuit protection — batteries can be left unattended while charging

● TB50’s are one of the most affordable high-voltage camera batteries on the market

● TB50’s are widely available in many parts of the world

————————————————

TB50 BATTERIES WORK WITH

● Control Deck for DJI Transmission

● NODO Inertia Wheels Brushless & MAX

● DJI High-Bright Remote Monitor

● Freefly MōVI Pro

● Freefly MōVI XL

● Freefly MōVI Controller

● TB50 Hammerhead ‣ ALEXA + DSMC + VENICE

● TB50 for ALEXA 35 + URSA Cine

● TB50 Power Pack for KOMODO

● DJI Ronin 2

● DJI Inspire 2

● DJI Ronin 4D

● DJI Master Wheels

————————————————

MADE FROM
High-grade 6061-T651 aluminium billet
Ertacetal (high performance plastic)

IN THE BOX
TB50 Battery Plate + mounting bracket
3-Pin Lemo to NP-F Dummy Battery Cable
Four M2 x 6mm socket head cap screws

WEIGHT
9.10oz / 258g plate only
27.4oz / 777g plate + TB50
59.3oz / 1682g plate + TB50 + monitor

DIMENSIONS
5.51 x 3.62 x 1.73” / 140 x 92 x 44mm
