Our landing gear is designed to be used on drones up to 40kg (88lbs). For heavier rigs we recommend using heavy duty retracts.
Expand ↓ for compatibility and specs.

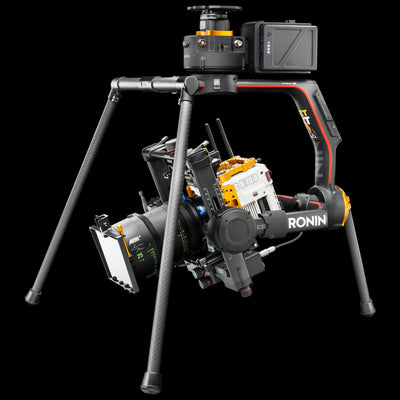

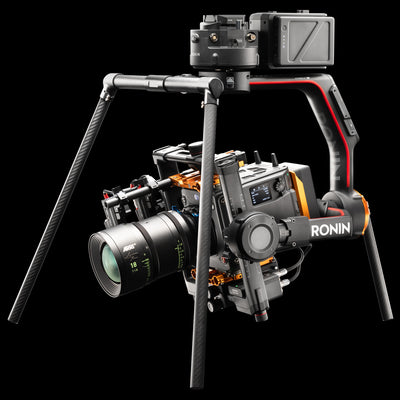

At 440 grams, this lightweight system comes with everything you need to safely land your R2 and camera package.

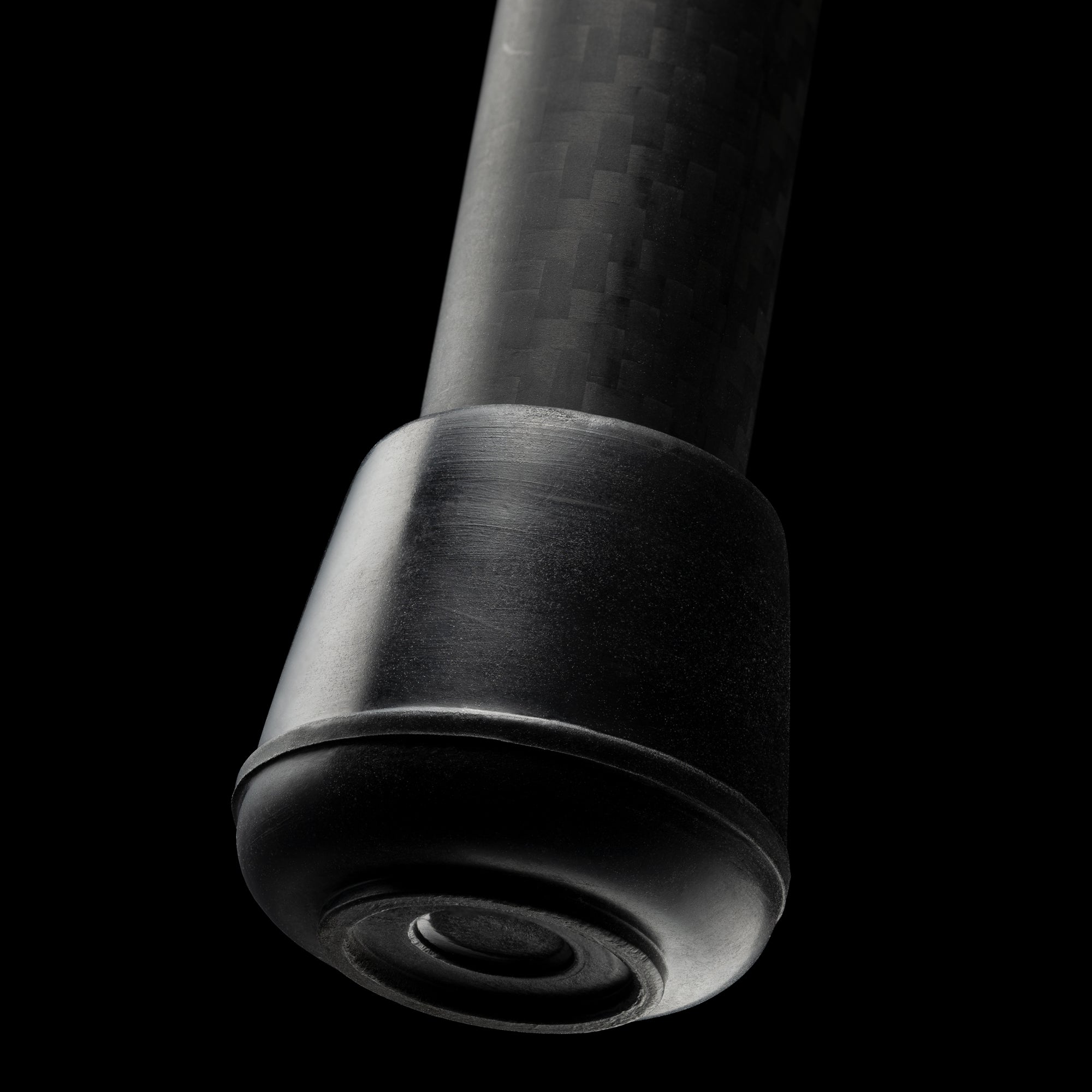

The three legs are made with 20mm carbon fibre and protected with rubber feet. We ship six rubber feet - three installed and three spare.

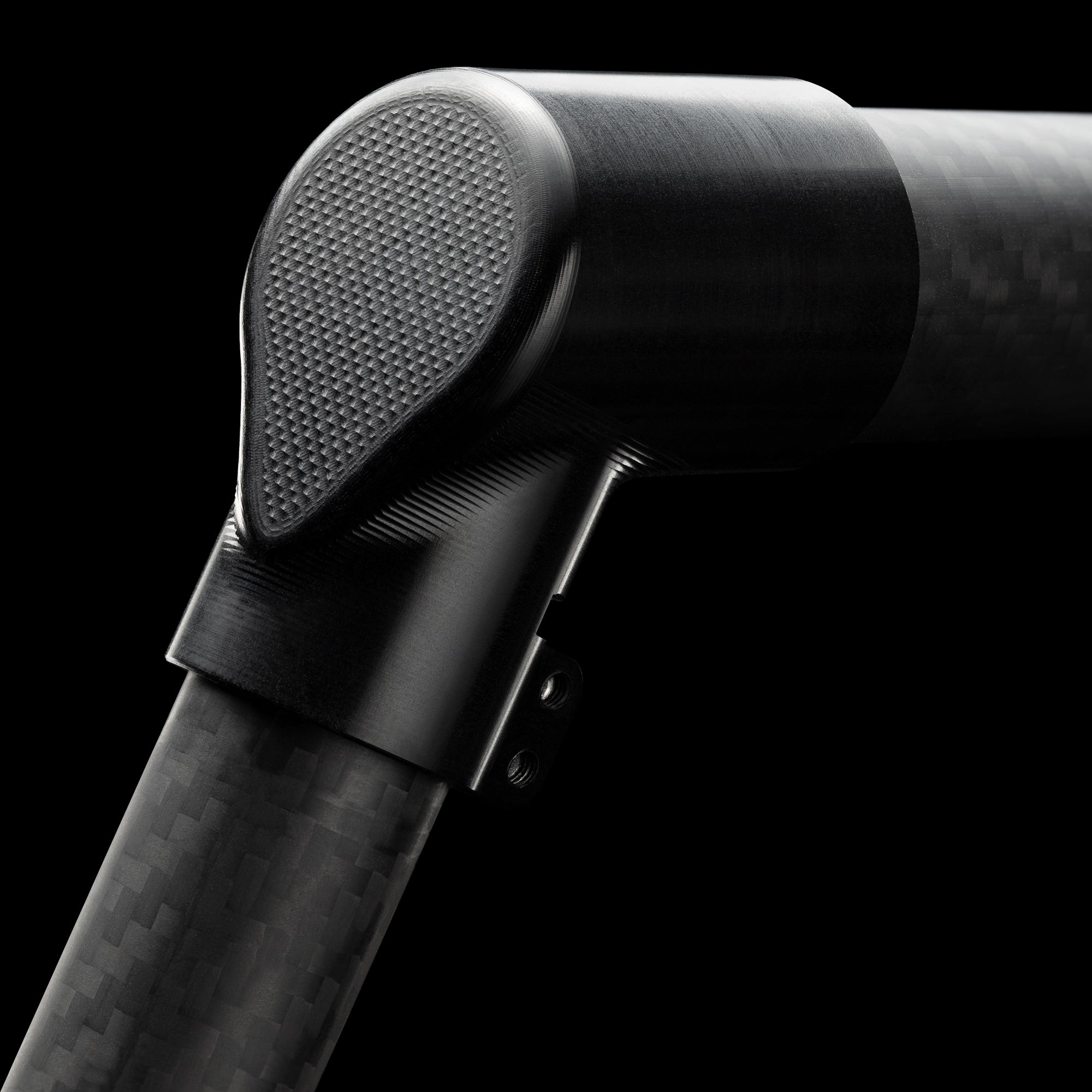

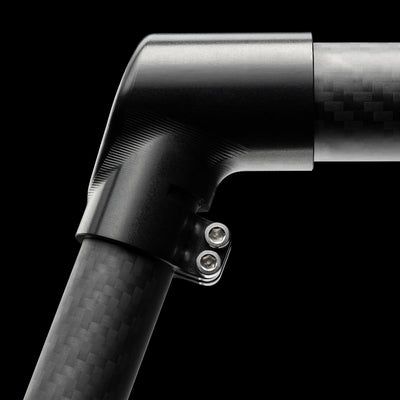

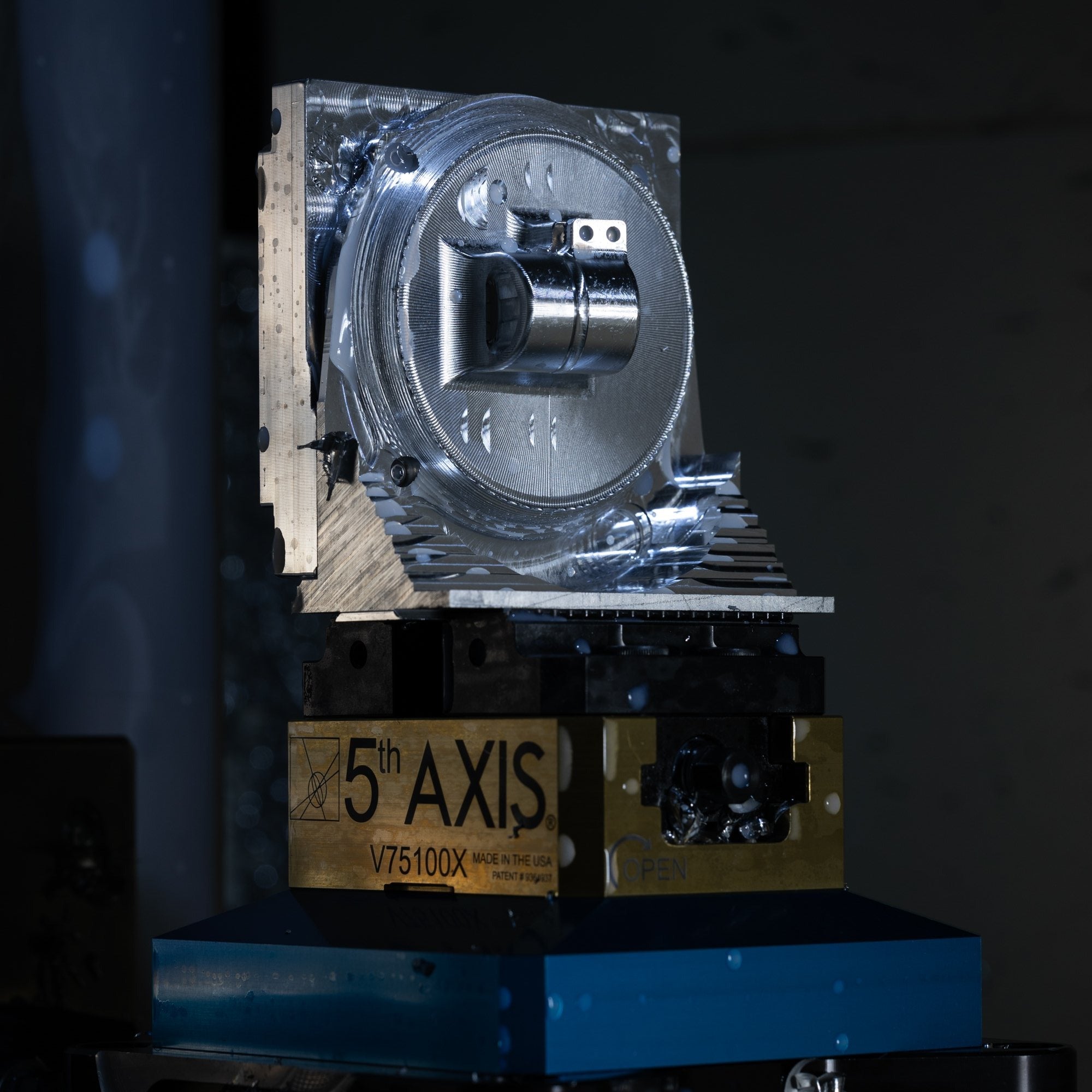

The Cross Bar Clamp, elbow joints and Rear Hub are CNC machined from high-grade aluminium billet.

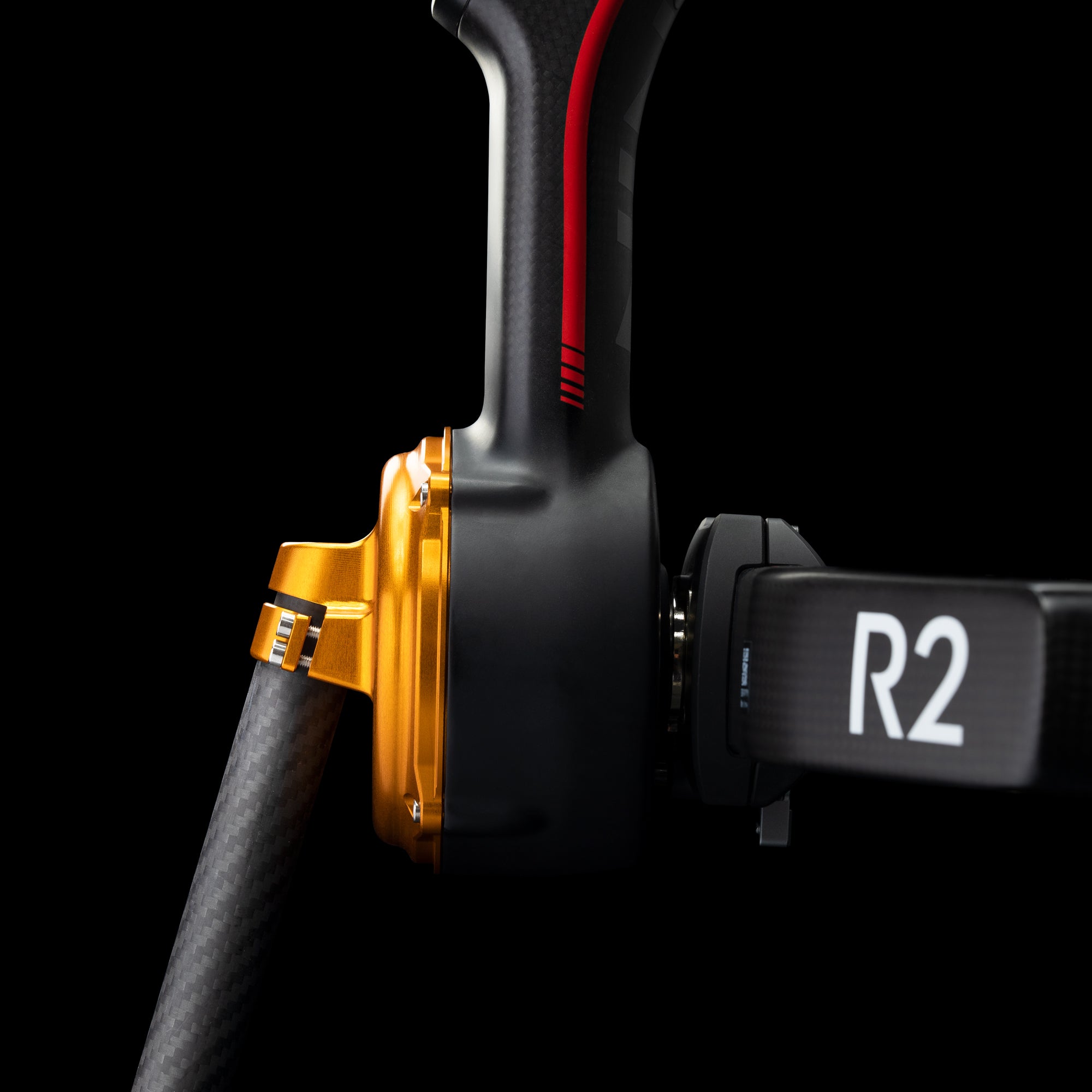

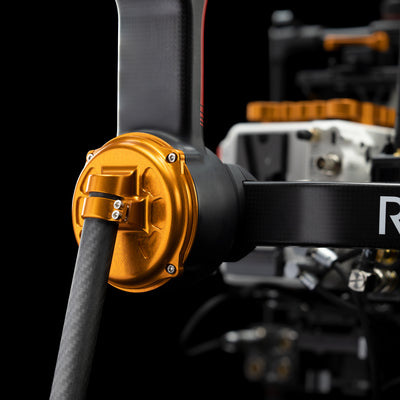

The Rear Hub, hard anodised in Ignite orange, replaces the standard R2 roll motor cover for a rigid mounting point.
We supply all the required socket head screws plus spares!
Designed, manufactured and assembled in Tasmania, Australia.
MADE FROM High-grade 6061-T651 aluminium billet Carbon fibre
IN THE BOX Cross Bar Rear Hub Three 20mm Carbon Fibre Legs Six Rubber Feet (3 installed, 3 spare) 12x M3 x 8mm socket head cap screws 8x M3 x 10mm socket head cap screws 6x M4 x 10mm socket head cap screws
WEIGHT 15.5oz / 440g total
DIMENSIONS / CROSS BAR 16.02 x 2.83 x 2.16” / 407 x 72 x 55mm
DIMENSIONS / REAR HUB 3.7 x 3.7 x 1.65” / 94 x 94 x 42mm
DIMENSIONS / CARBON LEGS 19.88 x 0.78 x 0.78” / 505 x 20 x 20mm 10.03 x 0.78 x 0.78” / 255 x 20 x 20mm
