Power Cable ‣ Block Battery to ALEXA Mini + Mini LF + 35

SKU:IG.100212

In stock

$258.00 AUD

Sale Sold out

Length 8ft / 2.4m

Quantity

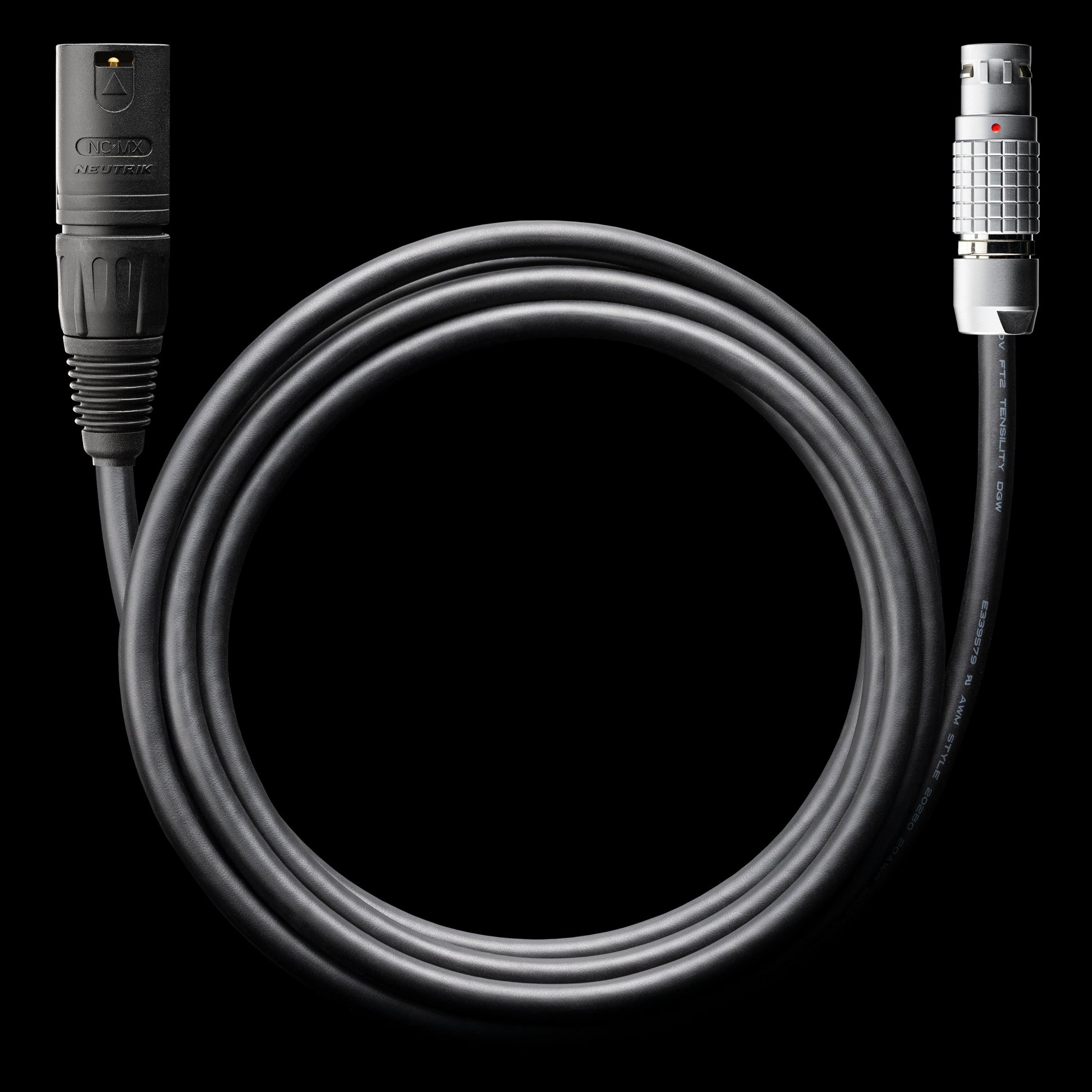

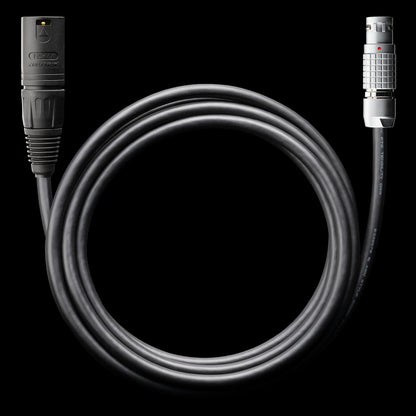

This 3-Pin XLR Straight to 8-Pin Lemo Straight cable is designed to feed power from industry standard block batteries such as:

Anton Bauer Cine VCLX (28V regulated output)
bebob CUBE 1200 (24V regulated output)
Block Battery SLi-D600 (28V regulated output)
Core SWX Maverick MV6 (28V regulated output)

...to these cameras:

ARRI AMIRA
ARRI ALEXA Mini
ARRI ALEXA Mini LF

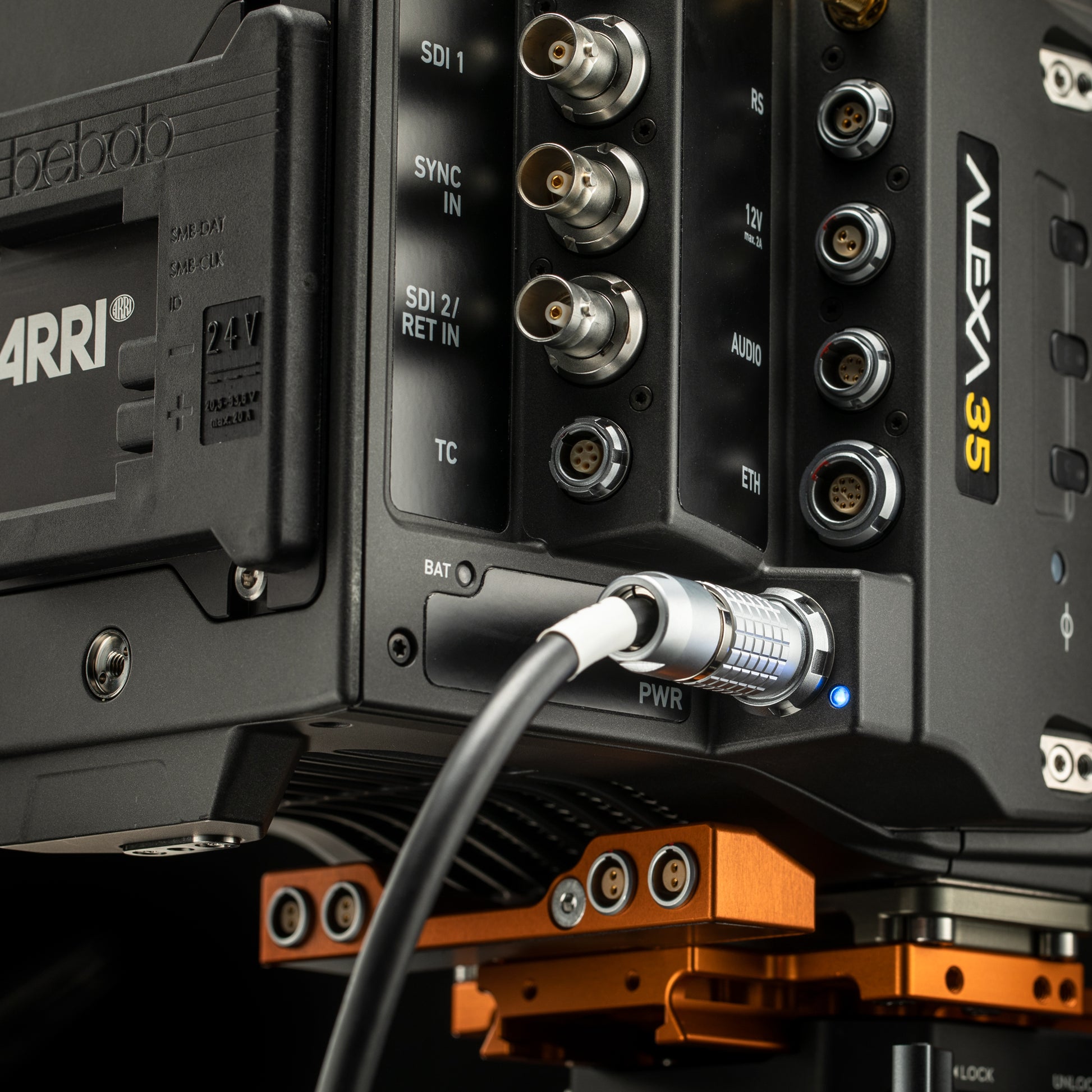

ARRI ALEXA 35
ARRI ALEXA 265
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65
Blackmagic URSA Cine Immersive

...and these Ignite accessories:

————————

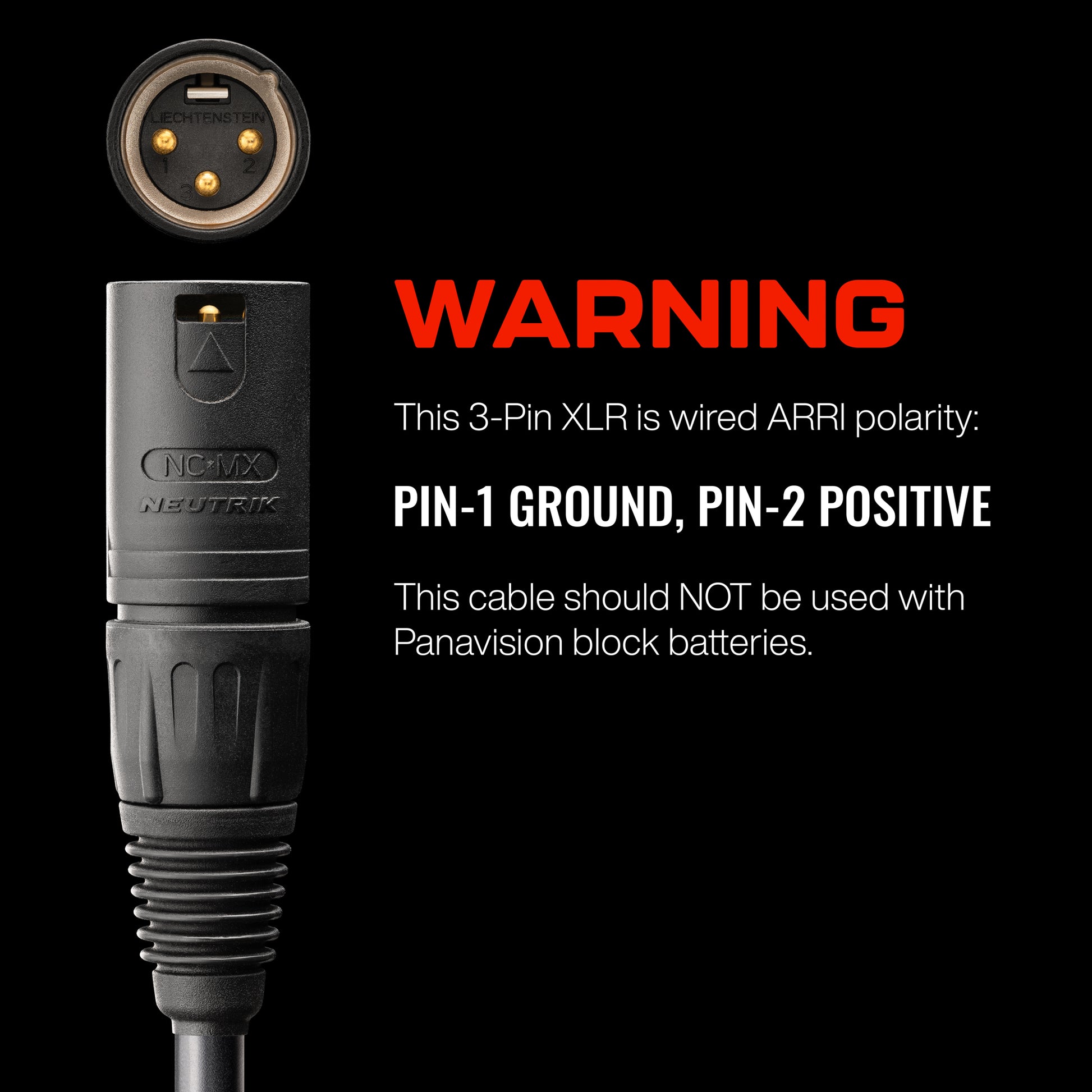

❌ WARNING:

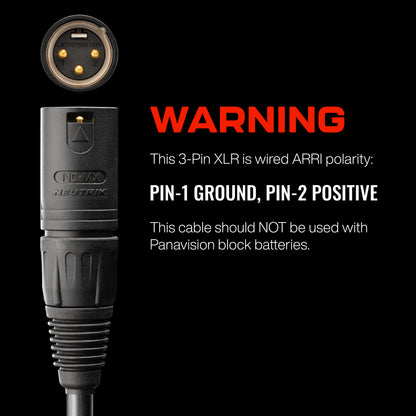

This 3-Pin XLR is wired ARRI polarity: PIN-1 ground / PIN-2 positive. This cable should NOT be used with Panavision block batteries.

More Info

USE CASE

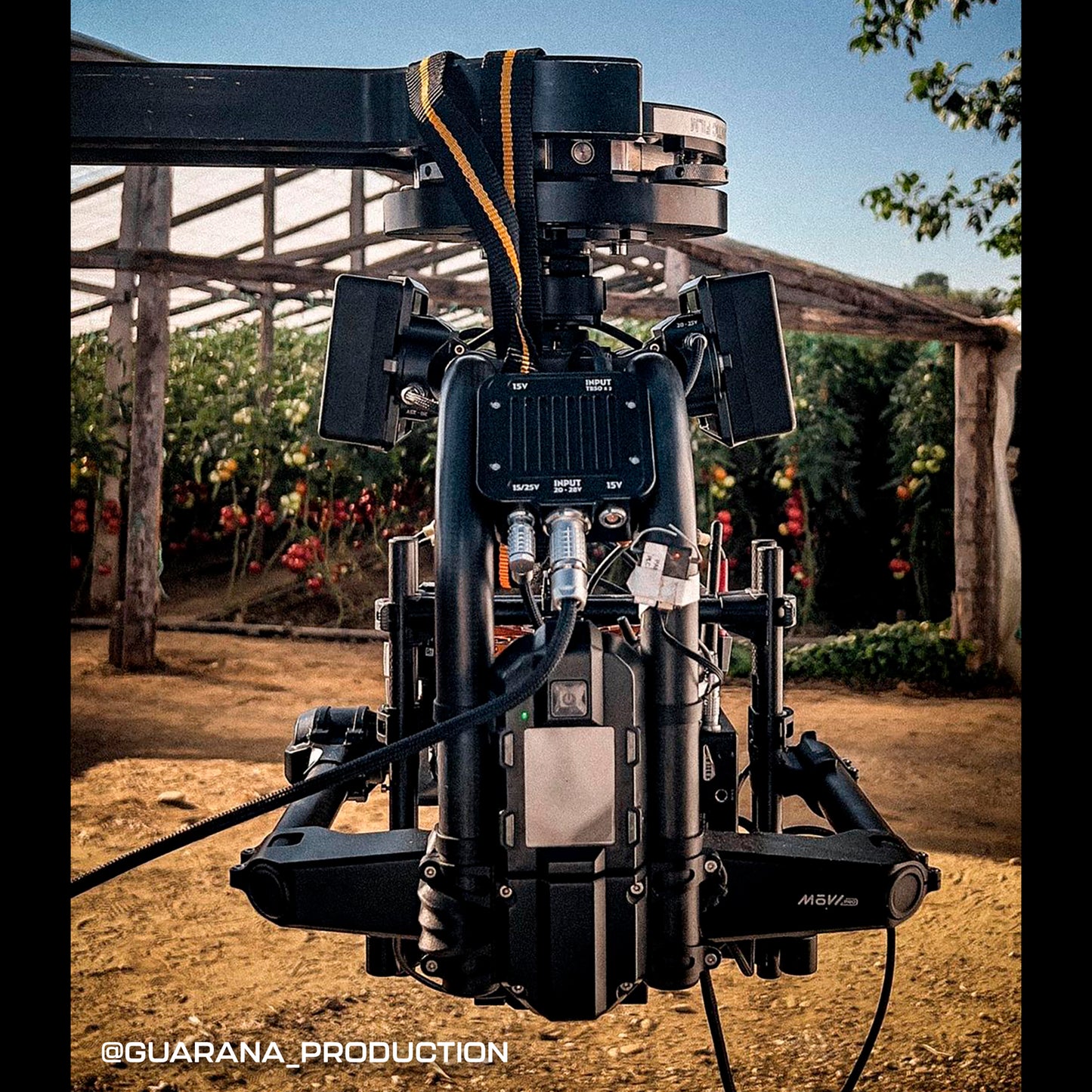

Use this cable for extended run times during gear prep, when using a crane or dolly, and in between takes in the field.

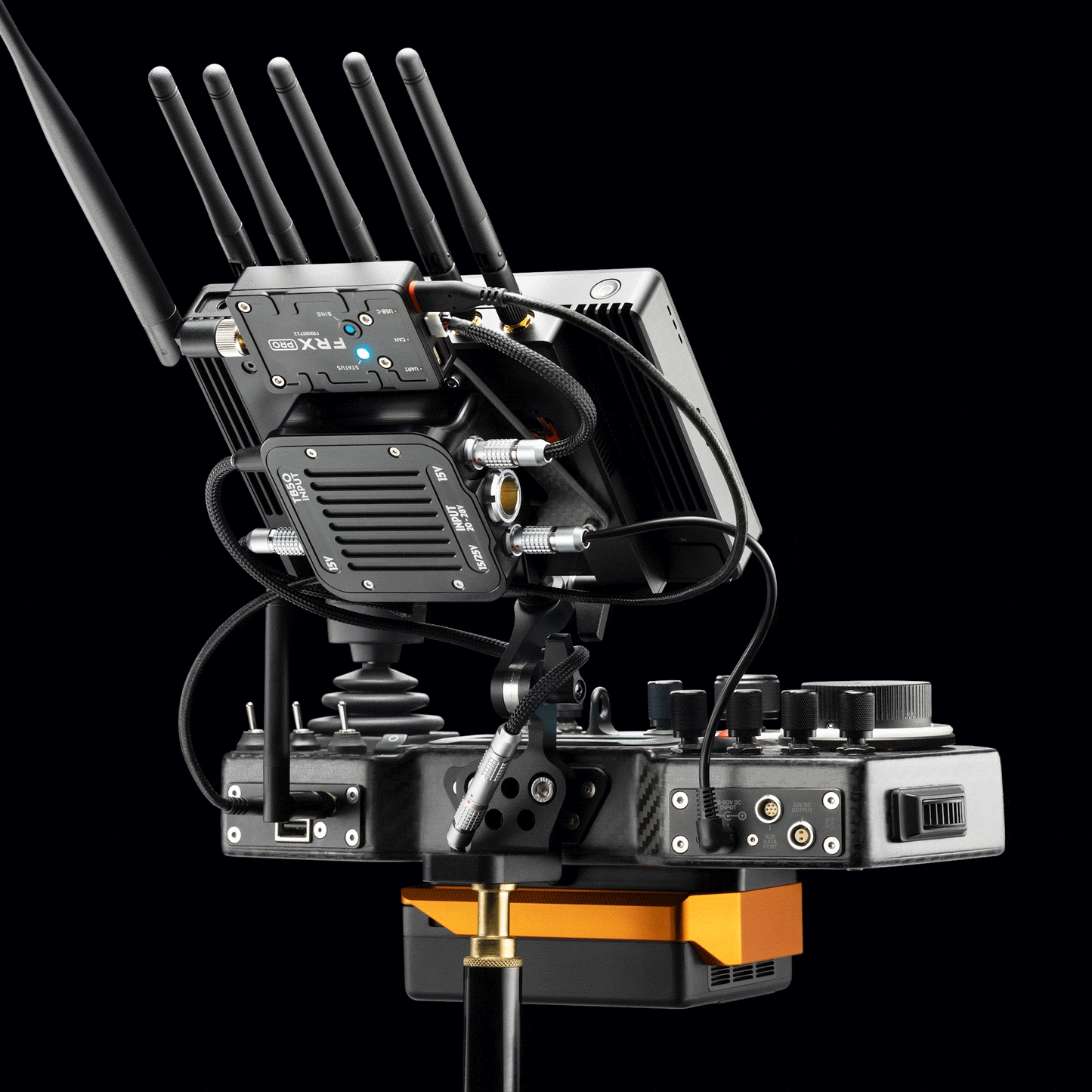

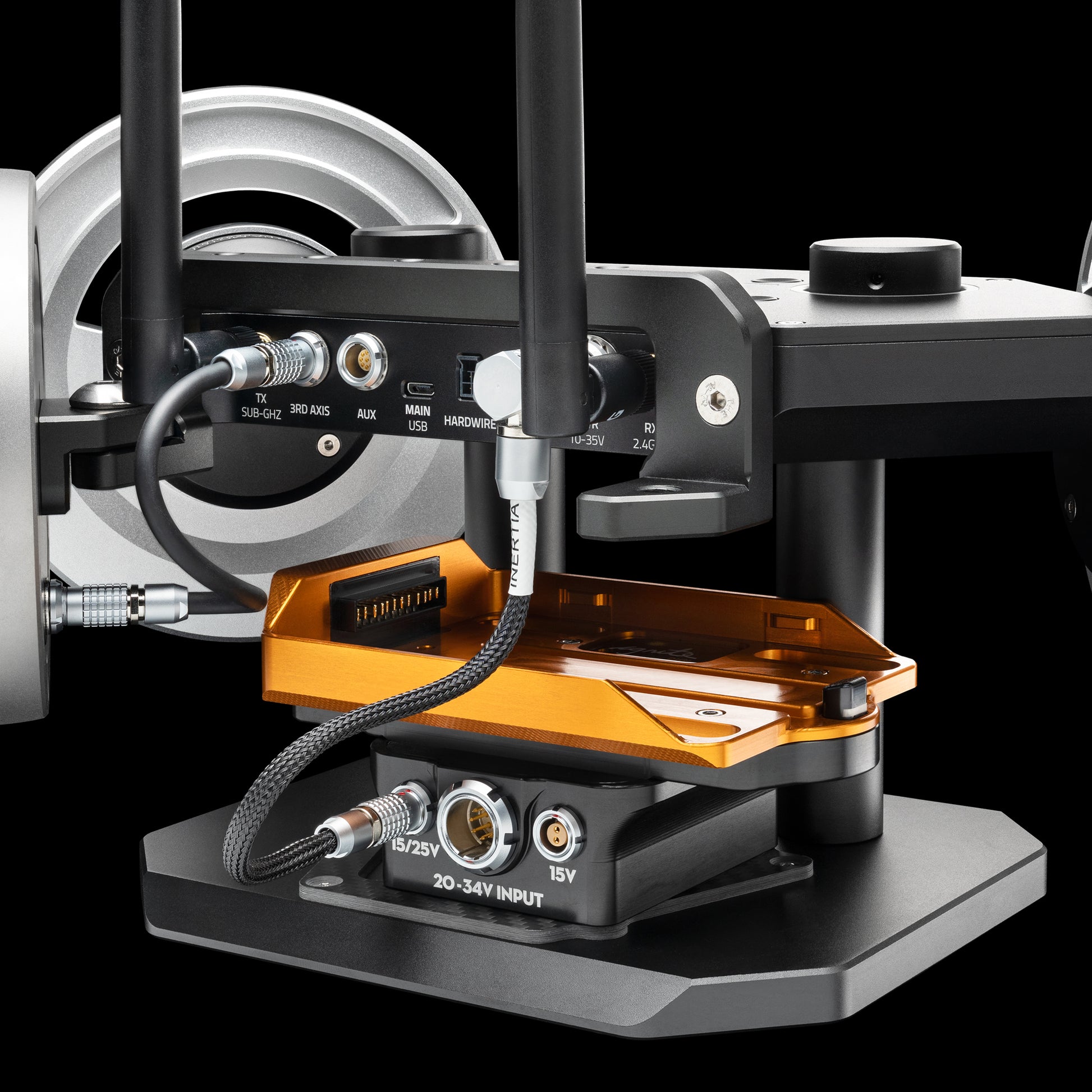

It also enables hot-swap on MōVI Controller and NODO Inertia Wheels!

WIRE & TPU PROTECTION

The first gen of this cable was made with silicone wire and protected with Techflex braid. Due to the thick gauge and length we found it problematic. After receiving customer feedback we decided to switch to premium TPU coated 6-core wire.

TPU maintains flexibility while being waterproof and resistant to abrasion, making it an excellent choice for use on set!

Operators can stand on it, while it maintains high amp delivery, and coils up like a dream.

Last but not least, we use industry standard Neutrik XLR connectors with rugged zinc diecast housing and chuck type strain relief.

Assembled and tested in Tasmania, Australia.

Compatibility

COMPATIBLE CAMERAS
ARRI AMIRA
ARRI ALEXA Mini
ARRI ALEXA Mini LF
ARRI ALEXA 35
ARRI ALEXA 265
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65
Blackmagic URSA Cine Immersive

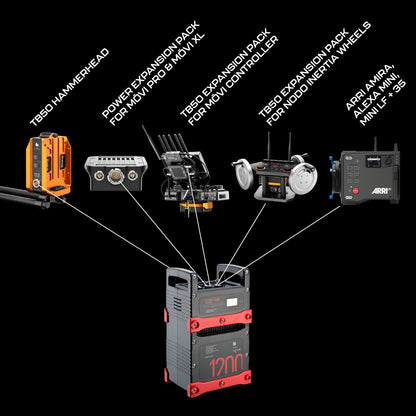

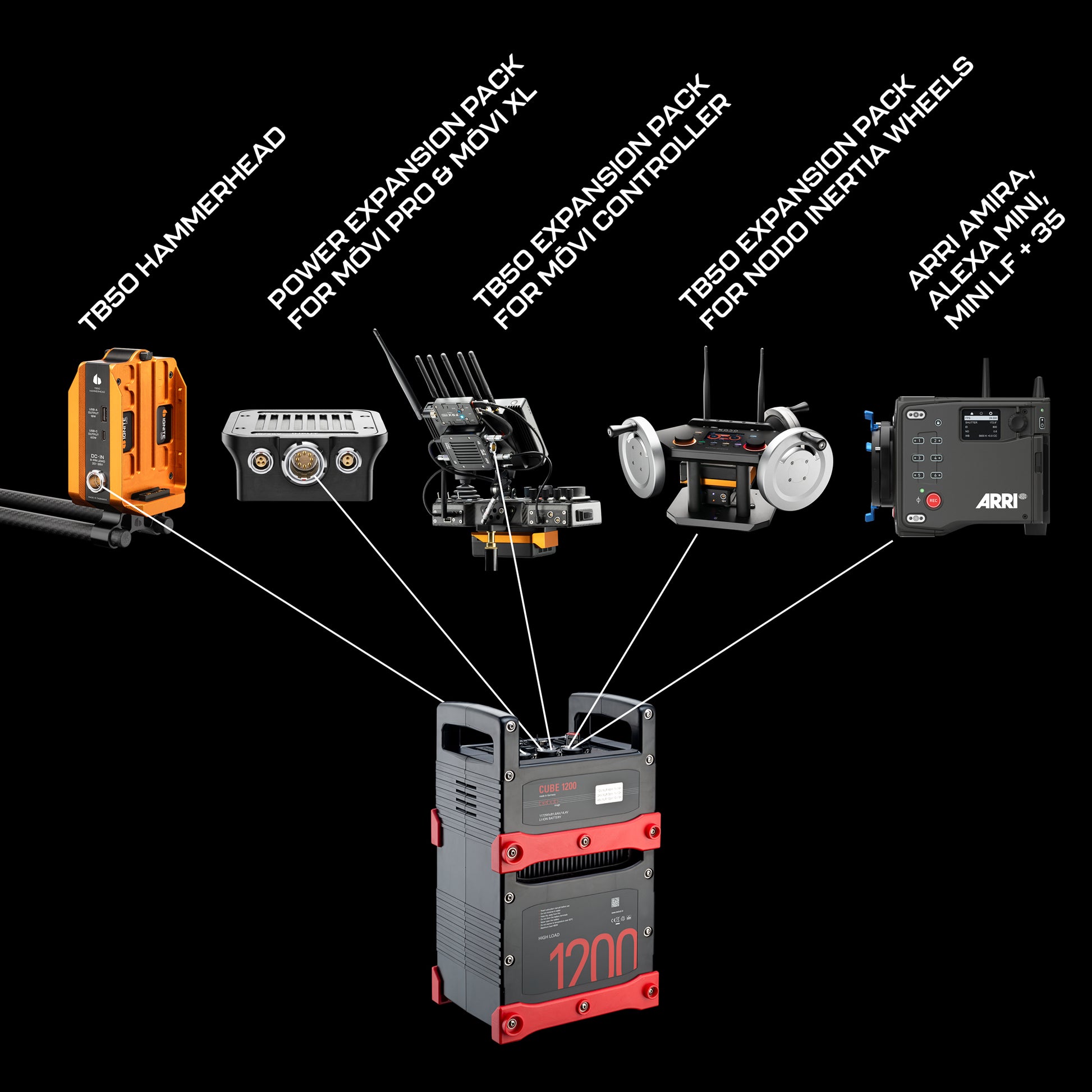

COMPATIBLE IGNITE ACCESSORIES

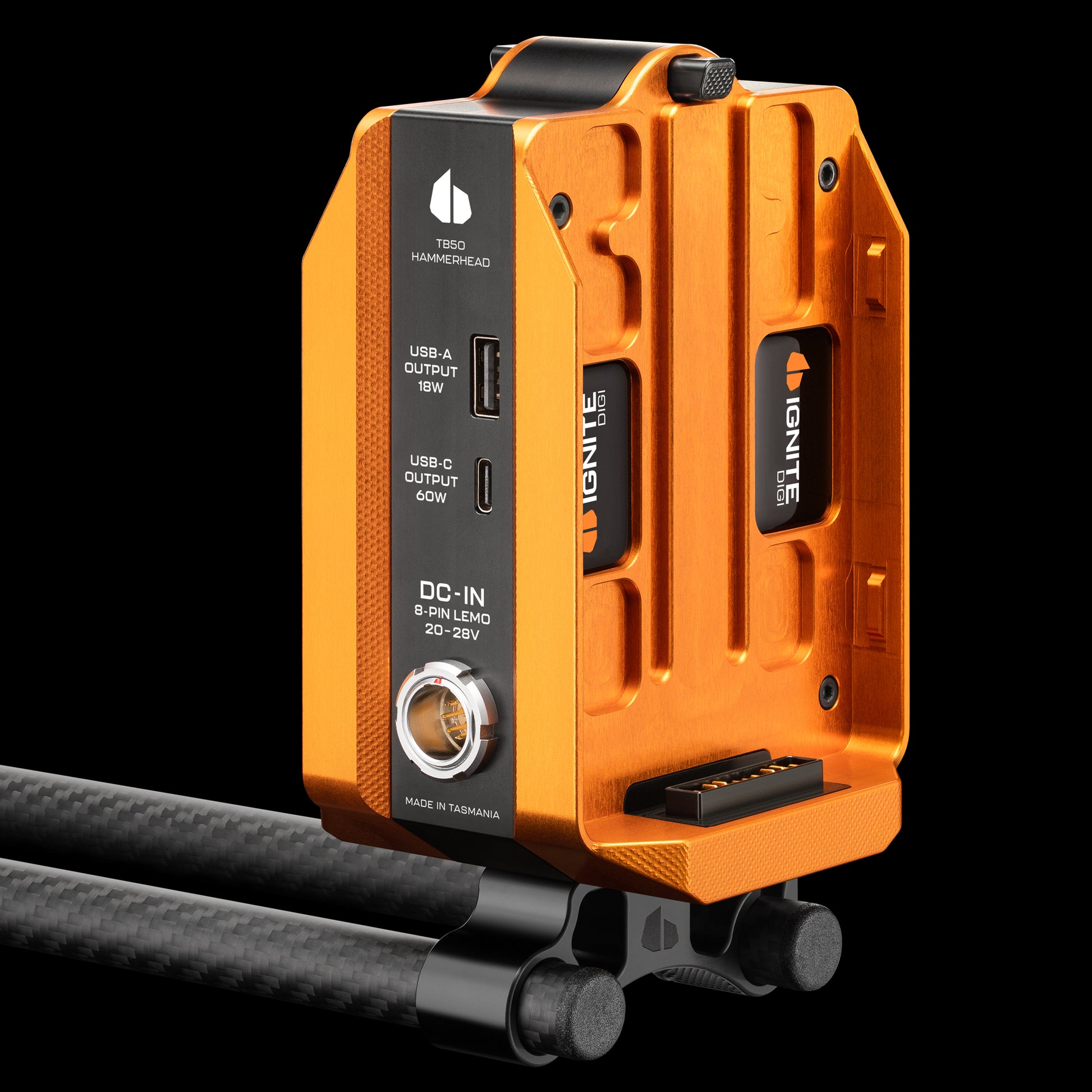

TB50 Hammerhead
TB51 Hammerhead
Power Expansion Pack for MōVI Pro
Power Expansion Pack for MōVI XL
TB50 Expansion Pack for Inertia Wheels
TB51 Expansion Pack for Inertia Wheels

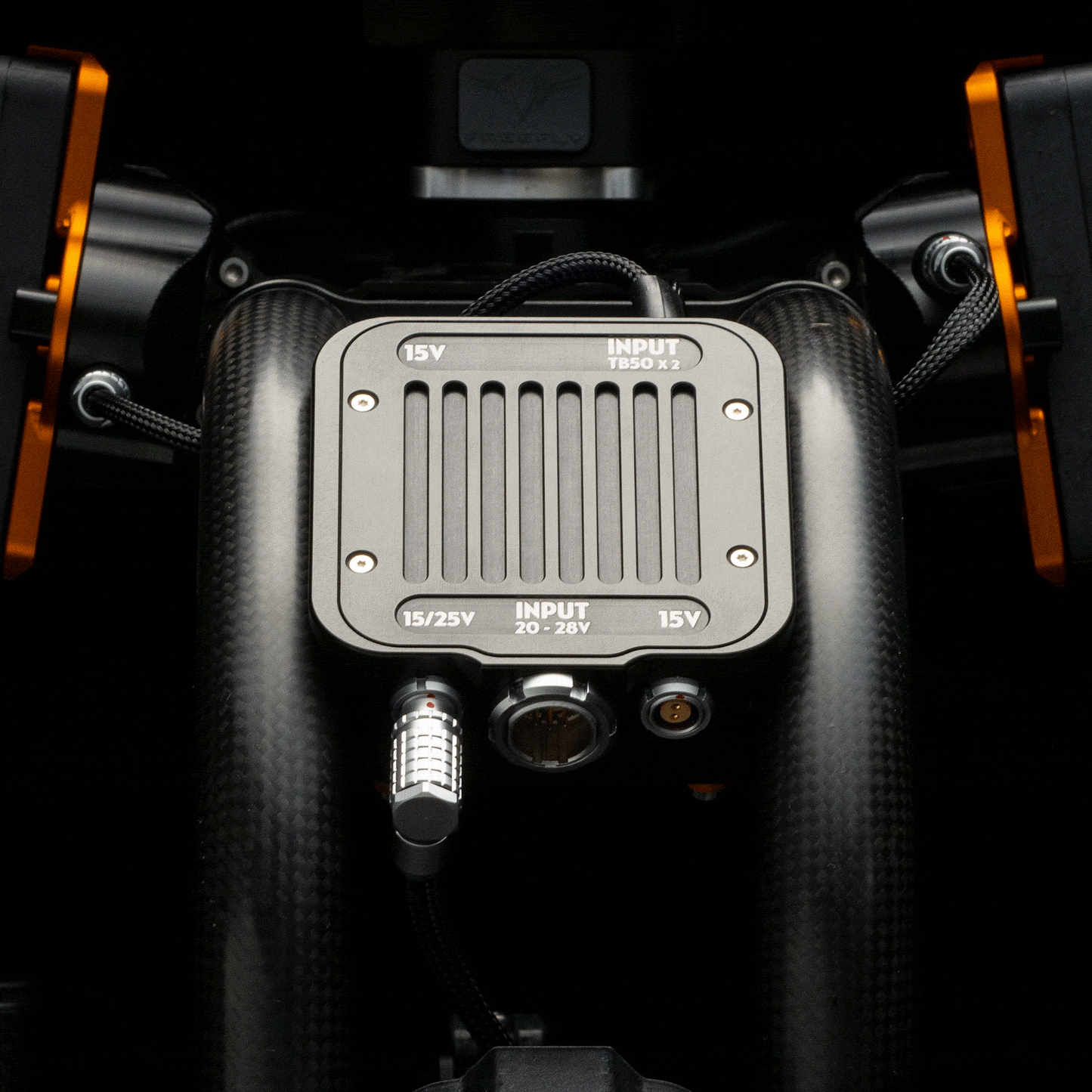

TB50 Expansion Pack for MōVI Controller

❌ NOT COMPATIBLE WITH
This 3-Pin XLR is wired ARRI polarity: PIN-1 ground / PIN-2 positive. This cable should NOT be used with Panavision block batteries.

Specs

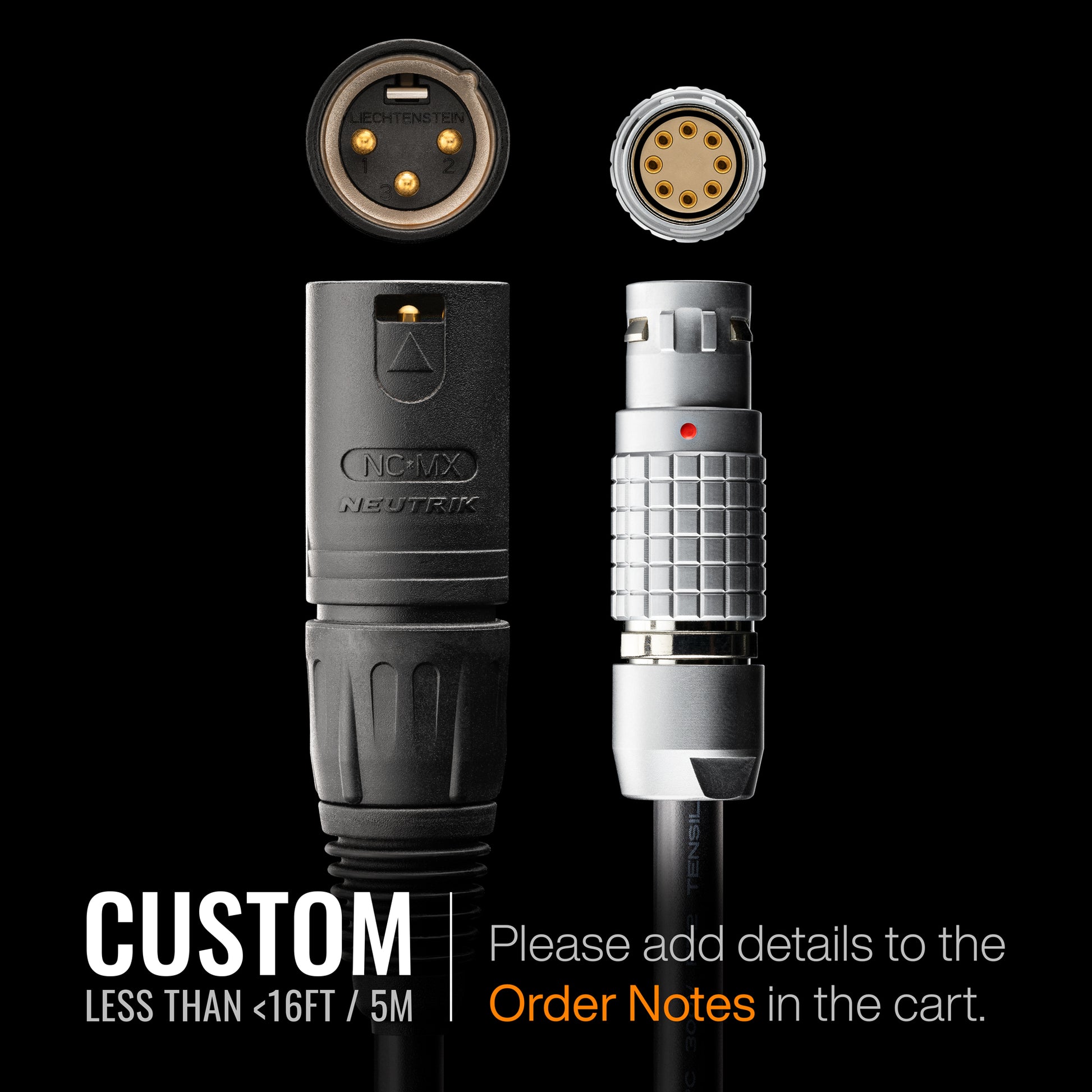

CONNECTOR SPECS

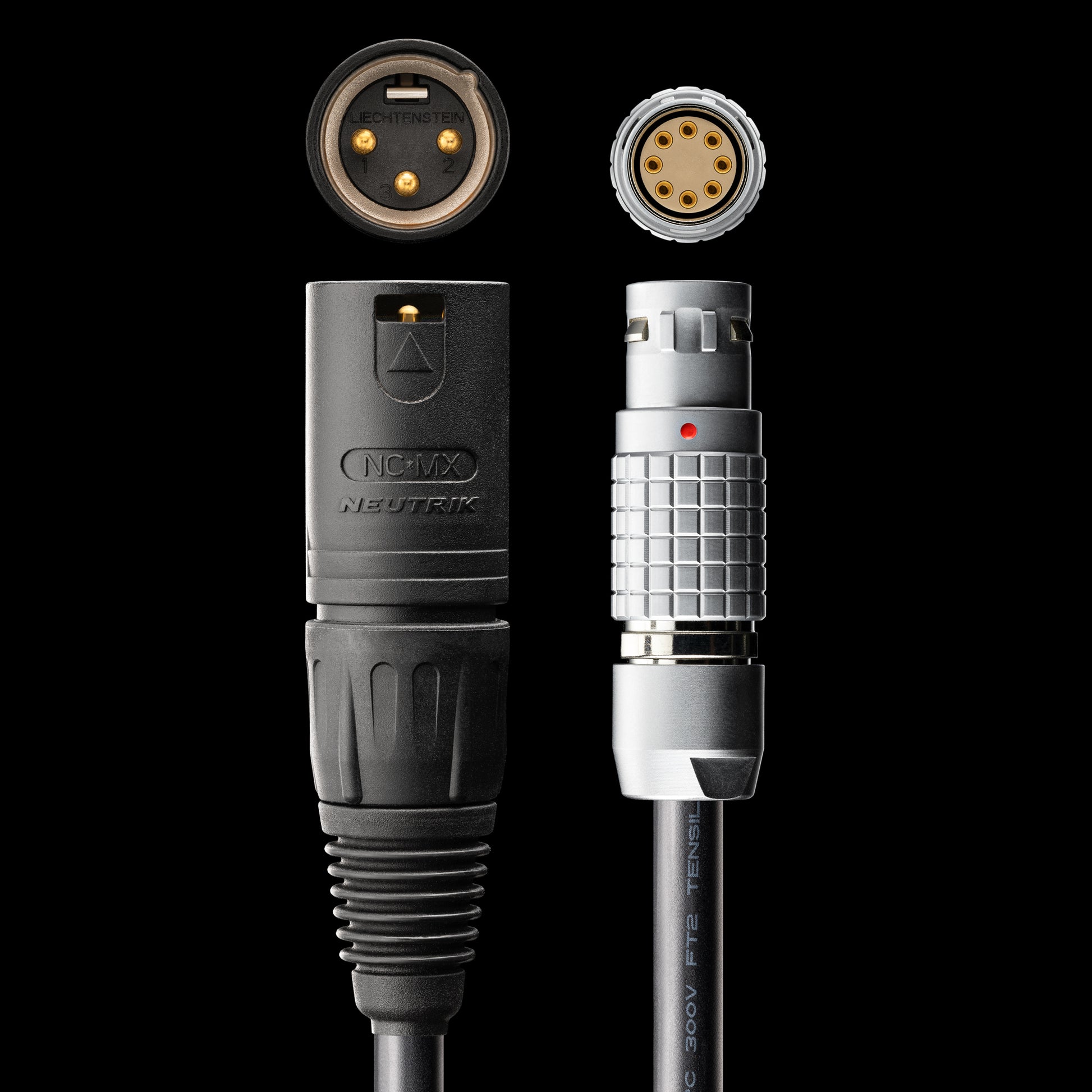

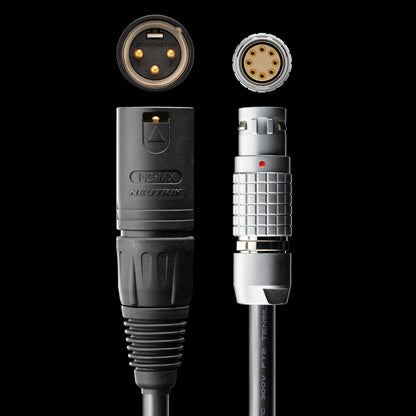

3-Pin (male) Neutrik XLR Straight connector
8-Pin (female) 2B Lemo Straight connector

LENGTH
8ft / 2.4m

WEIGHT
8.32oz / 236g
