Power Expansion Pack for MōVI Pro

$720.00 AUD

Description
Specs
Pinouts

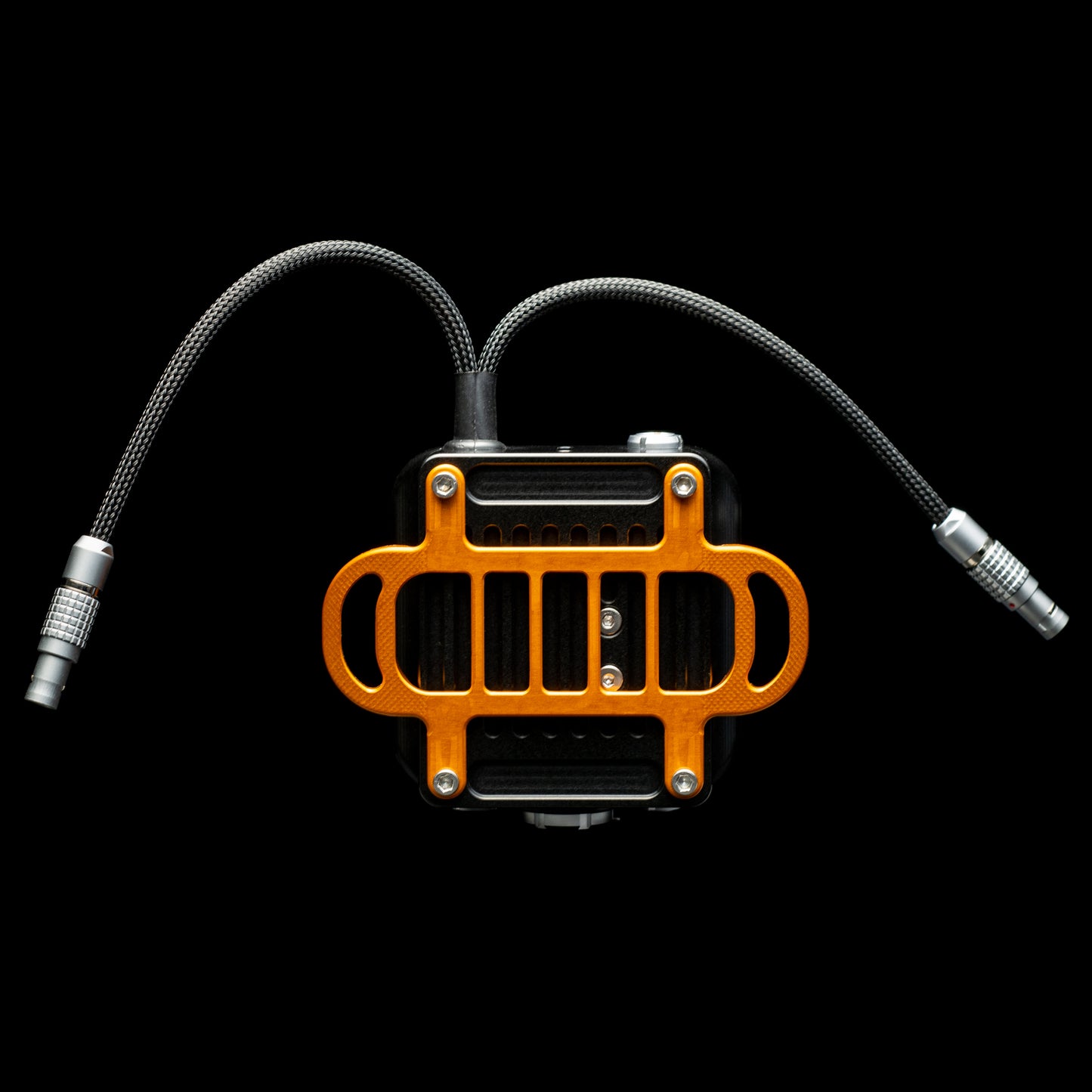

Power Expansion Pack

The Power Expansion Pack for MōVI Pro allows you to power any camera & accessory package that the DP might throw at you. Neatly living on the MōVI spine, the Power Expansion Pack is an upgrade for the most demanding gimbal operators.

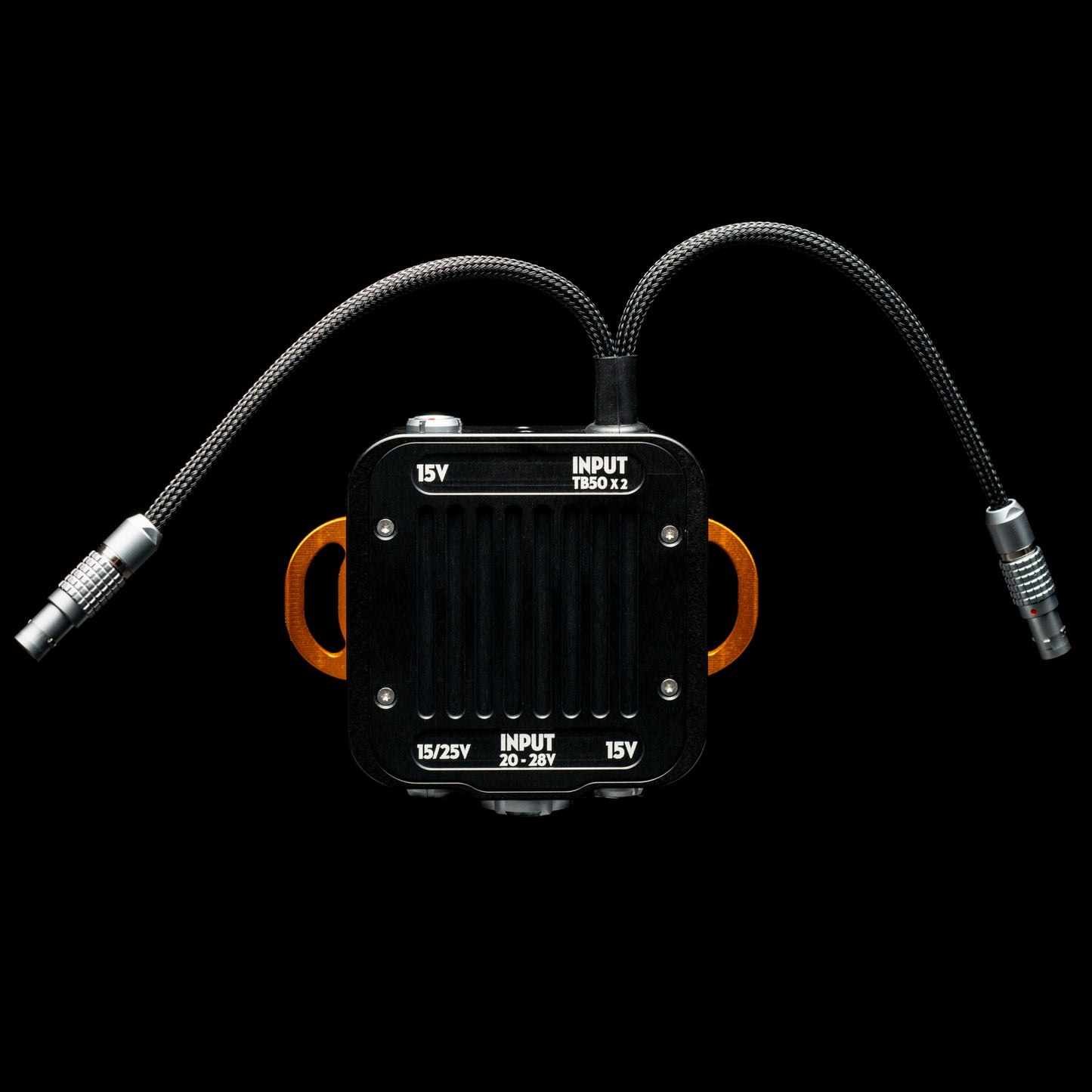

With integrated dual input cables, the Expansion Pack takes power from both of the 20 - 25V 2 pin outputs on our TB50 Battery Adapters for MōVI Pro with Lemo & gives you a range of hot-swappable power outputs.
SPECS
- All Power Expansion Pack outputs are hot-swappable when paired with our TB50 Battery Adapter inputs.
- Weight: 280 grams (9.8 oz) including the 3 pin feed cable.
- CNC machined at Ignite Digi HQ from aircraft grade 6061-T651 aluminium
- Hard anodised.
- Designed, manufactured and assembled in Australia by Ignite Digi.

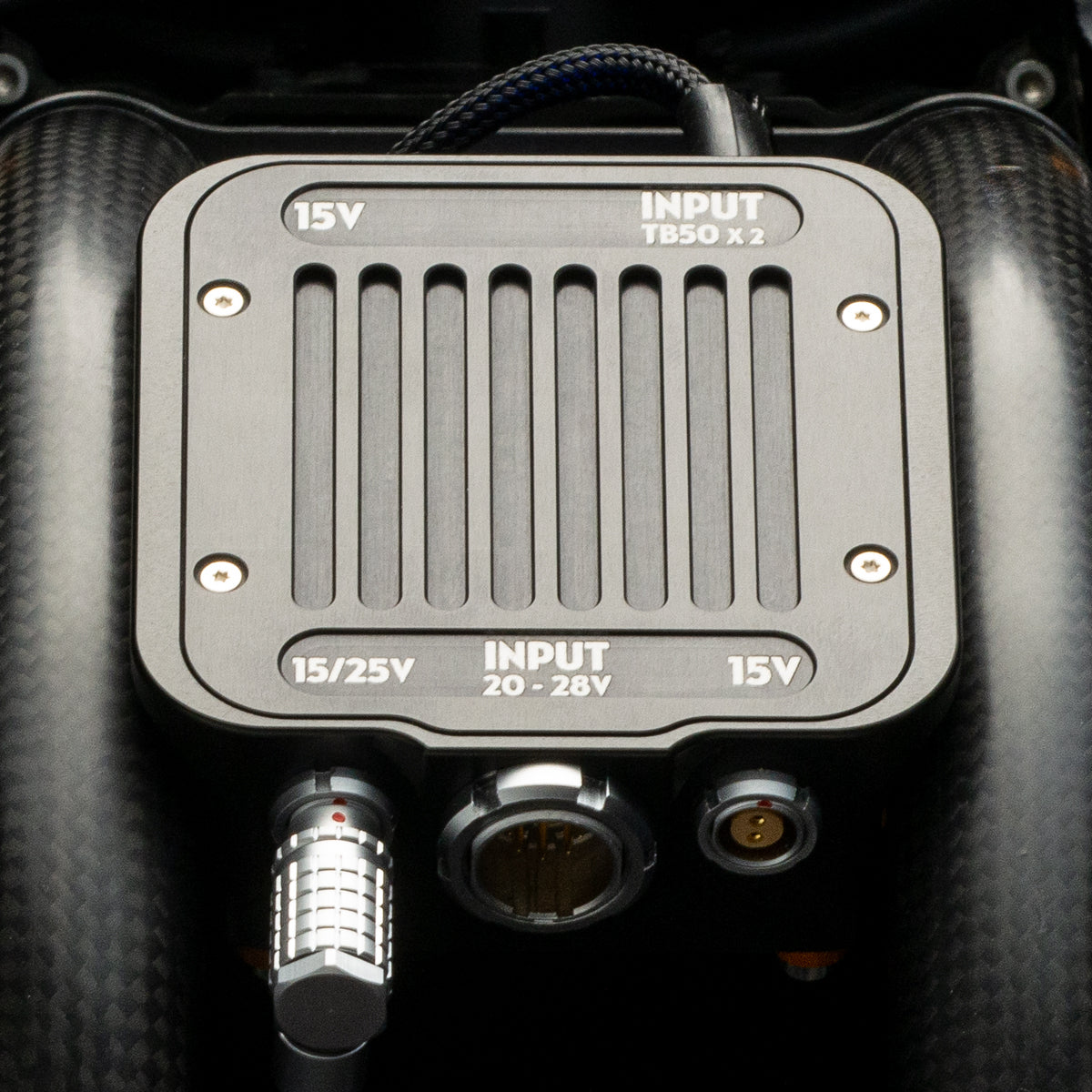

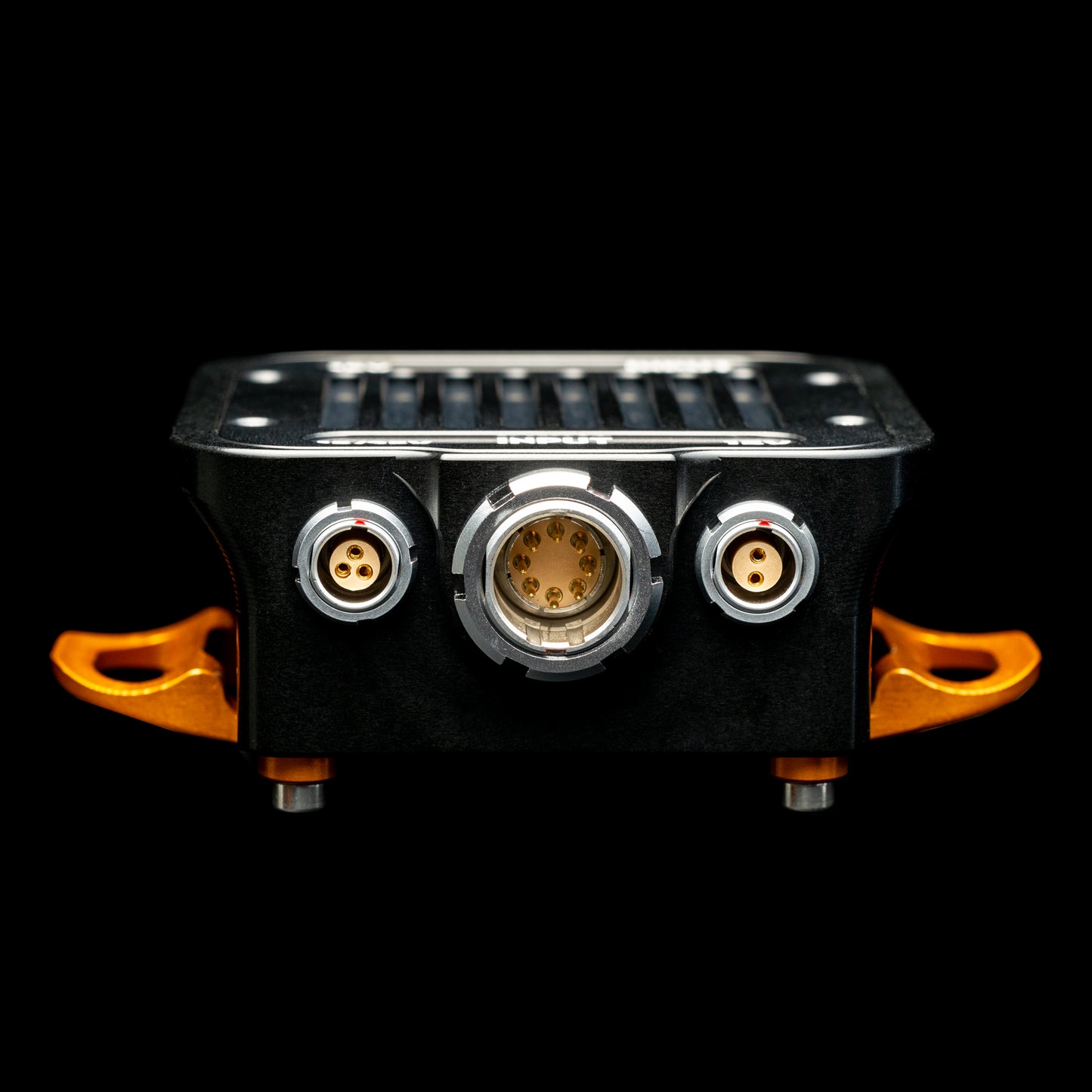

Pinouts
- 2 Pin EEG.0B.302 Lemo @ 15V
  Pin 1: - ground
  Pin 2: +15V
- 3 Pin EEG.0B.303 Lemo @ Dual Voltage 15V and 20-25V*
  Pin 1 - ground
  Pin 2 +15V
  Pin 3: +20 - 25V*

  *Note: When running from a VCLX 28V XLR, the 3 pin Lemo voltage matches the source input. So can be up to 15V and 28V rather than 15V and 20-25V when running just from dual TB50s.

POWER EXPANSION PACK FOR MŌVI PRO

GET MORE POWER

3 pin 15/25V Dual Voltage feed
for powering the camera with
15V up to 100W or
20 - 25V up to 200W available.

Frees up the CAM D tap on MoVI Pro TSU to power accessories in the cage
with 14V up to 84W.

2 x 2 Pin 15V outputs on the Expansion Pack for accessories like monitors and transmitters mounted on the ring or handles. Draws from the combined 15V up to 100W.

to the Mōvi Pro cage

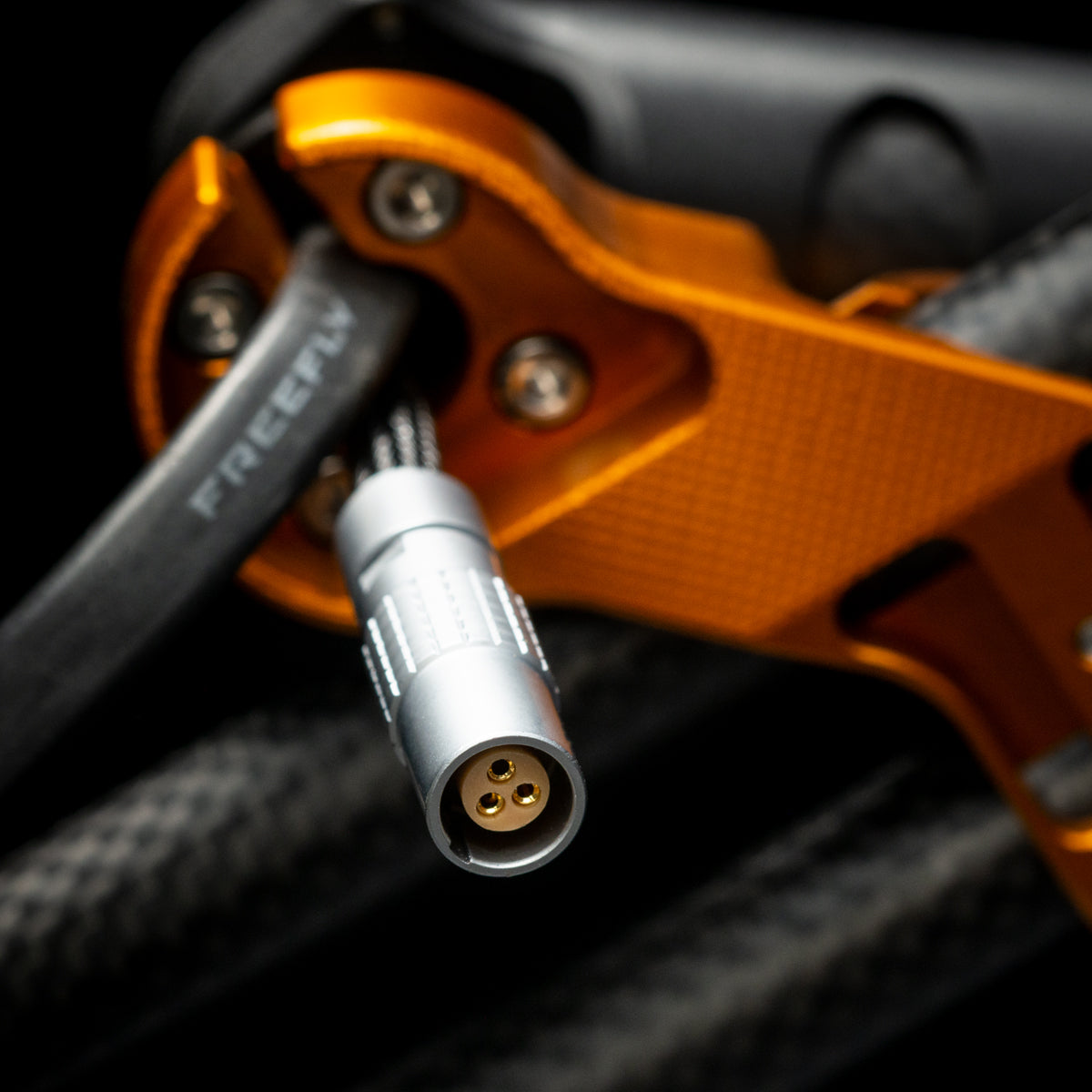

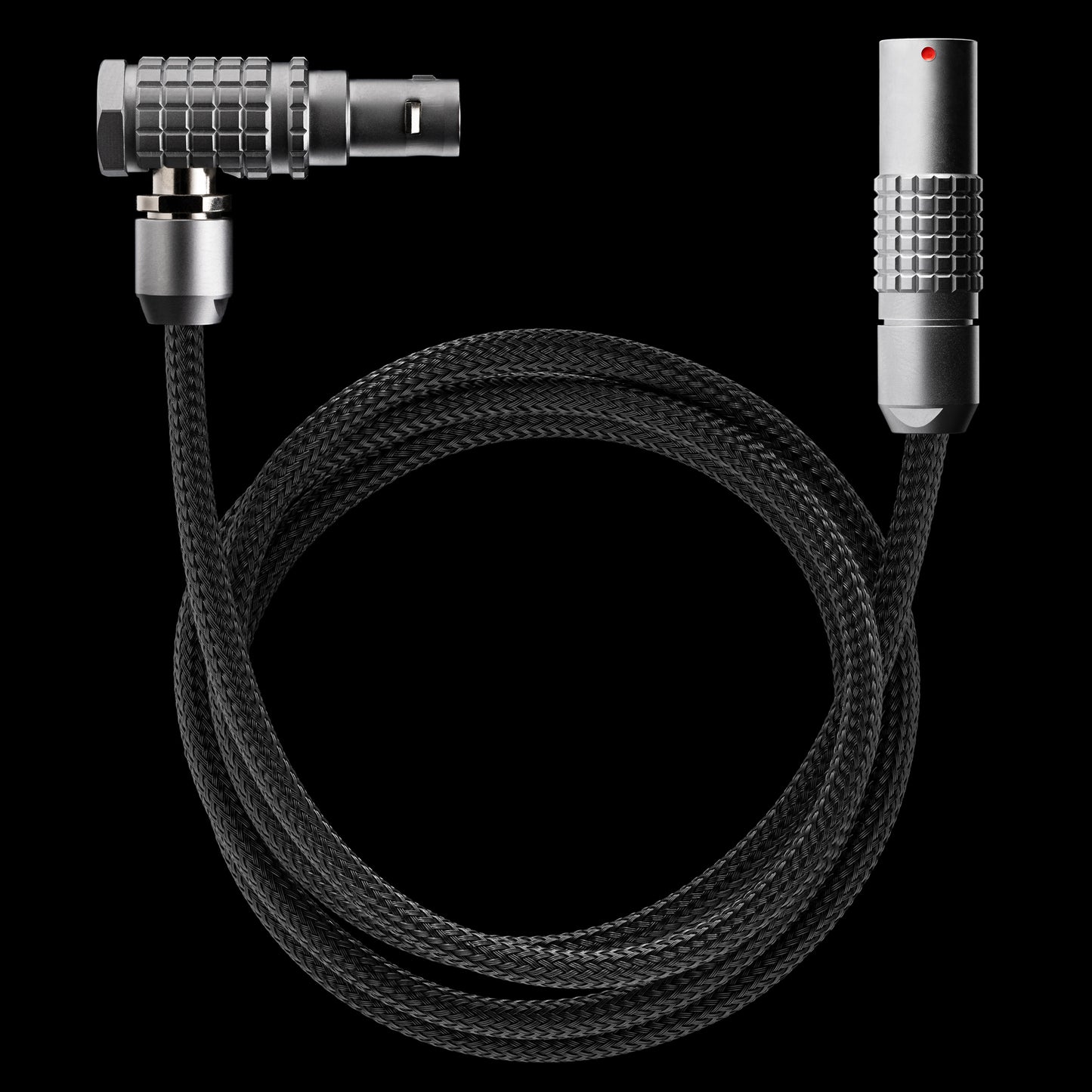

We’ve included a 3 pin feed cable to neatly extend the dual voltage down to the camera cage.

The included camera cage cable connects to the appropriate Ignite Digi 3 pin to Camera Cable (sold separately, camera specific) and feeds the correct voltage to your camera.

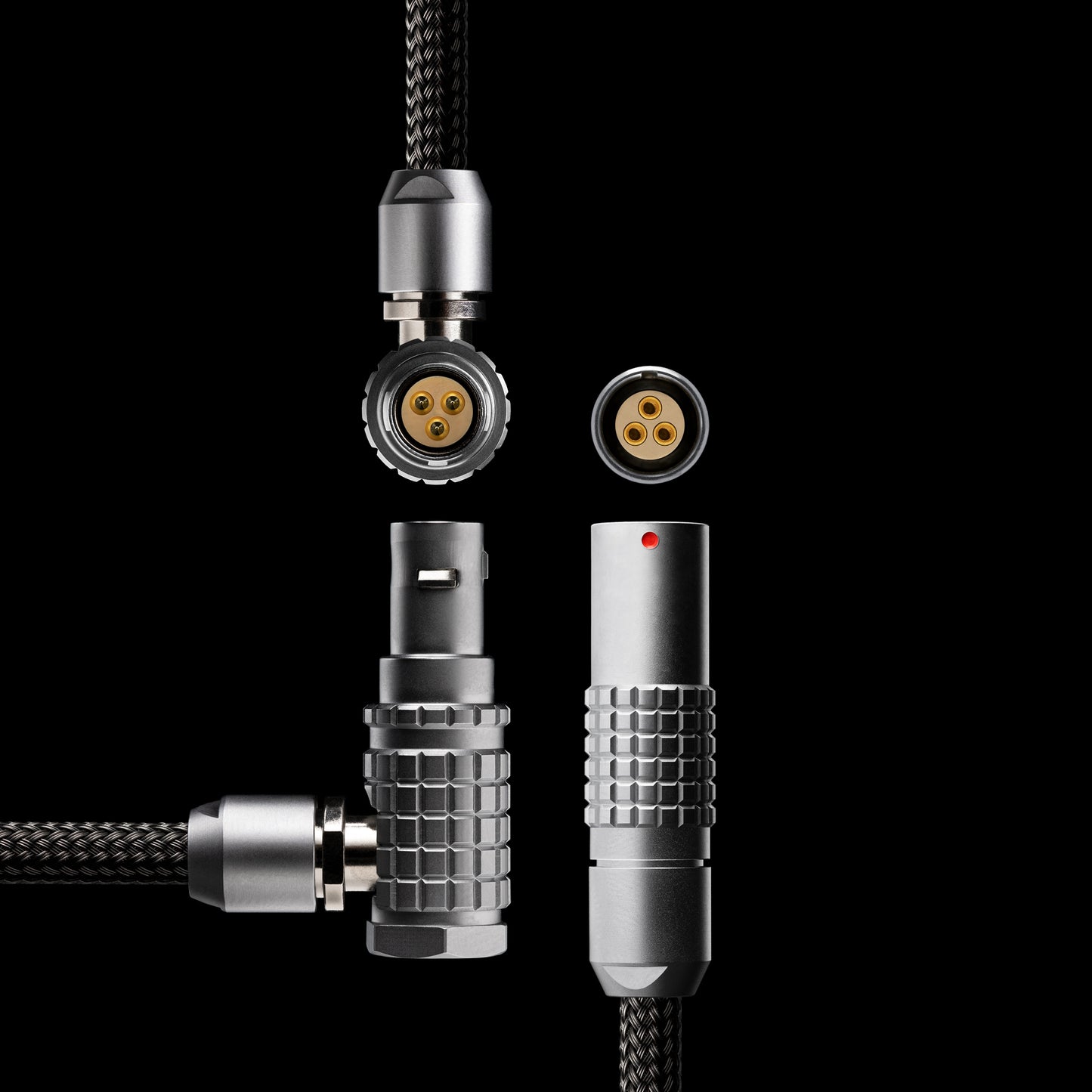

3 pin Camera Cables
ARRI Alexa Mini/Mini LF: 20 - 25V
RED DSMC2: 15V
Sony Venice: 15V

Alternative camera cables available by request. 3 pin Camera Cables are compatible w/ both Power Expansion Pack & TB50 Hammerhead.

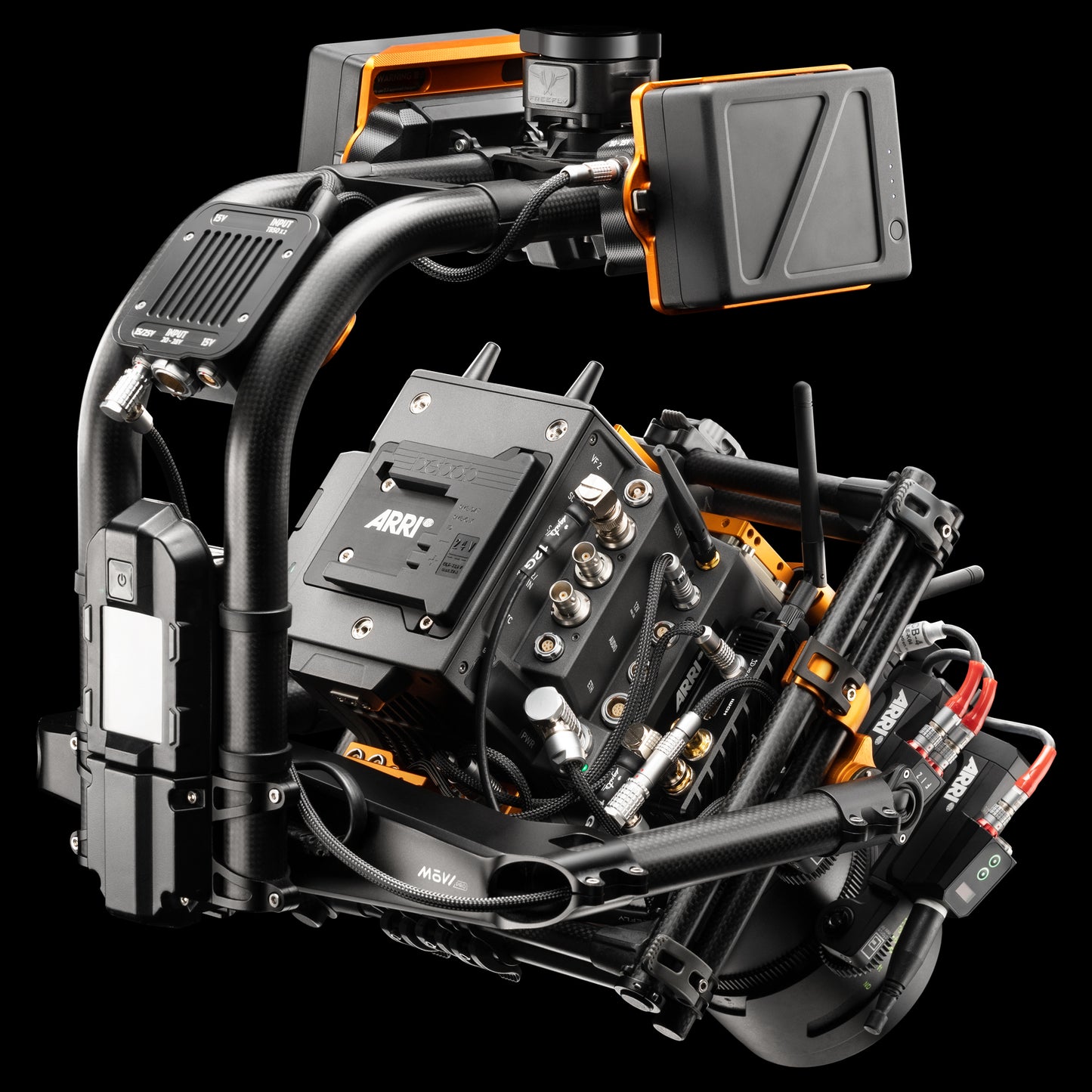

How we power the MŌVI Pro

: ~ Use a 3 pin to Alexa Mini cable with the 3 Pin feed from Expansion pack, giving the camera 20 - 25V up to 200W.

~ D Tap to 2 pin cable from MoVI Pro CAM D tap (6A) to Ignite Digi Power Breakout feeding power to RTmotion MK3.1 MDR and Teradek Bolt TX, 14V up to 84W!

~ 2 pin from Expansion Pack to LP-E6 dummy battery for SmallHD LCD on MoVI Ring/handles,15V up to 100W.
: ~ Use a 3 pin to Alexa Mini LF cable with the 3 Pin feed from Power Expansion pack, giving the Alexa Mini LF and FIZ motors 20 - 25V up to 200W.

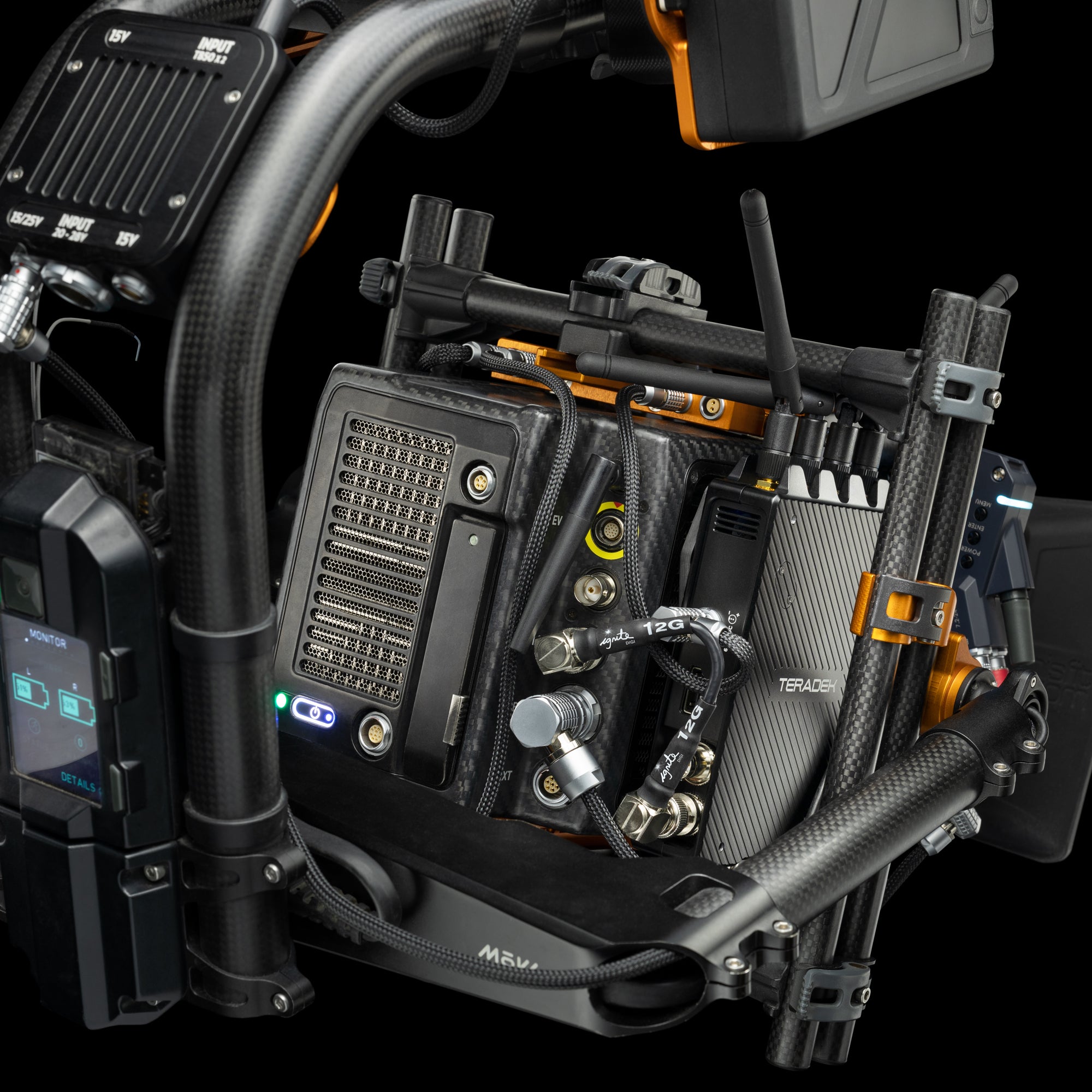

~ D Tap to 2 pin cable from MoVI Pro CAM D tap to Ignite Digi Power Breakout then powering 15V to Teradek Bolt TX, 14V up to 84W.

~ 2 pin Lemo output from the Power Expansion pack to 2 pin Lemo input on SmallHD Cine7 mounted to MoVI Ring/handles, 15V up to 100W.
: ~ Use a 3 pin to RED Lemo to power RED Monstro Camera body and RED 7" LCD: 15V up to 100W NO Dropouts!

~ D Tap to 2 pin cable from MōVI CAM D tap to Ignite Digi Power Breakout powering 15V accessories up to 84W (RT motion MDR, Teradek TX).

20 - 28V DC Input

The 8 pin 2B Lemo (the same as Alexa Mini/Mini LF) is great for when you are running the MŌVI Pro on a crane or dolly.

You can then power the camera from a VCLX block battery or 24V Power Supply via this input, further extending TB50 runtimes.

Lightweight Design

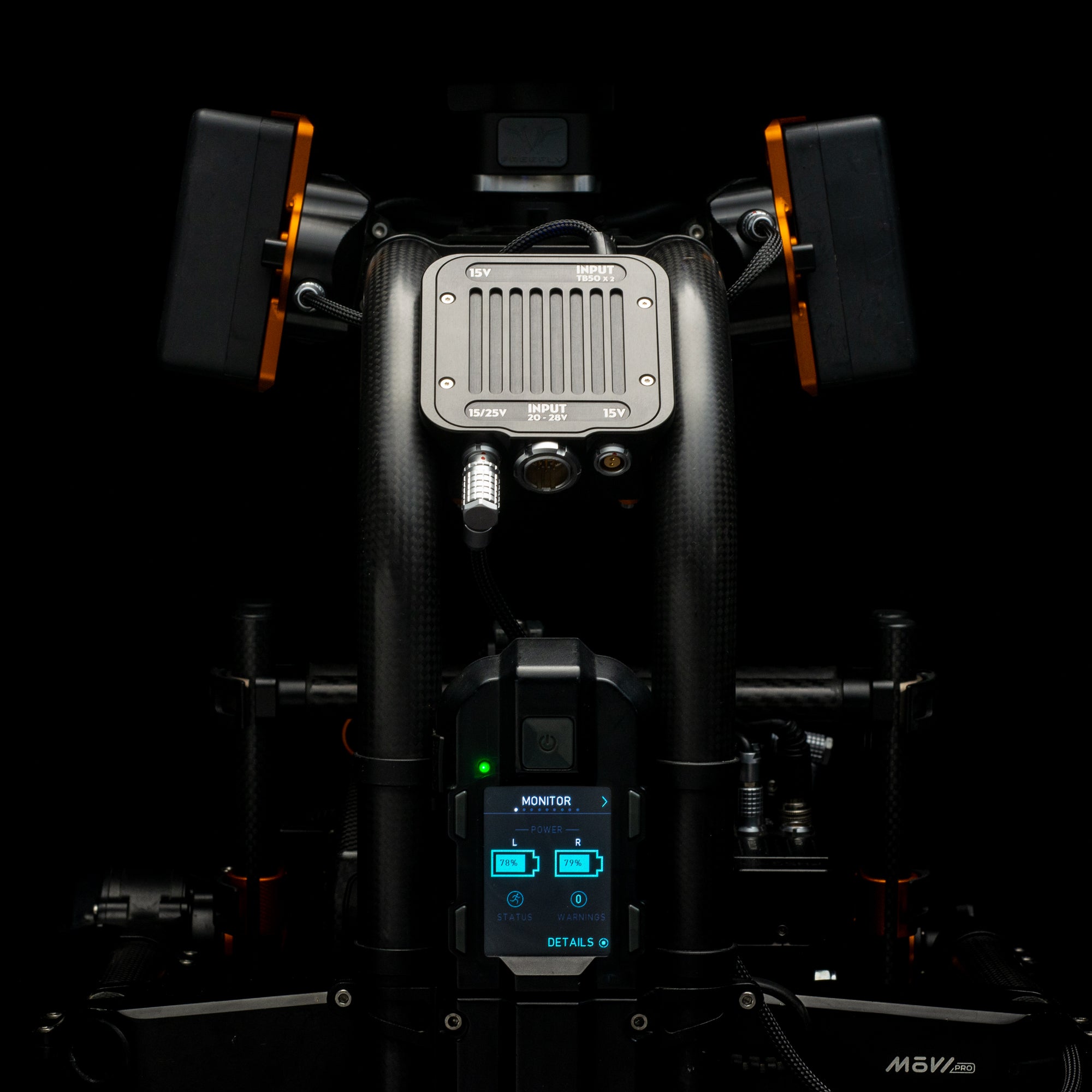

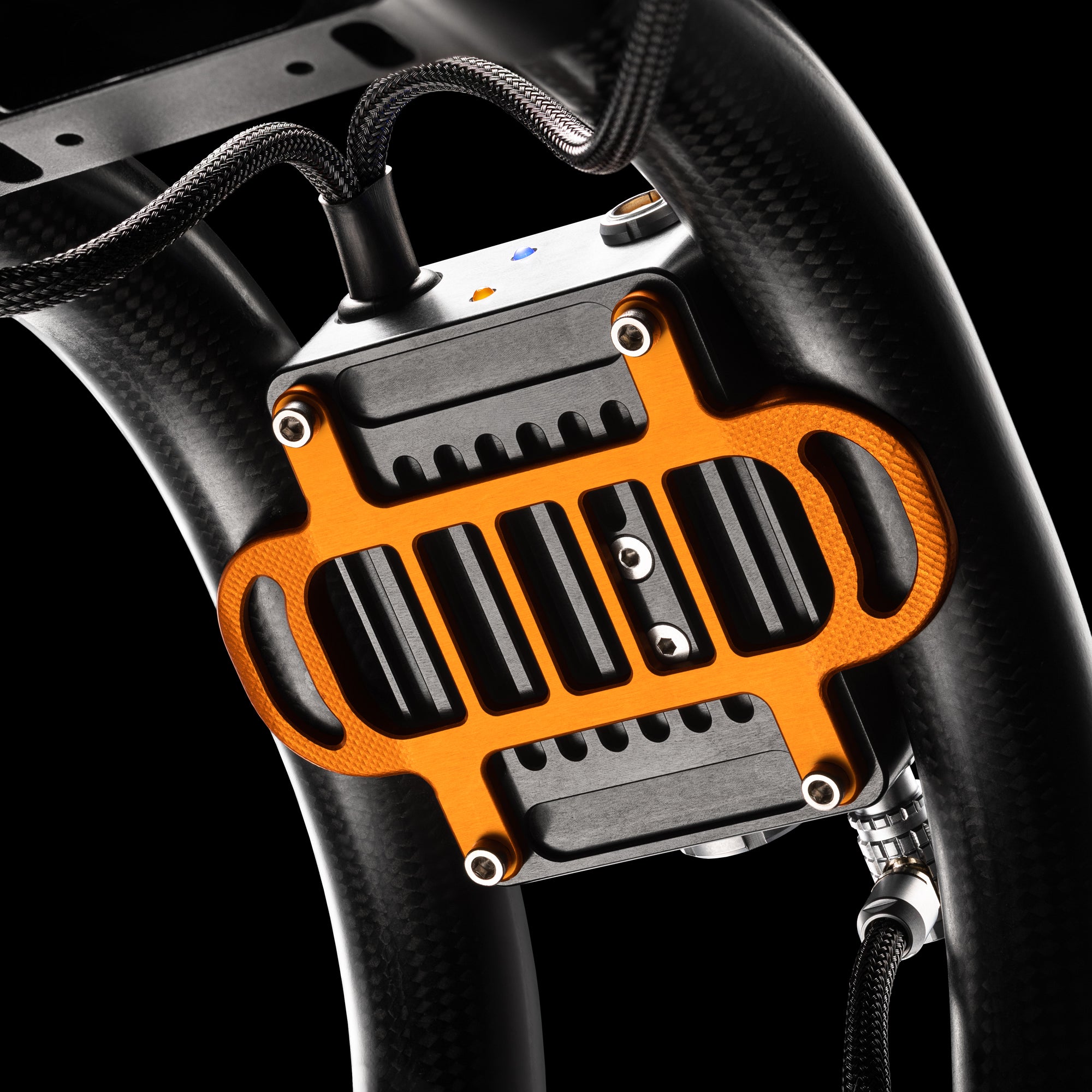

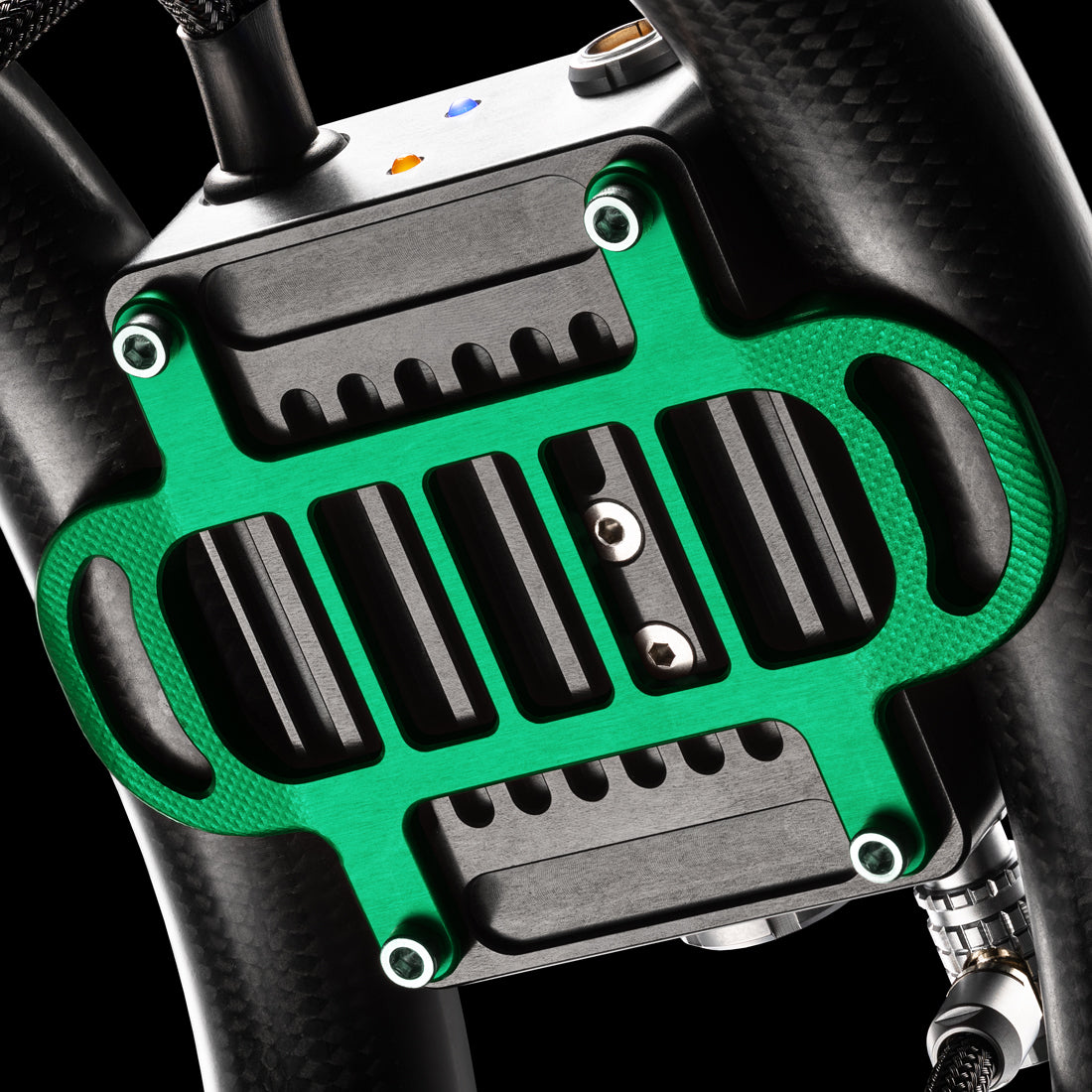

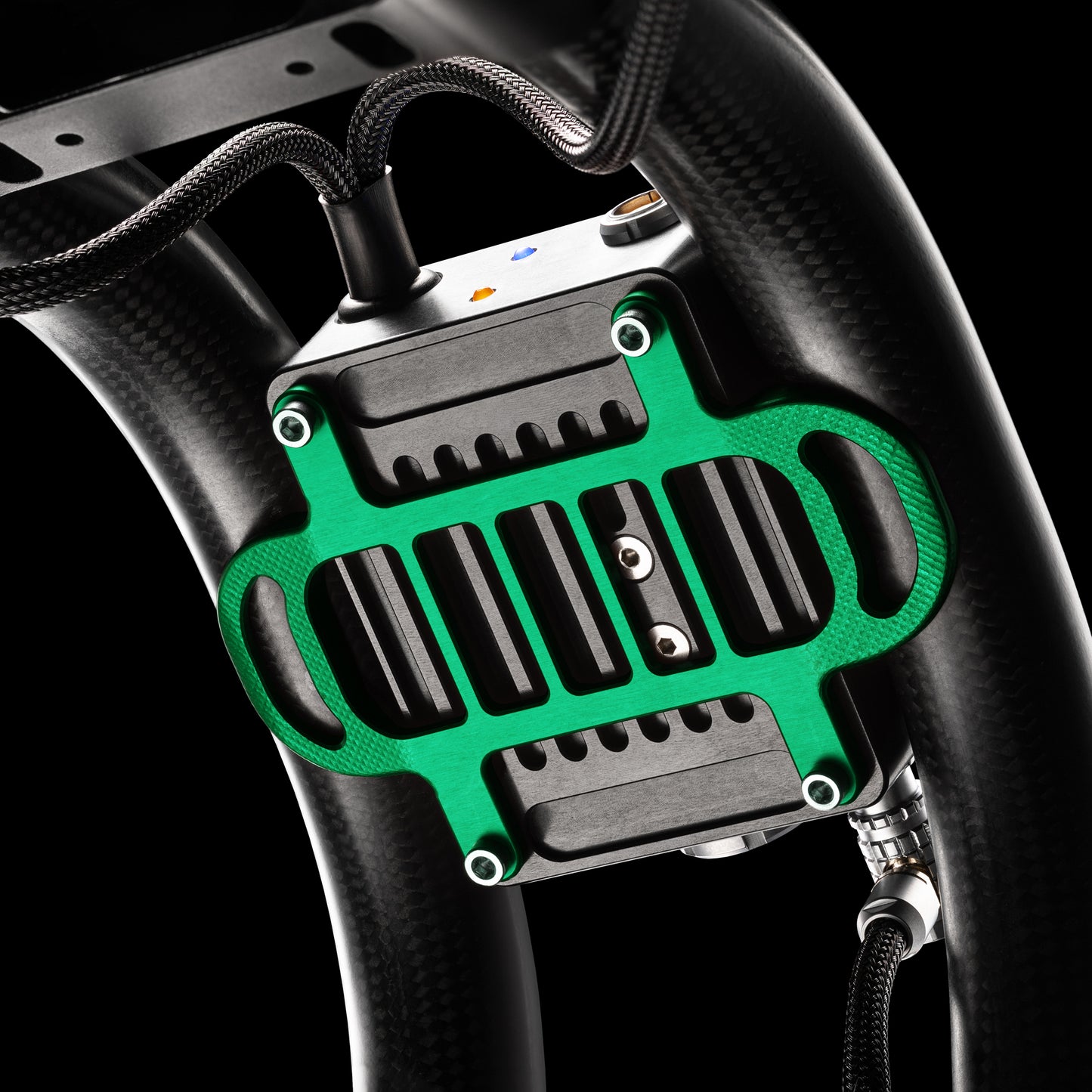

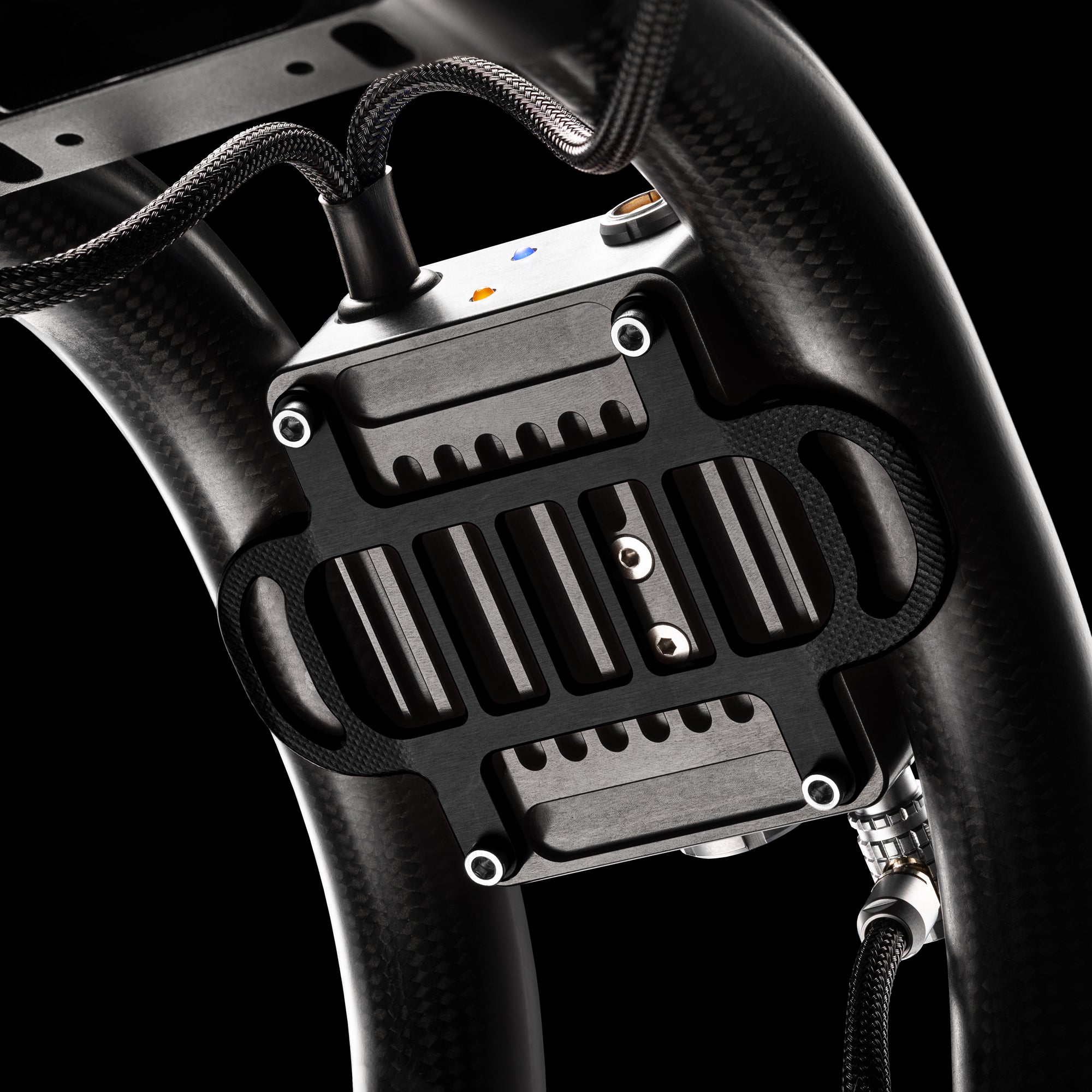

The Power Expansion Pack has been purpose built to live on the MoVI Pro spine.

It's extremely lightweight at just 280 grams (9.8oz) including the feed cable.

Quick Mode Change

Designed to enhance Ignite Digi's Quick Mode Change ecosystem!

The 3 pin camera cables are compatible with both the Power Expansion pack & the TB50 Hammerhead. We've designed it this way to make Quick Mode Change even faster!
