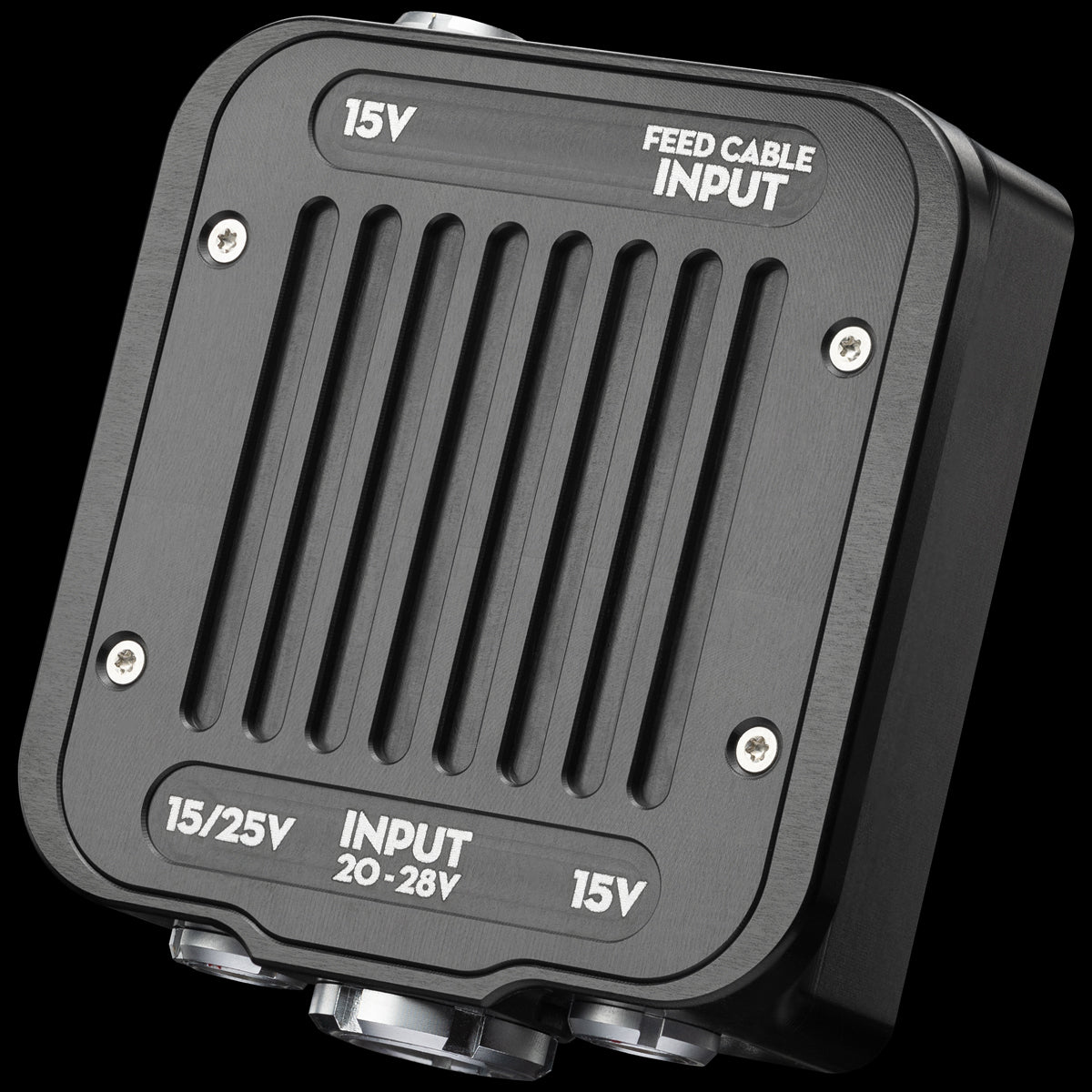

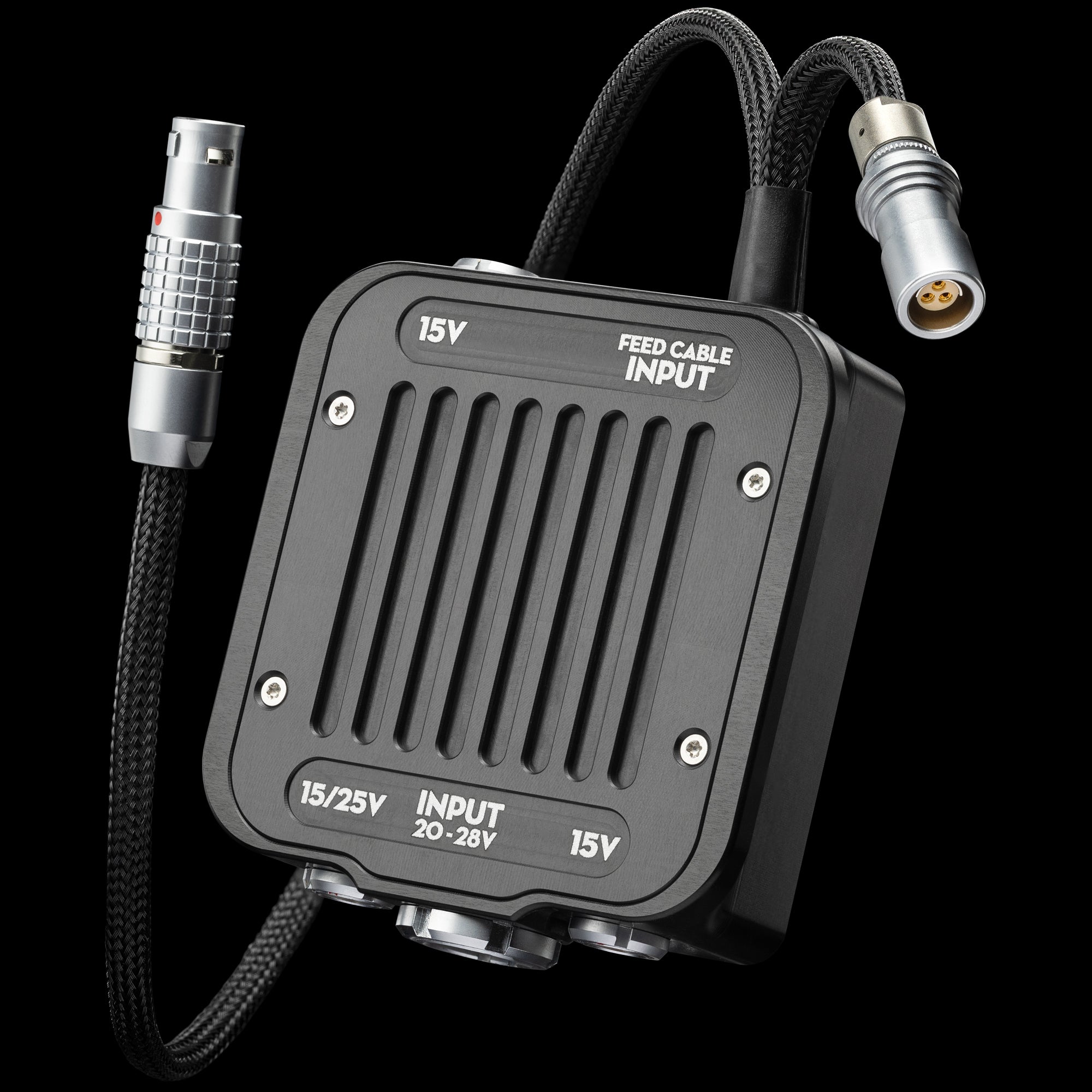

Power Expansion Pack for MōVI XL

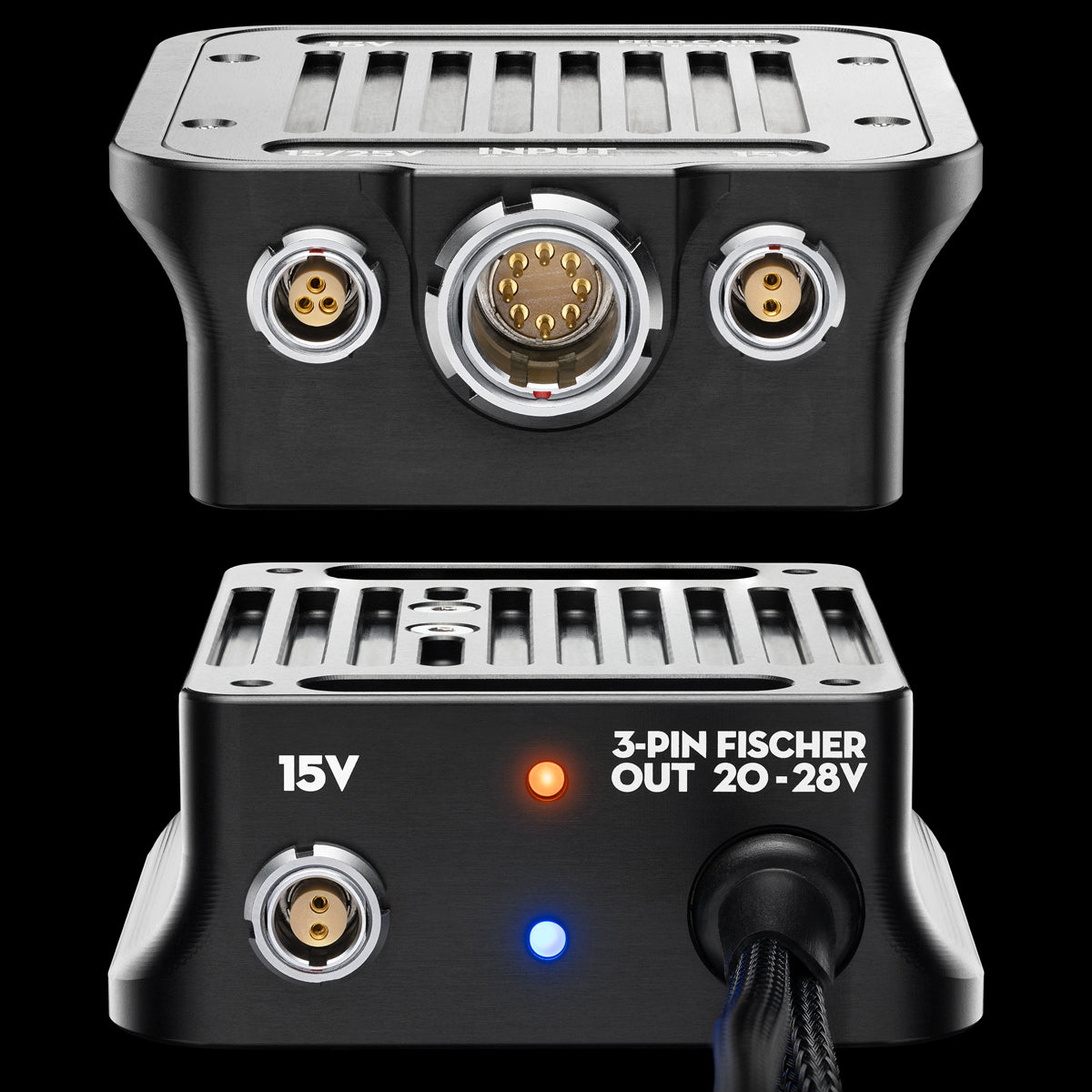

I/O

INPUT: 2-Pin 1B Lemo
⠀ (for Feed Cable)

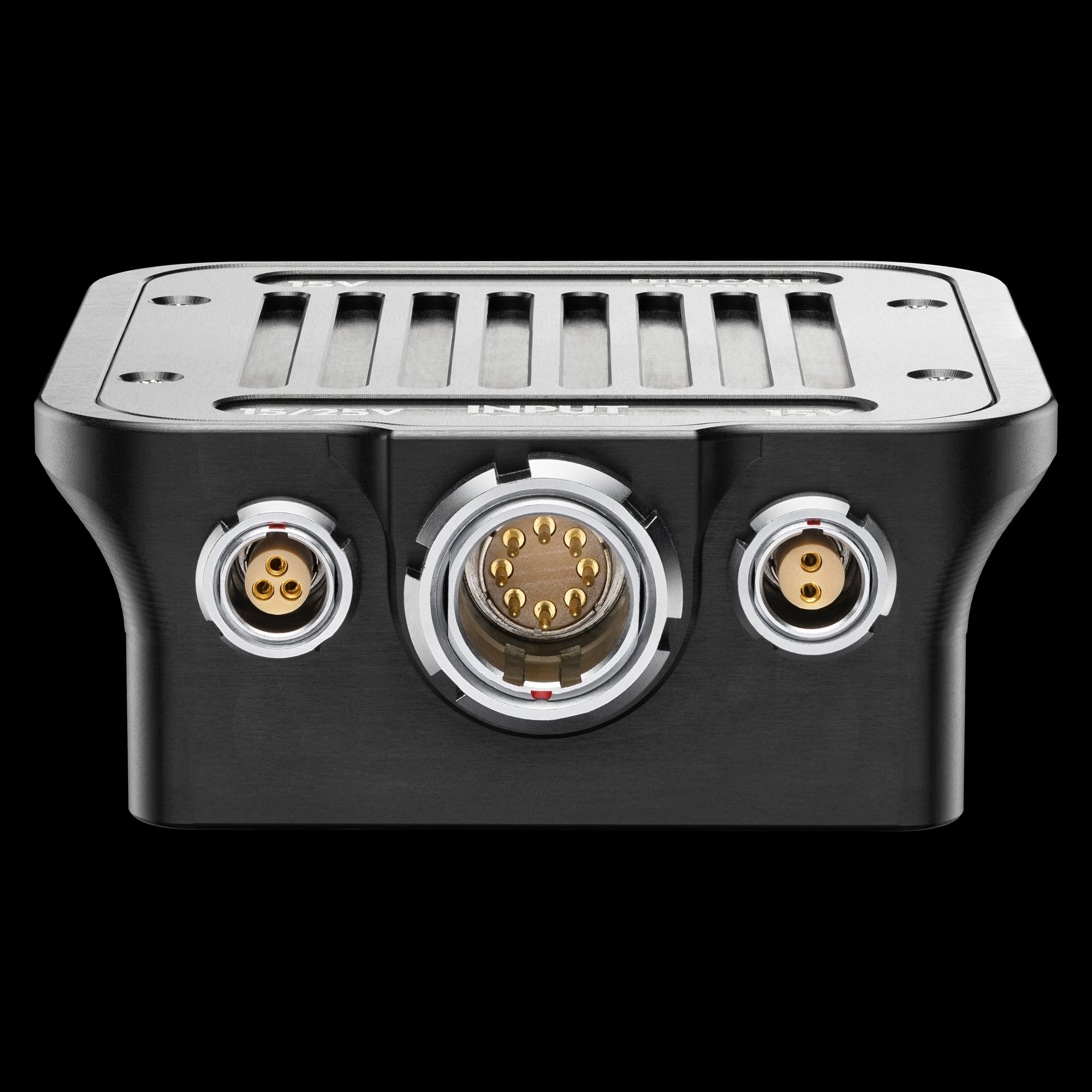

INPUT: 8-Pin Lemo 20-28V
⠀ (for block battery or AC Power)

OUTPUT: 3-Pin Lemo 15/25V
⠀ (for camera)

OUTPUT: Two 2-Pin Lemo 15V regulated
⠀ (for accessories up to 100W)

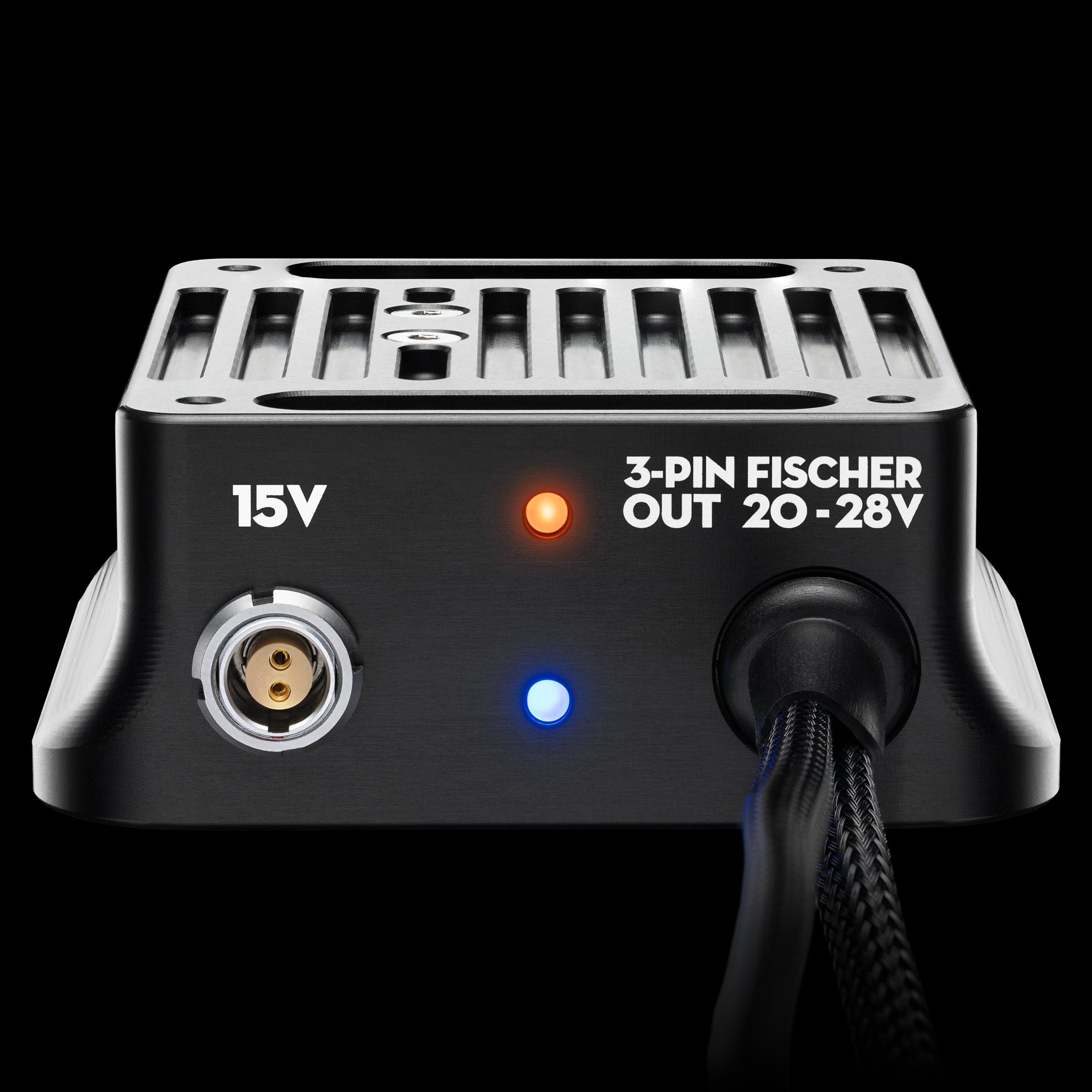

OUTPUT: 3-Pin Fischer 20-28V power only
⠀ (for rain deflector)

—

6-INCH 3-PIN EXTENSION CABLE

The 6-inch Extension Cable allows you to use our existing 3-Pin Lemo power cables with MōVI XL! Some customers may already have these in their kit.

That means, all of our 3-Pin Lemo camera power cables work with these Ignite products: TB50 Hammerhead, TB51 Hammerhead, Power Expansion Pack for MōVI Pro, and Power Expansion Pack for MōVI XL.

Made with premium silicone wire and protected with Techflex braid. Assembled and tested in Tasmania, Australia 🎥🔥

3-Pin Lemo to Camera (4-Pack)

3-Pin Lemo to ALEXA Mini + Mini LF + 35 Xtreme + 265

3-Pin Lemo to 2-Pin Fischer for ALEXA SXT + LF + Film Cameras

3-Pin Lemo to KOMODO

3-Pin Lemo to KOMODO-X + V-RAPTOR

3-Pin Lemo to RANGER + V-RAPTOR-XL

3-Pin Lemo to FX6 + FX9

3-Pin Lemo to BURANO + VENICE + C400 + C500II

3-Pin Lemo to Ember

3-Pin Lemo to Phantom Cameras

3-Pin Lemo to DXL2

—

BLOCK BATTERY CABLE

Power Expansion Pack features an 8-Pin Lemo input just like ALEXA 35, allowing you to source power from block batteries like the bebob CUBE 1200 and Anton Bauer Cine VCLX.

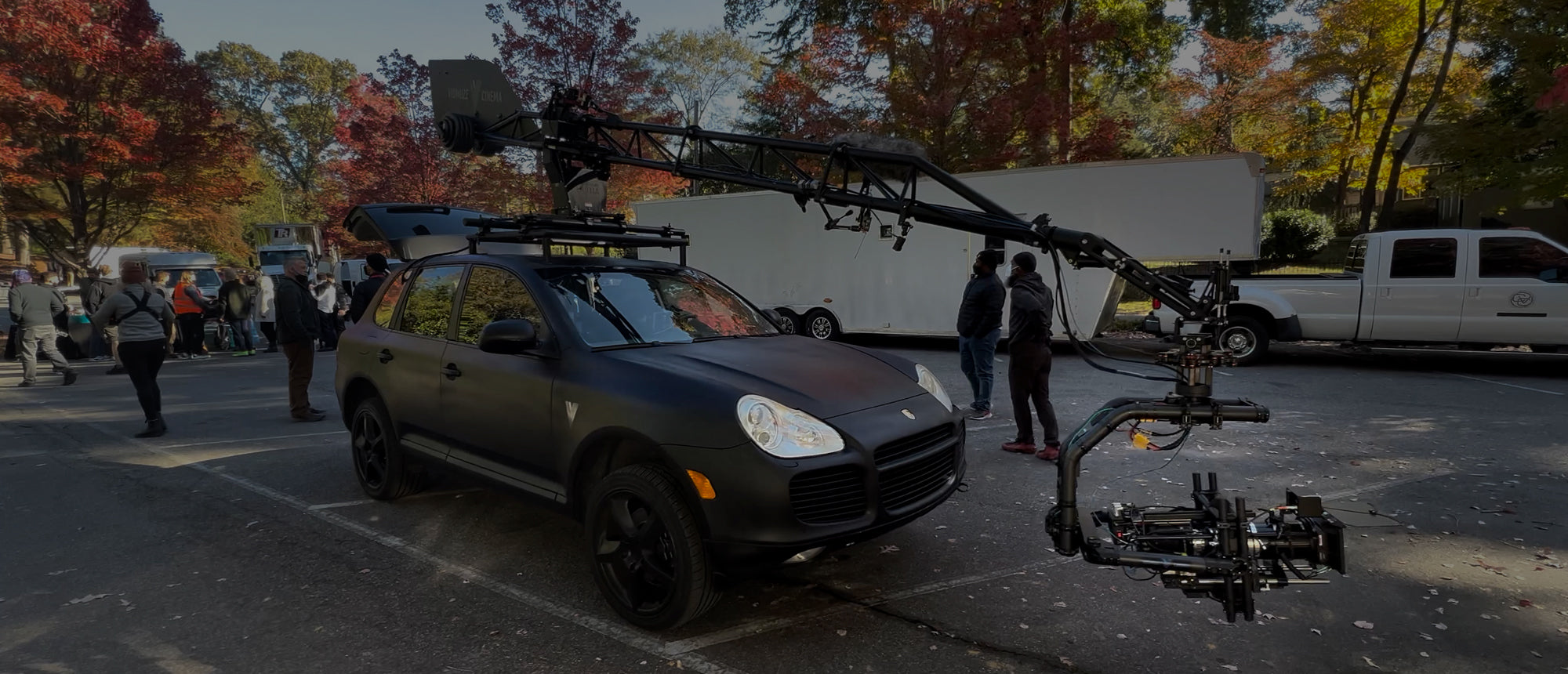

Plug a block battery cable into this port for extended run times during gear prep, or when using a crane or dolly.

Our 3-Pin XLR to 8-Pin Lemo cable can be purchased separately.

—

COMPATIBLE WITH
Freefly MōVI XL

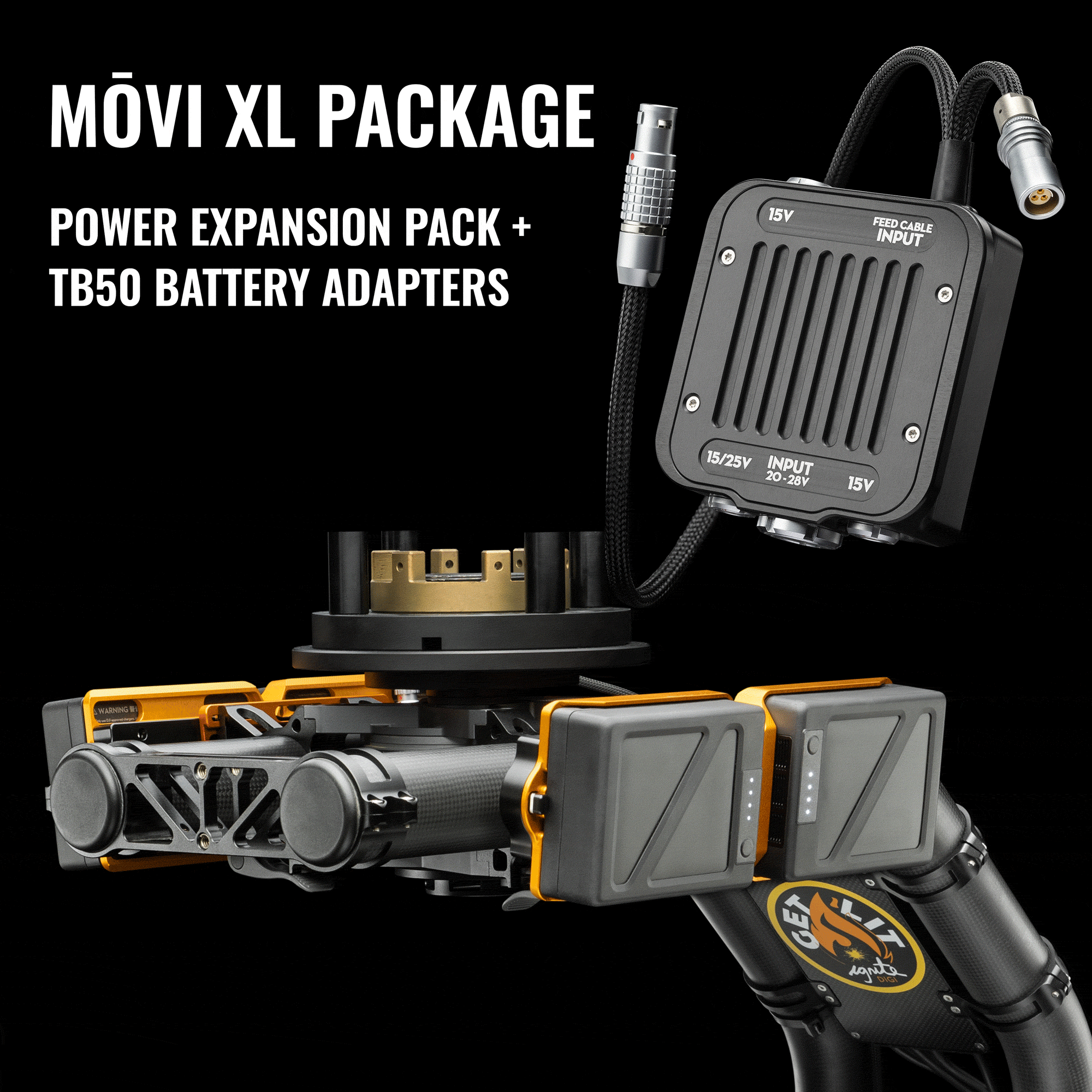

TB50 Battery Adapters for MōVI XL
TB51 Battery Adapters for MōVI XL
6S LiPo Batteries

IN THE BOX

⠀ Housing

⠀ Carbon Mounting Plate

⠀ 63-inch Feed Cable

⠀ 6-inch 3-Pin Lemo Extension Cable

⠀ XT90 / Lemo Splitter Cable

⠀ Five 200mm zip ties
⠀ (for securing Feed Cable to MōVI XL spine)

⠀ Six M3 x 8mm button head screws
⠀ (carbon mounting plate to housing)

⠀ Four M3 x 10mm socket head cap screws
⠀ (carbon mounting plate to MōVI XL cage)

—

HOUSING

MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised black

WEIGHT
8.04oz / 228g

DIMENSIONS
2.91 x 3.22 x 1.18” / 74 x 82 x 30mm

—

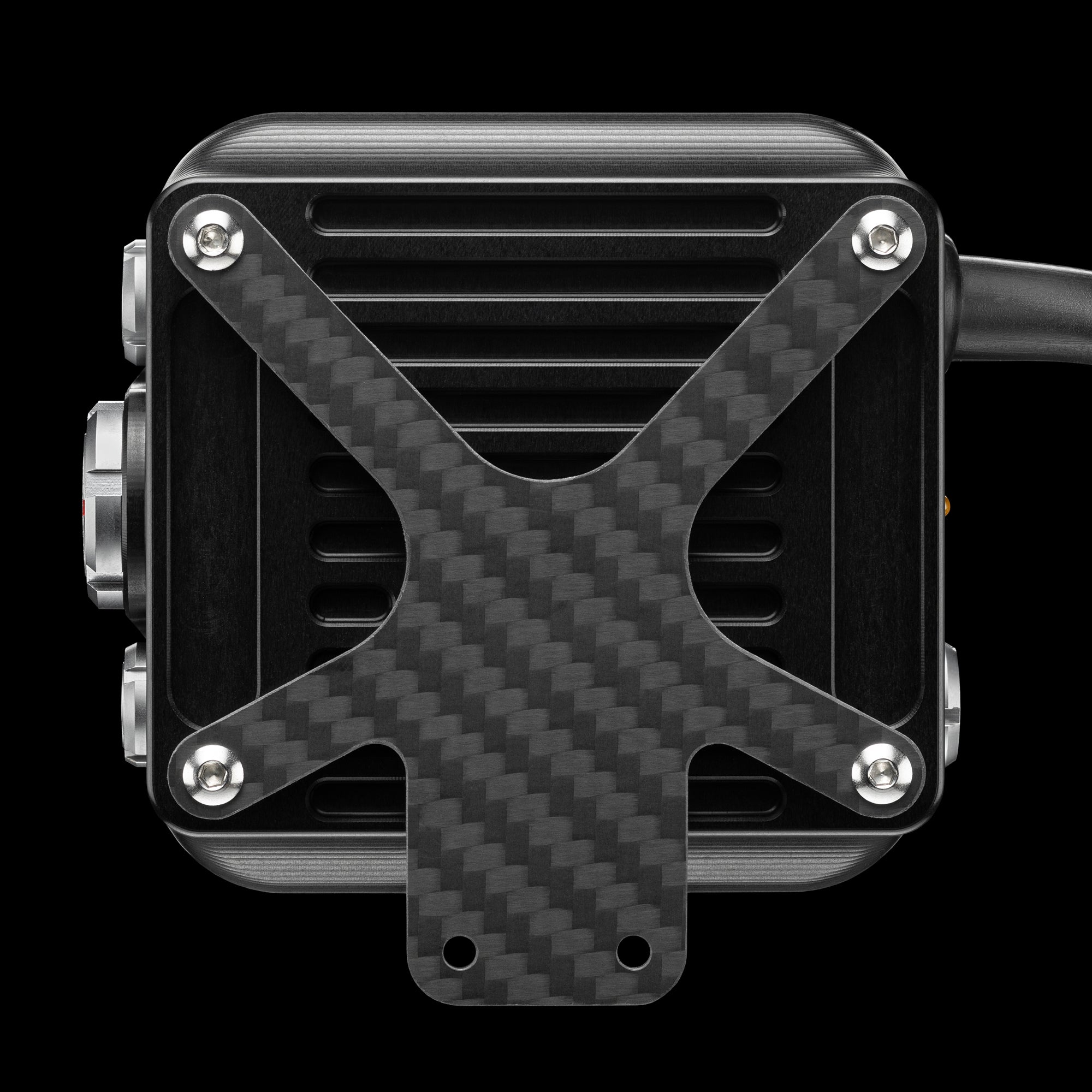

CARBON MOUNTING PLATE

The slimline carbon plate mounts with two M3 bolts.

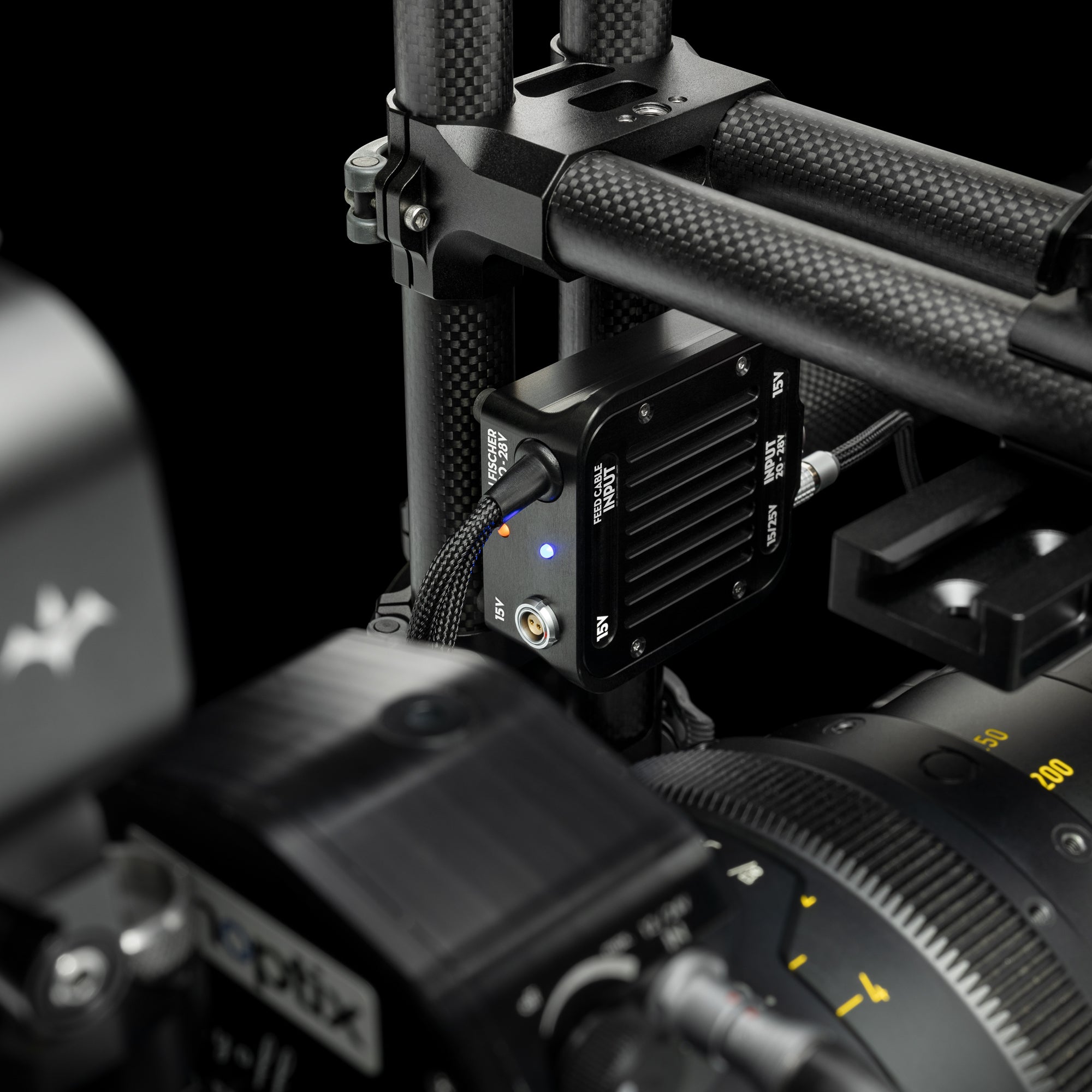

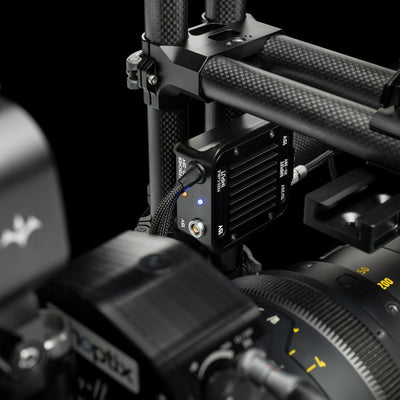

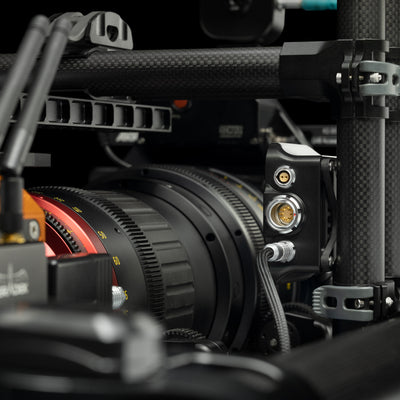

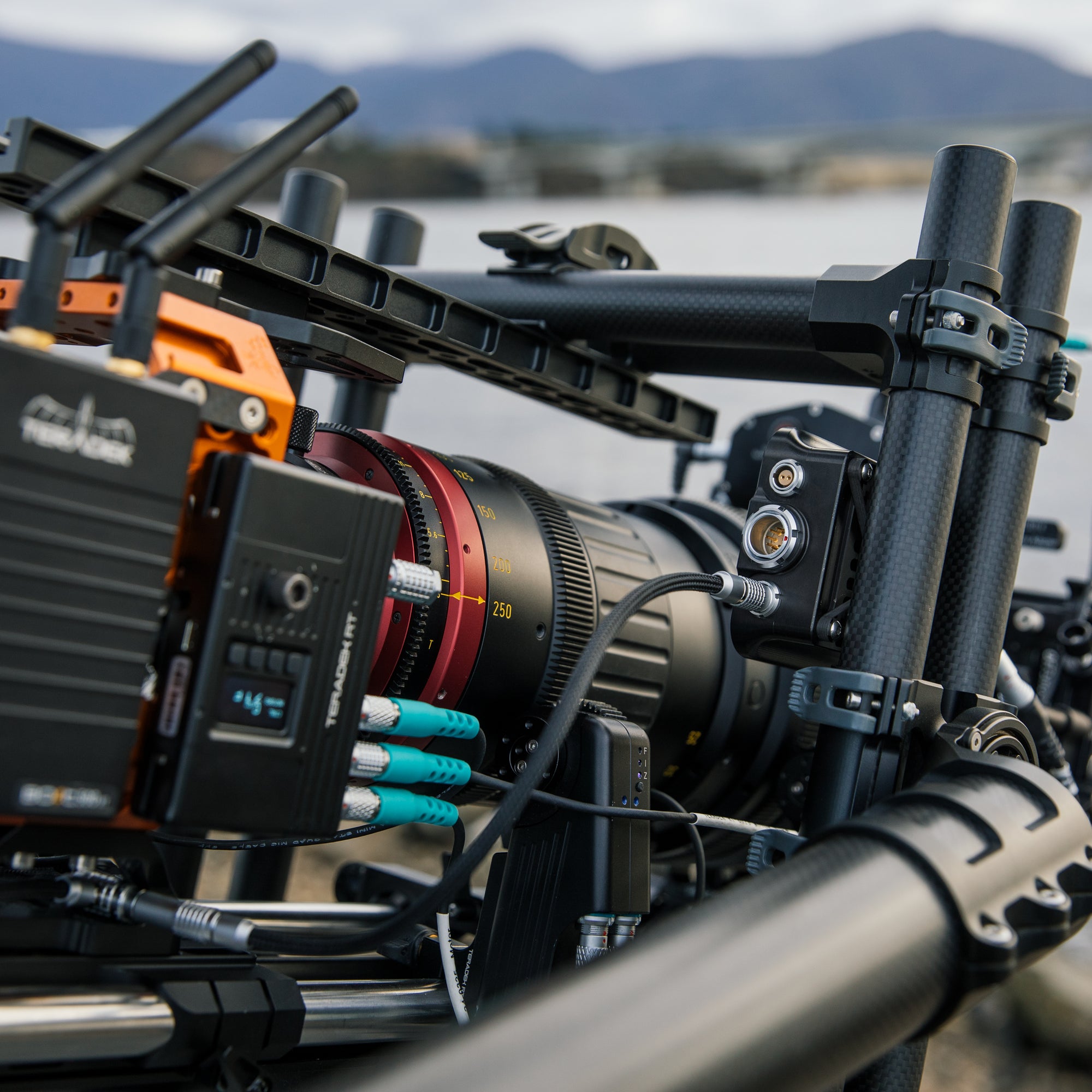

Power Expansion Pack can be positioned horizontally or vertically, inside or outside the Tilt Cage.

Cable lengths are designed for placement on the non operator side of the cage.

WEIGHT
0.59oz / 17g including all six mounting screws

DIMENSIONS
2.71 x 2.91 x 0.15” / 69 x 74 x 4mm

—

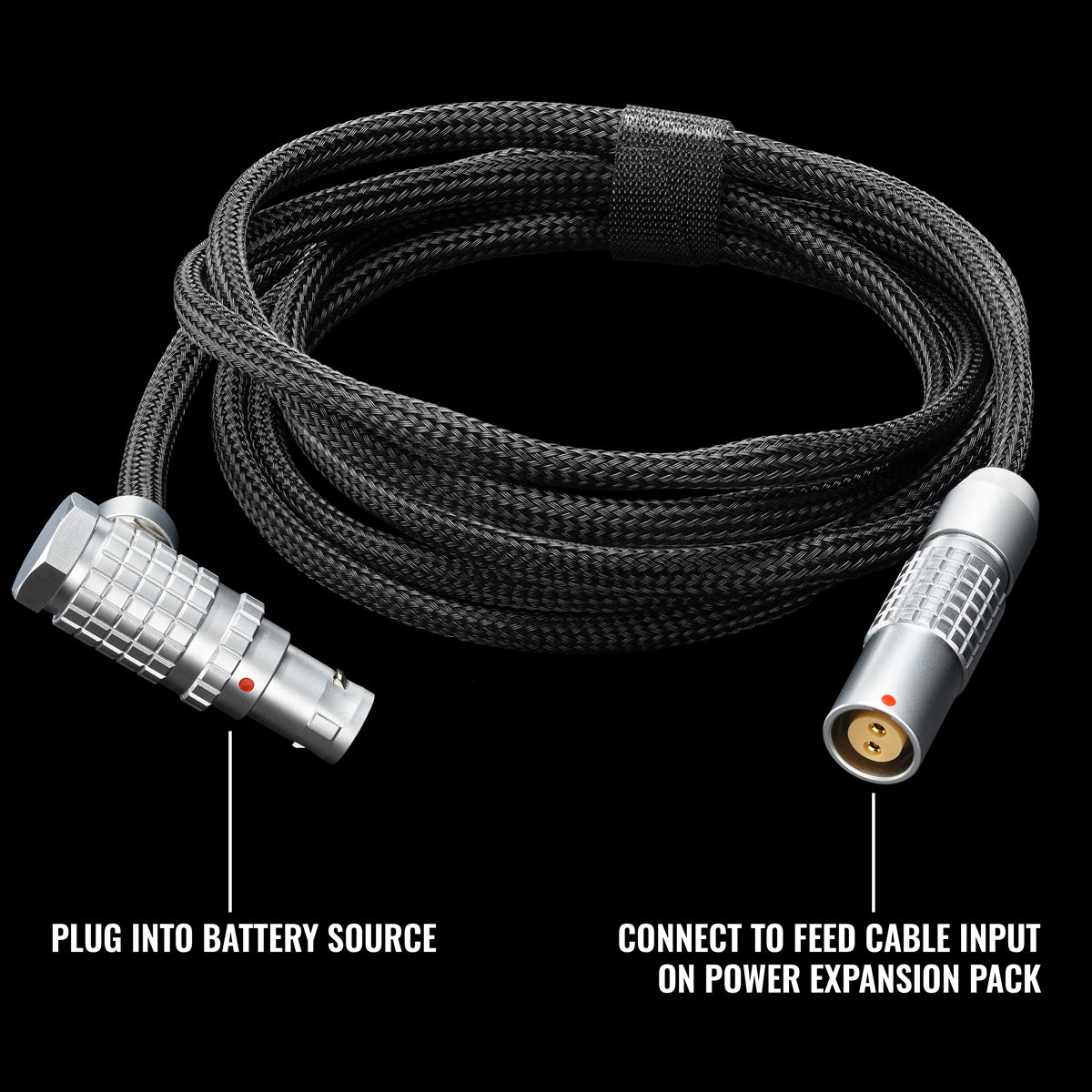

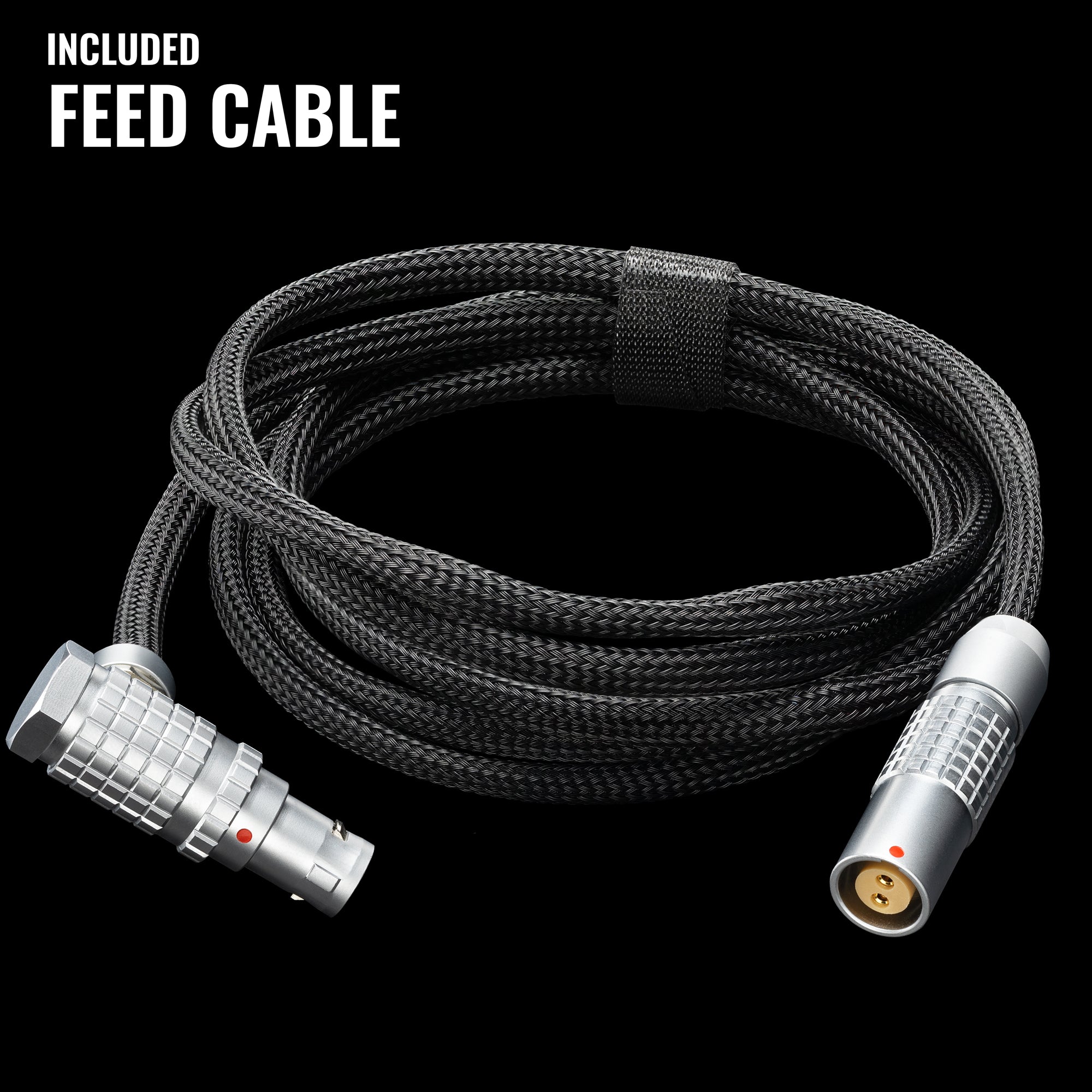

63-INCH FEED CABLE

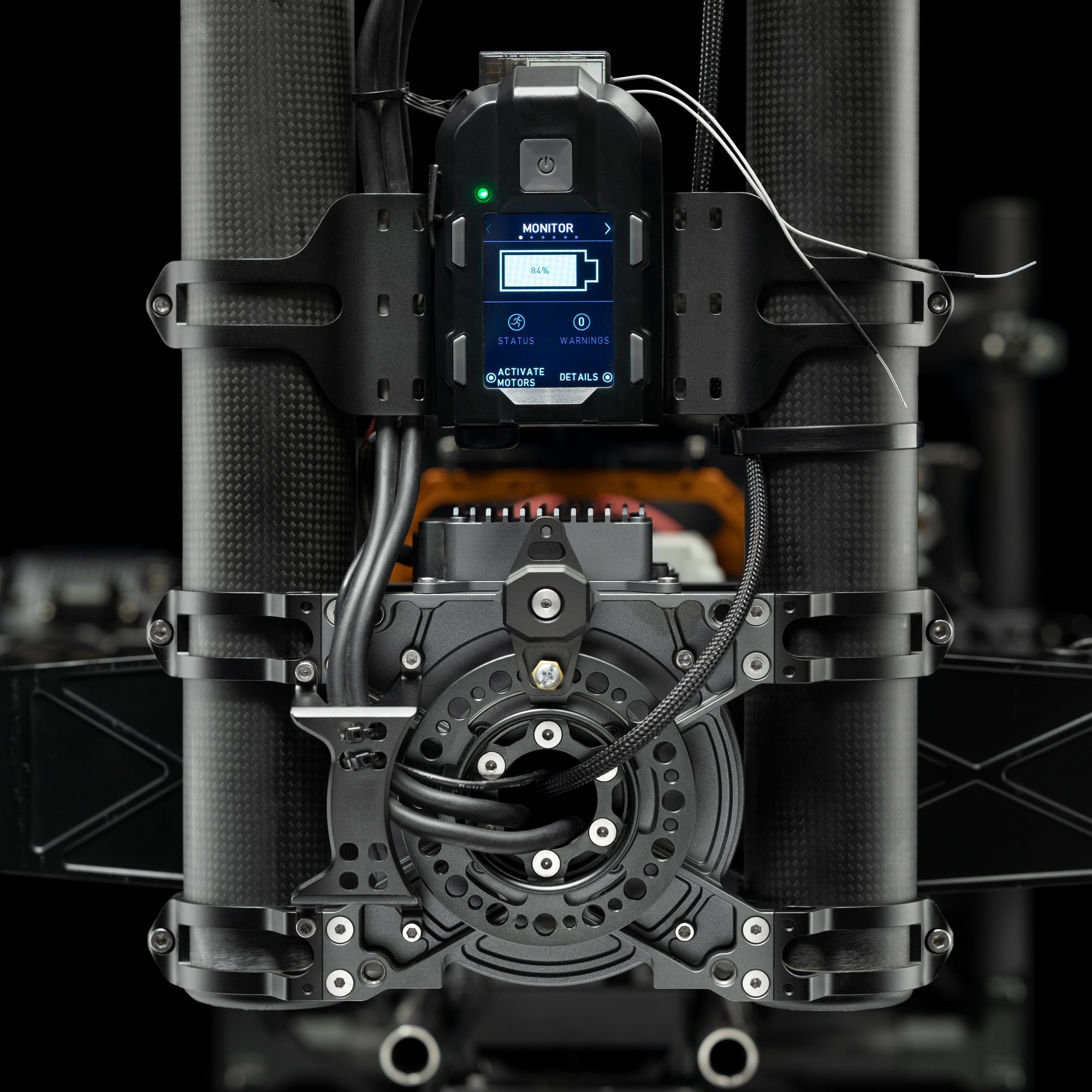

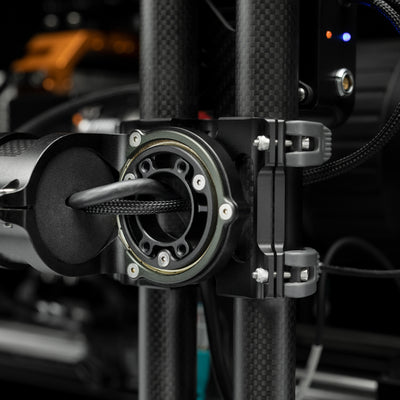

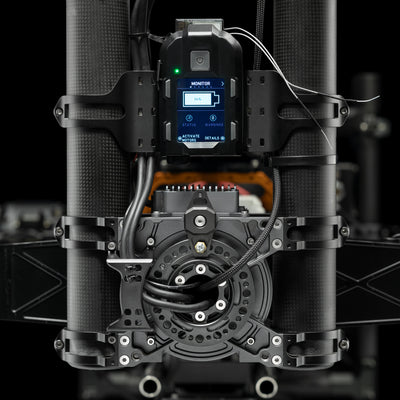

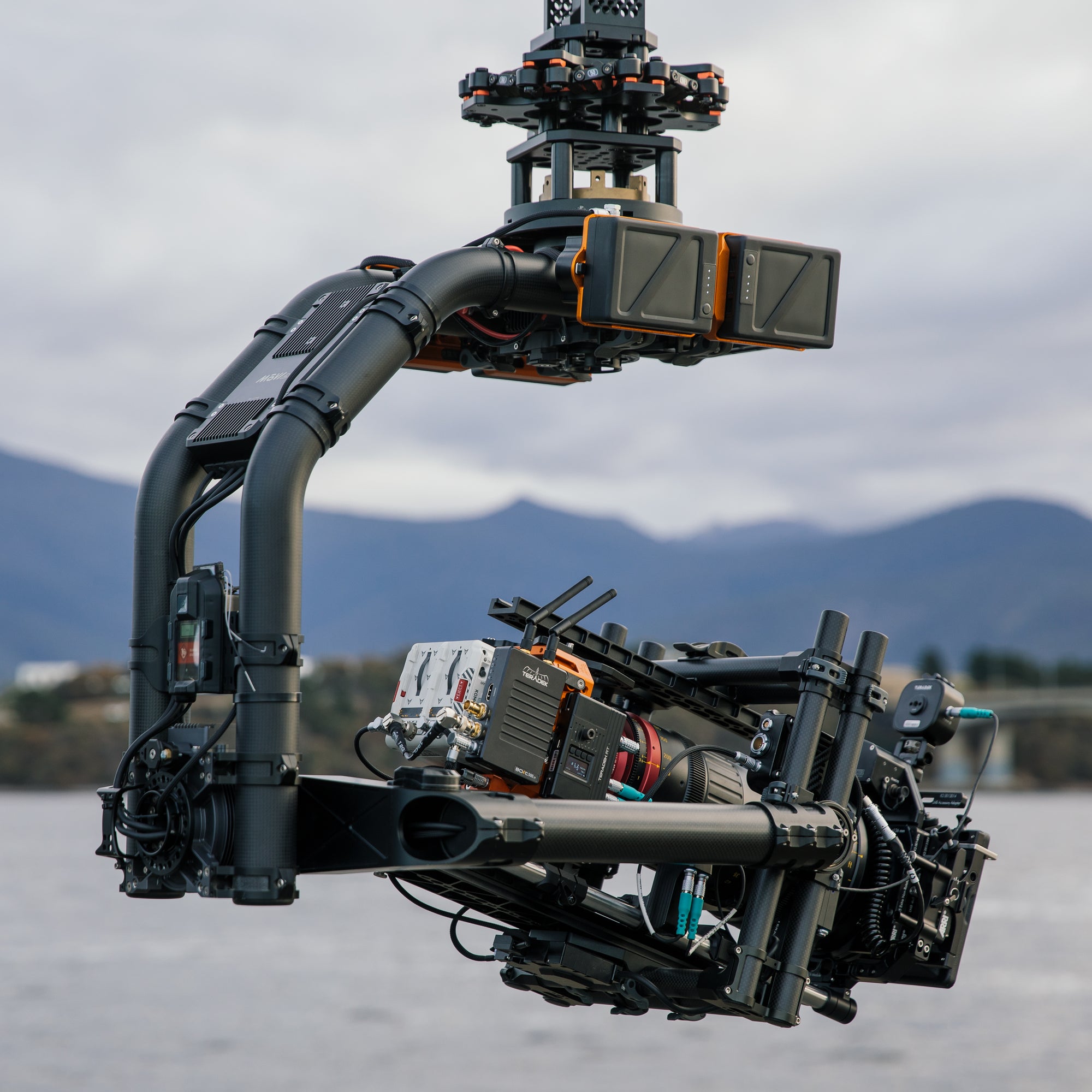

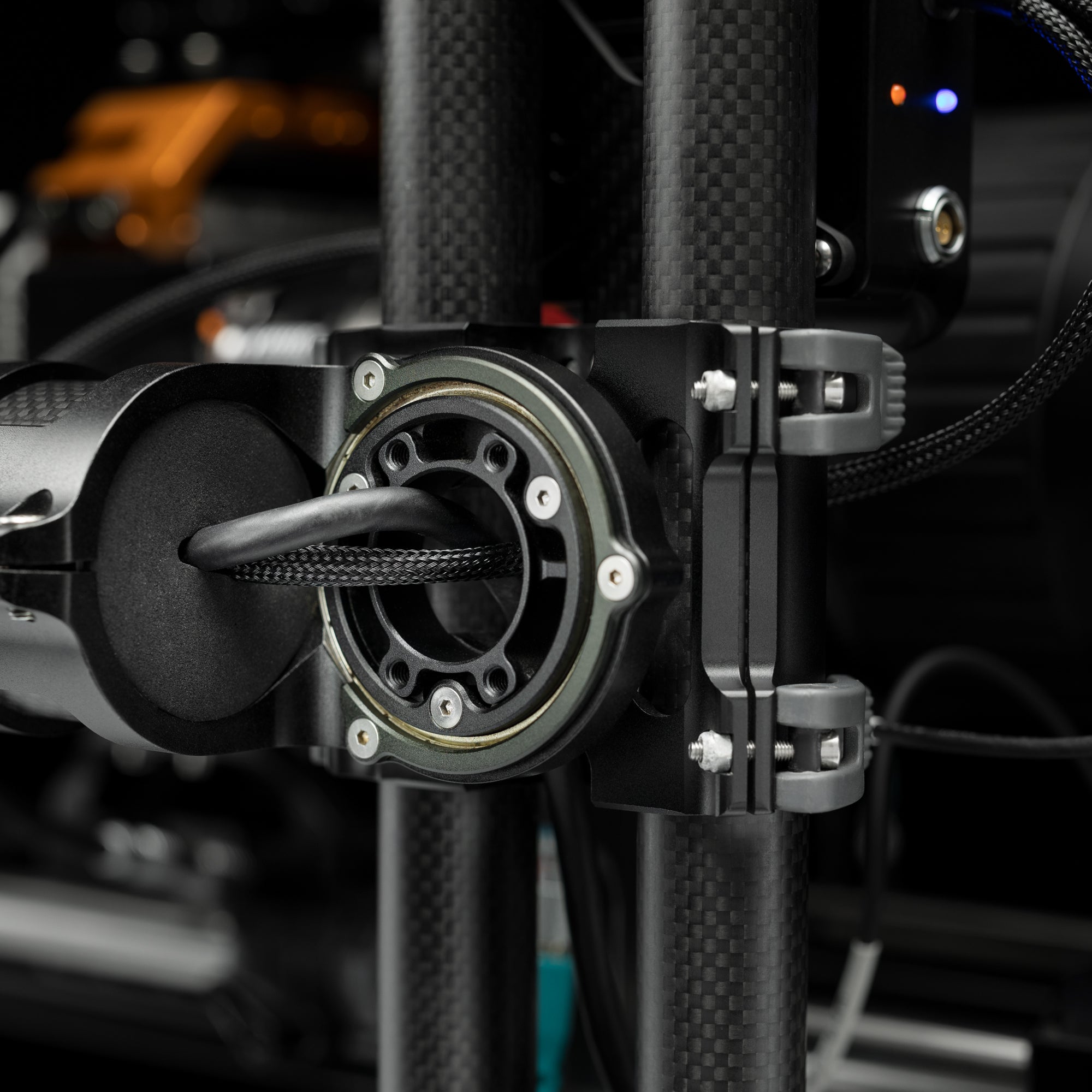

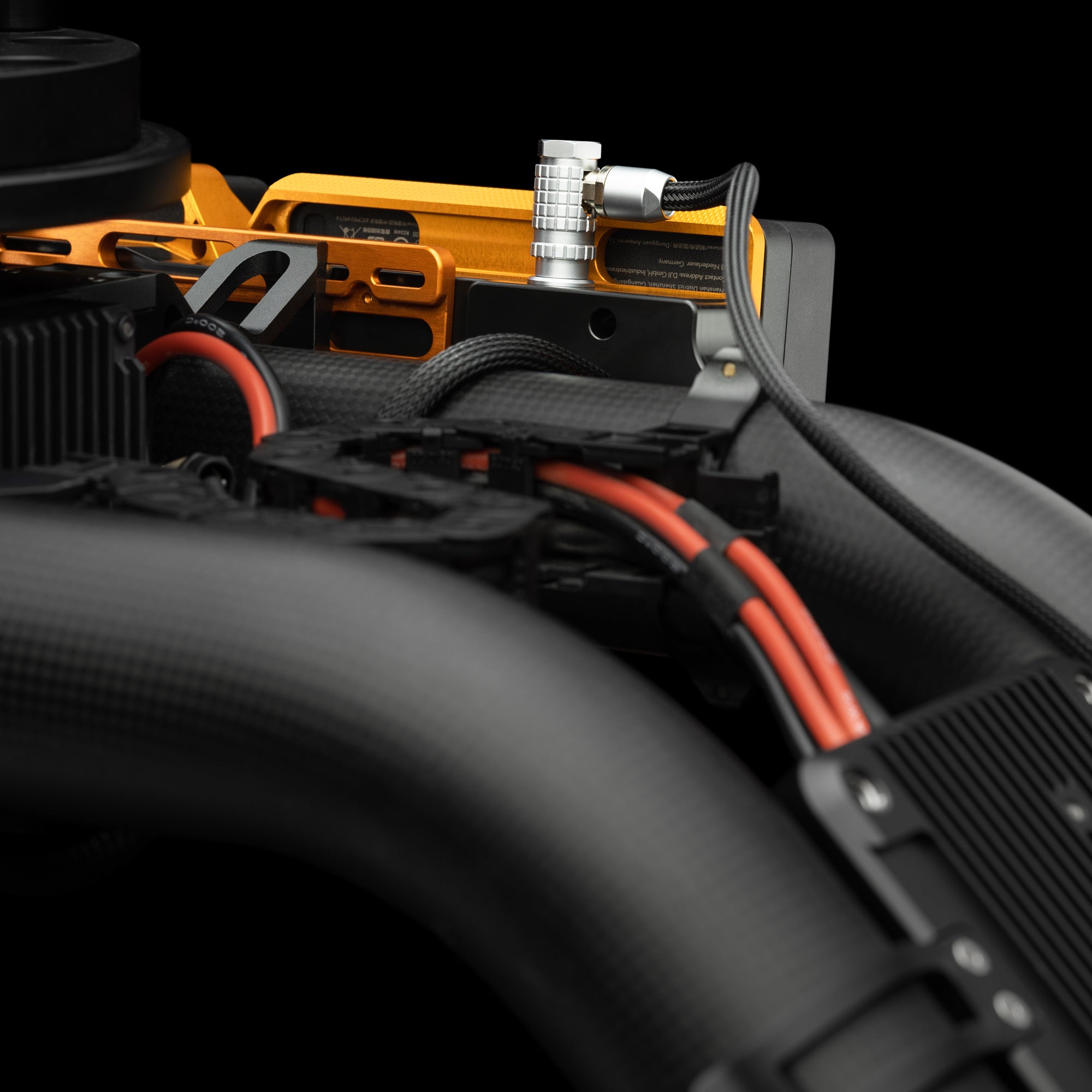

The Feed Cable plugs into the battery source up top, runs down the spine, through the roll motor and roll beam, and enters the tilt cage through the bearing assembly.

We've included zip ties to secure the Feed Cable to the 50mm carbon tubes.

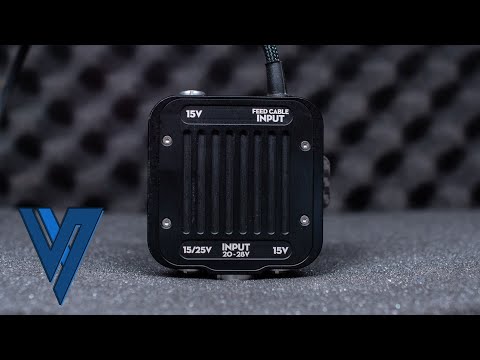

Watch installation video.

CONNECTOR SPECS
2-Pin (male) 1B Lemo Right Angle connector
2-Pin (female) 1B Lemo Straight connector

LENGTH
63-inch / 160cm

WEIGHT
2.99oz / 85g

—

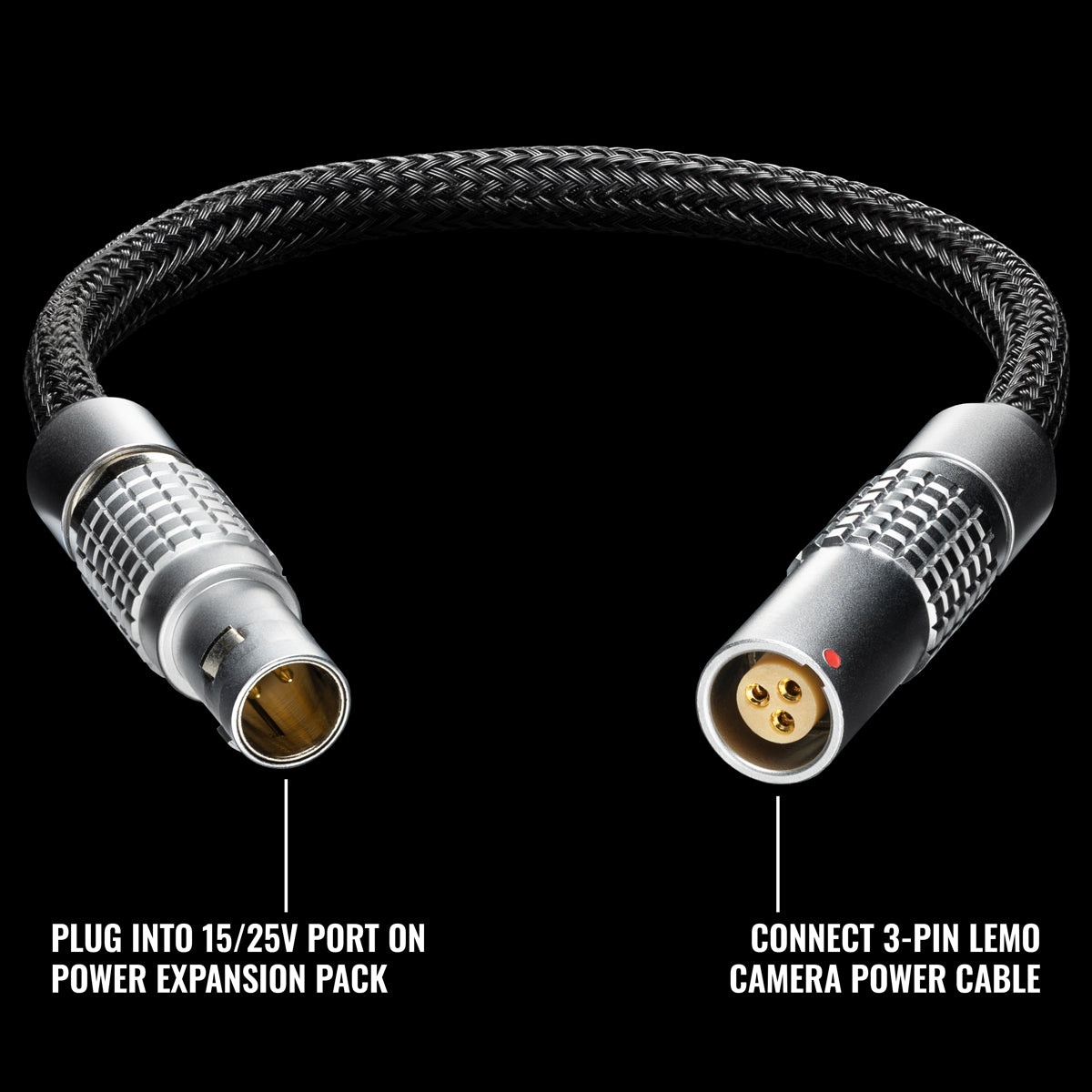

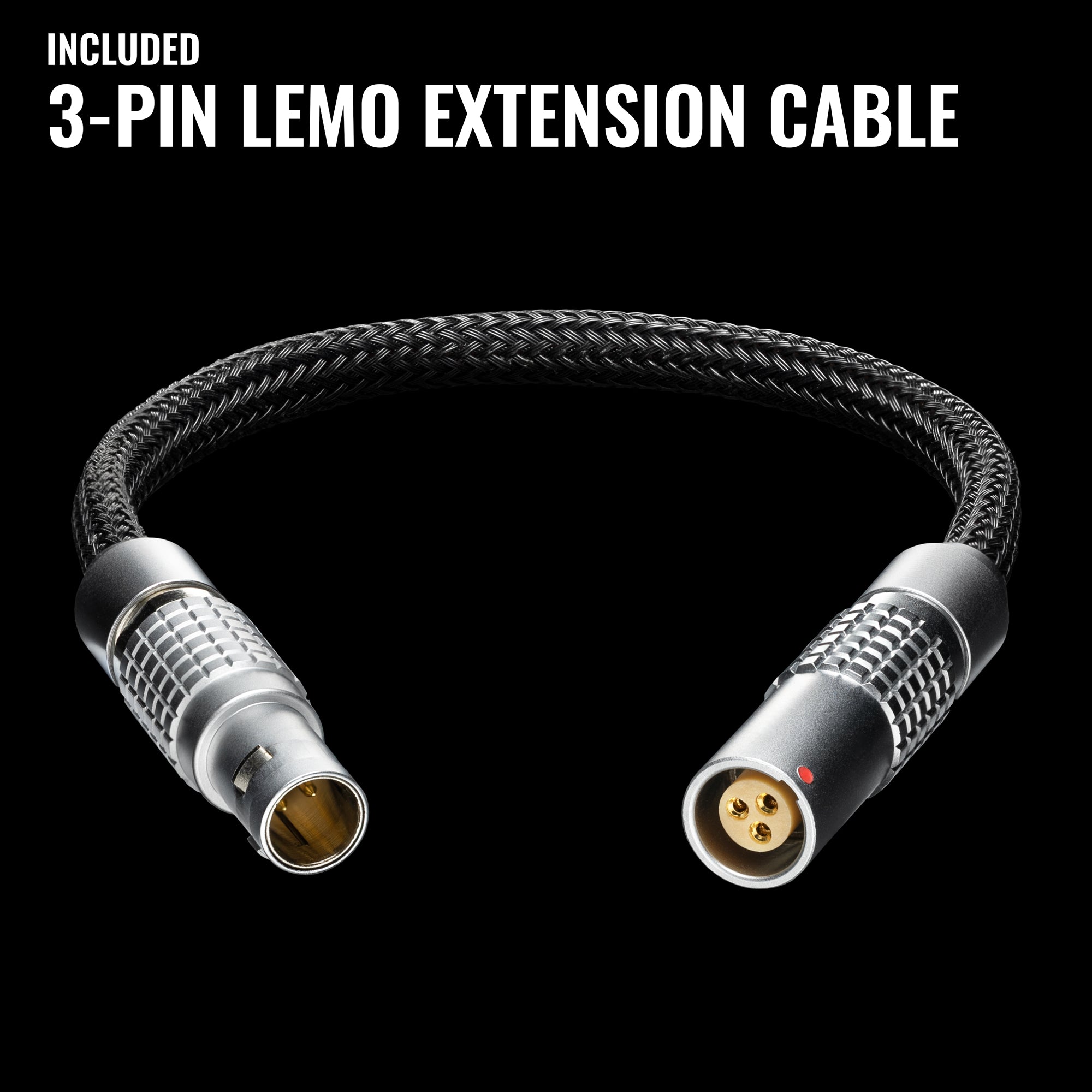

6-INCH 3-PIN LEMO EXTENSION CABLE

The 6-inch Extension Cable allows you to use our existing 3-Pin Lemo power cables with MōVI XL! Some customers may already have these in their kit.

That means, all of our 3-Pin Lemo camera power cables work with these Ignite products: TB50 Hammerhead, TB51 Hammerhead, Power Expansion Pack for MōVI Pro, and Power Expansion Pack for MōVI XL.

CONNECTOR SPECS
3-Pin (male) 0B Lemo Straight connector
3-Pin (female) 0B Lemo Straight connector

LENGTH
6-inch / 15cm

WEIGHT
00oz / 00g

—

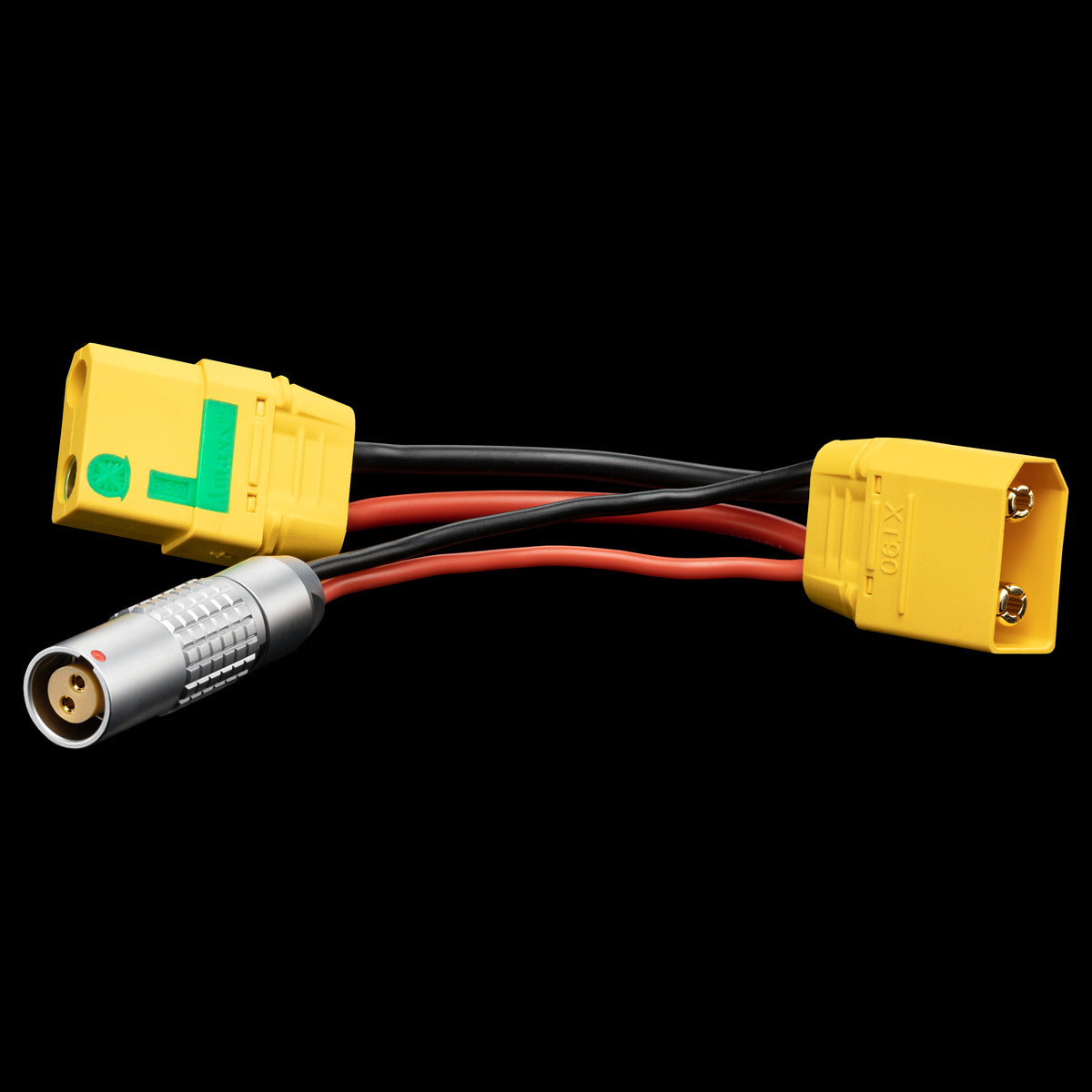

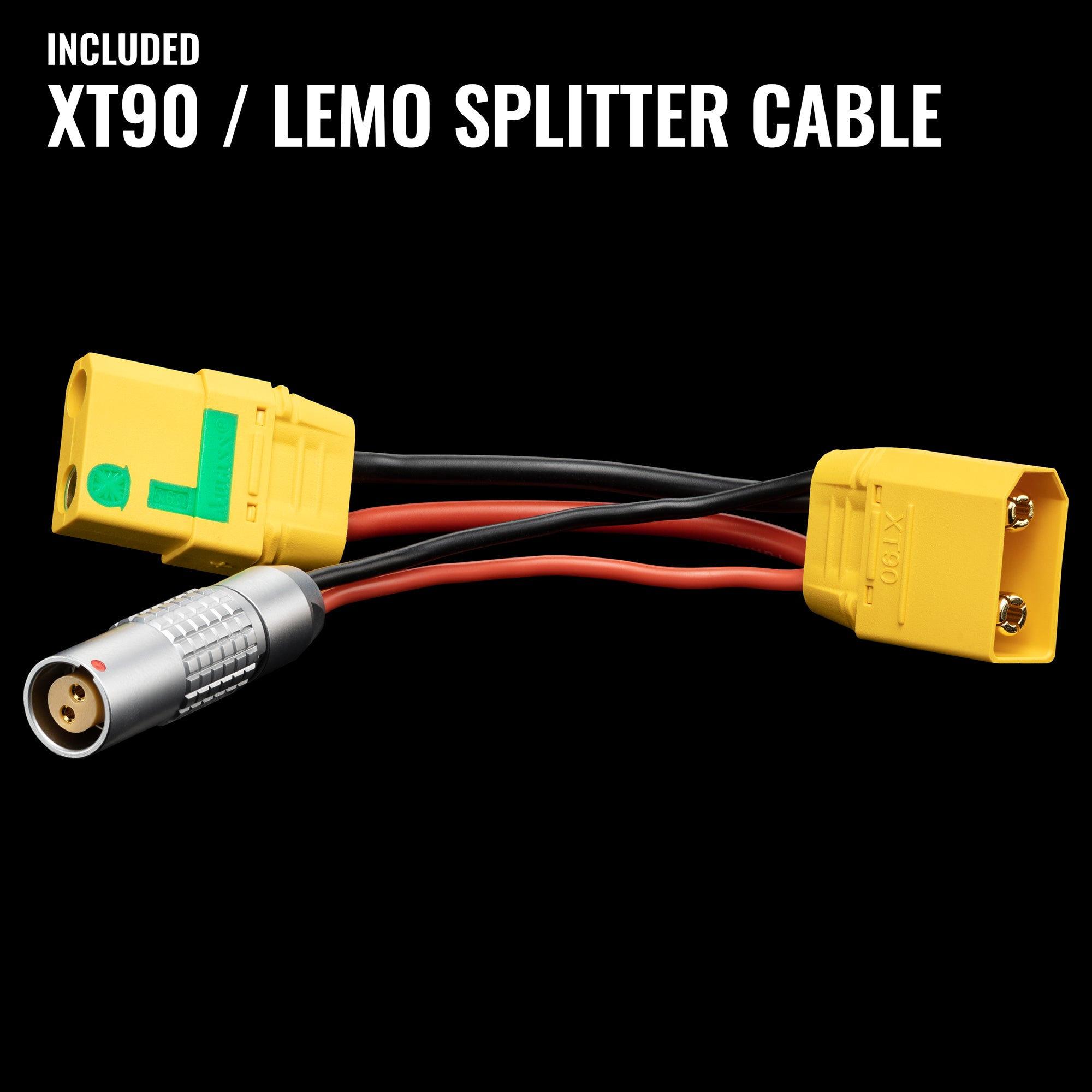

XT90 / LEMO SPLITTER CABLE

For those using 6S LiPo batteries this splitter cable provides you a Lemo output for the Feed Cable.

CONNECTOR SPECS
2-Pin (male) XT90 connector
2-Pin (female) XT90 connector
2-Pin (female) 1B Lemo Straight connector

LENGTH
5-inch / 12cm

WEIGHT
2.99oz / 85g

—
