IK.200062

CANBUSTER for Inertia Wheels

$1,647.80 AUD

CANBUSTER mounts to DJI Transmission and allows you to control Ronin 4D, Inspire 3, Ronin 2 and RS4 Pro with NODO Inertia Wheels!

For Ronin 4D and Inspire 3, control more than just the gimbal — adjust focus, iris, zoom and run/stop 🔥

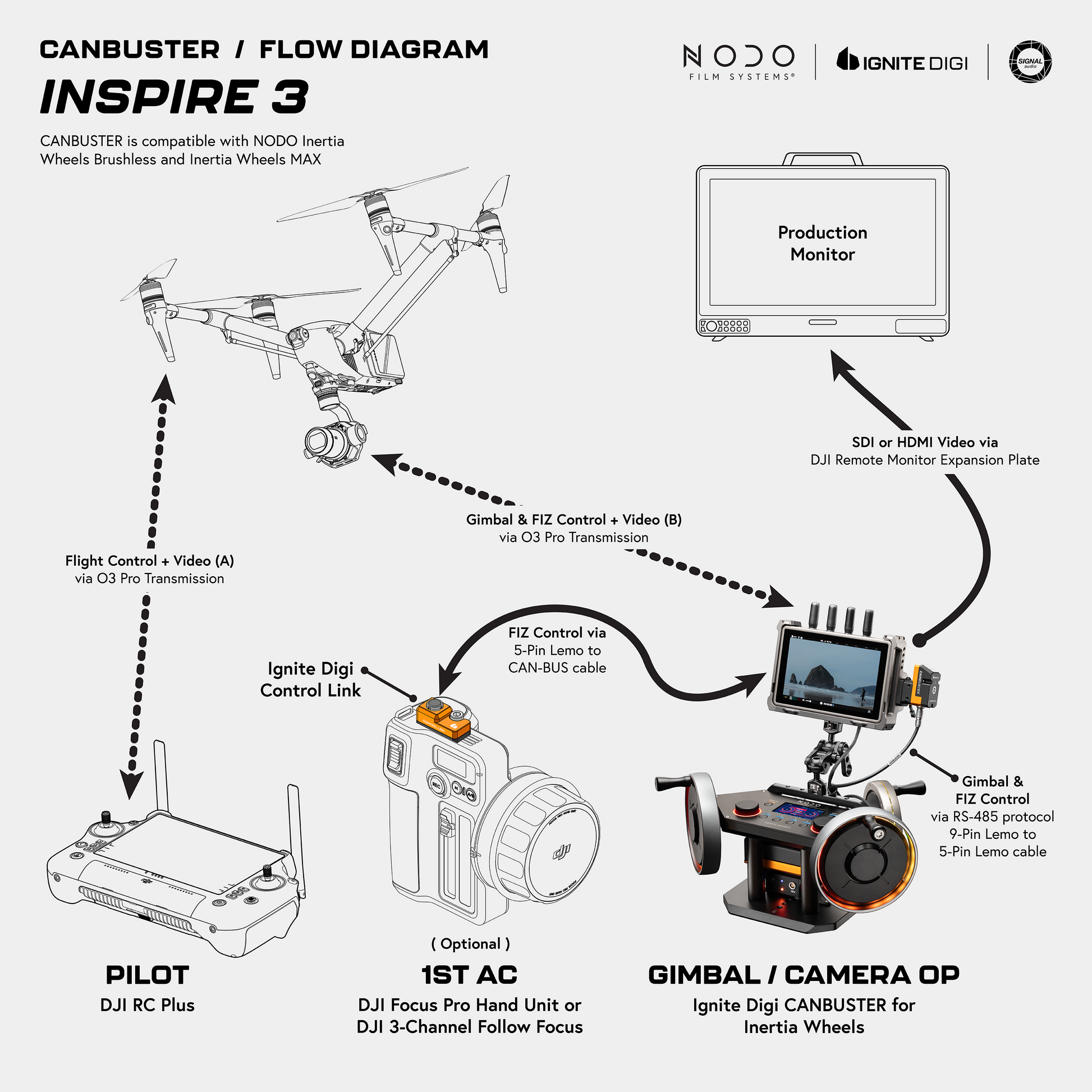

Get the cleanest build possible by sending both Inertia Wheels control data and wireless video over DJI Transmission. Fewer cables. Fewer boxes.

Take advantage of Transmission's ultra-long wireless range of up to 4 miles to come up with truly extreme shots!

CANBUSTER is a unique collab product developed by Ignite Digi, Signal Audio and NODO Film Systems.

CANBUSTER is available at Ignite Digi, NODO Film Systems and in the near future NODO resellers.

Ready to use CANBUSTER? Quick set up now! →

Update CANBUSTER firmware →

Scroll for more info ↓

Using the Inertia Wheels API, CANBUSTER enables Inertia Wheels to control more parameters in both the gimbal and the camera.

For Ronin 4D and Inspire 3, control focus, iris, zoom, run/stop and more. If using the DJI LiDAR Range Finder system you will have FIZon/FIZoff.

For Ronin 2 and RS3/RS4 Pro you retain recenter, run/stop and full Pan/Tilt/Roll (PTR) control.

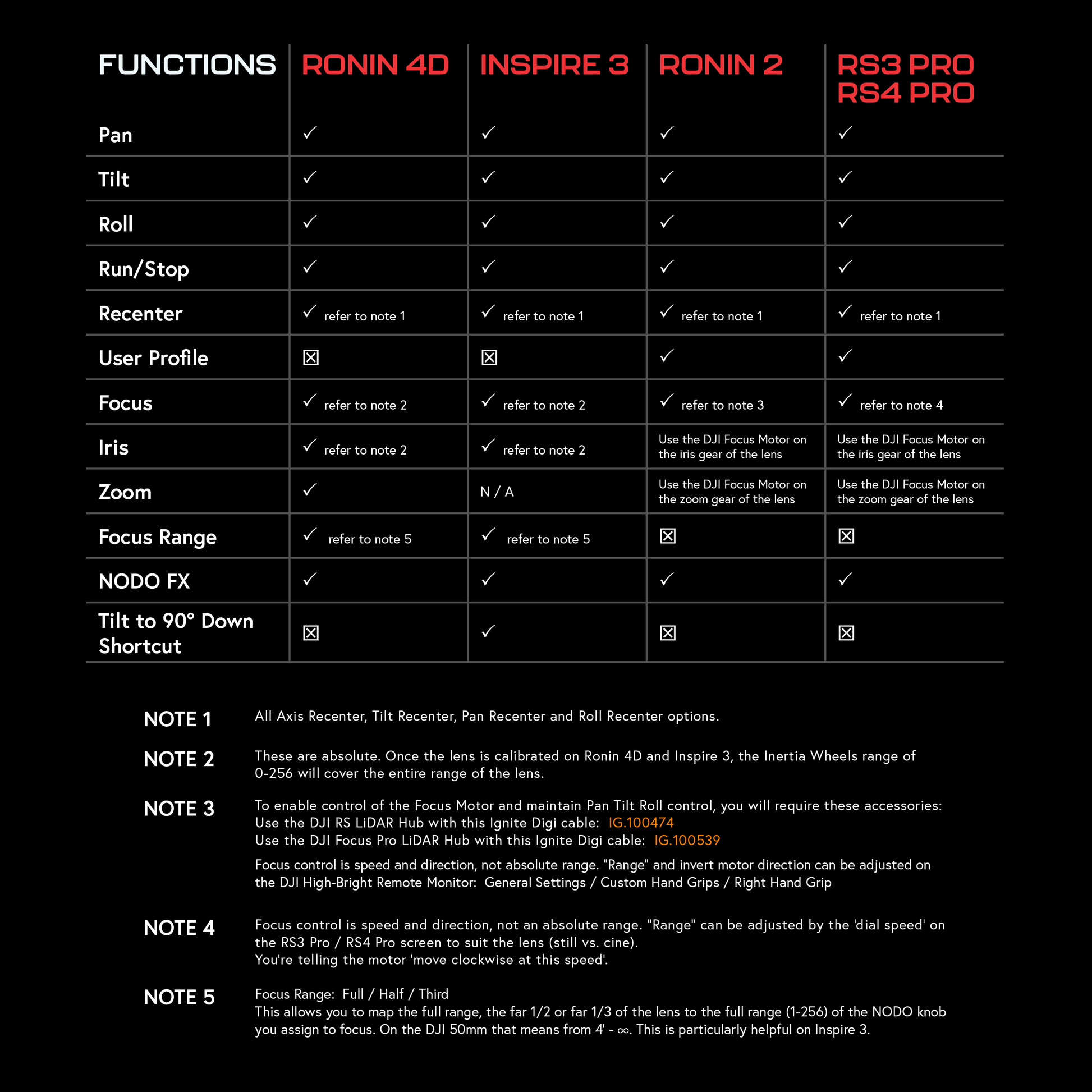

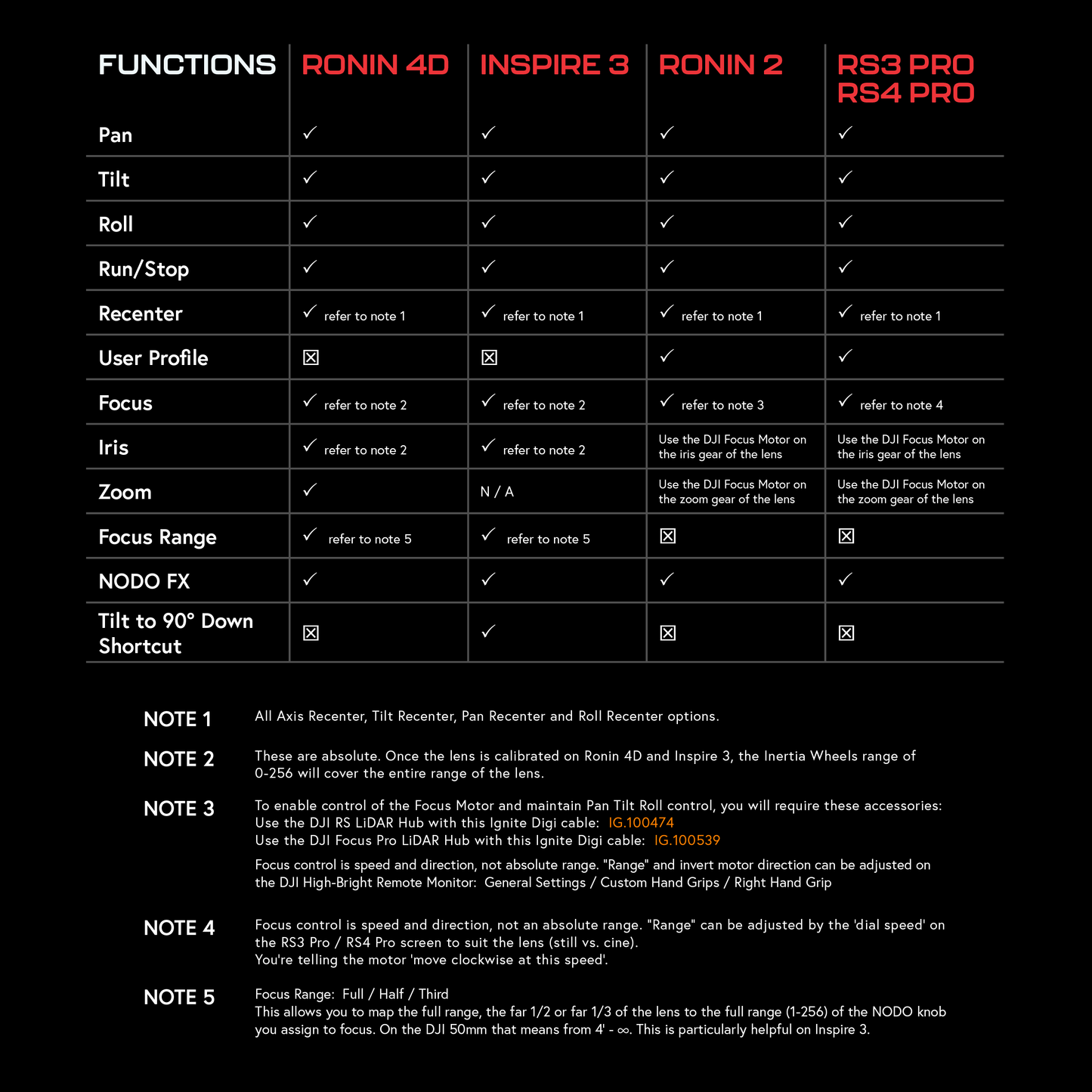

CANBUSTER can control the following:

Ronin 4D

PTR, Run/Stop, Focus/Iris/Zoom, Mode Change, FIZon/FIZoff,
All Axis Recenter, Tilt Recenter, Roll Recenter, Pan Recenter

—————————

Inspire 3

PTR, Run/Stop, Focus/Iris, FIZon/FIZoff,
All Axis Recenter, Tilt Recenter, Roll Recenter, Pan Recenter

—————————

Ronin 2

PTR, Run/Stop, FIZon/FIZoff with DJI LiDAR Hub,
All Axis Recenter, Tilt Recenter, Roll Recenter, Pan Recenter

—————————

RS3 Pro / RS4 Pro

PTR, Run/Stop, Focus, FIZon/FIZoff with DJI LiDAR Hub,
All Axis Recenter, Tilt Recenter, Roll Recenter, Pan Recenter

—————————

FEATURE NOTICE

With the introduction of Inertia Wheels Firmware V2.2.2, Inertia Wheels FX are now functioning seamlessly with CANBUSTER — Access handheld and violent shake simulations!

Playback/Record does not work as intended because DJI Transmission is rate based, not absolute.

ADDITIONAL INFO

Plug and play! — no additional software required
Inertia Wheels require firmware version V2.0.2 or later, we recommend V2.2.2 → Update now
CANBUSTER is compatible with 2-axis and 3-axis Inertia Wheels Brushless and Inertia Wheels MAX
CANBUSTER module draws power from the DJI High-Bright Remote Monitor via pogo pins
CANBUSTER is quick release and attaches to the hand grip mount of the High-Bright Remote Monitor — works on either side
CANBUSTER ships with a 24-inch / 60cm Control Cable. Spare Control Cables and a longer version available separately.
Buy from Ignite and receive free DHL International Express shipping!
Ready to use CANBUSTER? Quick set up now →
Update CANBUSTER firmware →

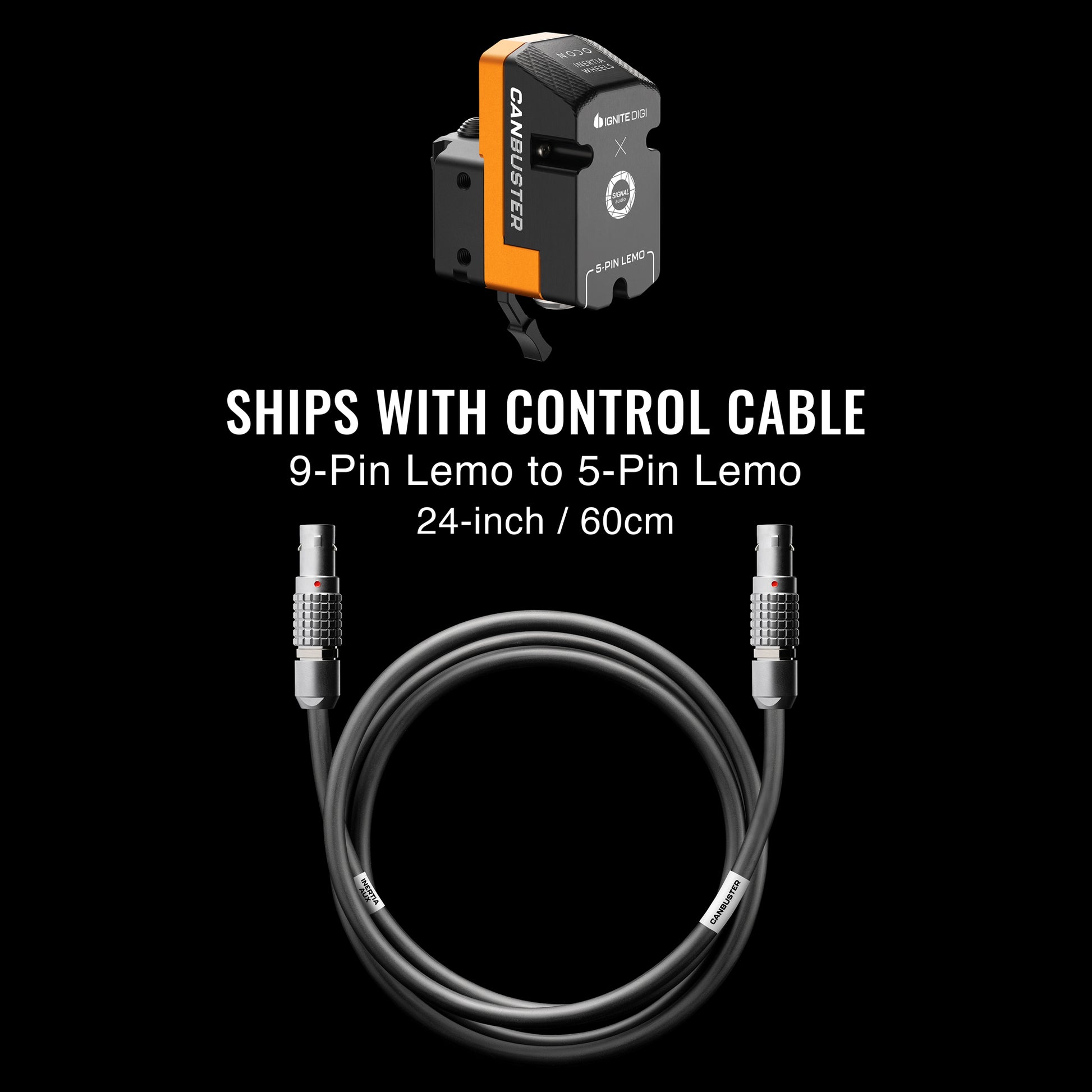

CONTROL CABLES

CANBUSTER ships with a 24-inch Control Cable.

This length should cover most scenarios whether you're sitting or standing at your operating station.

If you need a spare or a longer 8ft version, tap the link below!

SHOP NOW

SPECS

COMPATIBLE WITH
DJI Transmission
NODO Inertia Wheels Brushless
NODO Inertia Wheels MAX

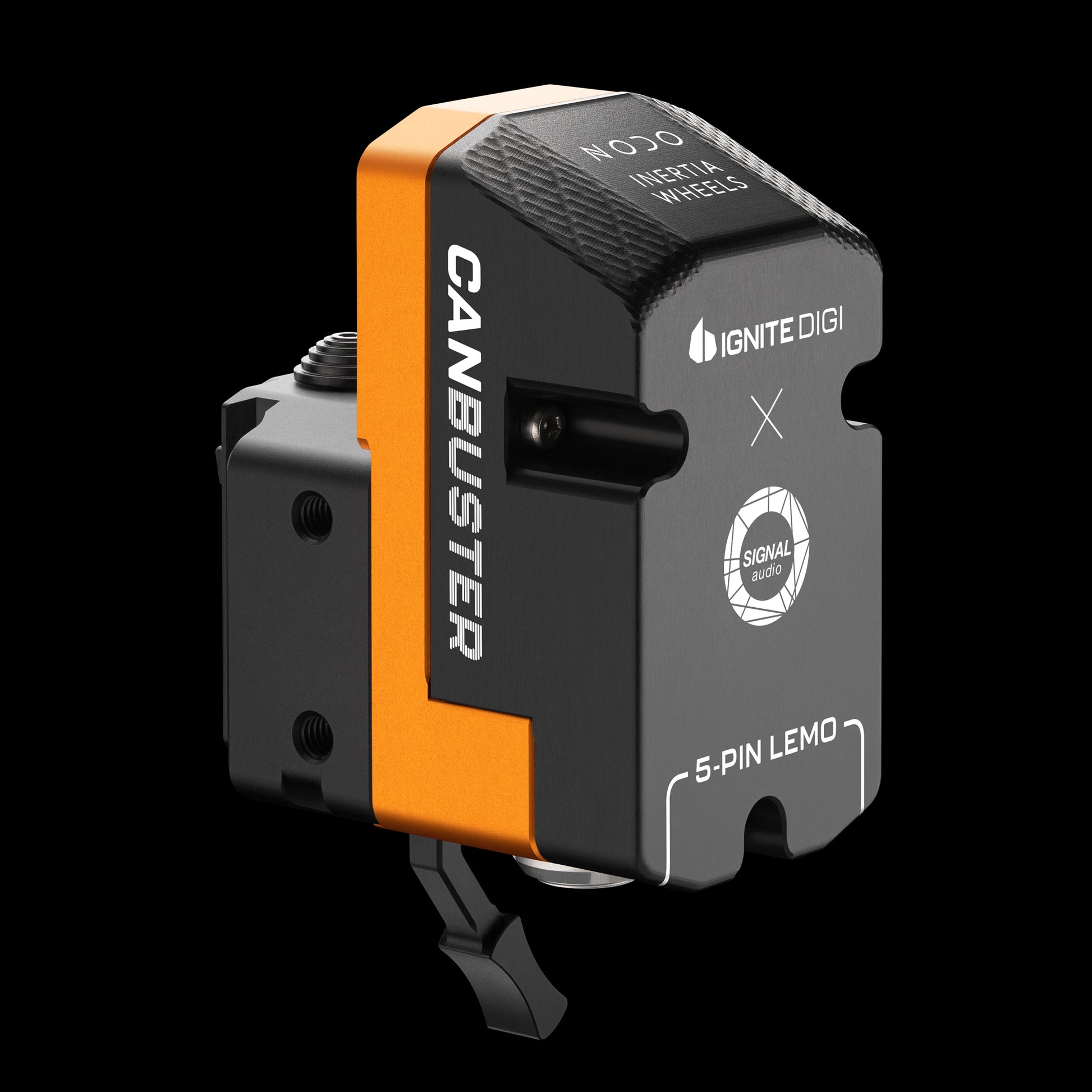

MODULE MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised

IN THE BOX
CANBUSTER Module
24-inch / 60cm Control Cable
Holographic sticker

WEIGHT
4.3oz / 122g module only

DIMENSIONS
1.25 x 2.48 x 1.88” / 32 x 63 x 48mm
