These splitter cables allow you to feed power to your ARRI cforce mini RF motor and enables run/stop on RED KOMODO™.
It eliminates the need to have a seperate breakout box and streamlines your camera build.
We offer three versions of splitter cable:

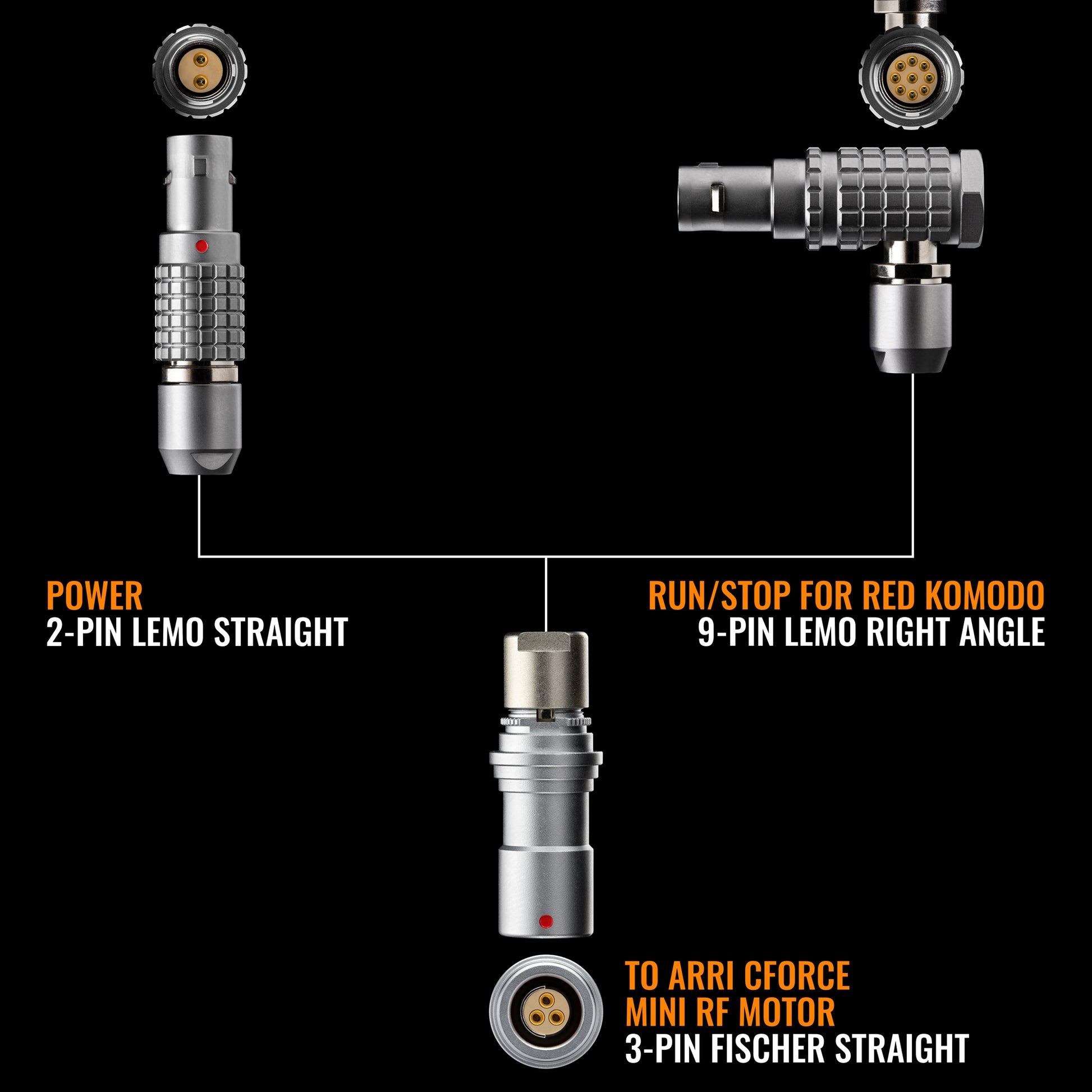

Sourcing power with a 2-Pin Lemo Straight
Use this splitter cable to source power from our

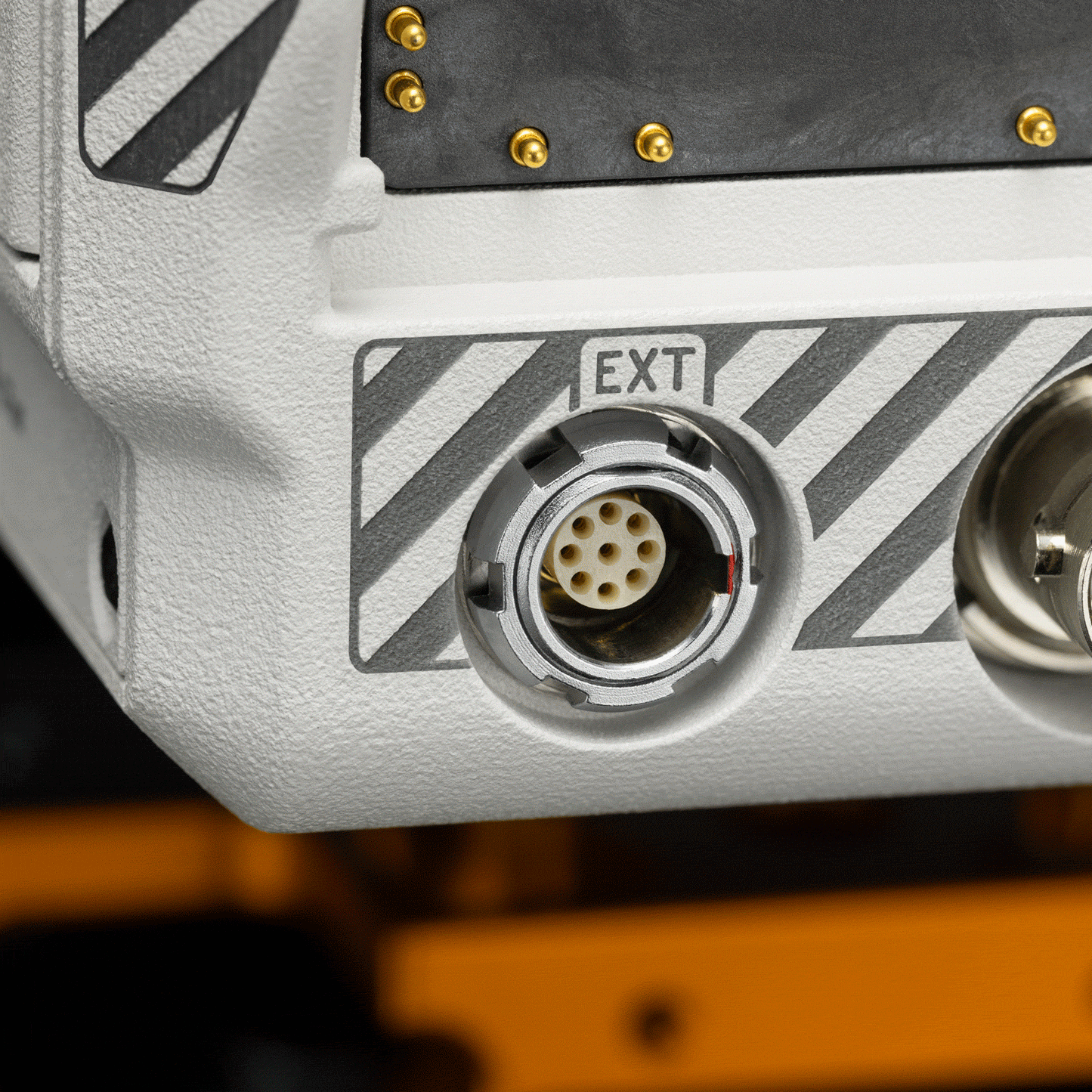

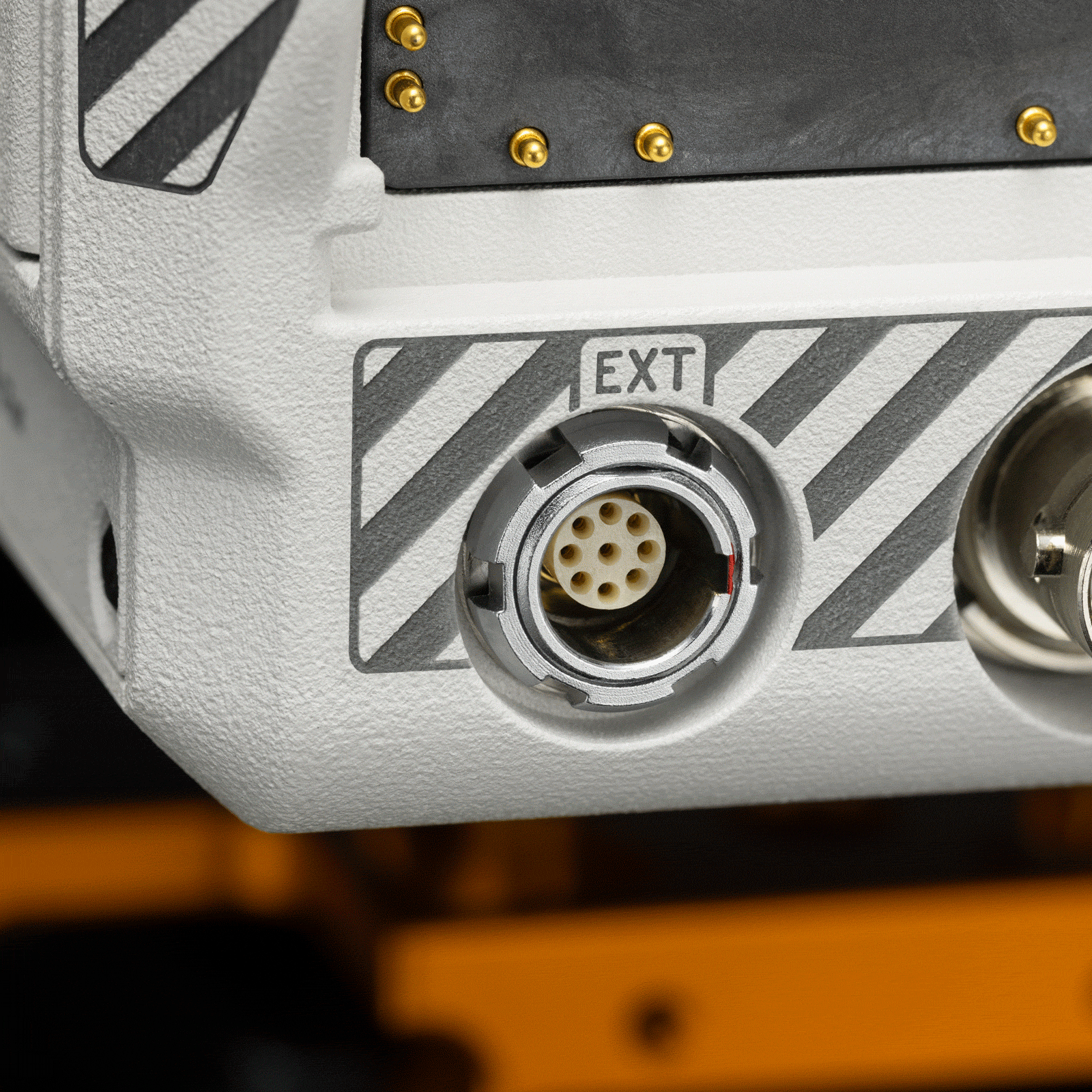

Power Breakout and feed the ARRI cforce mini RF motor, while run/stop communication is sent from the cforce motor to the RED KOMODO EXT port.

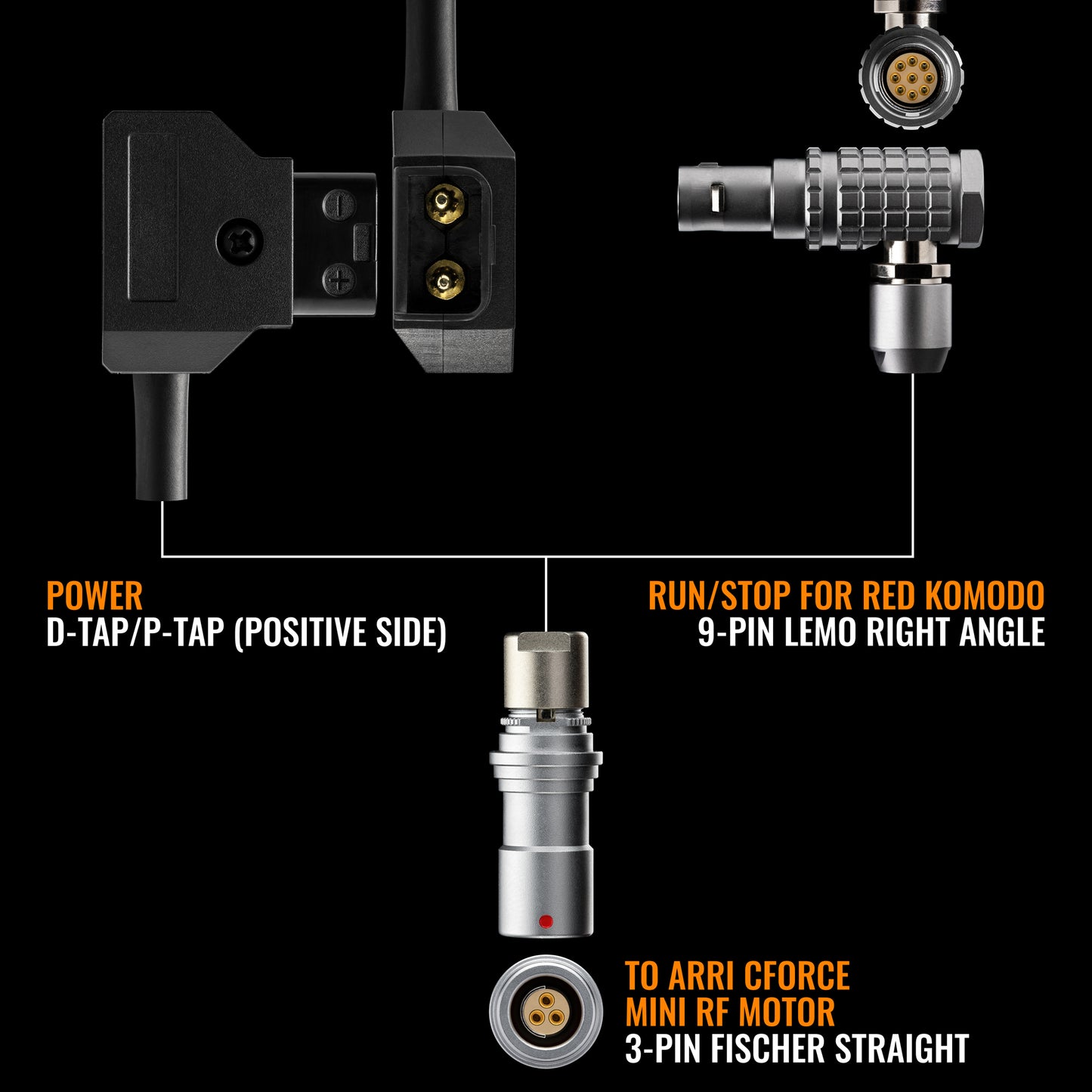

Sourcing power with a D-Tap/P-Tap (Positive Side)
Use this splitter cable to source power from a V-Lock or Gold Mount Plate
and feed the ARRI cforce mini RF motor, while run/stop communication is sent from the cforce motor to the RED KOMODO EXT port.
The wire exits the D-Tap/P-Tap connector on the positive side for optimal cable routing.
Source power from:
Tilta V-Mount Plate for RED KOMODO or Tilta Gold Mount Plate for RED KOMODO

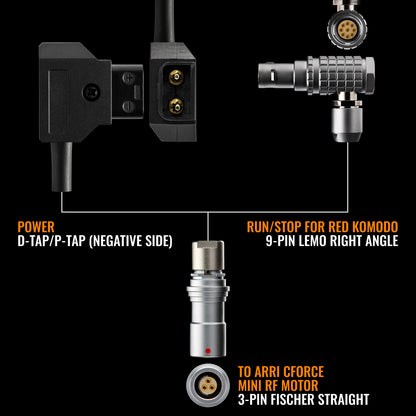

Sourcing power with a D-Tap/P-Tap (Negative Side)
All three splitter cables are compatible with the following ARRI hardware:
All three splitter cables are compatible with the following ARRI 3-Pin Fischer cables:
These splitter cables feature a semi rigid, injection moulded Raychem Y splitter boot for durability and
strain relief sealing.
The Ignite Digi range of premium cables made with silicone wire and protected with Techflex braid, are flexible and resistant to abrasion, and designed to endure the most challenging conditions on set.
Assembled and tested in Tasmania, Australia.
CONNECTOR SPECIFICATIONS ‣ 0B 2-Pin (male) Lemo Straight compatible connector ‣ 2-Pin (male) D-Tap/P-Tap connector ‣ 3-Pin (female) Fischer Straight connector ‣ 0B 9-Pin (male) Lemo Right Angle compatible connector LENGTHLemo: 12” / 30cm D-Tap: 14 ” / 35cm WEIGHTLemo: 1.69oz / 48g D-Tap: 1.65 oz / 47g
