Camera Top Plate F ‣ Canon MS-500

SKU:IG.100524

In stock

$950.00 AUD

Sale Sold out

Colour: Black

Quantity

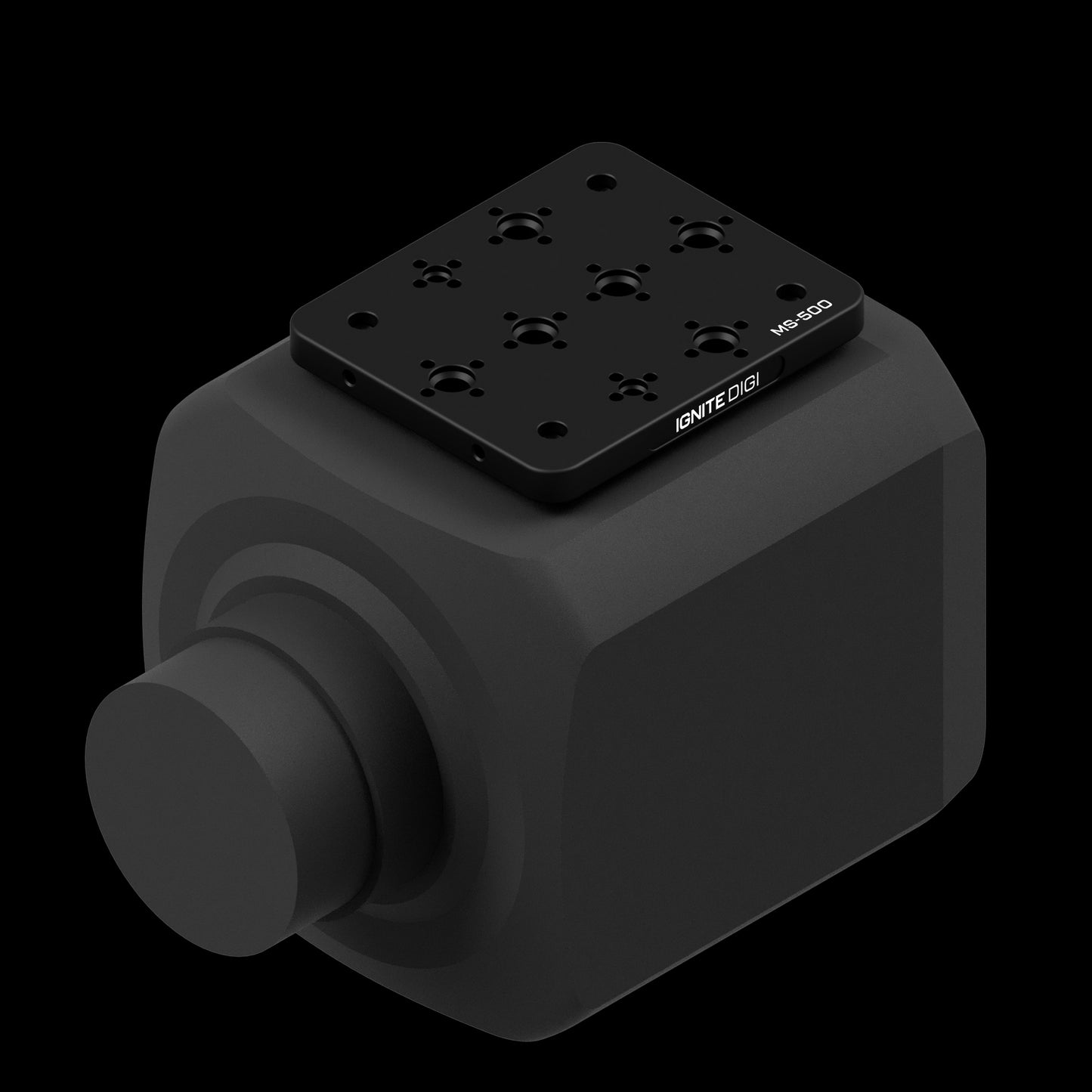

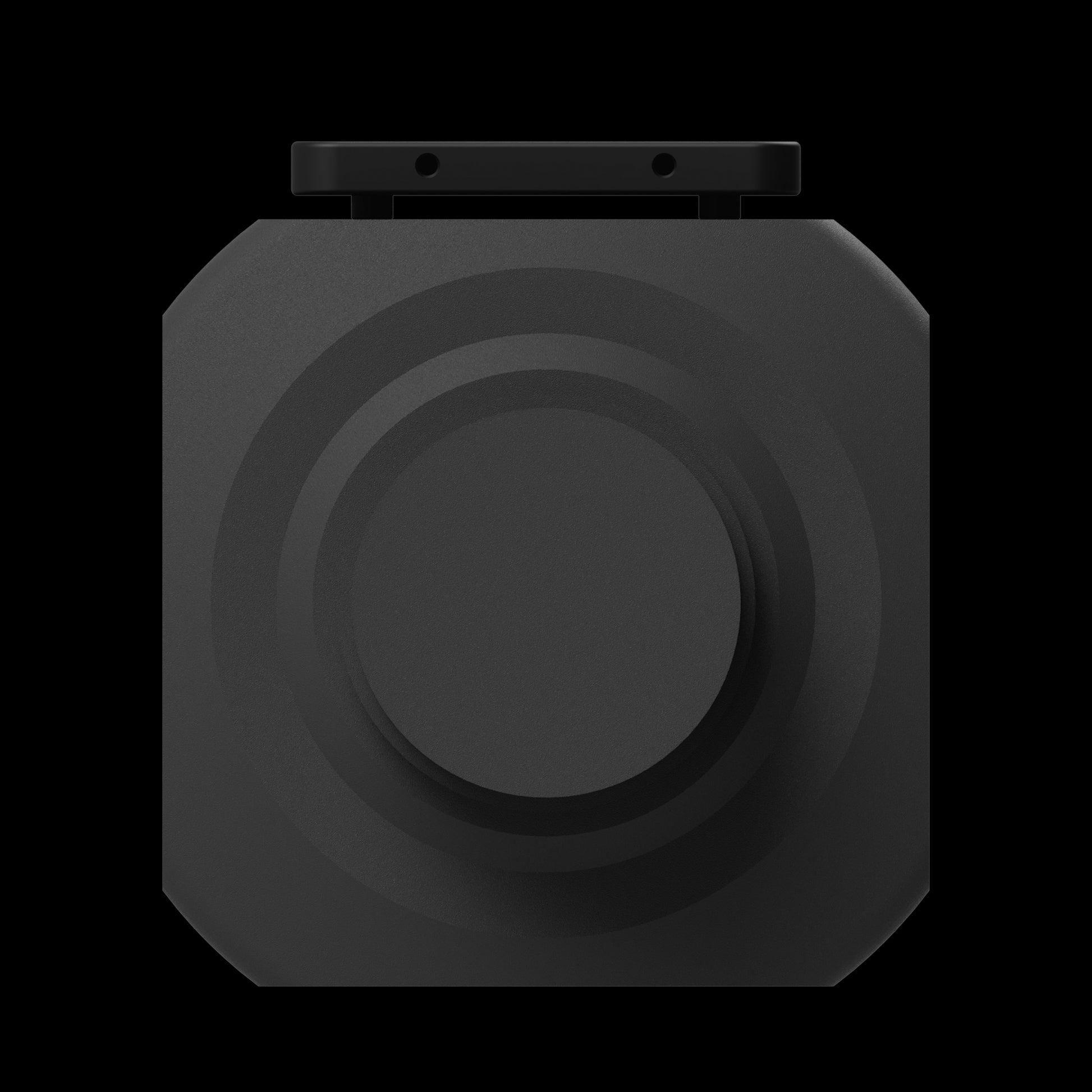

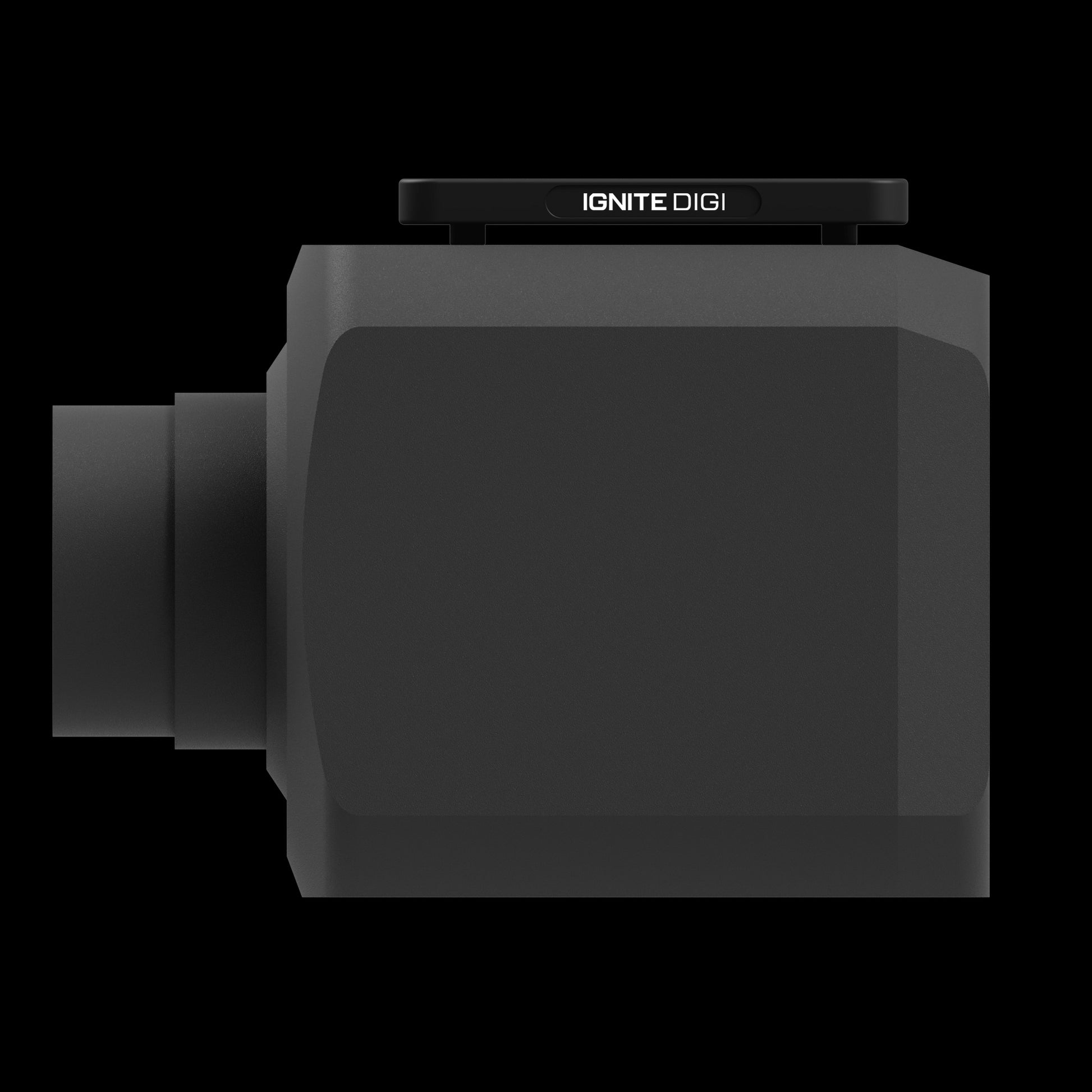

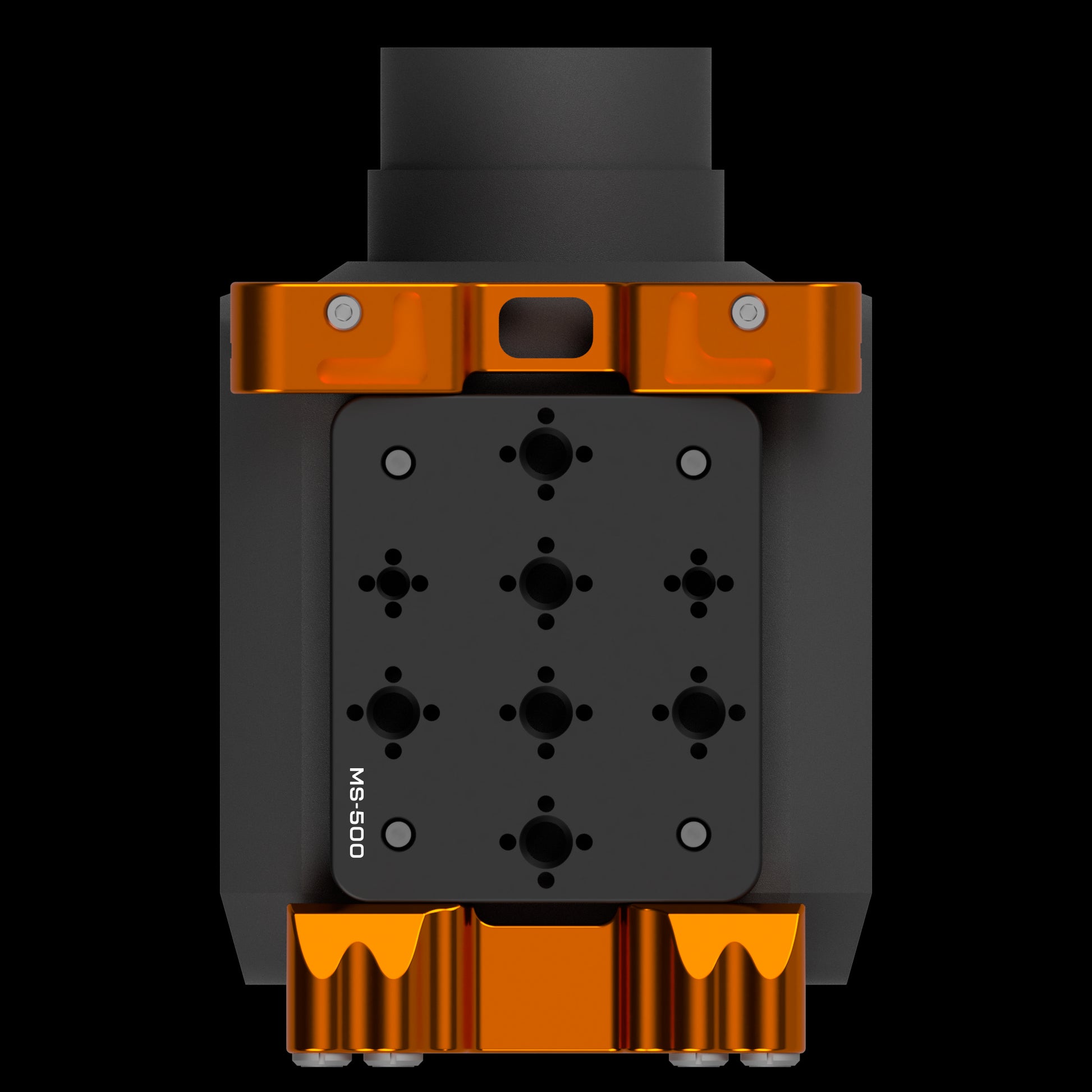

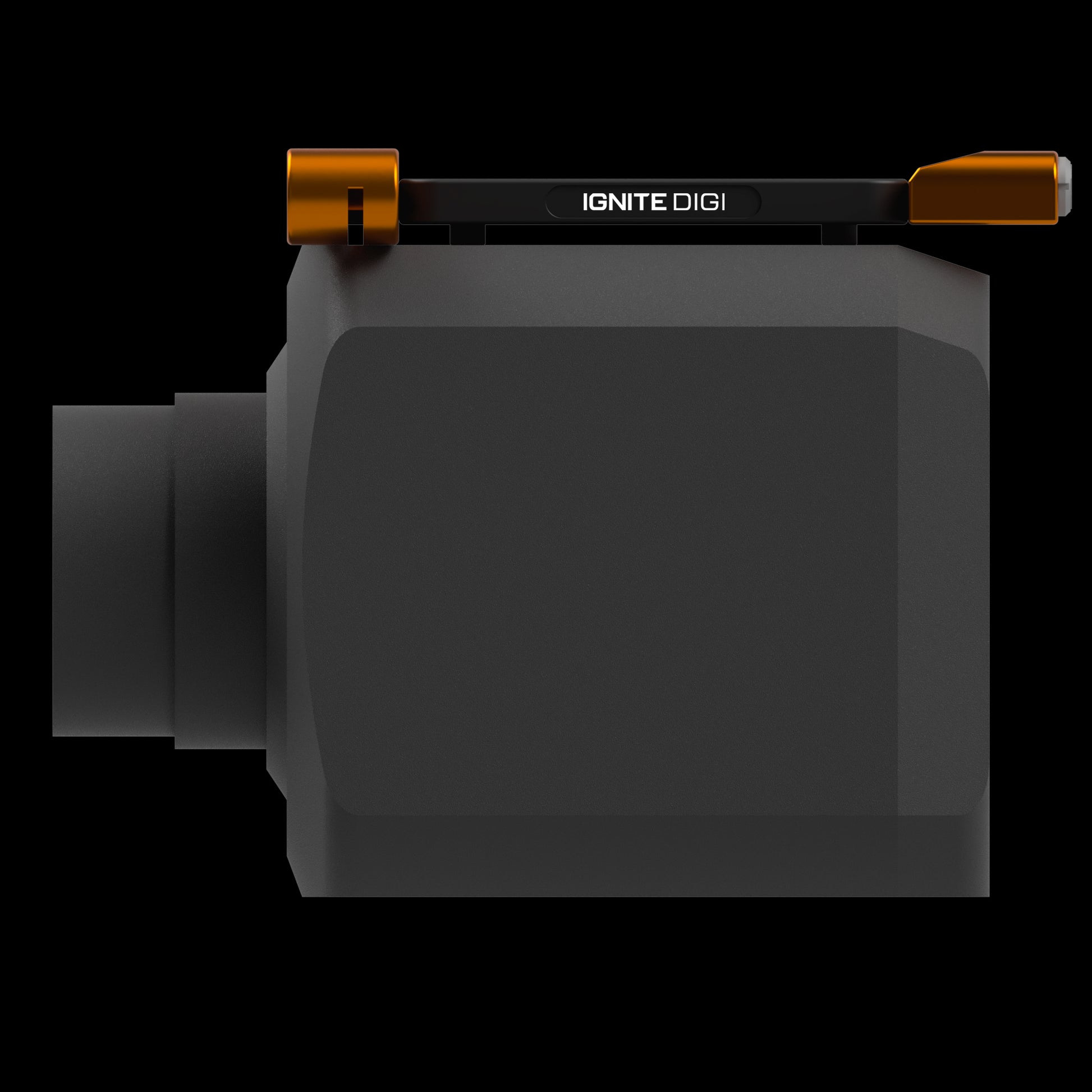

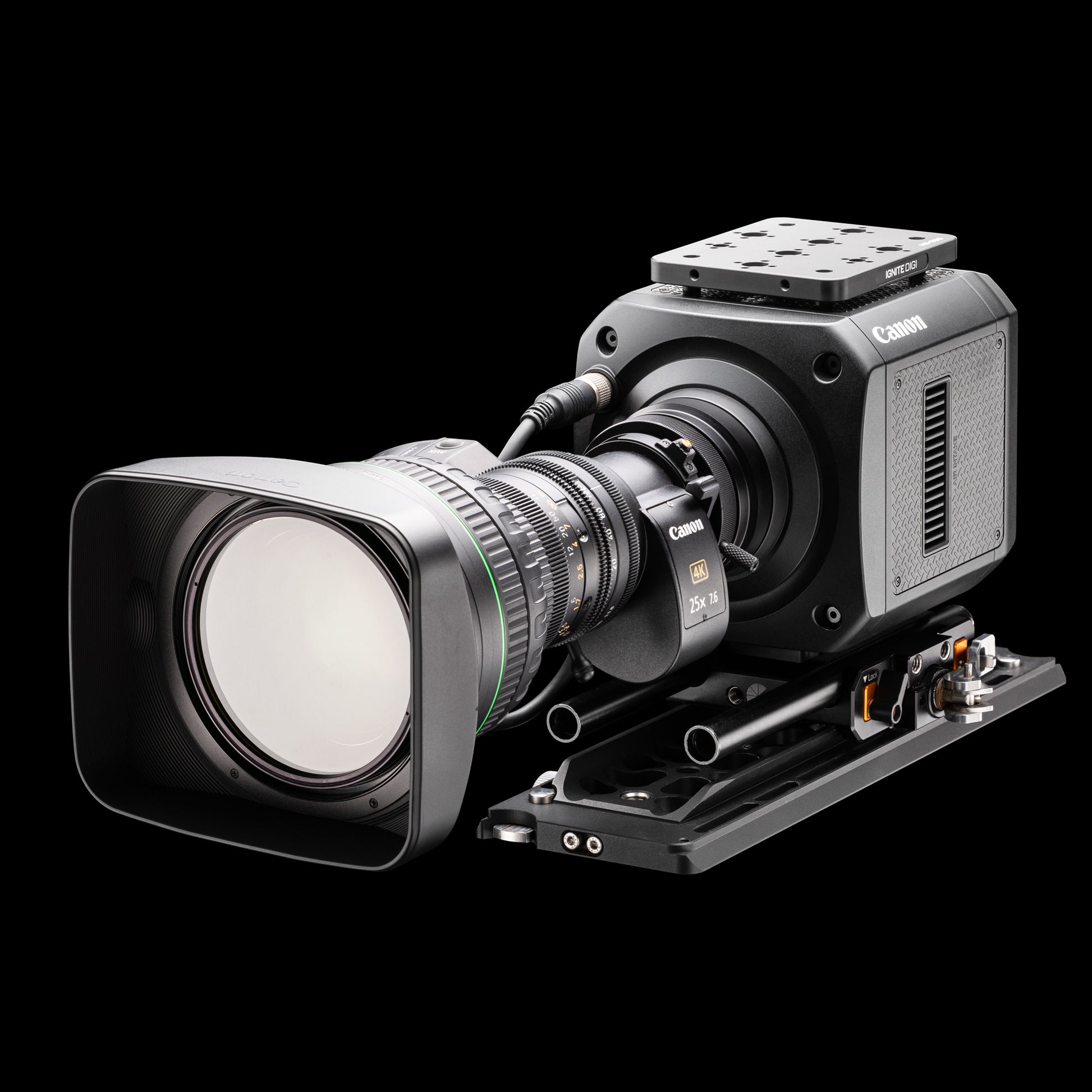

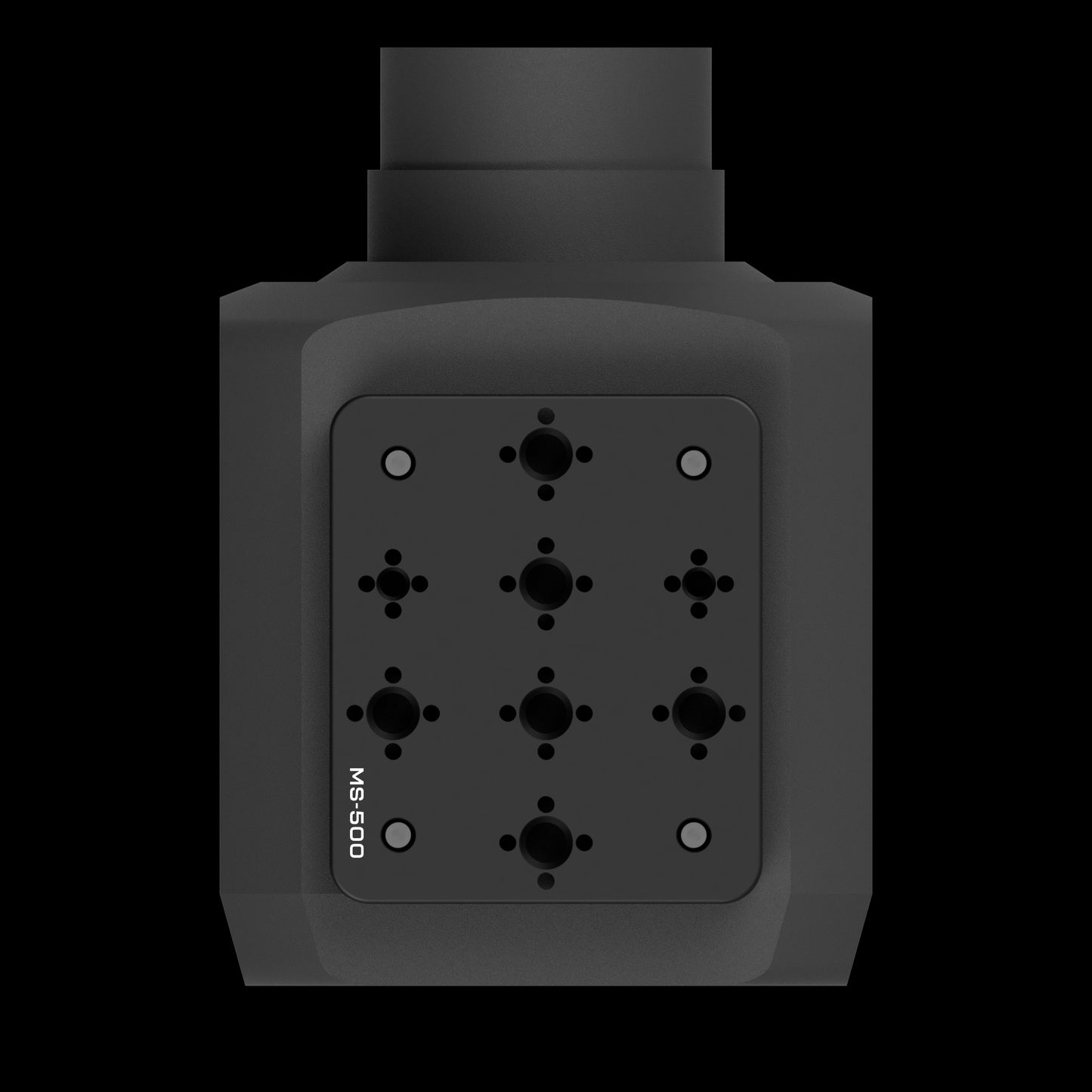

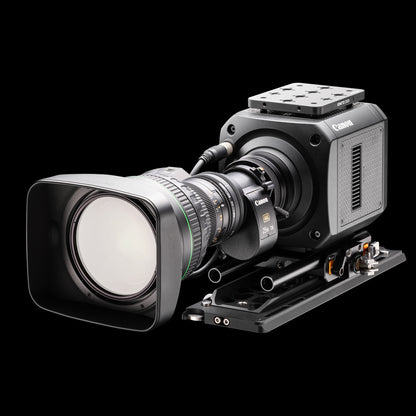

Camera Top Plate F is designed for the Canon MS-500, the world’s first ultra-high-sensitivity interchangeable lens SPAD sensor camera.

The MS-500 was designed primarily for use in surveillance and scientific applications, but we expect customers to use this camera on wildlife shoots and other specialist projects.

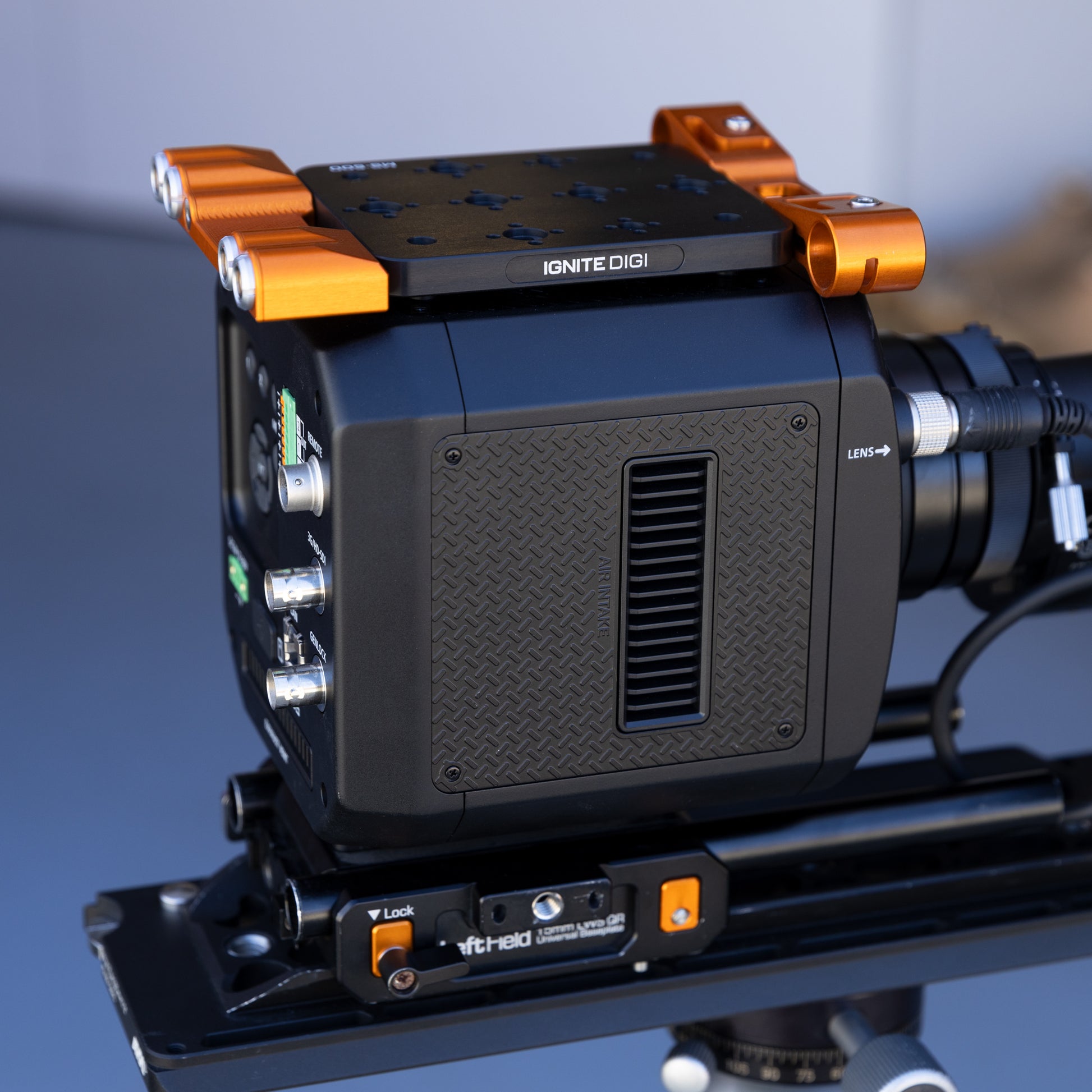

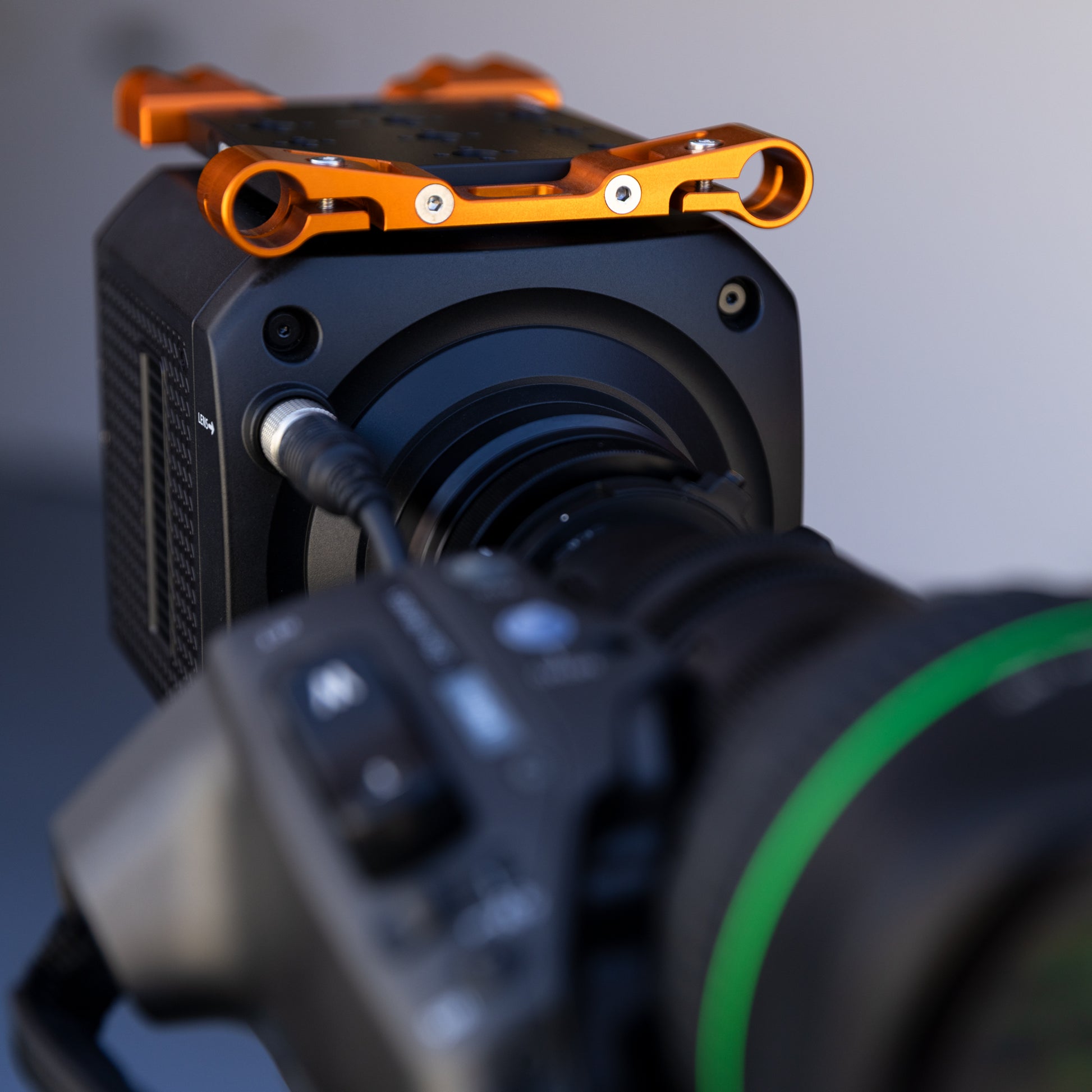

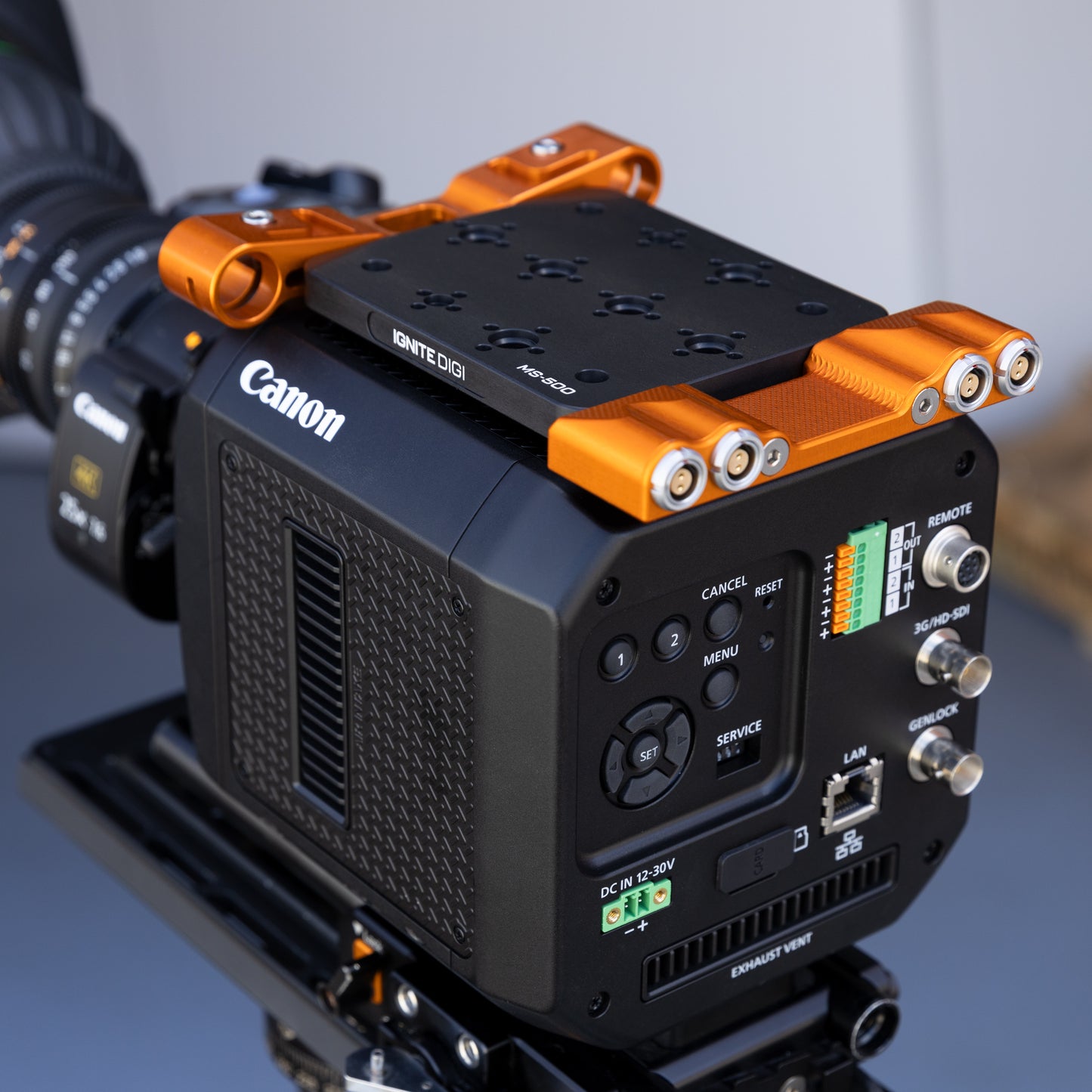

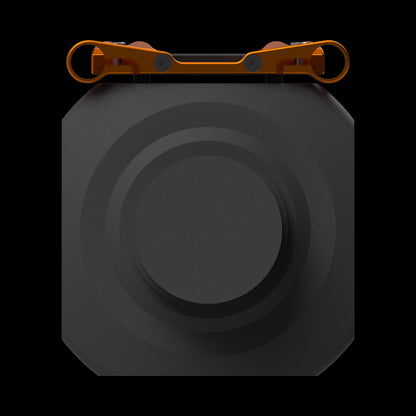

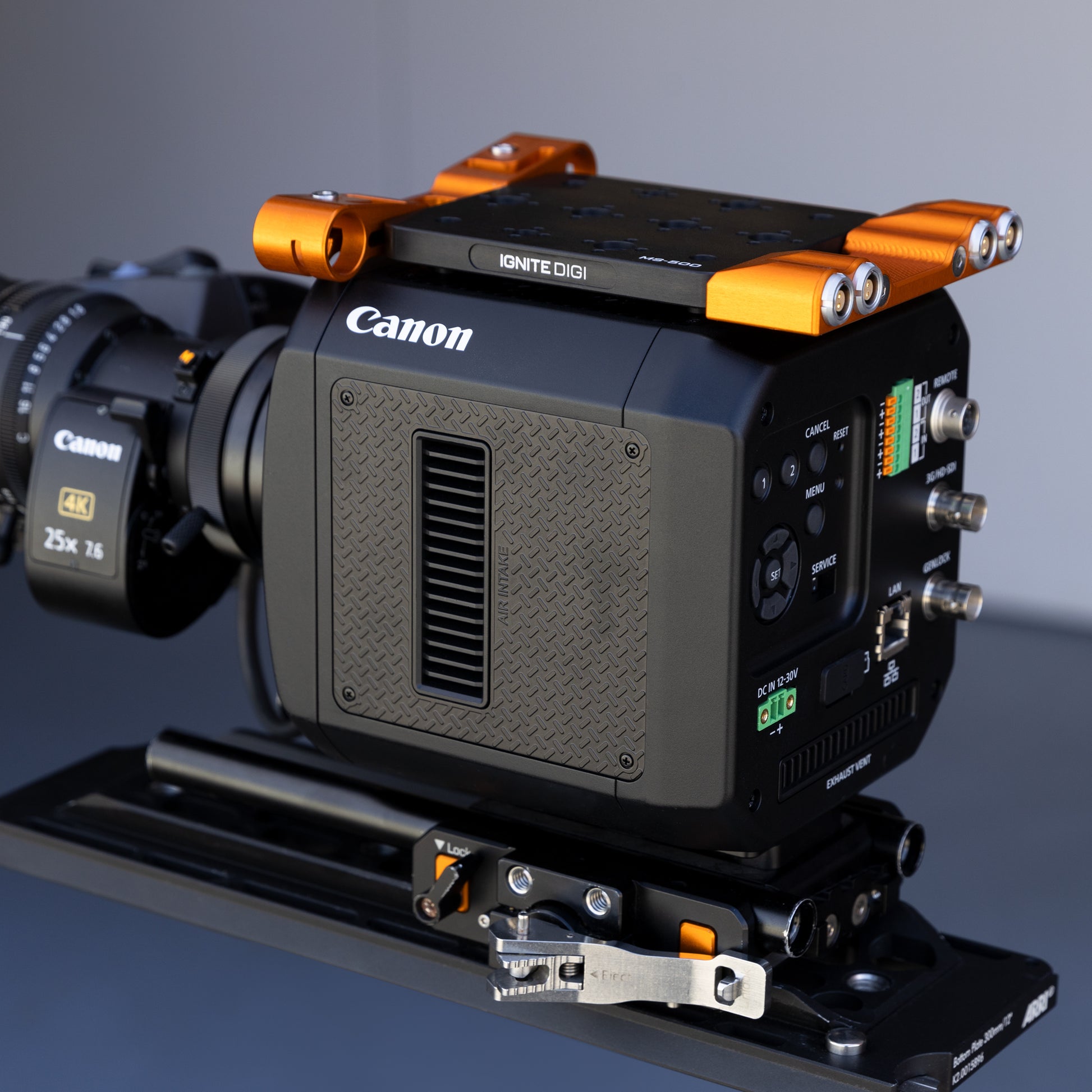

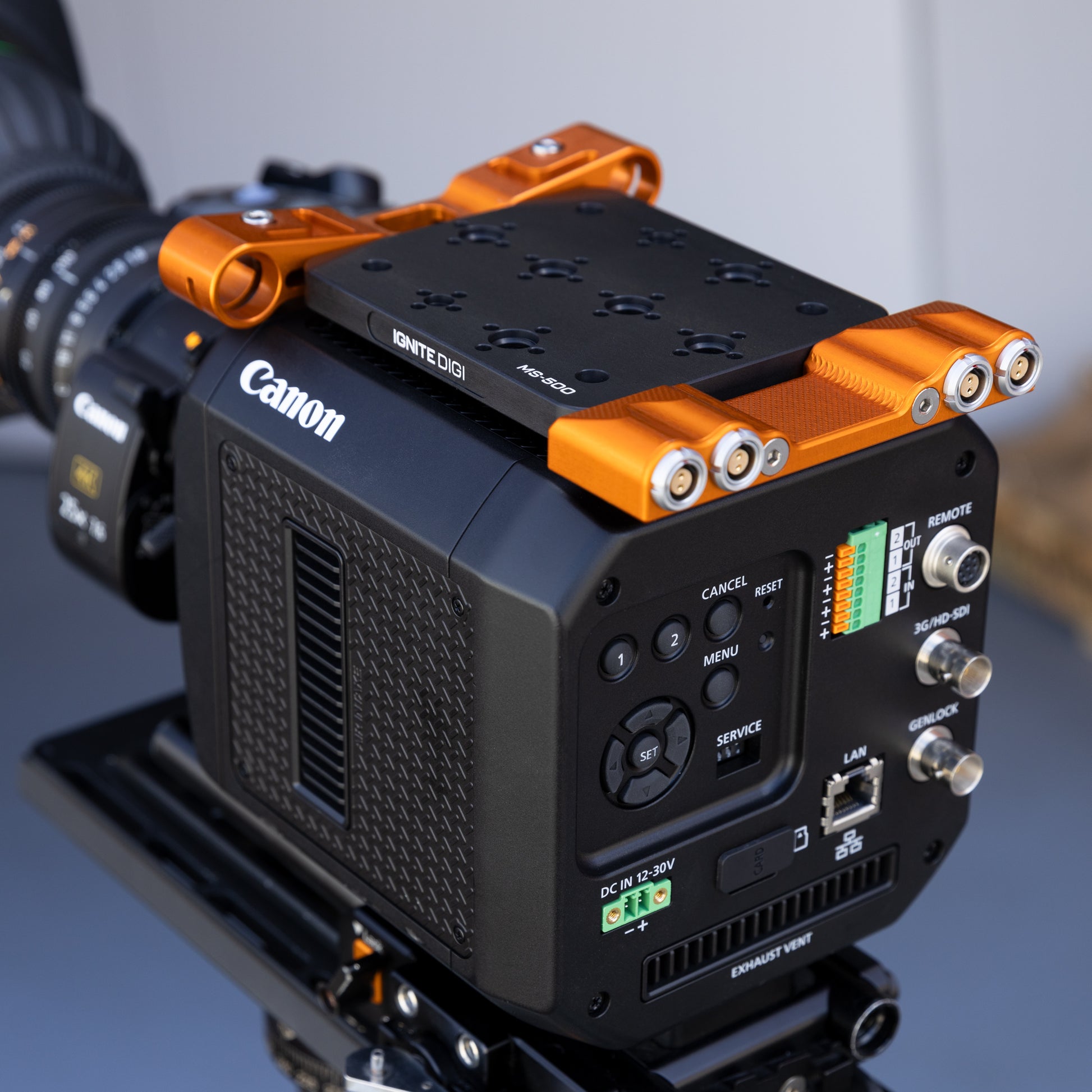

Top Plate F provides a rock solid foundation for mounting film industry accessories like dovetail plates, NATO rails, top handles, rod mounts and transmitters.

KEY FEATURES

Low profile and extremely rigid
Six ⅜"-16 Pin-Locks
Two ¼”-20 Pin-Locks
Four M3 through holes

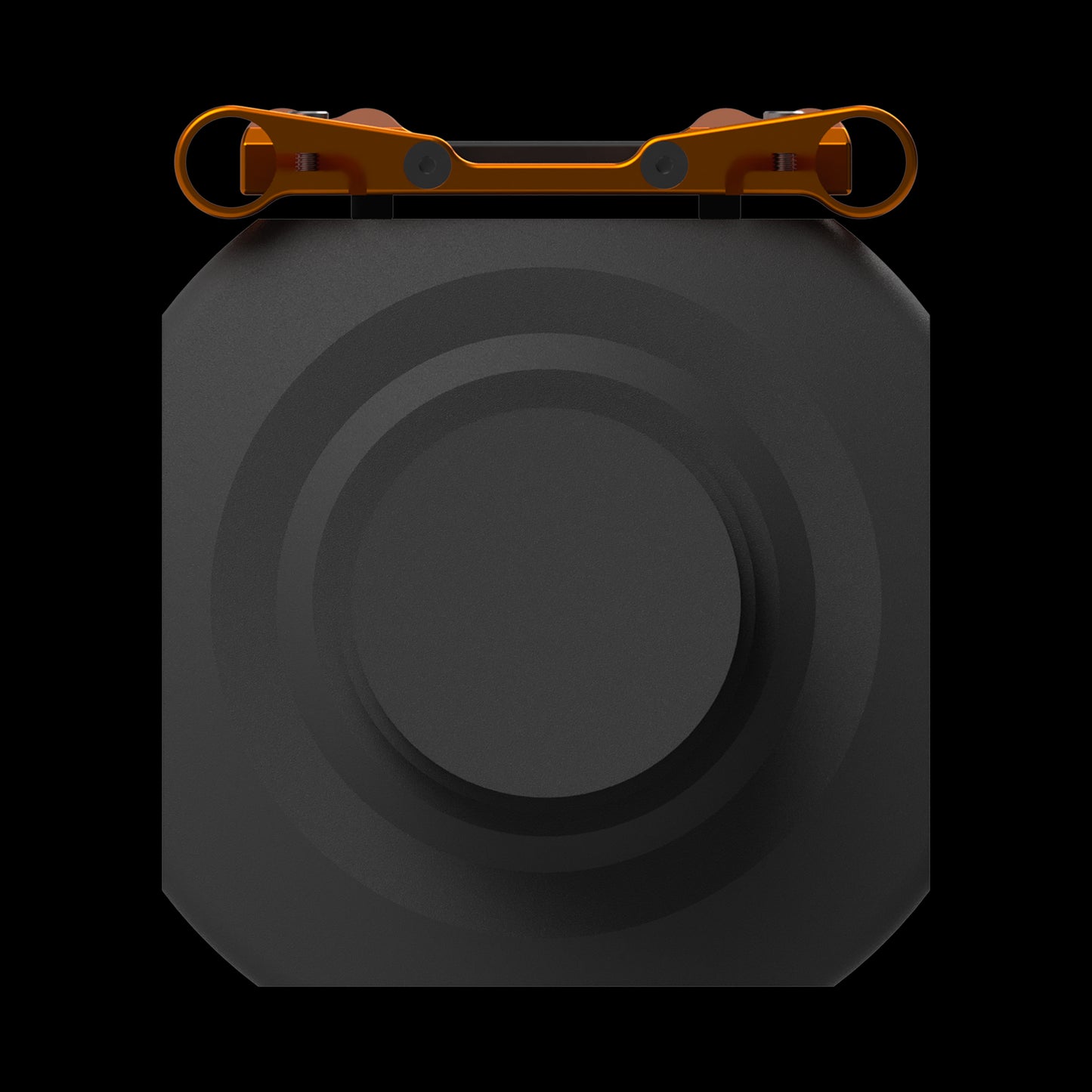

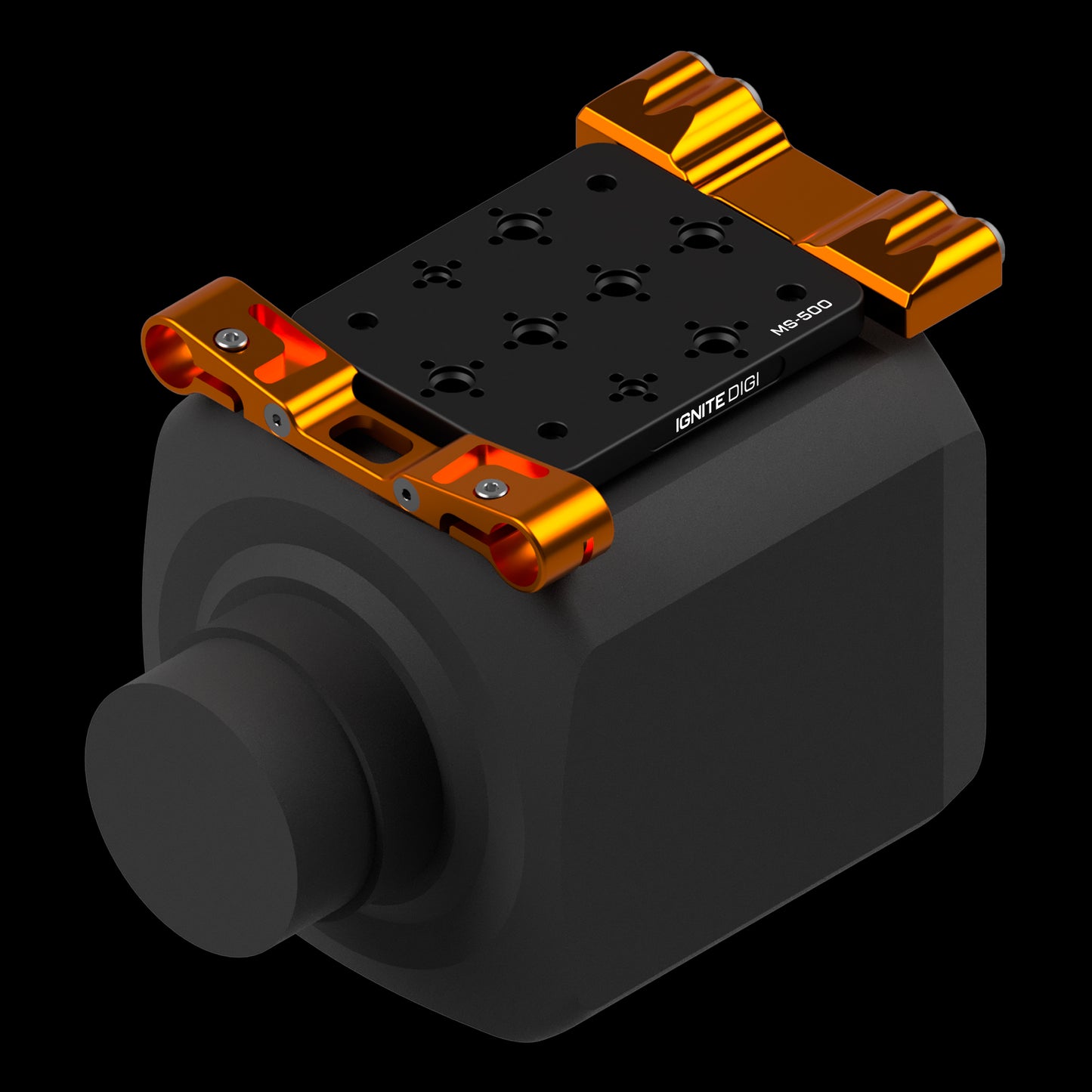

Four M4 threaded holes on the front and back for Power Breakout and 105mm Rod Mount

More Info

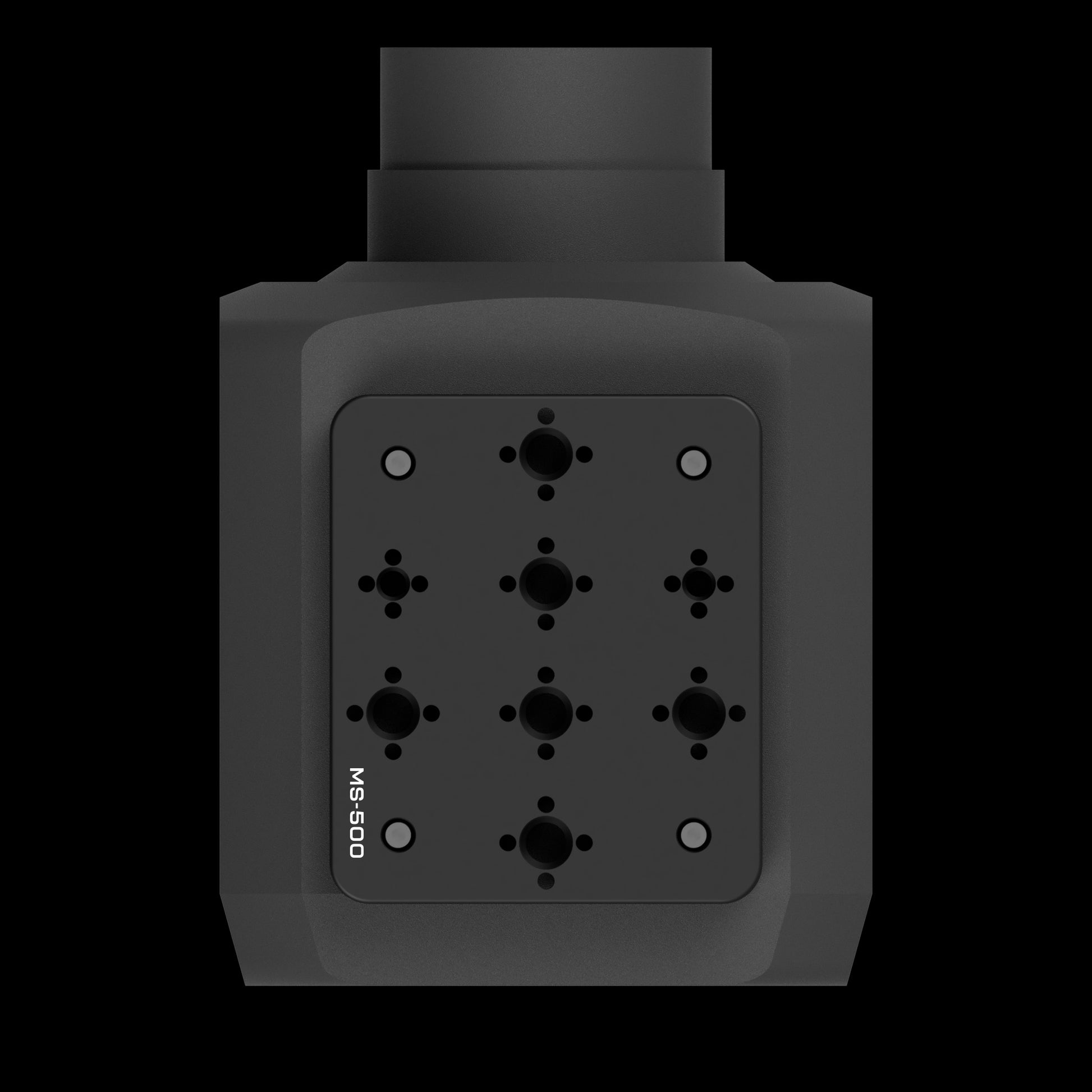

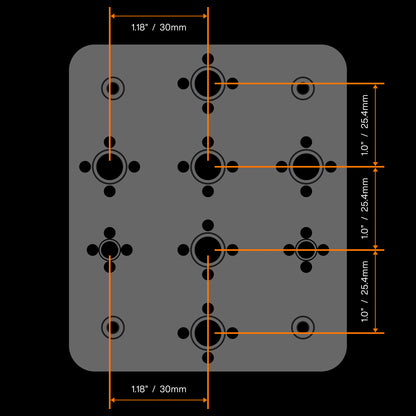

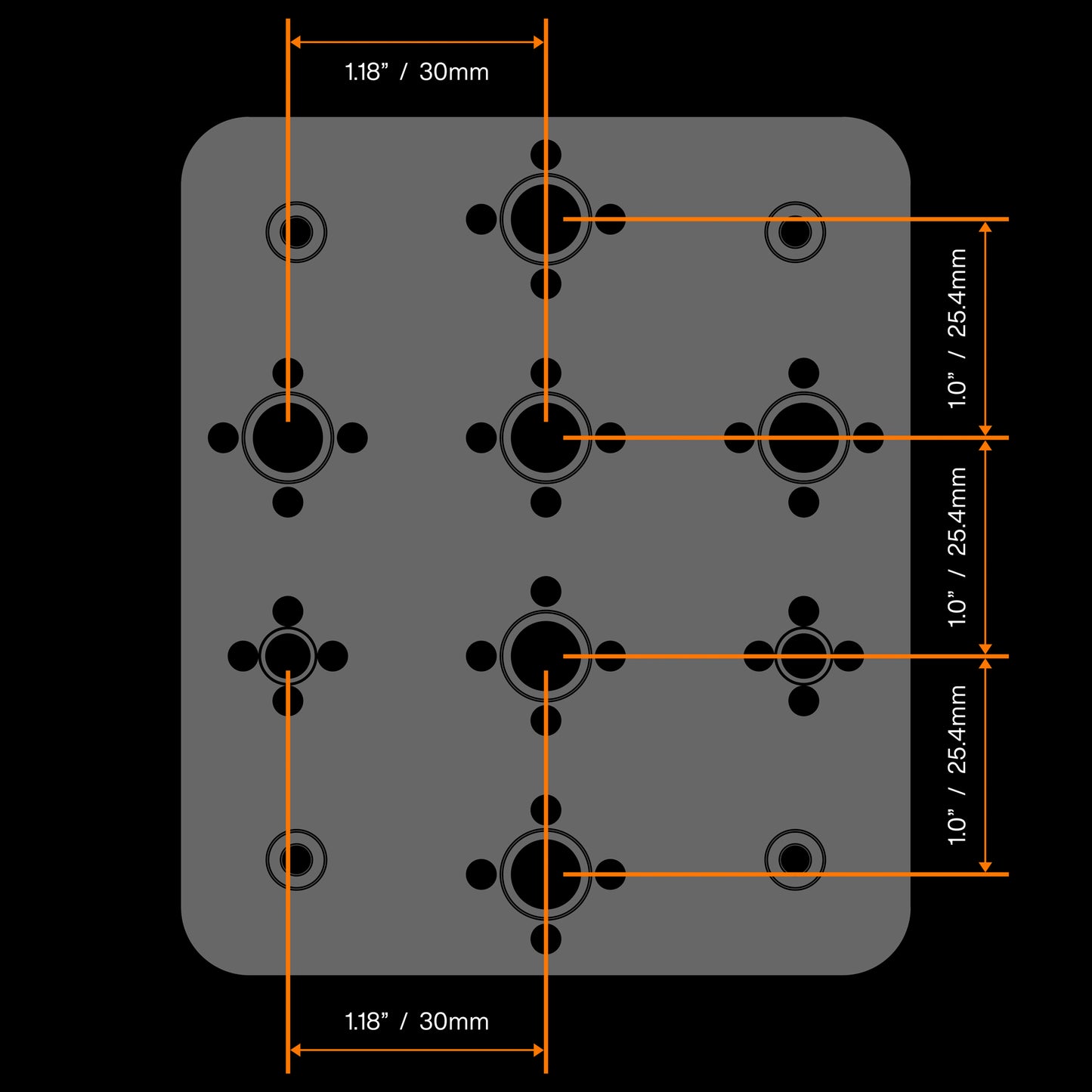

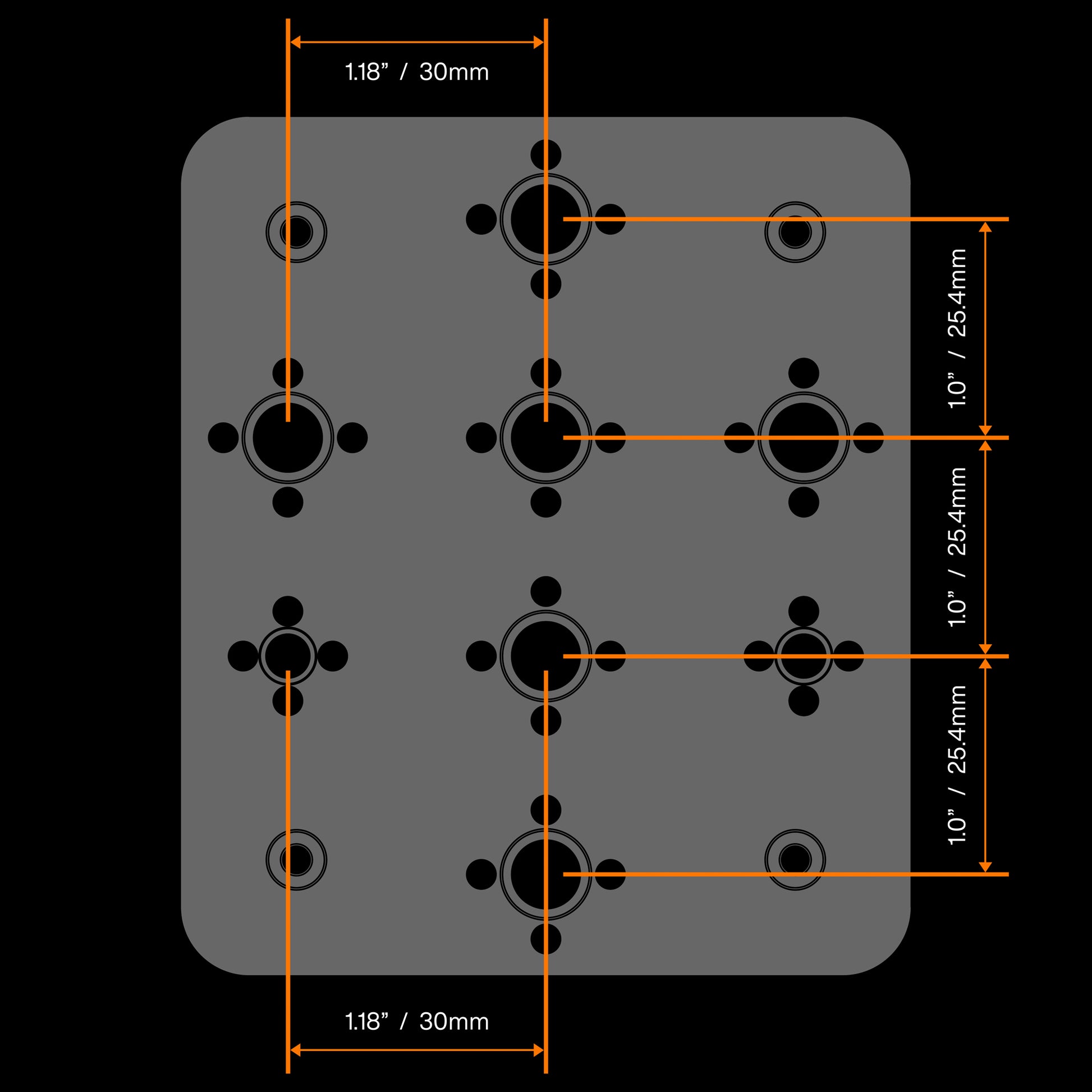

The four central ⅜"-16 Pin-Locks are spaced 1-inch / 25.4mm apart. This allows you to use D-style top handles such as the ARRI CCH-4 and Bright Tangerine D-Style Top Handle.

Camera Top Plate F mounts to the camera body with M3 x 12mm socket head cap screws. You'll find eight screws in the box — four to use and four spare.

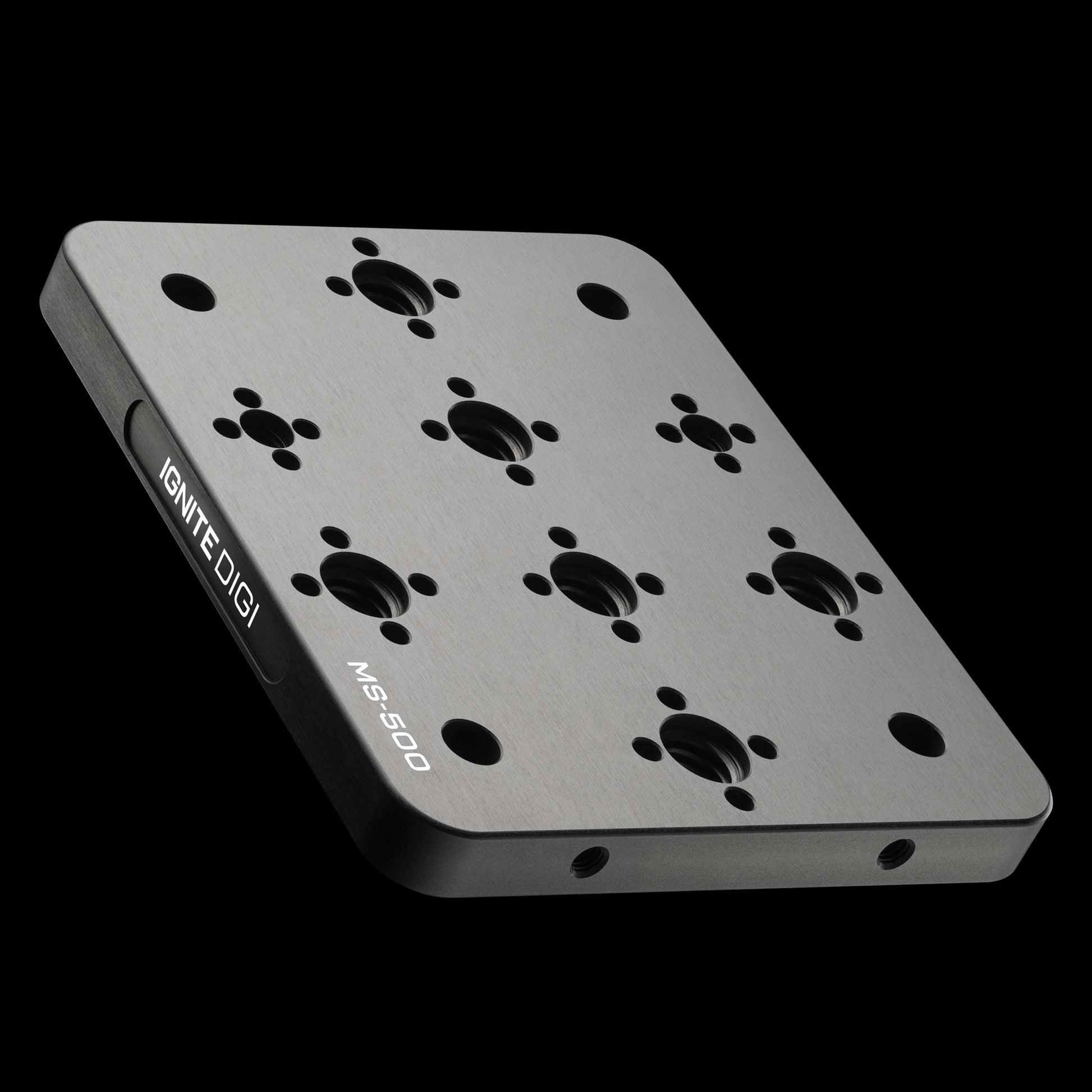

CNC machined from high-grade 6061-T651 aluminium billet and hard anodised for life on set.

Designed and manufactured in Tasmania, Australia.

Compatibility

COMPATIBLE CAMERAS
Canon MS-500

NOT COMPATIBLE CAMERAS
❌ Canon ME200S SH
❌ Canon ME20F SH

Specs

MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised black

SHIPS WITH
Eight M3 x 12mm socket head cap screws

WEIGHT
4.55oz / 129g

DIMENSIONS
3.93 x 3.34 x 0.51” / 100 x 85 x 13mm
