TB51 for DJI High-Bright Remote Monitor

Power is fed into the DJI monitor via a Sony NP-F dummy battery with built-in regulator.

The first step is to install the NP-F battery plate (pictured below) into the WB37 battery slot.

If you purchased the DJI Transmission kit or the monitor individually, both include the NP-F battery plate and four M2 x 6mm socket head cap screws.

——————————————


INSTALLATION

1. Remove the four M2 x 5mm countersunk screws
    ↓ ↓ see images below
2. Mount the NP-F battery plate into the WB37 battery slot
3. Insert and tighten four M2 x 6mm socket head cap screws

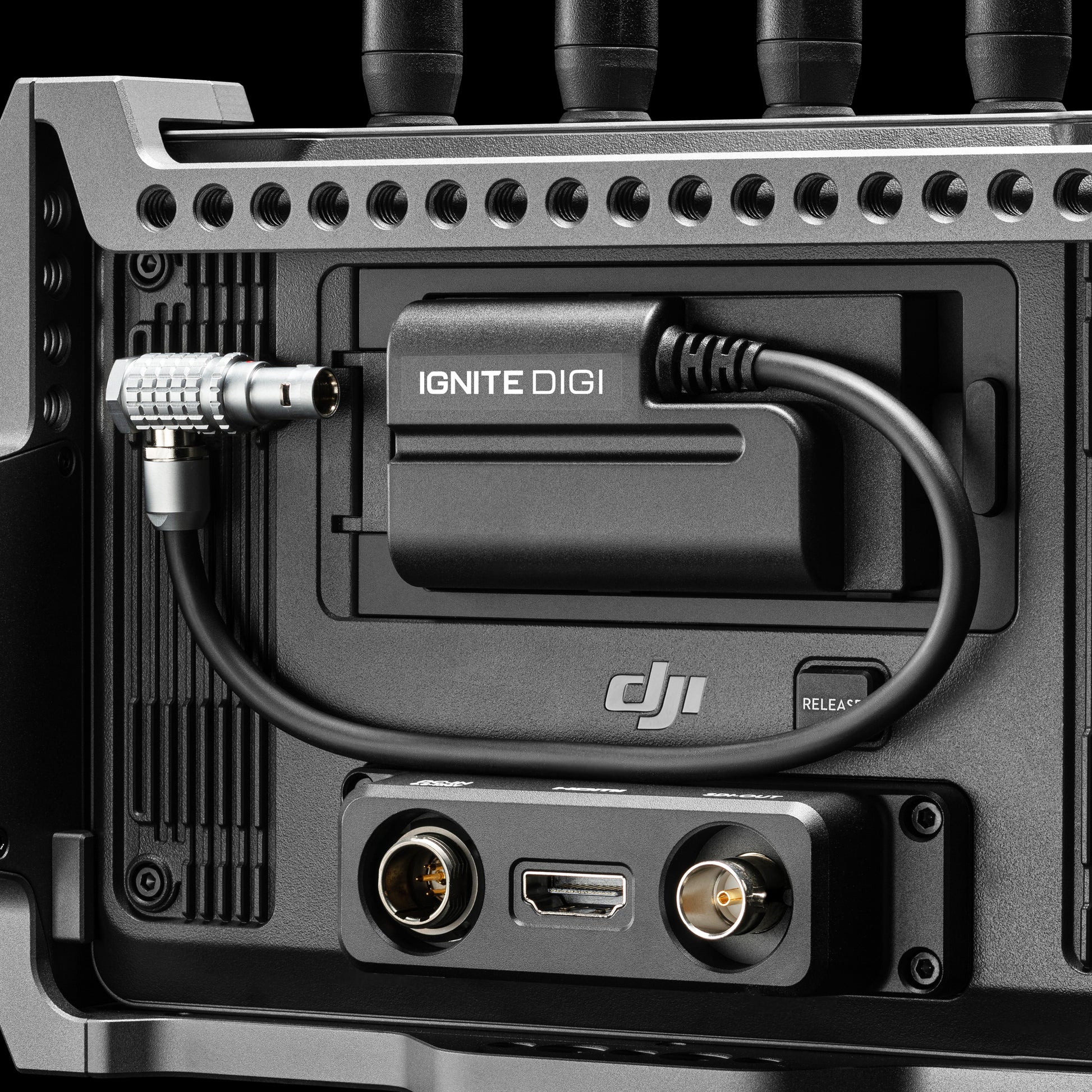

4. Insert the Ignite NP-F Dummy Battery

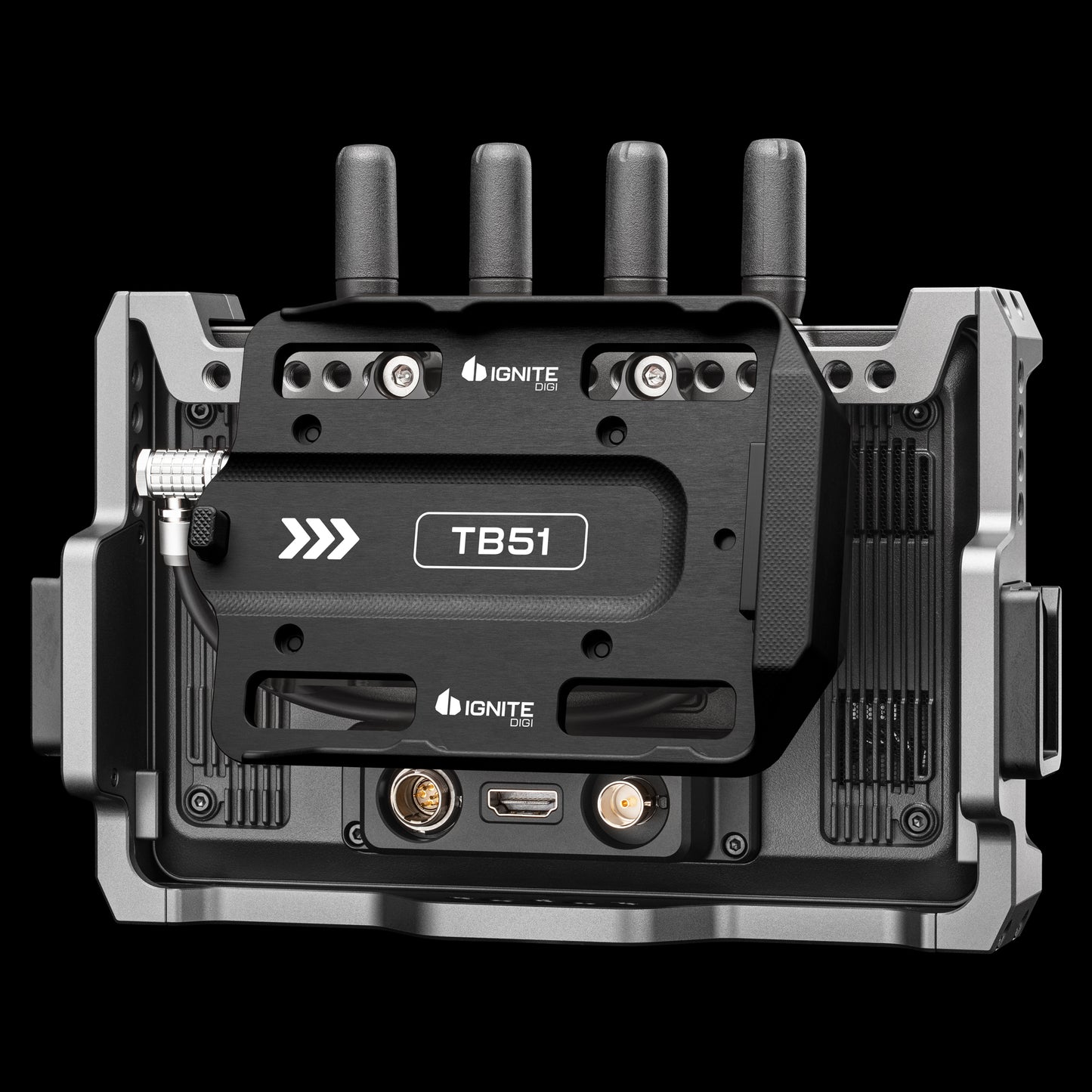

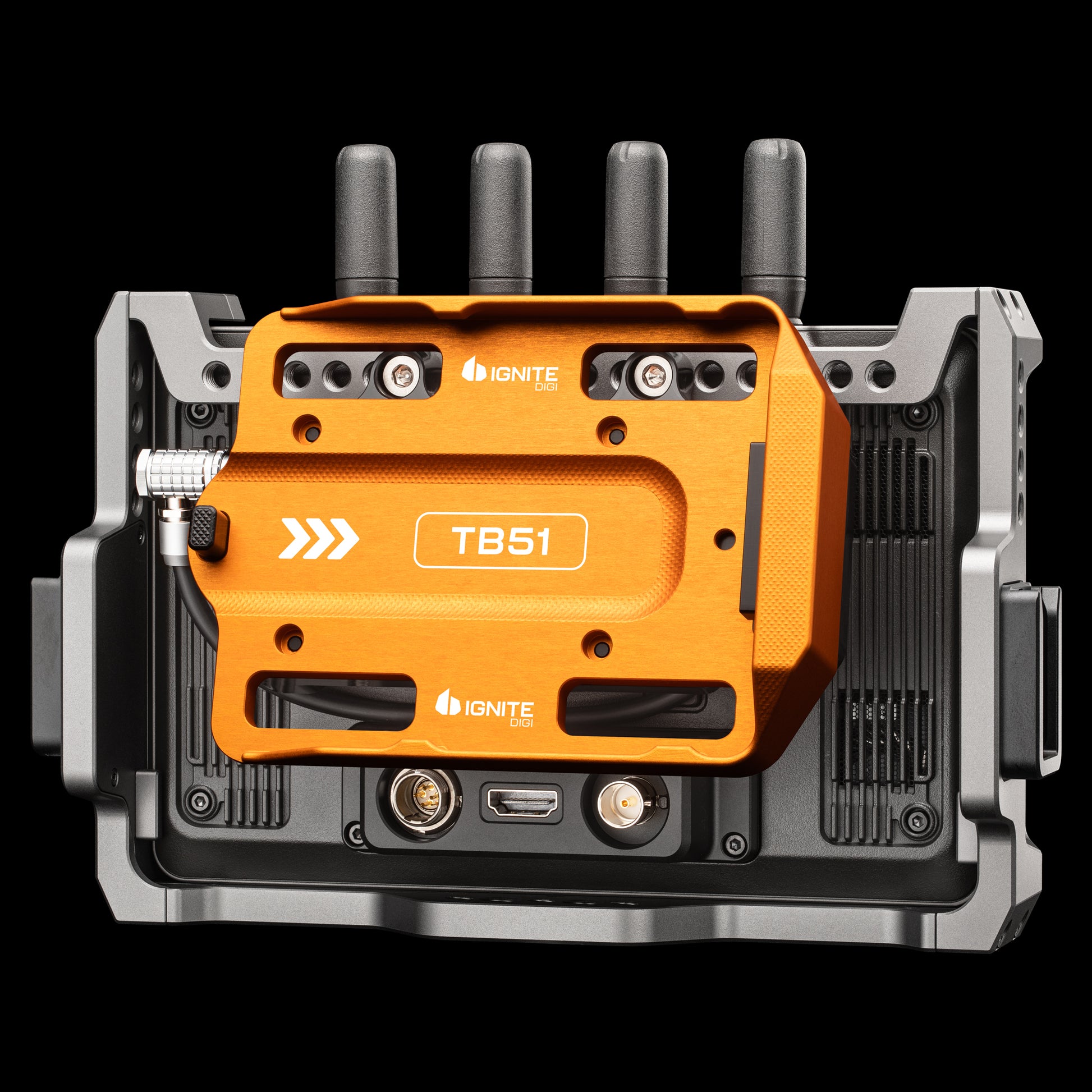

5. Mount the TB51 plate in the centre of the monitor cage (hex key 5/32″)
6. Plug in the 3-Pin Lemo cable

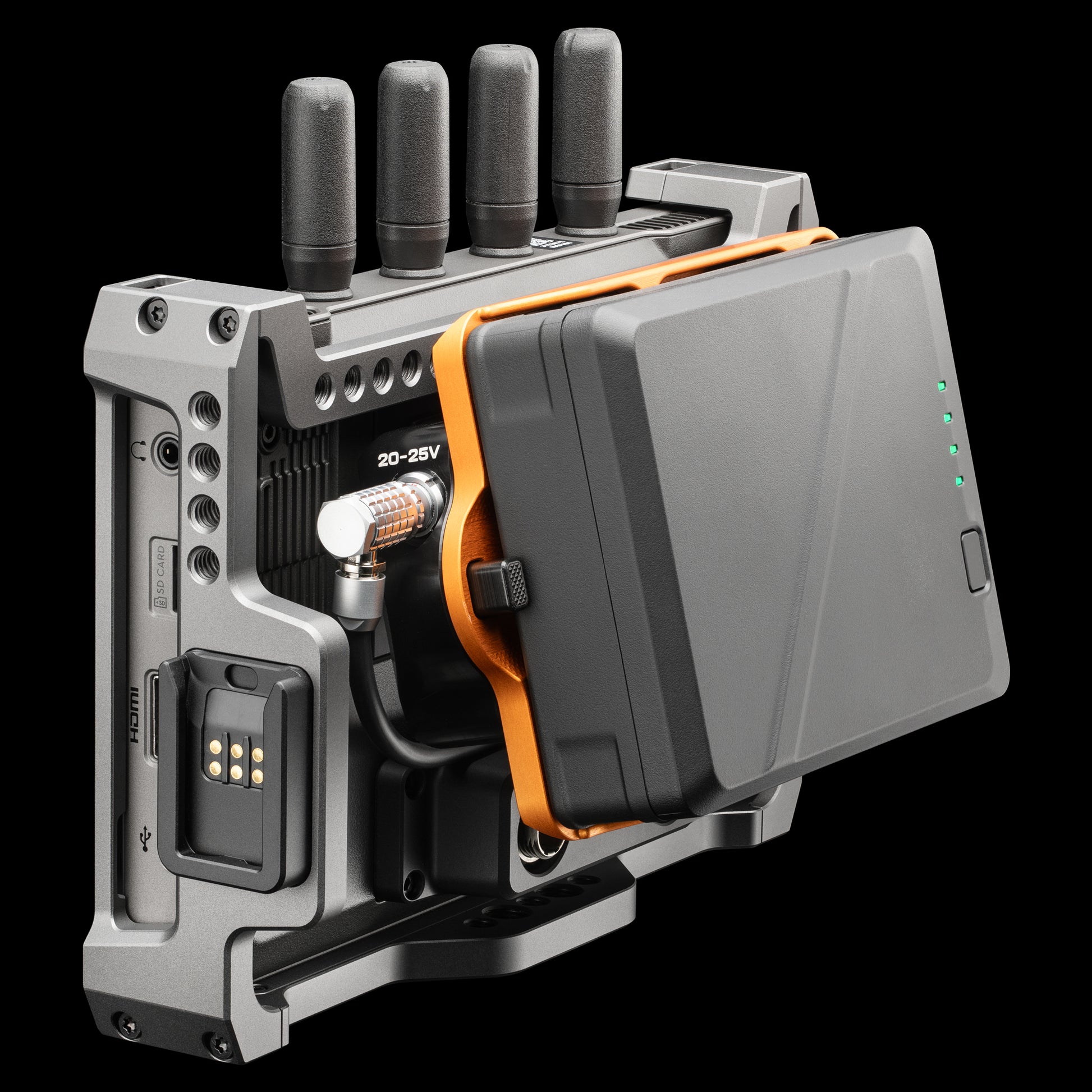

7. Insert TB51 battery
8. Power up!! ⚡⚡⚡


————————————————

DJI TB51 KEY FEATURES

● Built for high draw ⚡️

● 4280 mAh / 98.8 Wh ✈️ carry-on air travel safe

● Compact design and lightweight: 16.5oz / 468g

● TB51's can power cameras, camera accessories, gimbals, drones, and remote controllers

● There is one capacity of TB51 battery — therefore a simplified gimbal balancing workflow

● Built-in auto heating system down to -4° F (-20° C) ❄️

● Automatic protection cutoff at 2%

● Automatic self discharging down to 60% when the battery is idle for more than 10 days — press the Power Level button to exit idle state

● Overcurrent and short circuit protection — batteries can be left unattended while charging

● In Fast Mode, charge a pair of batteries up to 90% in as little as 35 minutes

● TB51’s are one of the most affordable high-voltage camera batteries on the market

● TB51’s are widely available in many parts of the world

————————————————

TB51 BATTERIES WORK WITH

● DJI Inspire 3

● Control Deck for DJI Transmission

● NODO Inertia Wheels Brushless & MAX

● NODO Torq Head

● DJI High-Bright Remote Monitor

● Freefly MōVI Pro

● Freefly MōVI XL

● TB51 Hammerhead ‣ ALEXA + DSMC + VENICE

● TB51 for ALEXA 35 + URSA Cine

————————————————

MADE FROM
High-grade 6061-T651 aluminium billet
Ertacetal (high performance plastic)

IN THE BOX
TB51 Battery Plate + mounting bracket
3-Pin Lemo to NP-F Dummy Battery Cable
Four M2 x 6mm socket head cap screws

WEIGHT
9.84oz / 279g plate + cable
26.4oz / 750g plate + cable + TB51
57.6oz / 1634g plate + cable + TB51 + monitor

DIMENSIONS
5.51 x 3.62 x 1.73” / 140 x 92 x 44mm
