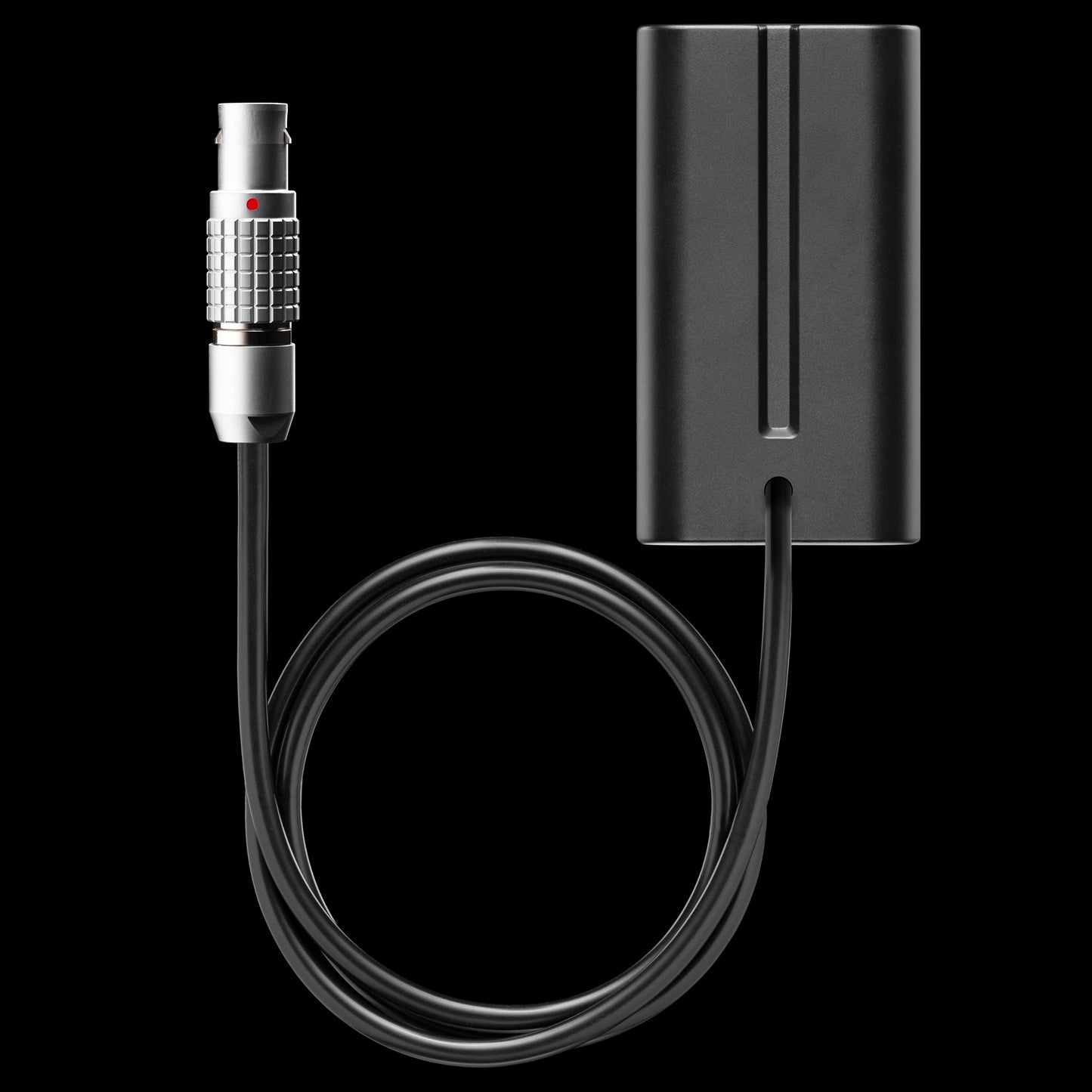

This 6-Pin Lemo Straight to Sony NP-F cable is designed to feed power from Ronin 2 to your monitor/recorder. Compatible models include:
SmallHD CINE 7

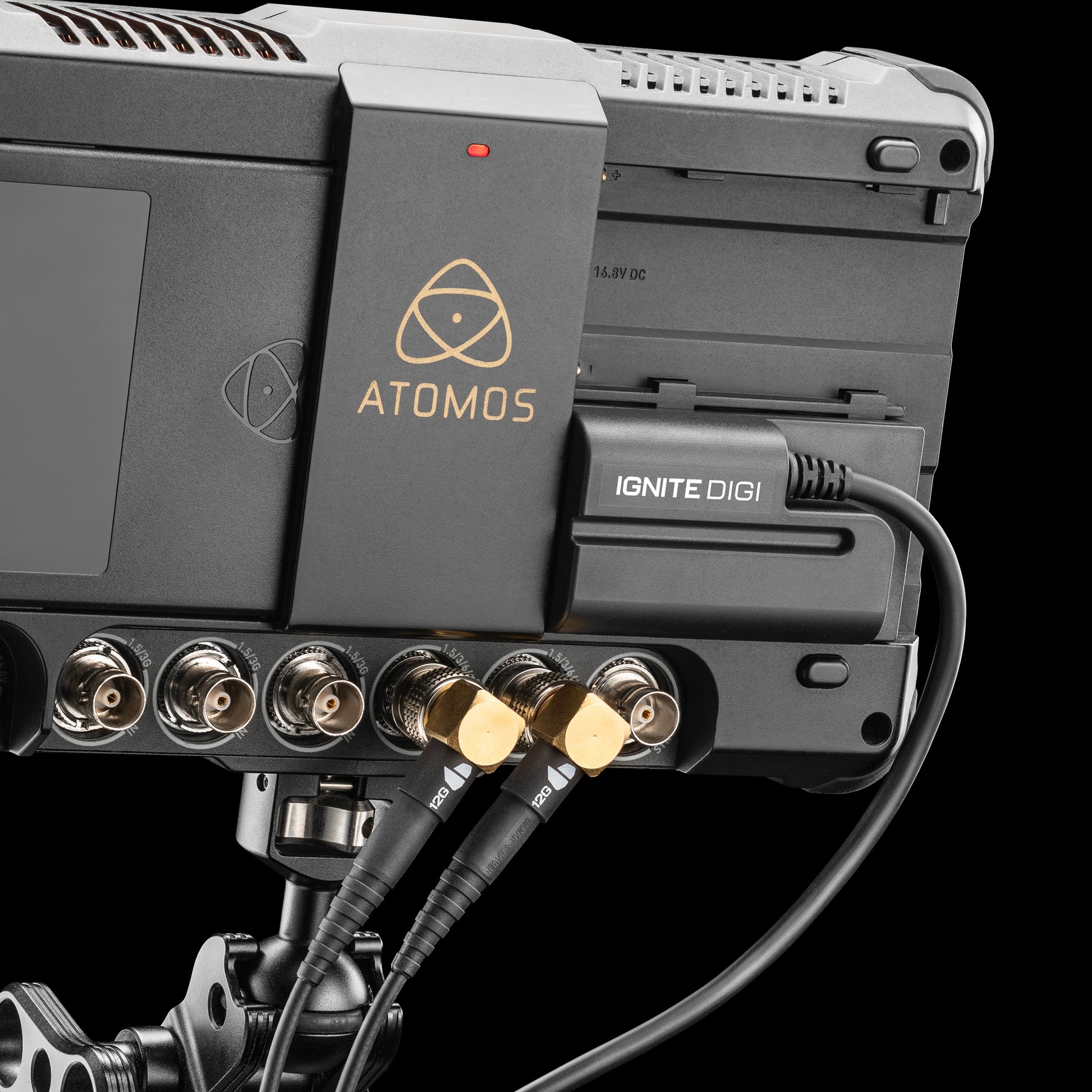

Atomos Ninja V
PortKeys BM5
Blackmagic Video Assist 7”
SWIT CM-55C & CM-S75C
OSEE T5 & T7
more listed below ↓

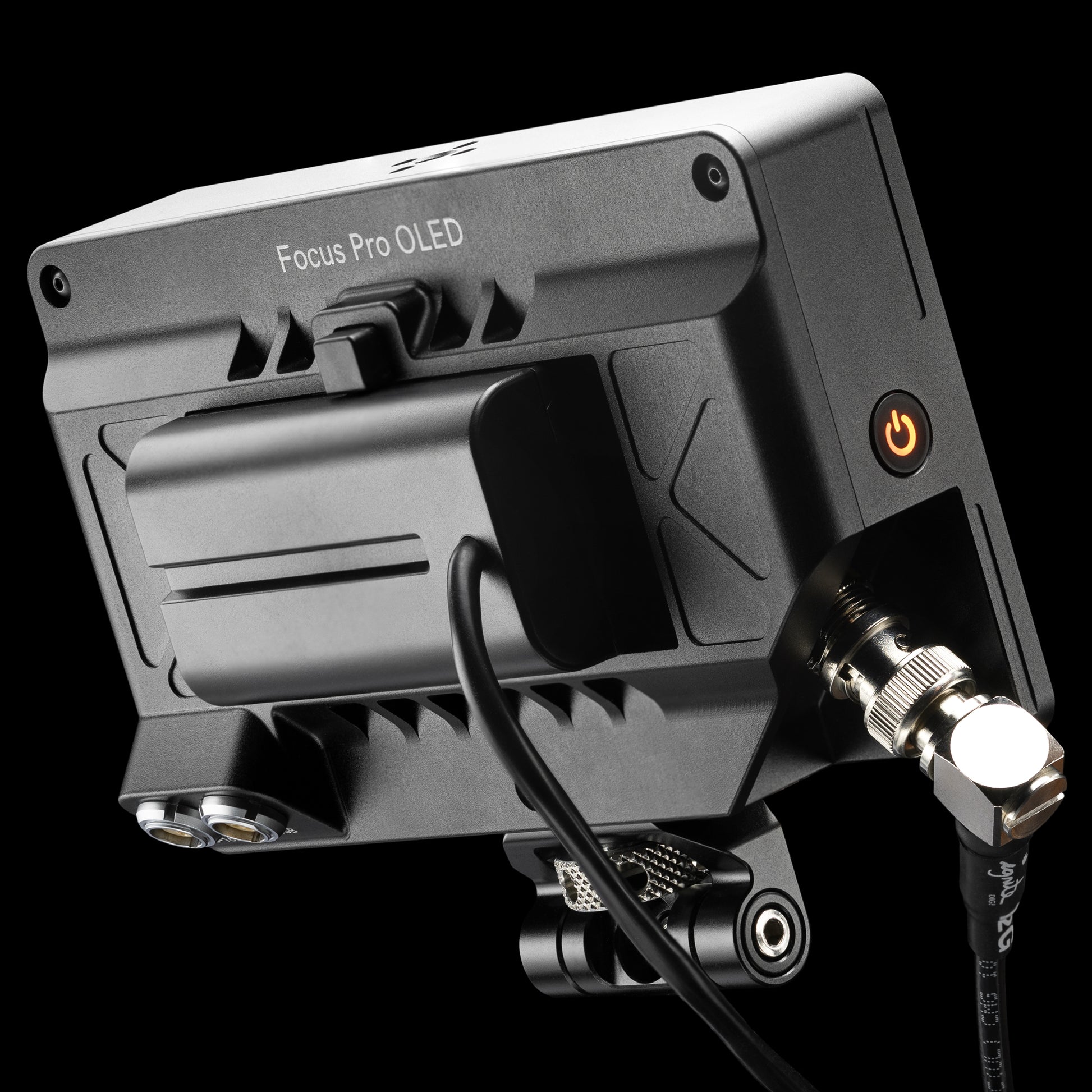

The regulator that lives inside the NP-F dummy battery accepts an input voltage range of 9-32V. It outputs 8.4V (up to 3 amps), the same as a fully charged NP-F battery.
12-INCH

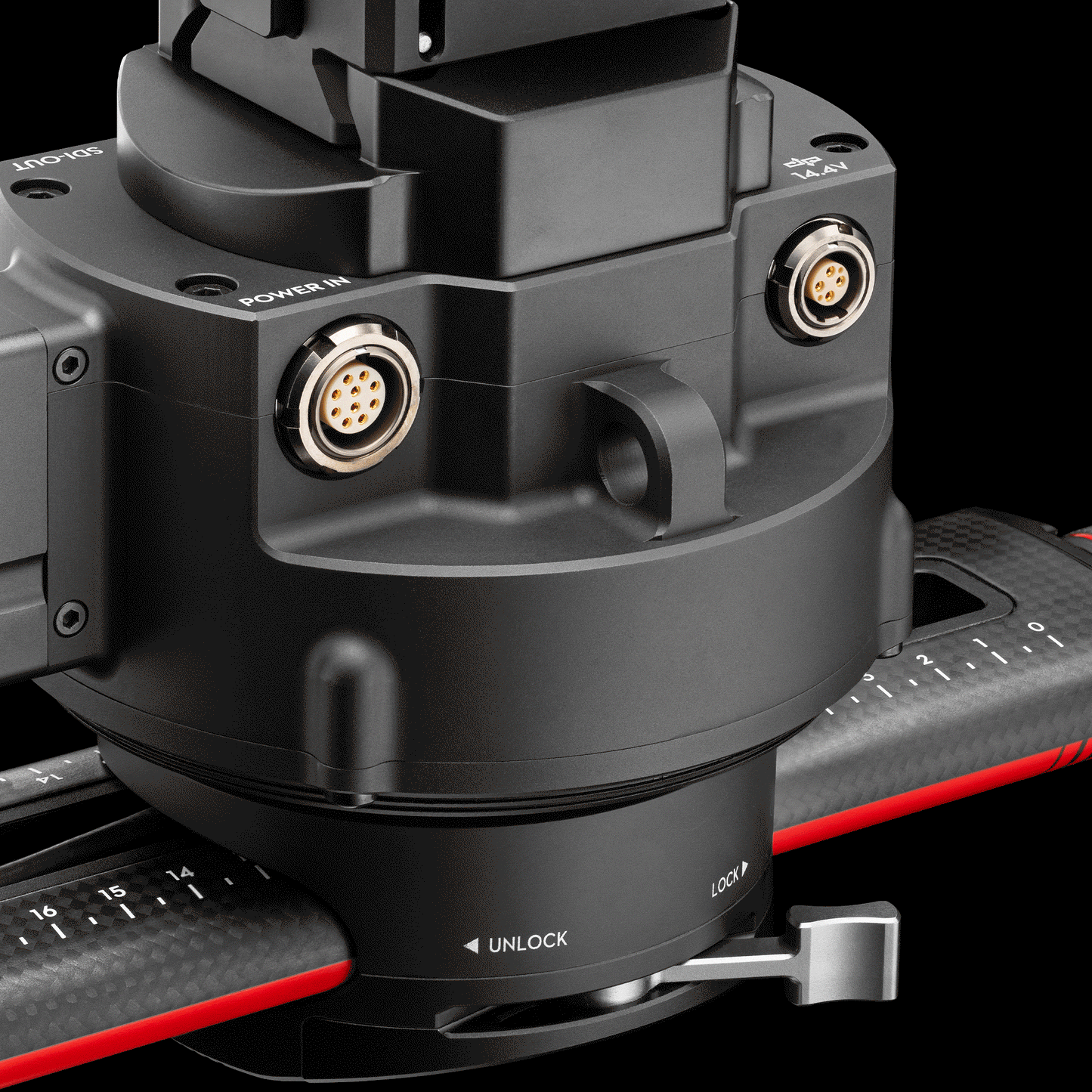

Select 12-inch when the monitor is mounted on top of the carbon fibre ring and is sourcing power from the Ronin 2 pan motor 14.4V Accessory Power Port
18-INCH
Select 18-inch when monitors are mounted on the outer sides of the Ronin 2 carbon fibre ring
