EXT Cable ‣ PIXBOOM Spark to EXT Breakout

SKU:IG.100658

In stock

$168.00 AUD

Sale Sold out

Length 2-inch / 5cm 8-inch / 20cm

Quantity

PREORDER - Estimated shipping date 12th August

PIXBOOM Spark's EXT port uses the same lemo BUT has a different pin-out than RED DSMC3 EXT port.

This cable bridges the gap, meaning you can use any RED EXT Breakout, including ours!

The short 2" / 5cm cable is designed for those using our EXT Breakout mounted on the non-op side of our upcoming Keystone for PIXBOOM Spark.

The 8" / 20cm is more general use for those with other brand EXT breakouts mounted on other cages, ideally on non-op side of camera.

IMPORTANT INFO:
PIXBOOM's EXT port has a different pin-out than RED DSMC3 EXT port!

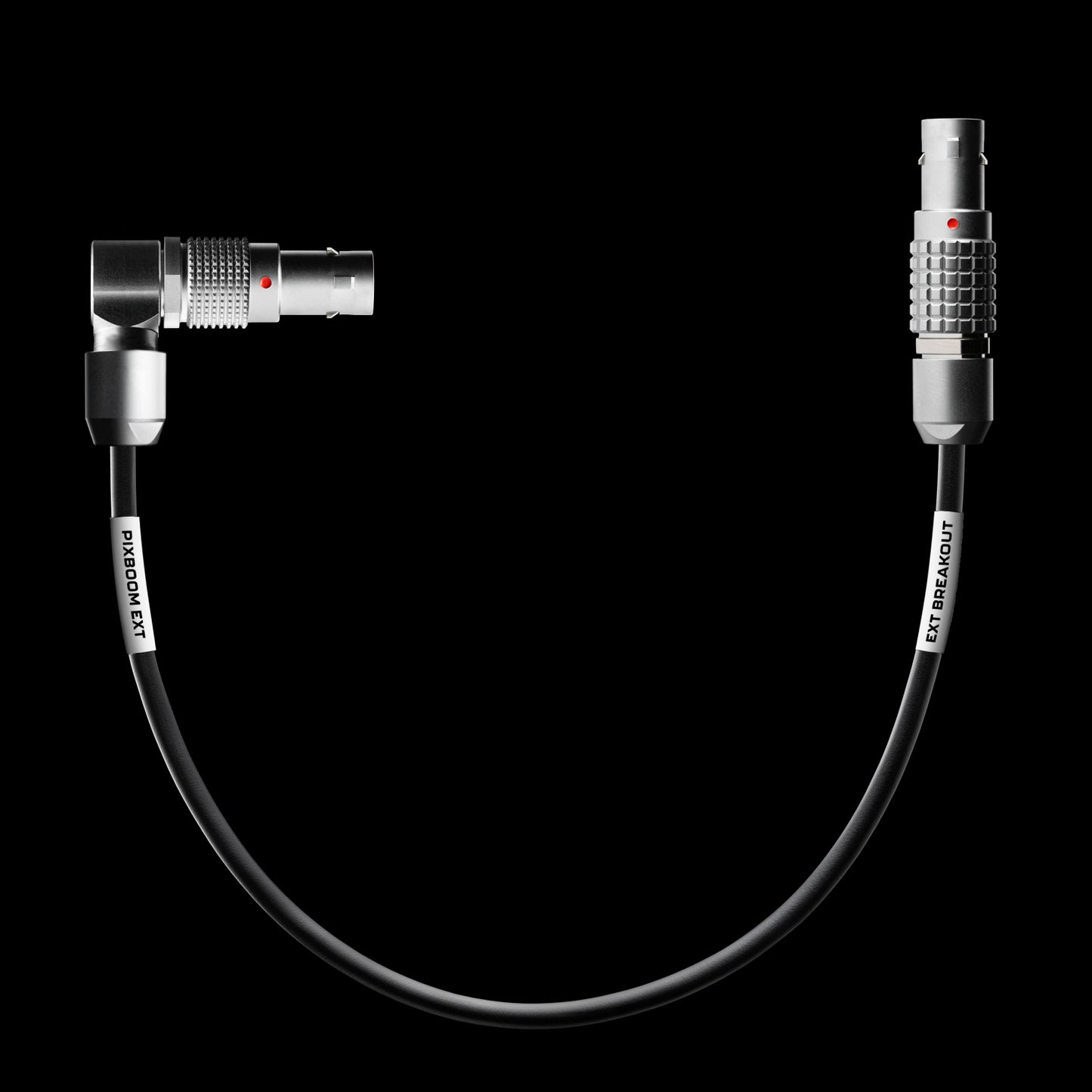

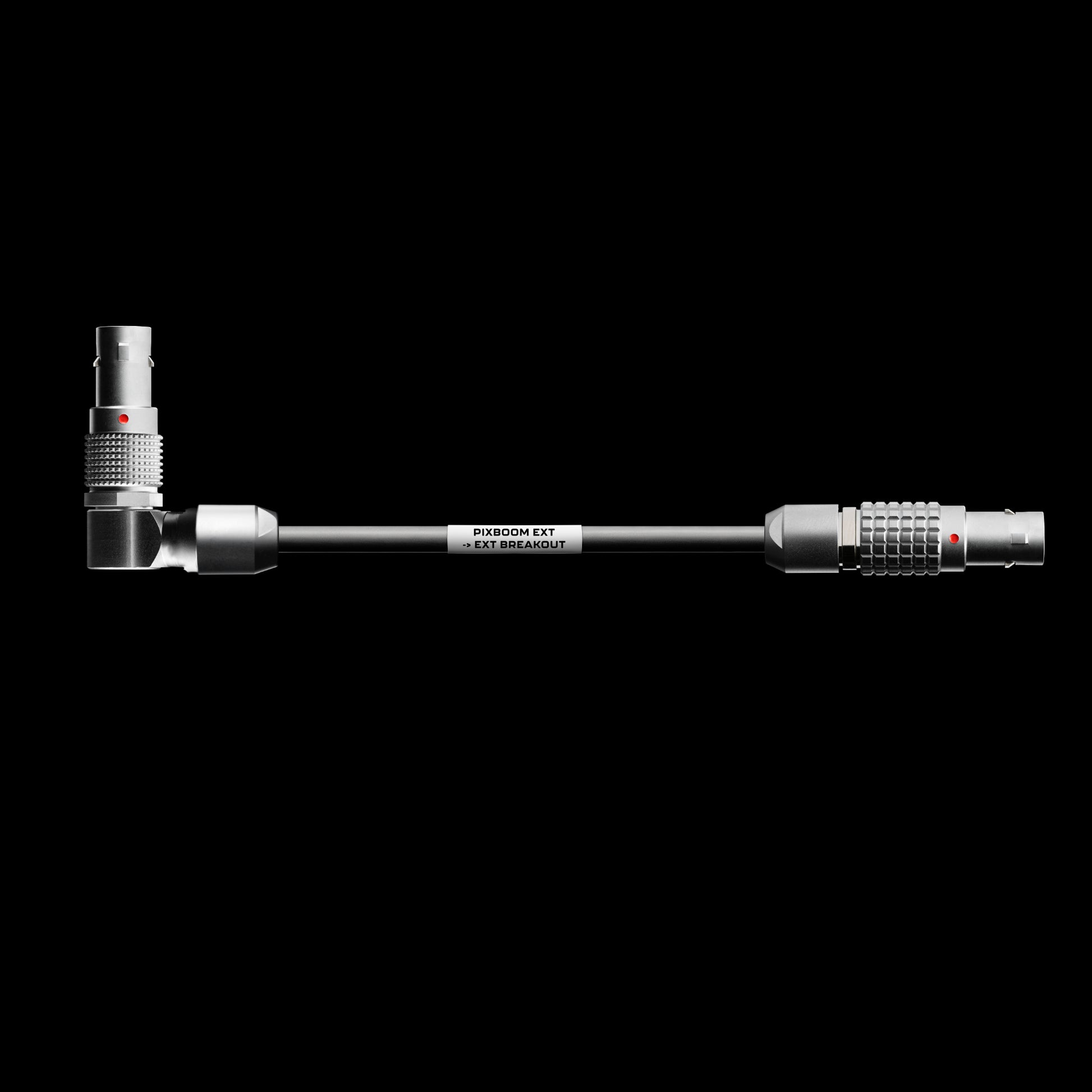

For this reason, you MUST plug the Anglissimo right angle end of the cable into the PIXBOOM's EXT and the straight end into EXT Breakout.
NOT THE OTHER WAY AROUND!

We use premium 9-core TPU, which provides strength and eliminates the need for rigid strain relief boots. It also makes our control cables some of the most flexible on the market! 💪🎥🔥

More info about functions below!

More Info

Functions passed through AND the port on the EXT breakout:
- Timecode in (5-pin Lemo)
- Timecode out (5-pin Lemo)
- GPI (R/S) (3-pin Fischer)
- GPO (9-pin EXT on Ignite EXT breakout, 4-pin CTRL on others)
- UART TX (9-pin EXT on Ignite EXT breakout, 4-pin CTRL on others)
- UART RX (9-pin EXT on Ignite EXT breakout, 4-pin CTRL on others)

Genlock in for the PIXBOOM Spark is via separate BNC connection.

Compatibility

COMPATIBLE WITH
Ignite Digi EXT Breakout
Mutiny EXT Breakout
Other brand EXT Breakouts for RED DSMC3
PIXBOOM Spark

Specs

CONNECTOR SPECS

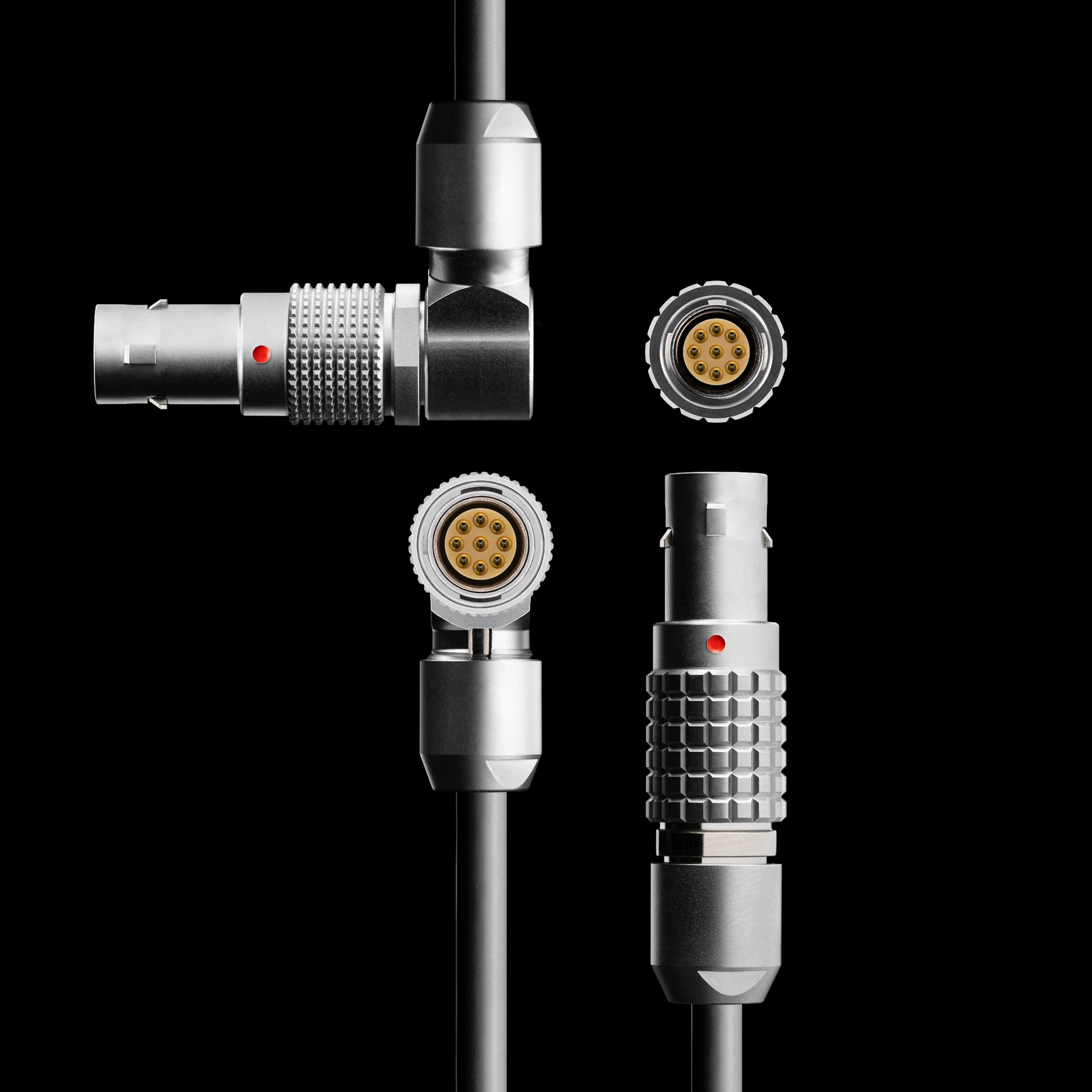

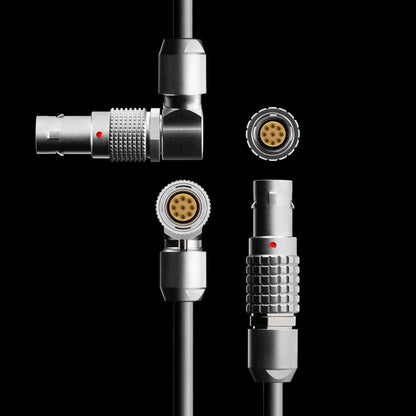

9-Pin (male) 0B Lemo Anglissimo Right Angle connector
9-Pin (male) 0B Lemo Straight connector

LENGTH
2-inch / 5cm
8-inch / 20cm

WEIGHT
0.??oz / ??g
0.??oz / ??g
