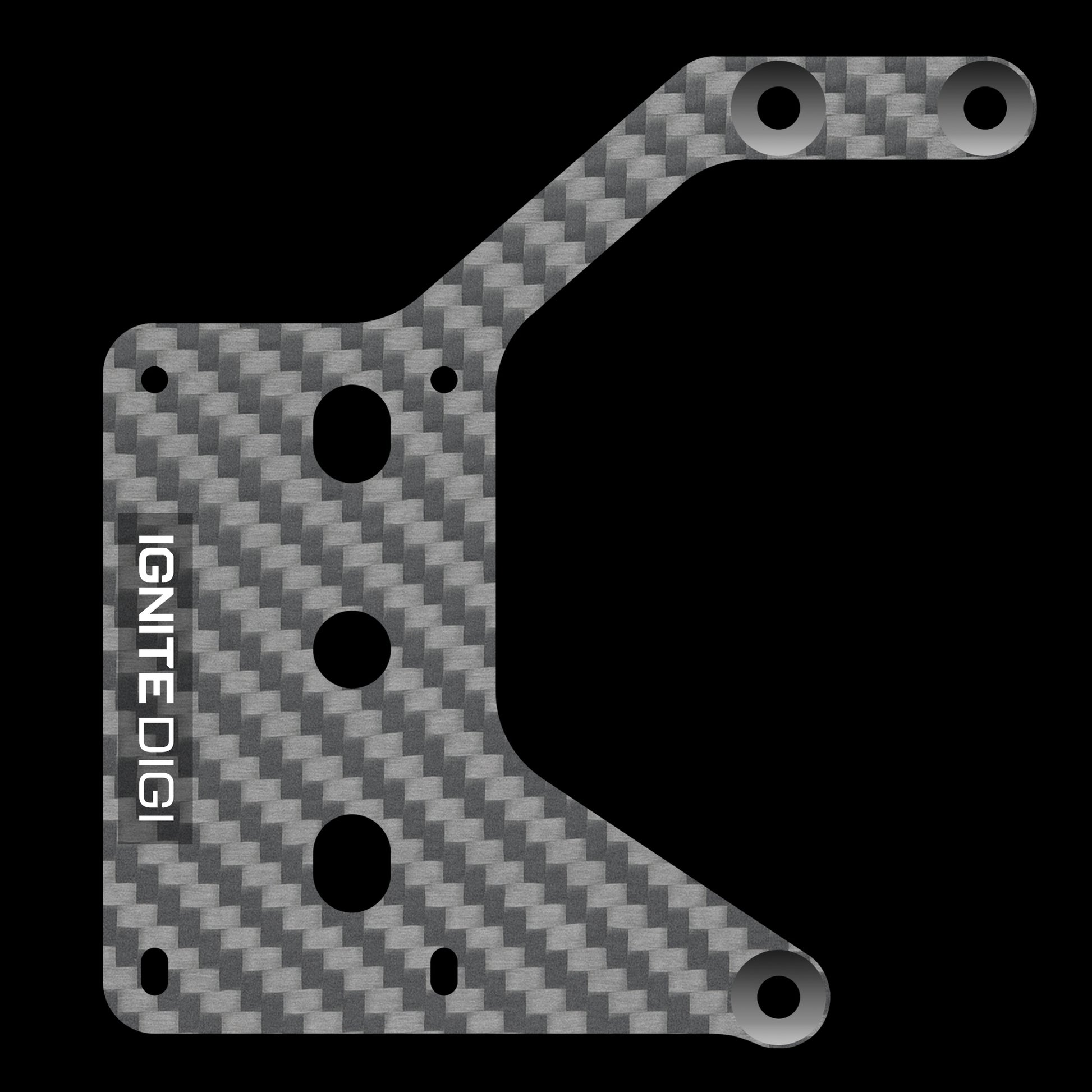

Carbon Side Plate for Teradek / KEYSTONE / KOMODO-X

SKU:IG.100031

In stock

$90.00 AUD

Sale Sold out

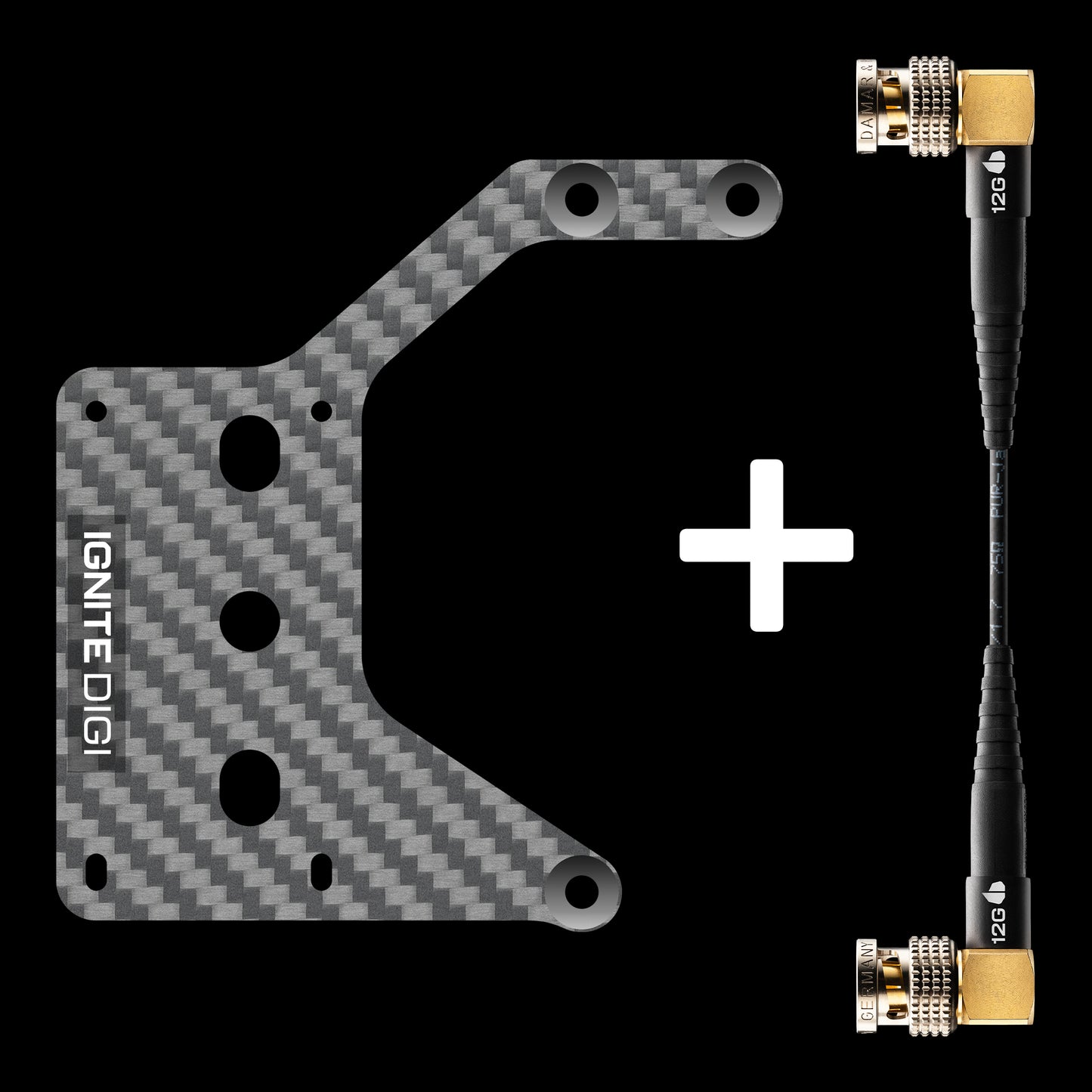

Options Plate Only Plate + 12G-SDI Cable 5.25-inch

Quantity

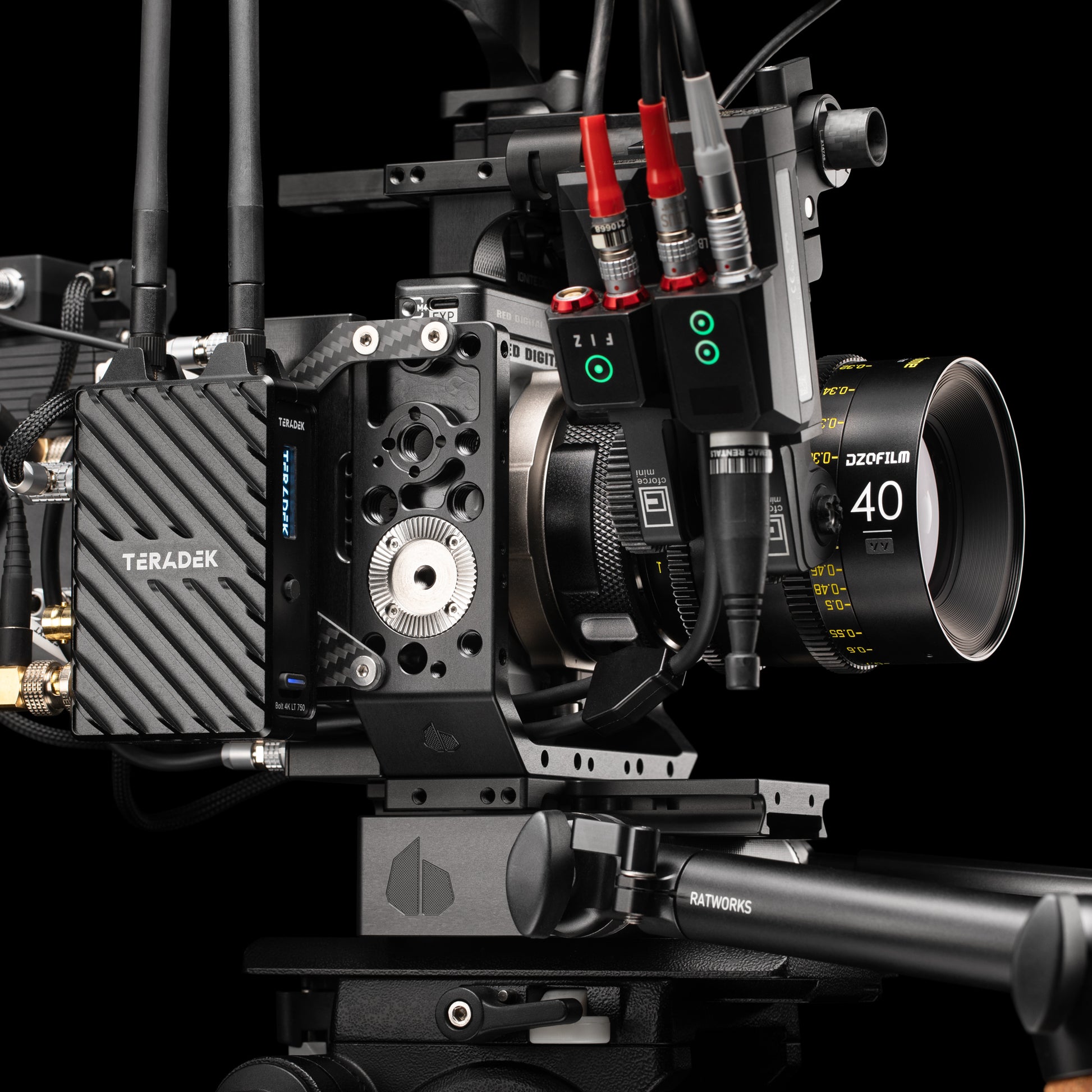

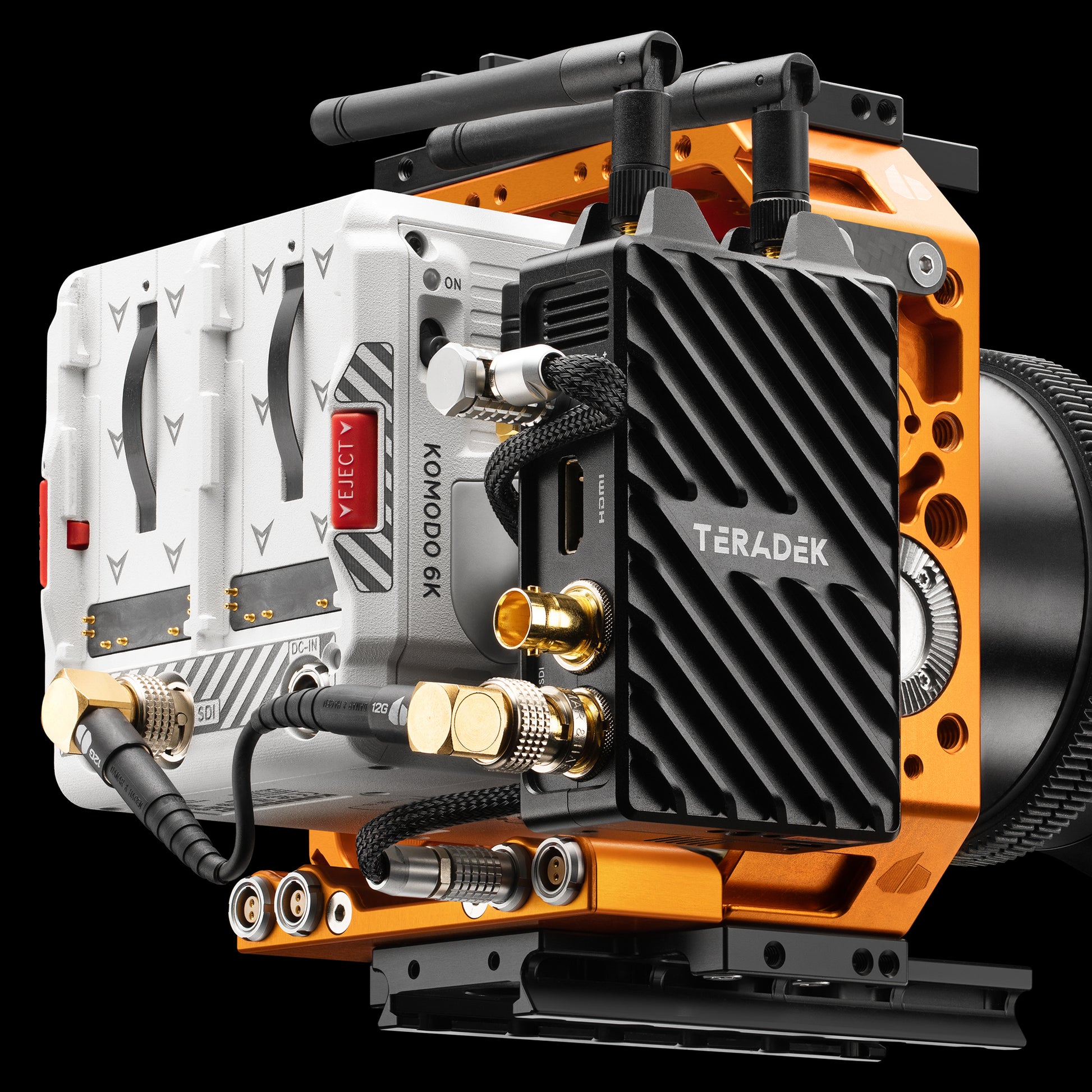

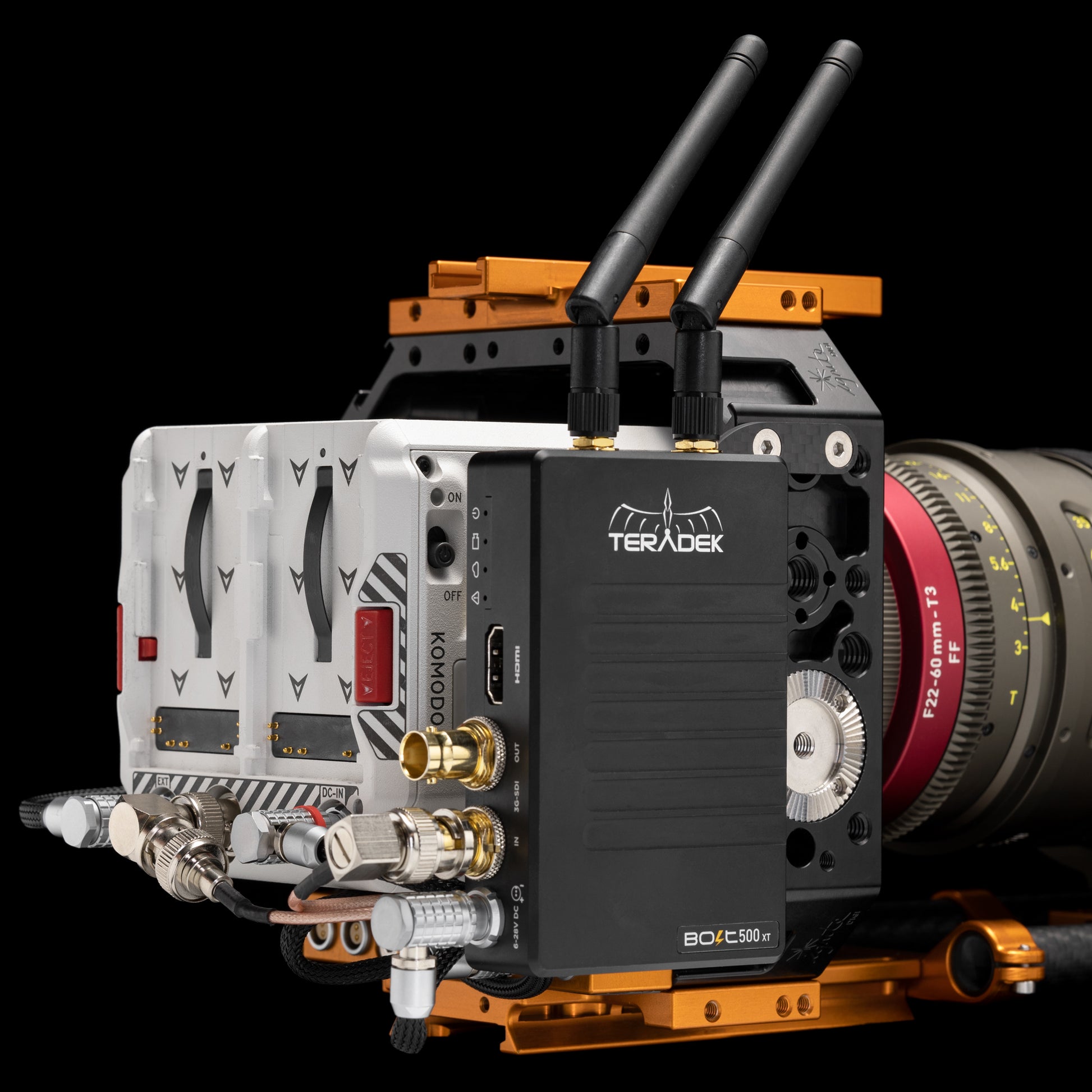

This ultra slimline Carbon Side Plate enables these Teradek transmitters:

Gen 4: Teradek Bolt LT/XT 500, 1000, 3000
Gen 5: Teradek Bolt 4K LT 750, 1500, MAX
Gen 6: Teradek Bolt 6 LT 750, 1500, MAX

...to mount to these KEYSTONES:

Rigging this way positions the TX in the optimal position — minimising impact on buttons, airflow and threads.

Camera and TX SDI ports are close together, keeping cables short, reducing tangling and potential damage from excessive coiling.

The aim is keep the TX mounted to the camera at all times! Whether you’re on gimbal, handheld or tripod. Less bulk, no ball heads unexpectedly dropping, saving valuable time on set 🔥

More Info

CABLES

We recommend using the following power cables 🔥✨

Gen 4: Teradek Bolt LT/XT 500, 1000, 3000

Use a 2-Pin Lemo Right Angle to 2-Pin Lemo Straight / 5-inch when sourcing power from our Power Breakout

Gen 5: Teradek Bolt 4K LT 750, 1500, MAX

Use a 2-Pin Lemo Right Angle to 2-Pin Lemo Straight / 8-inch when sourcing power from our Power Breakout

Gen 6: Teradek Bolt 6 LT 750, 1500, MAX

Use a 2-Pin Lemo Right Angle to 2-Pin Lemo Straight / 8-inch when sourcing power from our Power Breakout

—

INSTALLATION

The following screws are included with the Carbon Side Plate, and we throw in some spares!

Use four M2 x 6mm socket head cap screws to mount a Gen 4: Teradek Bolt XT / LT 500, 1000 & 3000 .

Use two ¼”-20 x ½" countersunk screws to mount a Gen 5: Teradek Bolt 4K LT 750, 1500 & MAX.

Use two ¼”-20 x ½" countersunk screws to mount a Gen 6: Teradek Bolt 6 LT 750, 1500 & MAX.

Use three M4 x 8mm countersunk screws to mount the Carbon Side Plate to KEYSTONE.

—

Compatibility

COMPATIBLE TRANSMITTERS
Gen 4: Teradek Bolt LT/XT 500, 1000, 3000
Gen 5: Teradek Bolt 4K LT 750, 1500, MAX
Gen 6: Teradek Bolt 6 LT 750, 1500, MAX

COMPATIBLE KEYSTONES
KEYSTONE for KOMODO-X
KEYSTONE Chopped for KOMODO-X
KEYSTONE for Ember

Specs

SHIPS WITH
Six M4 x 8mm countersunk screws
Eight M2 x 6mm socket head cap screws
Three ¼”-20 x ½" countersunk screws

WEIGHT
0.63oz / 18g with 3x M4 screws

DIMENSIONS
3.55 x 3.77 x 0.11” / 90.3 x 96 x 3mm
