IG.100023
$480.00 AUD

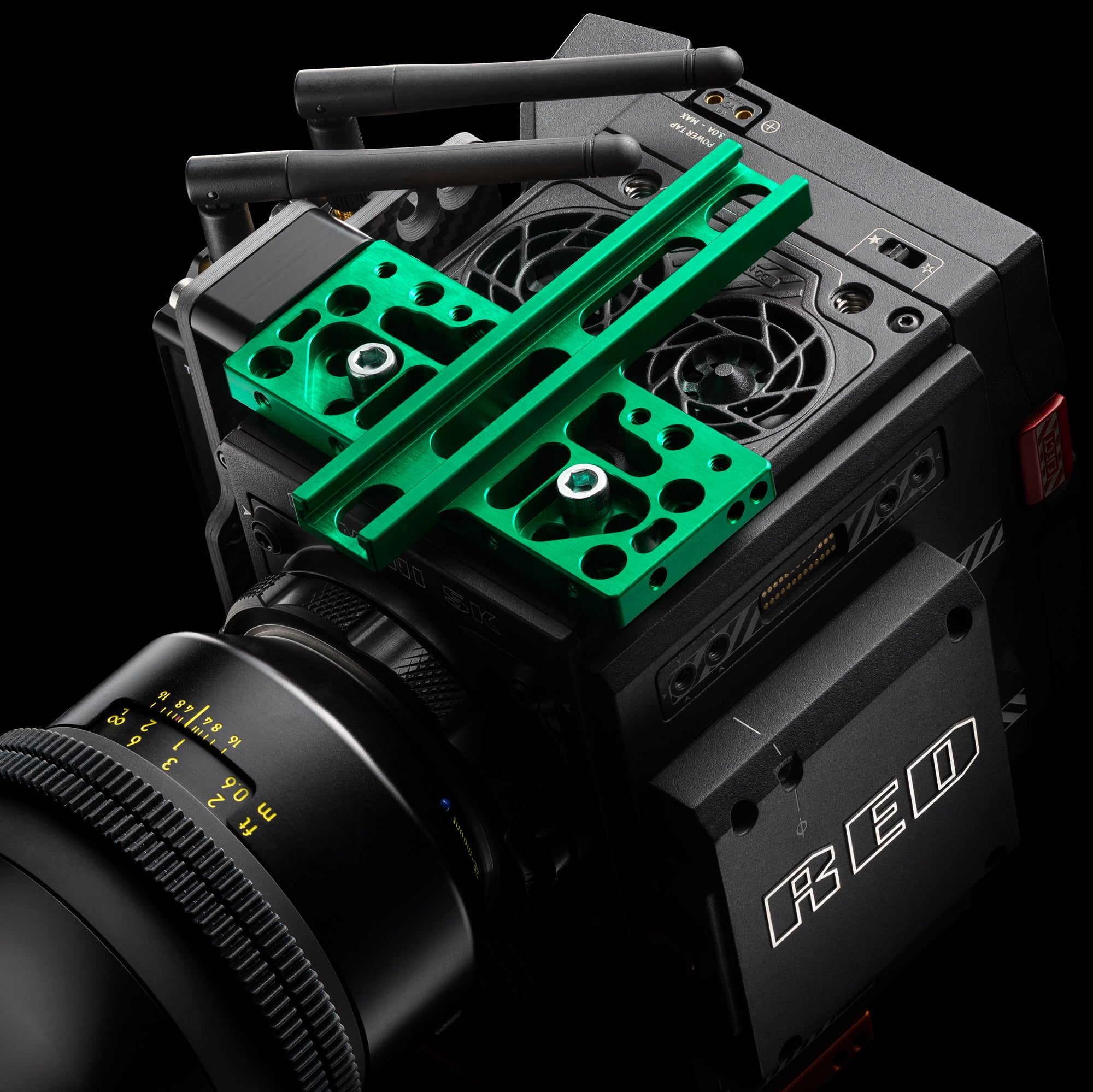

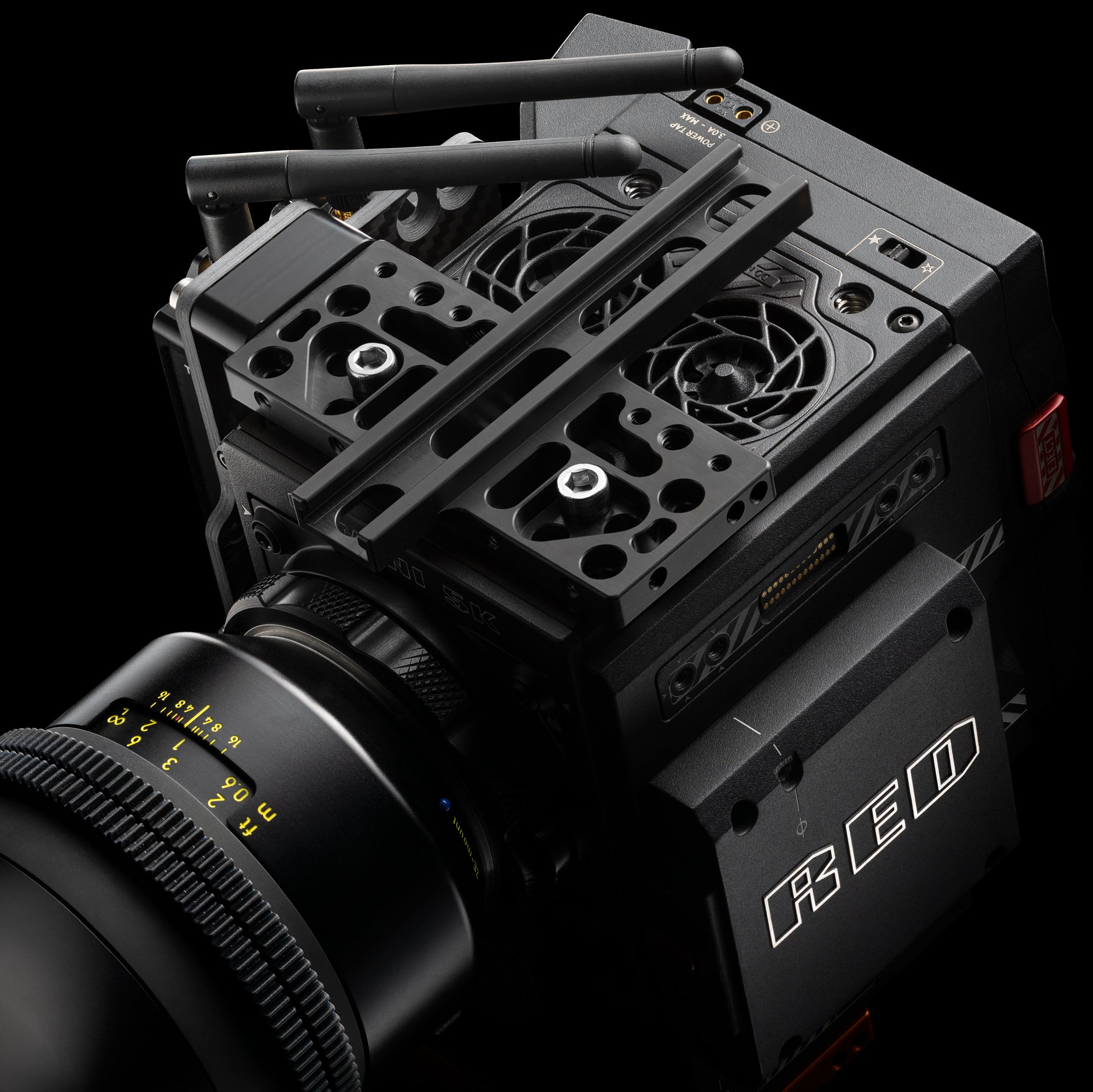

Camera Top Plate A is a lightweight, super rigid, reversible camera plate that features a MōVI dovetail, and a range of through holes and threads.
It's primarily intended for use with all models of RED DSMC2 and RED RANGER. But is also compatible with our KEYSTONES, ARRI ALEXA Mini and Mini LF.
It also mounts to ALEXA 35 with these slimline adapters!

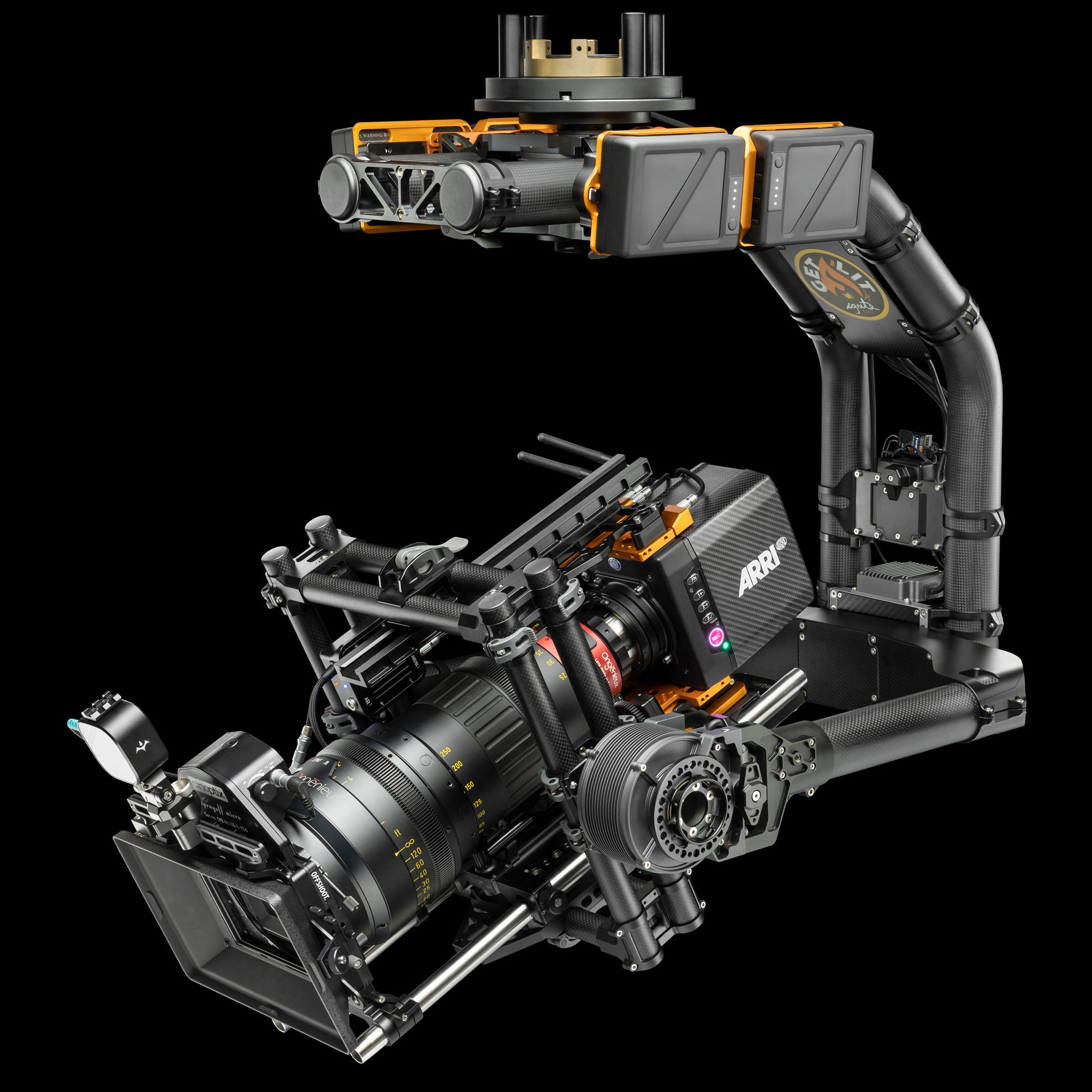

Top Plate A slides into MōVI Pro and Ronin 2 (with this adapter), and works alongside a range of accessories to optimise handheld and tripod modes.
This plate is essential to unlock our unique workflow called Quick Mode Change — an ecosystem of accessories that allows operators to transition the camera package between gimbal, handheld and tripod modes, without tools, in less than a minute!
Designed and manufactured in Tasmania, Australia.
Scroll ↓ for compatibility, rigging and specs.

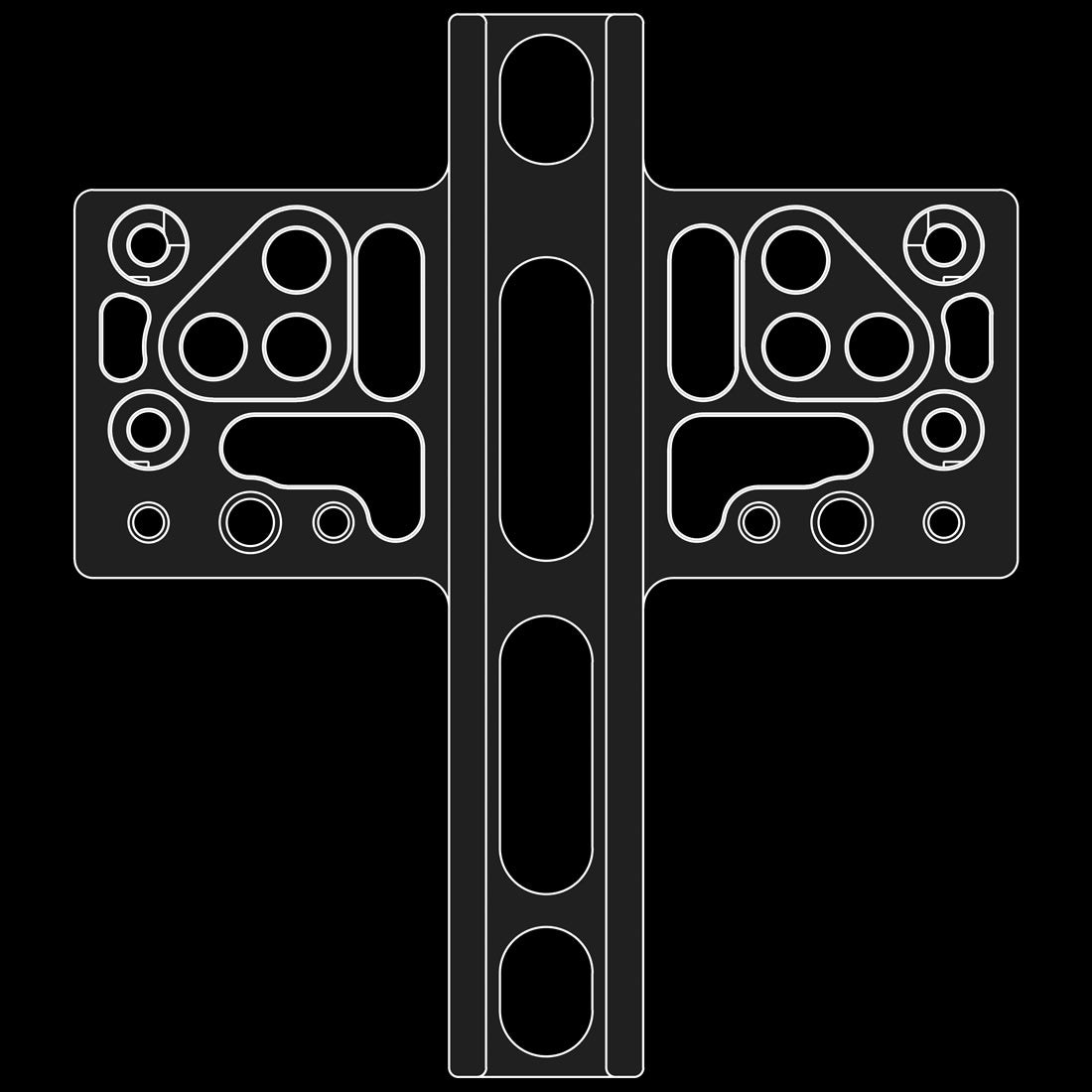

• Integrated MōVI dovetail
• Lightweight and extremely rigid
• Reversible and low profile
• 18x M4 threads
• 4x M4 through holes
• 2x ¼”-20 threads
• 6x ¼”-20 through holes
• CNC machined from high-grade aluminium billet
• RED DSMC2 — all models
• RED RANGER — all models
• RED V-RAPTOR-XL with RMI Spacer

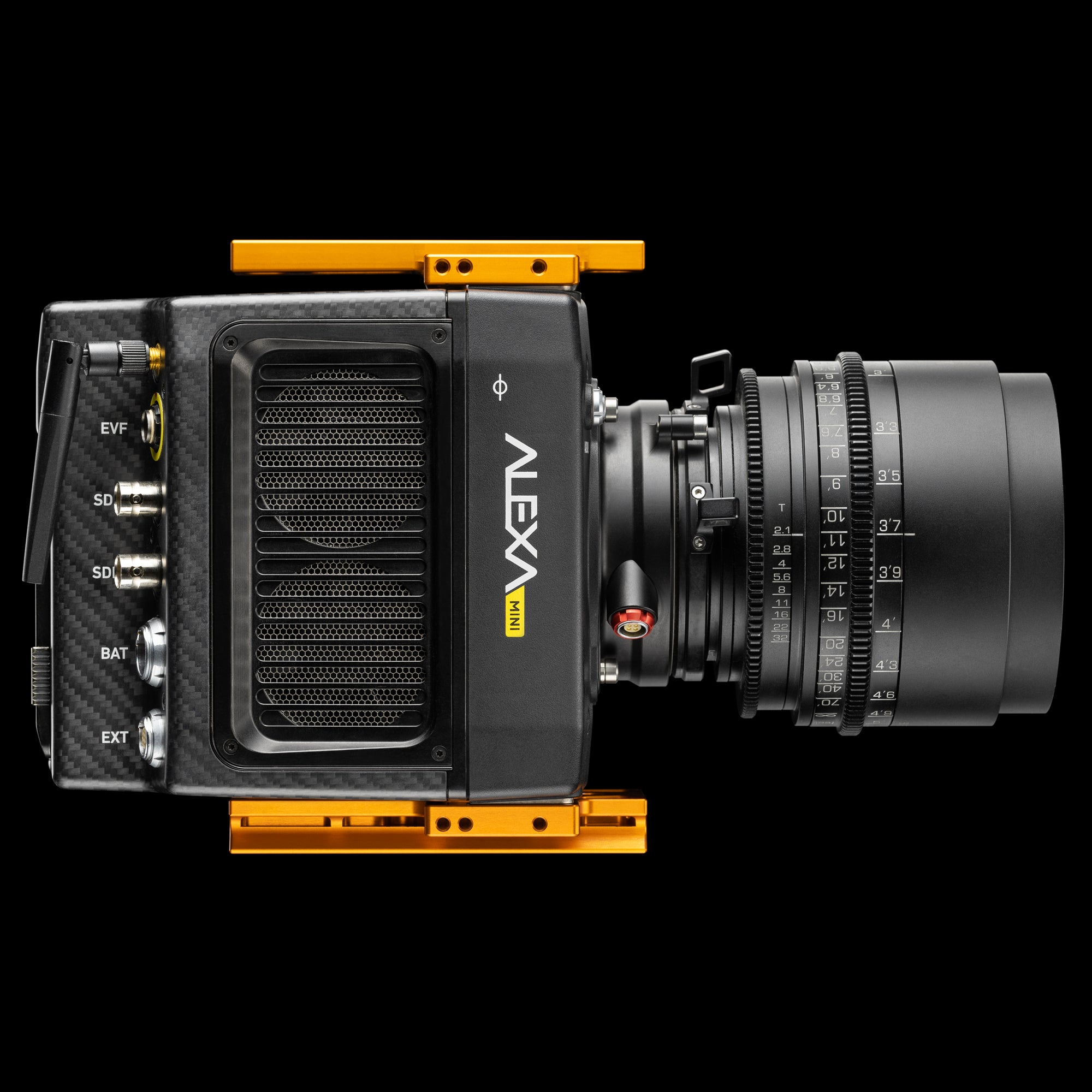

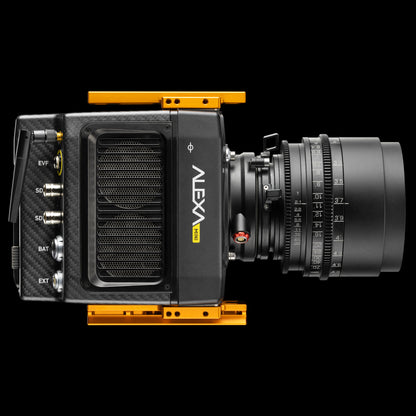

• ARRI ALEXA Mini + Mini LF
• ARRI ALEXA 35 with Adapter Plates
All of our Camera Top Plates feature a MōVI dovetail.

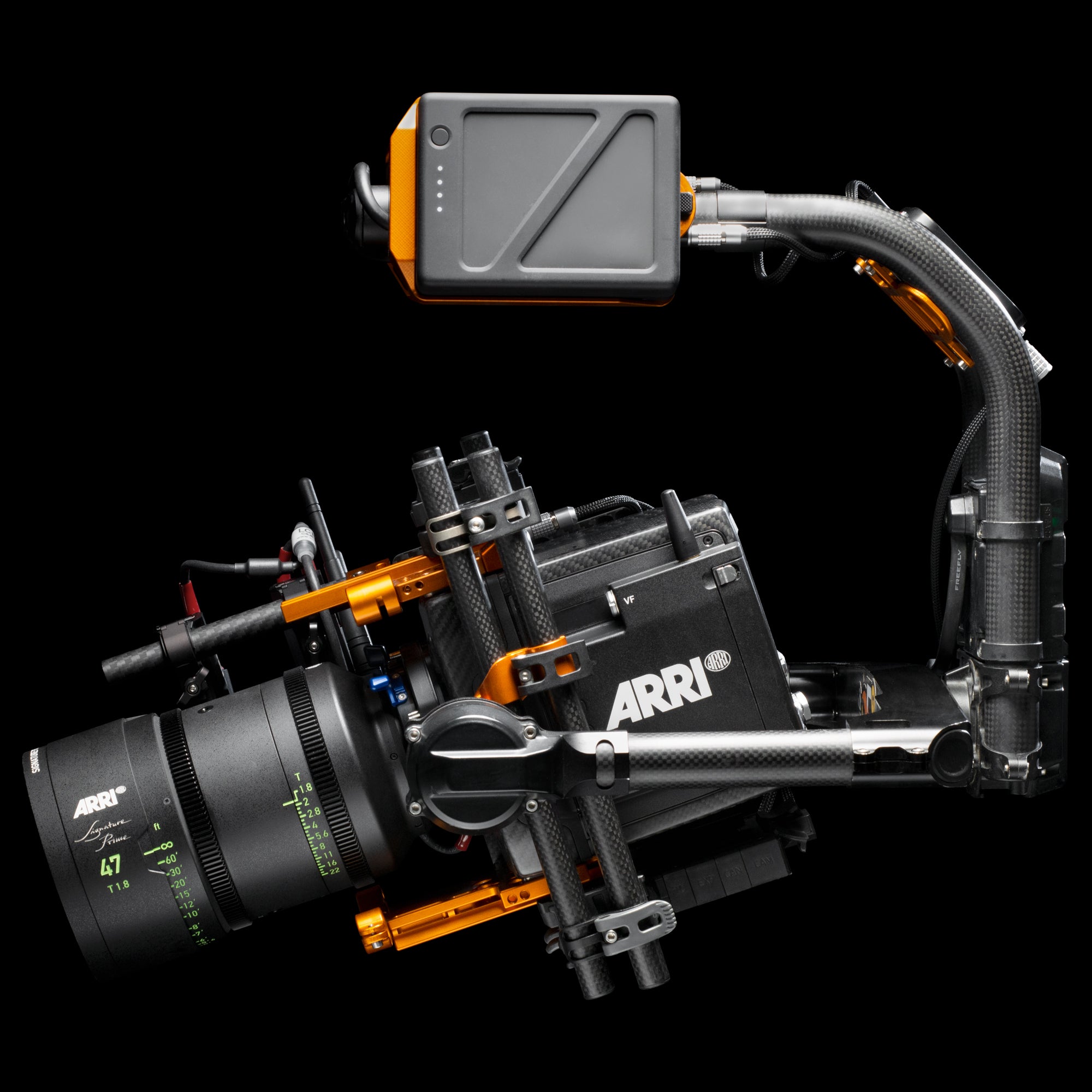

It enables you to slide your camera package into MōVI M5, M10, M15, MōVI Pro as well as Ronin 2 with this Adapter.

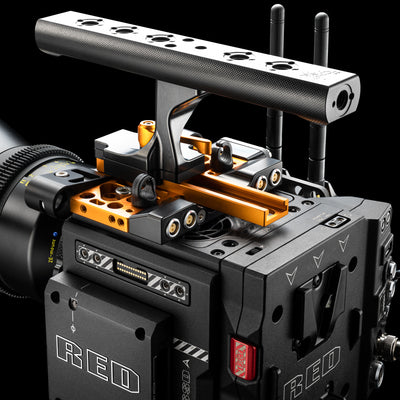

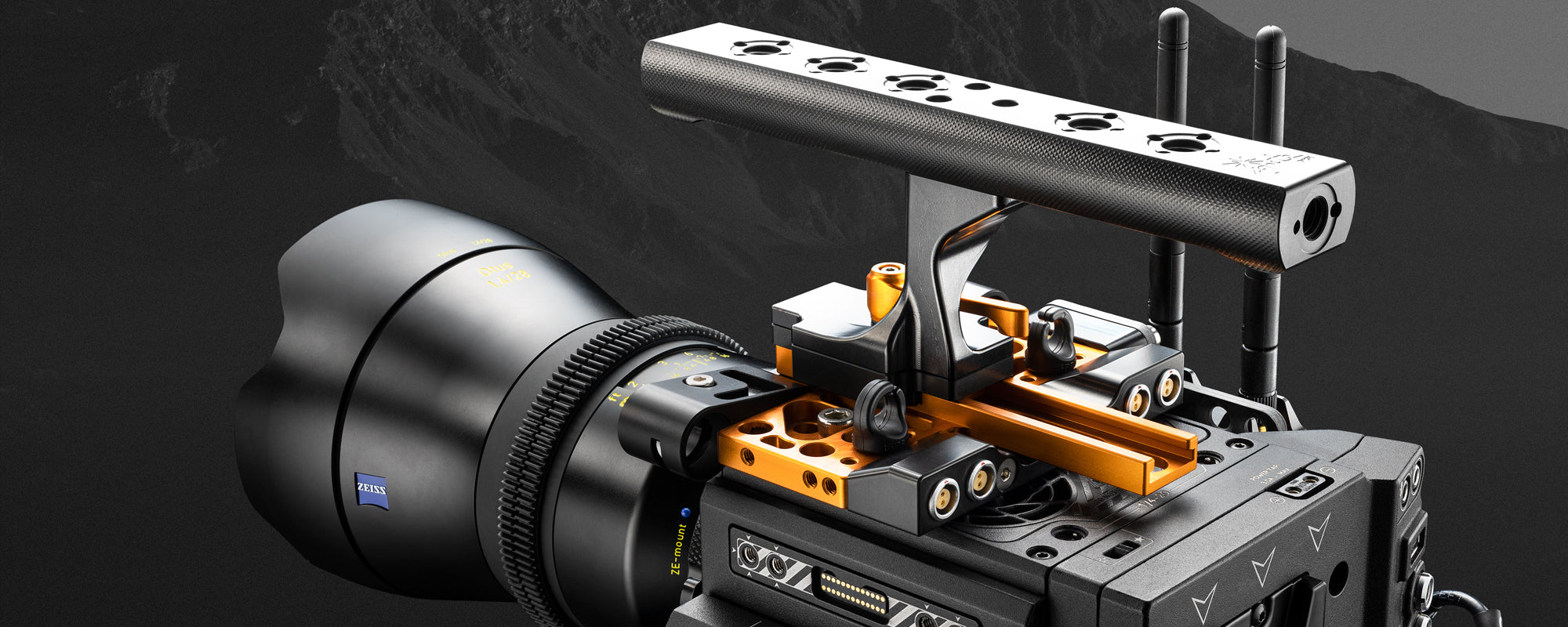

Furthermore, our Quick Release Top Handle slides directly into the dovetail ready for handheld and tripod modes.
The ratchet lever makes for easy mounting and position adjustments. No tools required!
Helping you refine the balance point!
Our Camera Top Plates are reversible allowing you to position the dovetail towards the front or rear of the camera.
And no twist!
Top Plate firmly mounts to your camera with either four M4 x 10mm or two ¼”-20 x ⅜" socket head cap screws, depending on model.

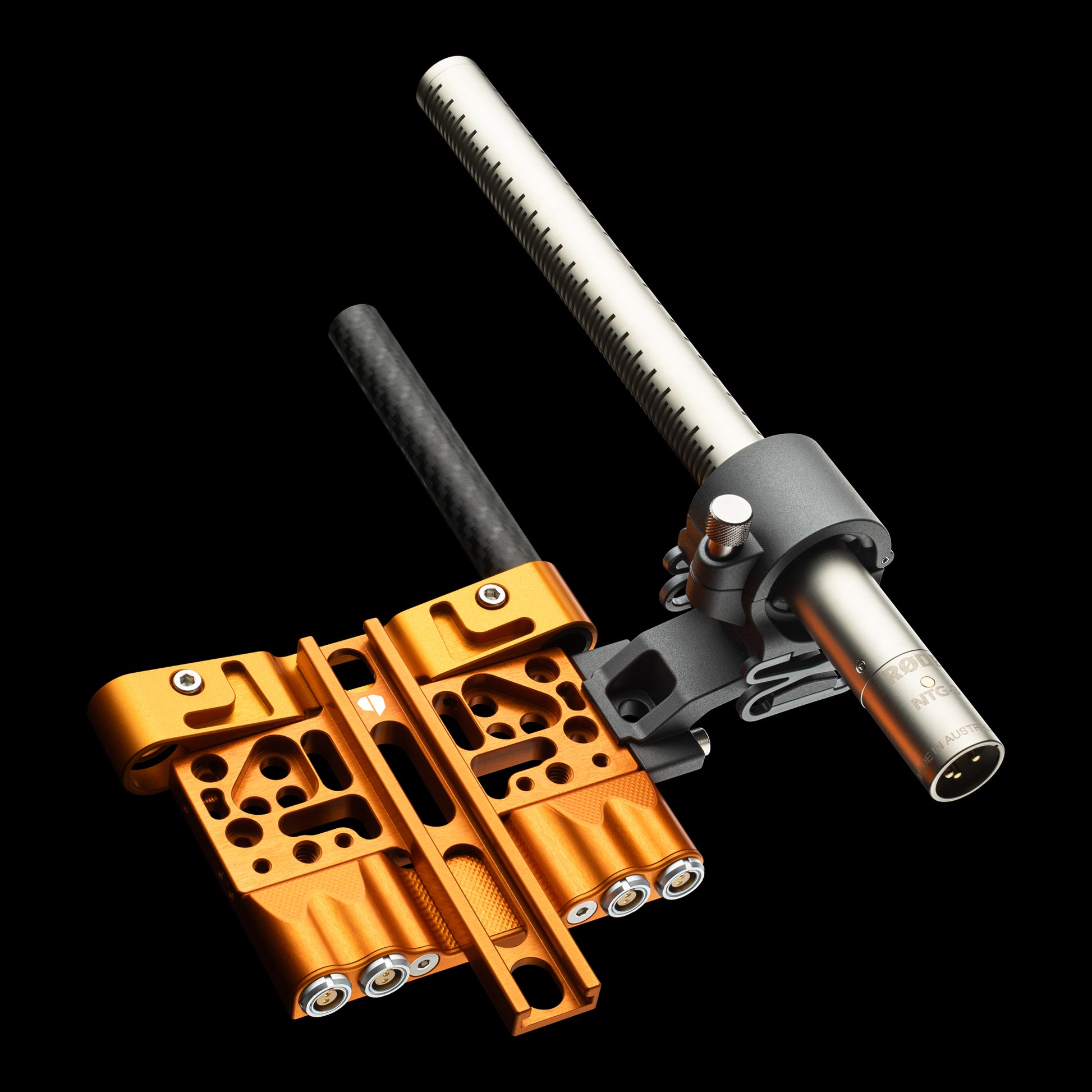

The accessories that mount to the front and rear faces of our Camera Top Plates are designed to fit neatly under the MōVI dovetail.
105mm Rod Mount supports 15mm rods for FIZ motors on both sides of the lens and works in tandem with our CineTape / Rangefinder mount.
Power Breakout is a 2-Pin Lemo power distribution module for your Teradek, EVF, monitor or FIZ.
This combination of parts creates an ultra rigid, low profile, feature filled package - ideal for handheld and tripod shooting - even better for sliding in and out of gimbal cages!
The side faces of Gimbal Mate and Camera Top Plate feature M4's which follow the ARRI MAP standard, allowing you to mount an ARRI RMB-3 and other accessories.

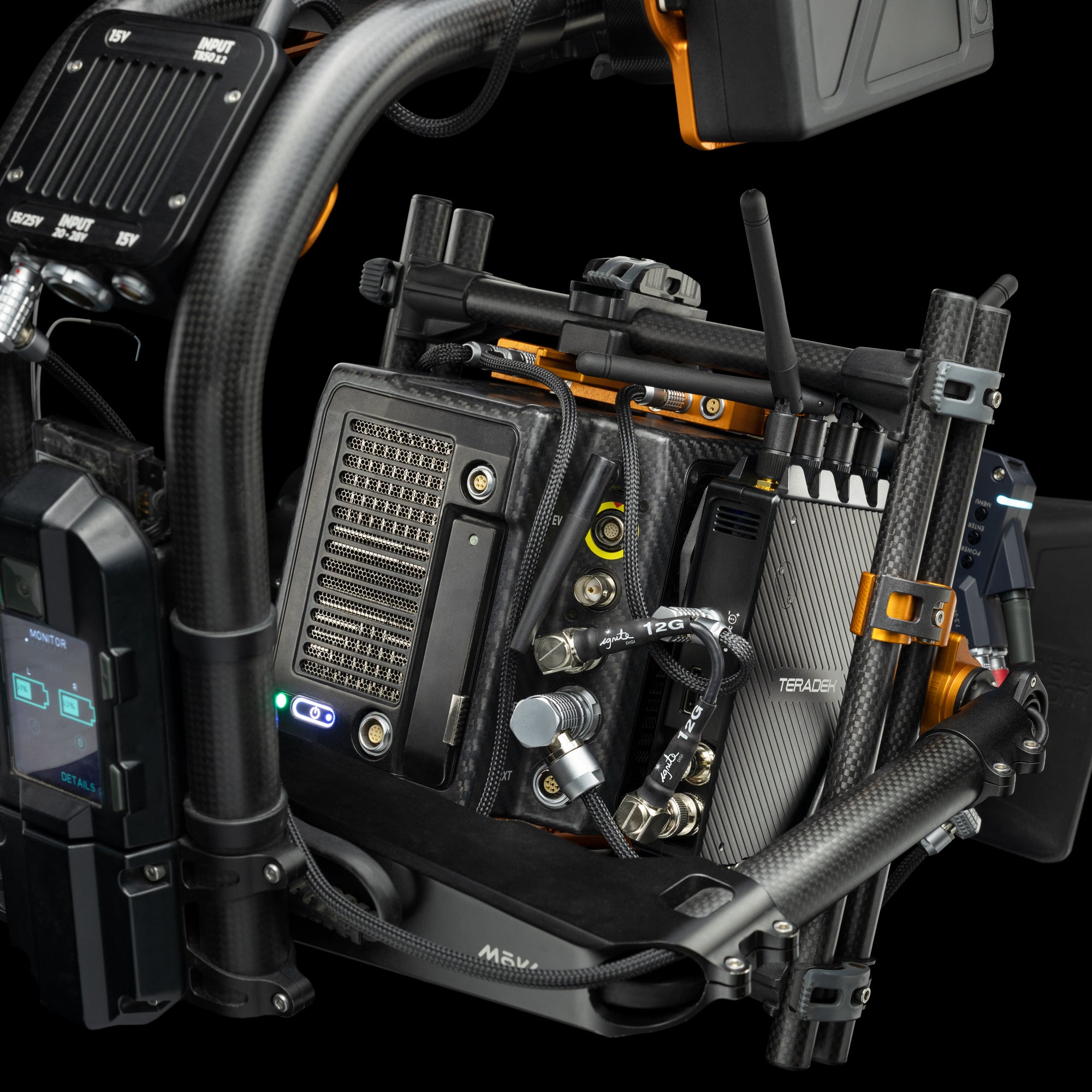

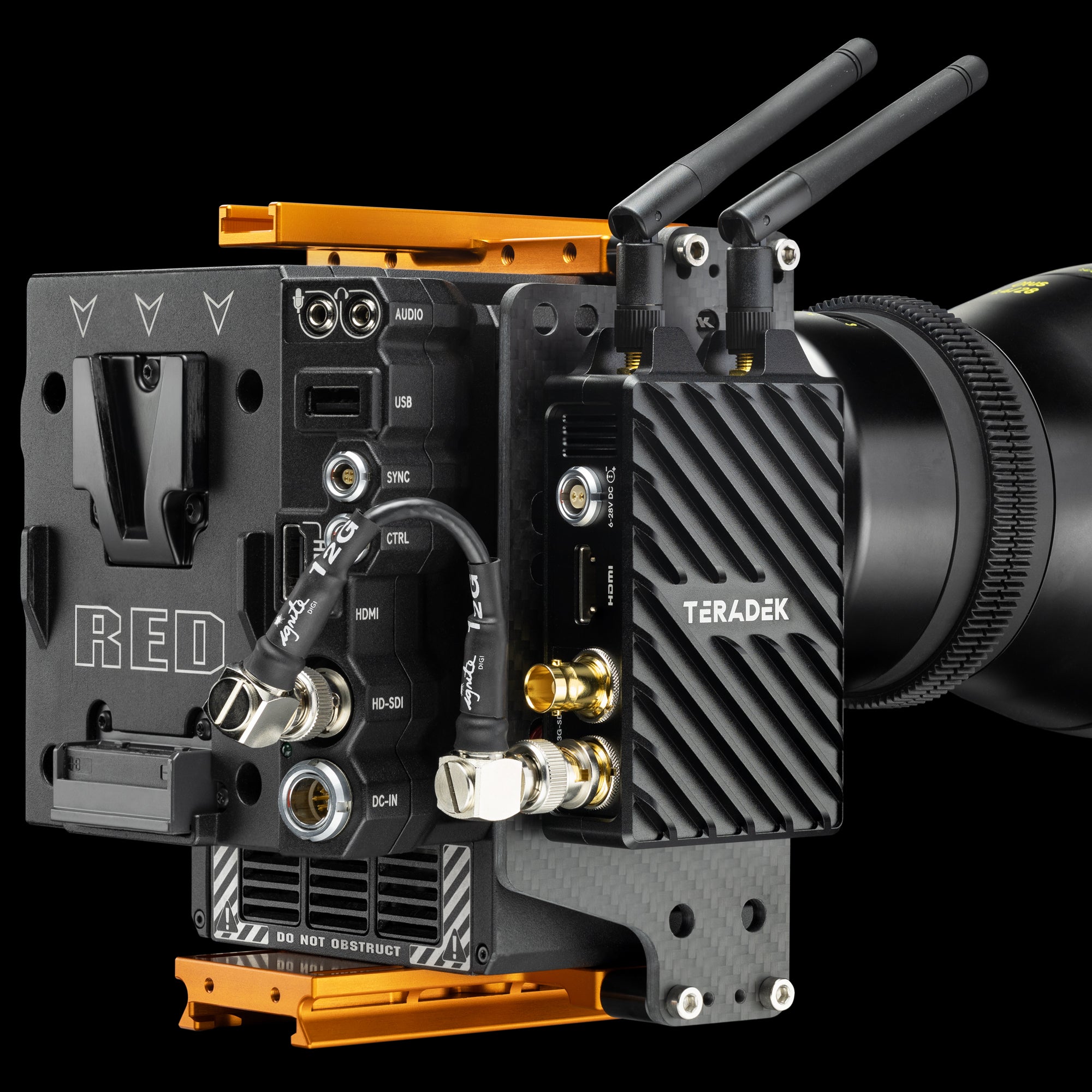

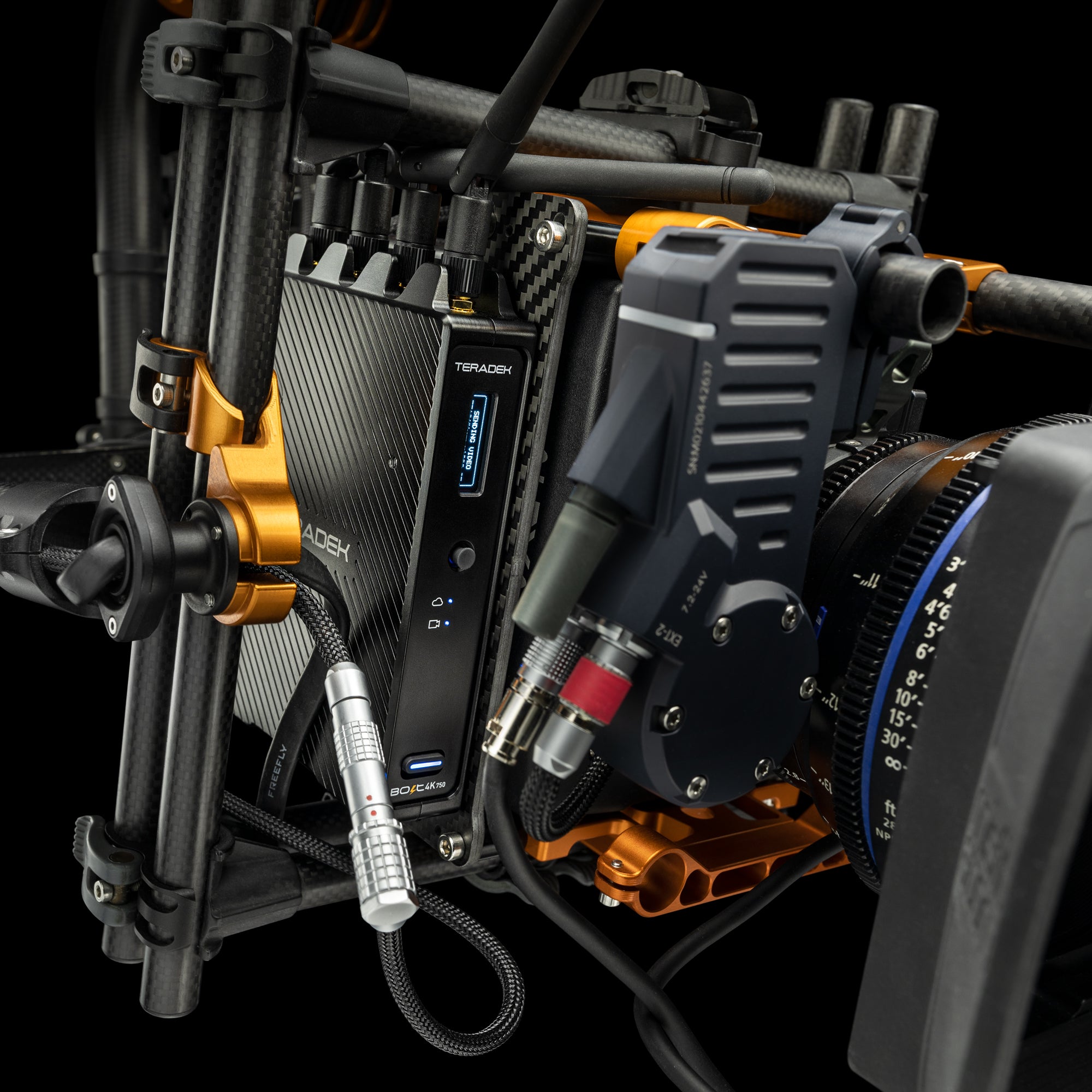

We use these M4 threads to mount our lightweight Carbon Side Plates.

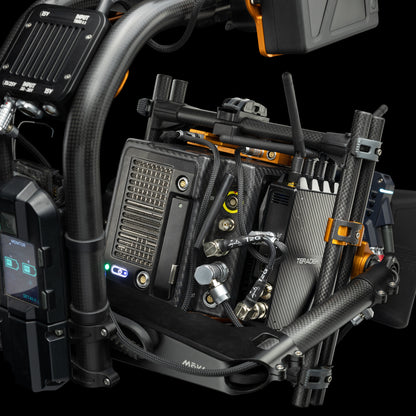

Ensure transmitters, MDR lens controllers and cables are neatly secured to the camera package!

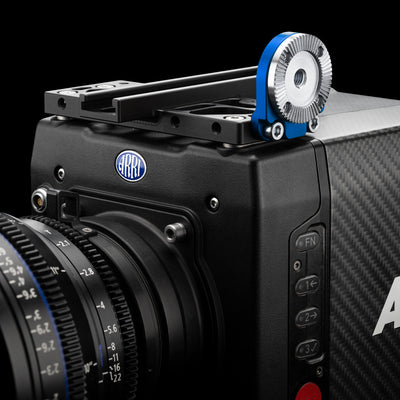

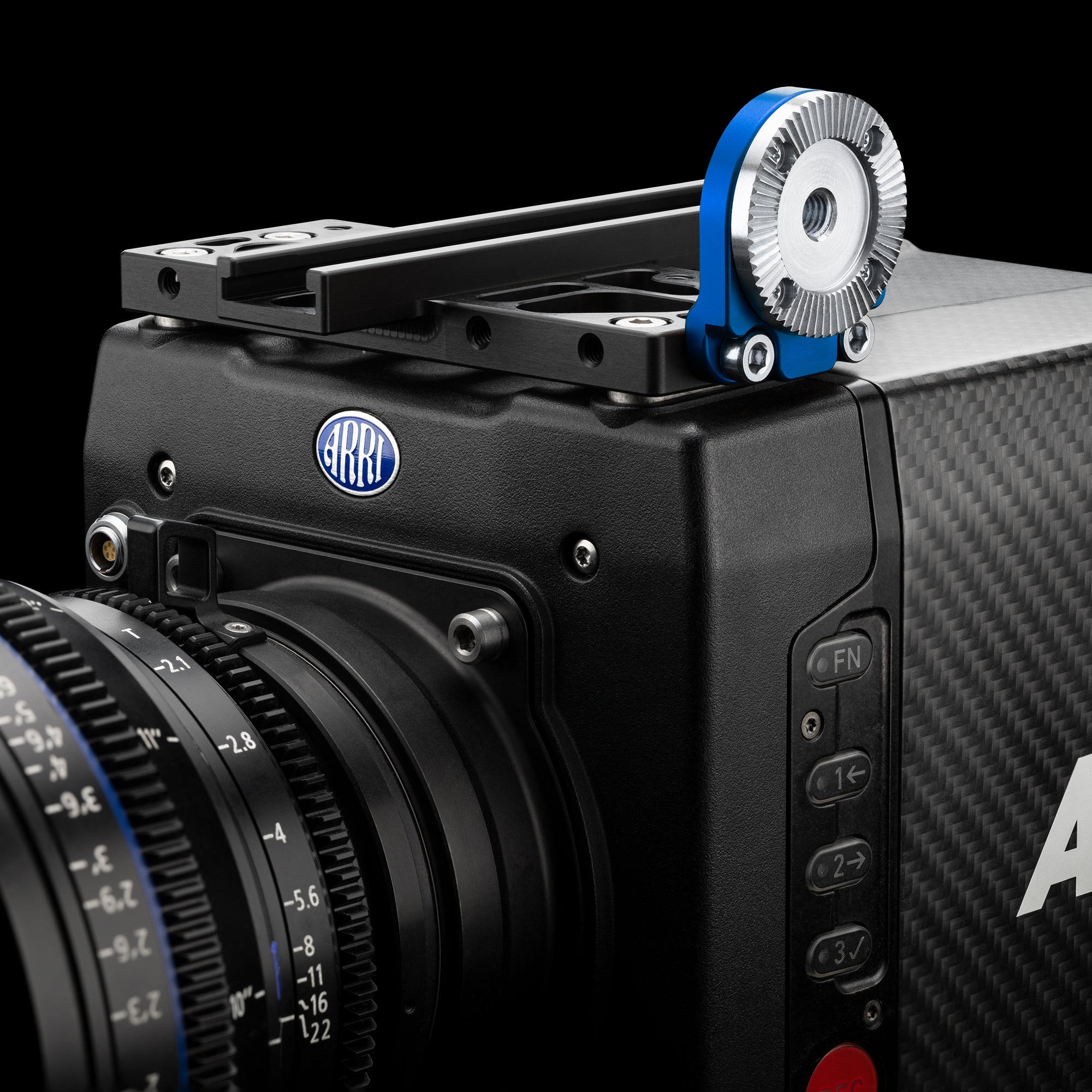

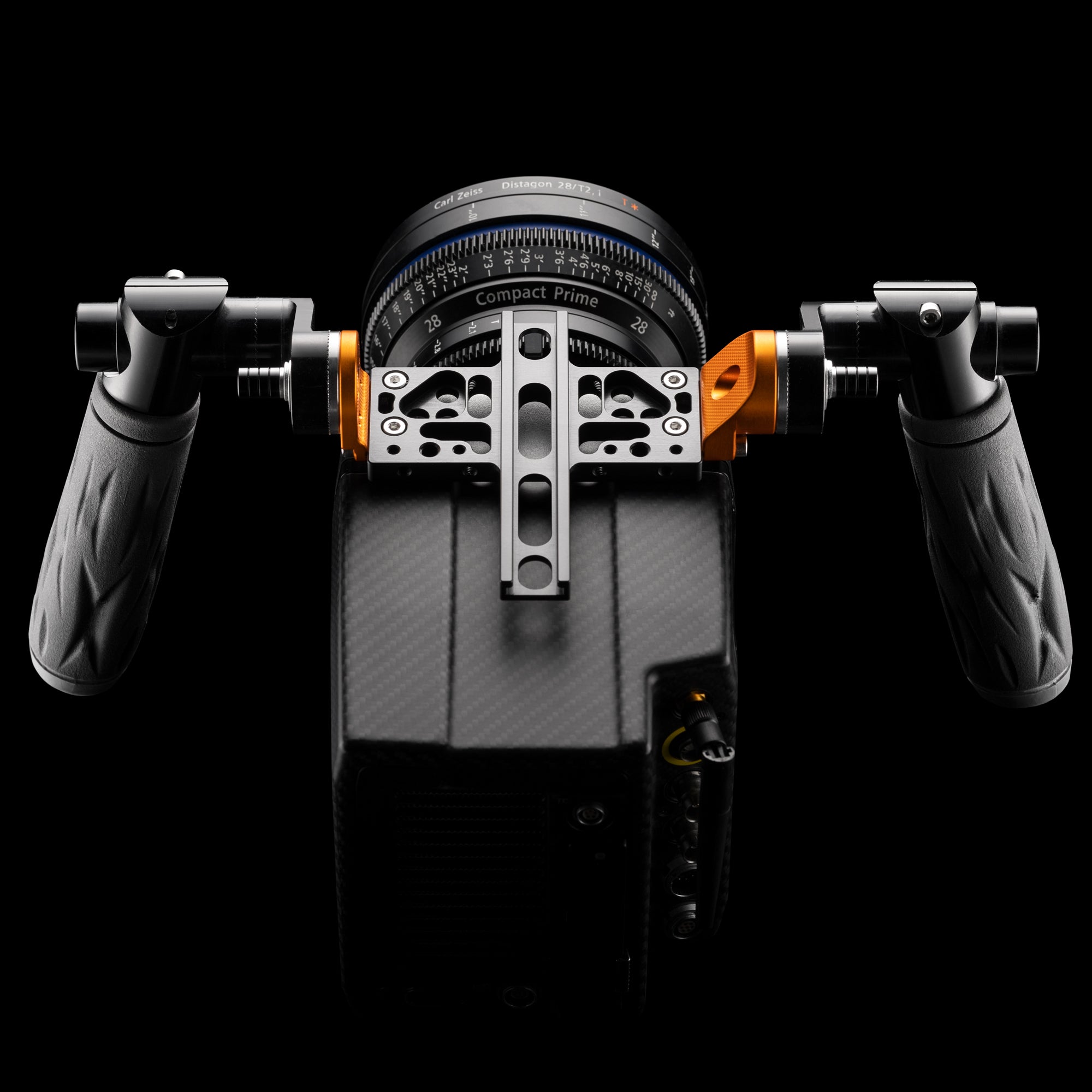

Attach your favourite handgrips in more places!
These adapters mount to our Camera Plates as well as ARRI MAP plates and side brackets.
Two sizes, four colours!
A combination of the accessories above enables you to Quick Mode Change 🔥
This means you'll be able transition the camera package between MōVI Pro, Ronin 2, handheld and tripod modes, without tools, in less than a minute!
Co-founder Tom Waugh takes you through the range of Ignite Digi accessories that makes this all possible ↓
MADE FROM
High-grade 6061-T651 aluminium billet
Hard anodised
SHIPS WITH
Twelve M4 x 10mm socket head cap screws
Six ¼”-20 x⅜" socket head cap screws
WEIGHT
2.64oz / 75g plate only
2.89oz / 82g with four M4 screws
2.96oz / 84g with two ¼”-20 screws
DIMENSIONS
4.52 x 4.0 x 0.55” / 115 x 102 x 14mm
